The utility model relates to the technical field of profiles, in particular to a new type of L plate palletizer, which solves the problem that in the prior art, in the production of air duct profiles, the transfer and stacking of L plate profiles has always been done manually. Problems that have not yet been done mechanically. A new type of L plate palletizer, including a placement platform, a top bracket arranged on the top of the placement platform, a boom connected to the bottom of the top bracket through a drive assembly, and the bottom side of the boom is connected with a plate through a folding telescopic hanger. Body, the bottom of the plate body is provided with several groups of suction cup assemblies, one side of the placing platform is provided with a conveying frame, the top of the conveying frame is placed with an L-shaped plate, and a conveyor belt is installed at the center of the top of the placing platform. The utility model has reasonable results, is convenient to automatically drive the L-shaped plates to move and stack, saves time and effort, and greatly improves the efficiency of stacking.

Description

A new type of L plate palletizer

technical field

The utility model relates to the technical field of profiles, in particular to a novel L plate palletizer.

Background technique

Profile refers to a solid straight bar with a certain cross-sectional shape and size after plastic processing. There are many varieties and specifications of profiles, and they are widely used, occupying a very important position in rolling production;

Throughout the production of air duct profiles today, the transfer and stacking of L-plate profiles has always been done manually, and the market has not yet done it mechanically.

Utility model content

The purpose of this utility model is to provide a new type of L-plate palletizer, which solves the problem of the prior art. Looking at the production of air duct profiles today, the transfer and stacking of L-plate profiles has always been done manually, and the market has not yet adopted it. The problem of mechanical completion.

In order to achieve the above object, the utility model adopts the following technical solutions:

A new type of L plate palletizer, including a placement platform, a top bracket arranged on the top of the placement platform, a boom connected to the bottom of the top bracket through a drive assembly, and the bottom side of the boom is connected by a folding telescopic hanger There is a plate body, the bottom of the plate body is provided with several sets of suction cup assemblies, one side of the placing table is provided with a conveying frame, the top of the conveying frame is placed with an L-shaped plate, and the top center of the placing table is installed There is a conveyor belt, and the top side of the placing table is provided with a dragging assembly.

Preferably, the conveying frame includes a top plate, two support frames symmetrically arranged on both sides of the bottom of the top plate, and several rotating rollers arranged horizontally on the top of the top plate, and each of the two ends of the rotating rollers is rotatably connected to the top of the top plate. installation parts.

Preferably, the drag assembly includes a placement plate connected to the top of the placement table through a vertical plate, a cylinder one installed on the top of the placement plate, a moving rod fixedly connected to the output end of the first cylinder, and a second cylinder installed on one side of the moving rod. The output end of the cylinder two passes through the moving rod through the sliding sleeve and is connected with a hook plate.

Preferably, the outer ring of the moving rod is slidably connected to a sliding sleeve, and the bottom of the sliding sleeve is connected to a vertical rod fixedly connected to the top of the placing table by bolts.

Preferably, one side of the top bracket is provided with a chute compatible with the boom, the top center of the top bracket is fixedly connected with a toothed plate, and the top of the chute is provided with a through hole adapted to the toothed plate. groove, the top center of the top bracket is provided with a horizontal groove communicating with the through groove, the inside of the horizontal groove is provided with a gear plate, and both sides of the gear plate are rotatably connected with a rotating seat fixedly connected with the top bolt of the top bracket One side of the rotating seat is provided with a motor connected to the top of the top bracket through the mounting seat, and the output shaft of the motor passes through the rotating seat through a shaft sleeve and is connected to one side of the gear plate in transmission.

Preferably, four corners at the bottom of the top bracket are fixedly connected with supporting columns, and the bottom end of each supporting column is connected with the top of the placing platform.

The utility model at least has the following beneficial effects:

It is set by placing table, top bracket, boom, folding telescopic hanger, plate body, suction cup assembly, conveying frame, conveyor belt and dragging assembly. During stacking operation, L-shaped plates are transported from the conveying frame to a position close to the placing table , by dragging the component to drive the L-shaped plate to move to the conveyor belt, when the conveyor belt drives the L-shaped plate to move to the center position, the folding telescopic hanger drives the plate to move down and move through the suction cup assembly to absorb the L-shaped plate, and through the boom Cooperate with the driving component to drive the L-shaped sheet to move. When moving to the stacking position, the L-shaped sheet can be placed in the stacking position through the cooperation of the folding telescopic hanger and the suction cup assembly. The result is reasonable and it is convenient to automatically drive the L-shaped sheet. Moving and stacking saves time and effort, greatly improving the efficiency of stacking.

The utility model also has the following beneficial effects:

During the stacking operation, the L-shaped sheet is conveyed from the conveyor frame to a position close to the placement table, and the L-shaped sheet is driven to move to the conveyor belt by the dragging component, and the cylinder 1 drives the moving rod to move to the position close to the L-shaped sheet, and the cylinder 2 is opened. Cylinder 2 drives the hook plate to move. When moving to the vertical end of the L-shaped sheet, the L-shaped sheet is hooked to the conveyor belt through the movement of the moving rod driven by the cylinder 1. When the conveyor belt drives the L-shaped sheet to move to the center position, it is folded and stretched. The hanger drives the plate body to move down, and the L-shaped plate is adsorbed by the suction cup assembly, and the L-shaped plate is driven to move through the cooperation of the boom and the drive assembly. The motor drives the gear plate to rotate, and the cooperation between the gear plate and the tooth plate drives the boom to move Sliding in the chute, when moving to the stacking position, the L-shaped sheet can be placed in the stacking position through the cooperation of the folding telescopic hanger and the suction cup assembly, the result is reasonable, and it is convenient to automatically drive the L-shaped sheet to move and stack, saving time Labor saving, greatly improving the efficiency of stacking.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the utility model, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments. Obviously, the accompanying drawings in the following description are some embodiments of the utility model. For Those of ordinary skill in the art can also obtain other drawings based on these drawings without making creative efforts.

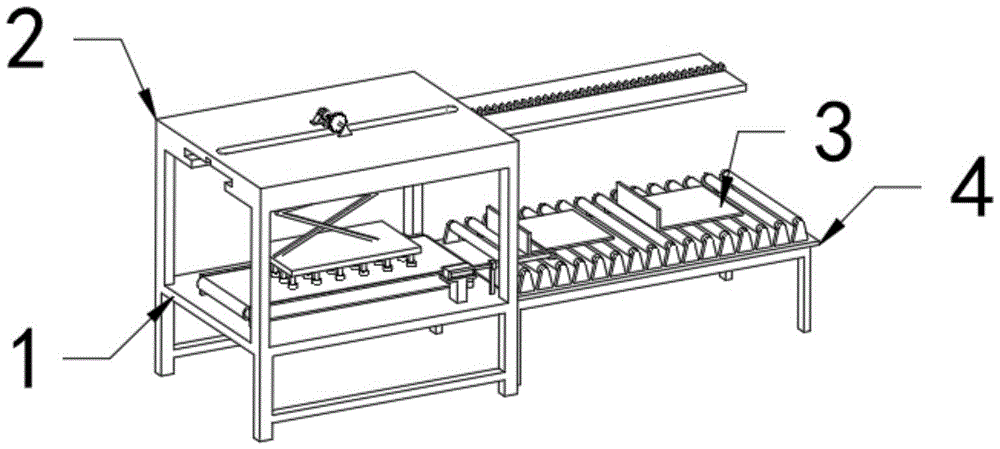

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structure schematic diagram of the utility model rotating stick;

Fig. 3 is a structural schematic diagram of the utility model mobile rod;

Fig. 4 is a schematic diagram of the boom structure of the utility model.

In the figure: 1. Placement platform; 2. Top bracket; 3. L-shaped plate; 4. Conveyor frame; 5. Mounting piece; 6. Rotary stick; 7. Support frame; 1. Cylinder 1; 11. Sliding sleeve; 12. Moving rod; 13. Hook plate; 14. Cylinder 2; 15. Upright rod; 16. Plate body; 20. Mounting seat; 21. Tooth plate; 22. Boom; 23. Conveyor belt; 24. Suction cup assembly.

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Referring to Figures 1-4, a new type of L plate palletizer includes a placement platform 1, a top bracket 2 arranged on the top of the placement platform 1, a boom 22 connected to the bottom of the top bracket 2 through a drive assembly, and the boom 22 One side of the bottom of the board is connected with a plate body 16 through a folding telescopic hanger 17, and several groups of suction cup assemblies 24 are arranged on the bottom of the plate body 16, and a conveying frame 4 is arranged on one side of the placing table 1, and an L-shaped frame is placed on the top of the conveying frame 4. Plate 3, a conveyor belt 23 is installed at the center of the top of the placing table 1, and a drag assembly is provided on one side of the top of the placing table 1, specifically, through the placing table 1, the top bracket 2, the boom 22, and the folding telescopic hanger 17 , plate body 16, sucker assembly 24, conveyor frame 4, conveyor belt 23, and drag assembly are set, during stacking operation, the L-shaped plate 3 is transported from the conveyor frame 4 to a position close to the placement table 1, and the L-shaped plate is driven by the drag assembly. L-shaped plate 3 moves to the conveyor belt 23, and when the conveyor belt 23 drives the L-shaped plate 3 to move to the center position, the folding telescopic hanger 17 drives the plate body 16 to move down and moves through the suction cup assembly 24 to absorb the L-shaped plate 3. The cooperation between the arm 22 and the drive assembly drives the L-shaped sheet 3 to move. When moving to the stacking position, the L-shaped sheet 3 can be placed in the stacking position through the cooperation of the folding telescopic hanger 17 and the suction cup assembly 24. The result is reasonable and easy to realize. Automatically drives the L-shaped plates 3 to move and stack, saving time and labor, and greatly improving the efficiency of stacking.

Further, the conveyor frame 4 includes a top plate, two support frames 7 symmetrically arranged on both sides of the bottom of the top plate, and several rotating rollers 6 horizontally arranged on the top of the top plate. Mounting piece 5 for top connection.

Further, the drag assembly includes a placement plate 9 connected to the top of the placement table 1 through a riser 8, a cylinder one 10 installed on the top of the placement plate 9, a moving rod 12 fixedly connected to the output of the cylinder one 10, and a moving rod installed on the moving rod. The cylinder two 14 on 12 sides, the output end of cylinder two 14 runs through the moving rod 12 through the sliding sleeve and is connected with the hook plate 13.

Further, the outer ring of the moving rod 12 is slidably connected with a sliding sleeve 11 , and the bottom of the sliding sleeve 11 is connected with a vertical rod 15 fixedly connected with the top of the placing table 1 by bolts.

Further, one side of the top bracket 2 is provided with a chute compatible with the boom 22, the top center of the top bracket 2 is fixedly connected with a tooth plate 21, and the top of the chute is provided with a chute suitable for the tooth plate 21. Through groove, the top center of the top bracket 2 is provided with a transverse groove communicating with the through groove, and the inside of the transverse groove is provided with a gear plate 18, and both sides of the gear plate 18 are rotatably connected with a rotating shaft fixedly connected with the top bolt of the top support 2. Seat, one side of the rotating seat is provided with a motor 19 connected to the top of the top bracket 2 through the mounting seat 20, and the output shaft of the motor 19 passes through the rotating seat and a side transmission connection of the gear plate 18 through the shaft sleeve.

Further, the bottom four corners of the top bracket 2 are fixedly connected with support columns, and the bottom end of each support column is connected with the top of the placing platform 1 .

To sum up: during the stacking operation, the L-shaped plate 3 is transported from the conveyor frame 4 to a position close to the placement table 1, and the L-shaped plate 3 is driven to move to the conveyor belt 23 by the dragging component, and the cylinder 10 drives the moving rod 12 Move to the position close to the L-shaped plate 3, open the cylinder two 14, the cylinder two 14 drives the hook plate 13 to move, when moving to the position of the vertical end of the L-shaped plate 3, the cylinder one 10 drives the moving rod 12 to move the L-shaped plate 3 Hook to the conveyor belt 23, when the conveyor belt 23 drives the L-shaped plate 3 to move to the center position, the folding telescopic hanger 17 drives the plate body 16 to move down and move through the suction cup assembly 24 to absorb the L-shaped plate 3, and the boom 22 and The cooperation of the driving components drives the L-shaped plate 3 to move, the motor 19 drives the gear plate 18 to rotate, and the cooperation between the gear plate 18 and the tooth plate 21 drives the boom 22 to slide in the chute. With the cooperation of the frame 17 and the suction cup assembly 24, the L-shaped sheet 3 can be placed in the stacking position. The result is reasonable, and it is convenient to automatically drive the L-shaped sheet 3 to move and stack, saving time and effort, and greatly improving the stacking efficiency.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions describe only the principle of the utility model. There will be various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A novel L plate stacker, characterized in that it comprises: The placement table (1), the top bracket (2) arranged on the top of the placement table (1), the boom (22) connected to the bottom of the top bracket (2) through the drive assembly, the bottom of the boom (22) One side is connected with plate body (16) by folding telescopic hanger (17), and the bottom of described plate body (16) is provided with several groups of suction cup assemblies (24), and one side of described placement platform (1) is provided with conveying frame (4), the top of the delivery frame (4) is placed with an L-shaped plate (3), the top center of the placement table (1) is equipped with a conveyor belt (23), and the placement table (1) A dragging component is set on the top side. 2. A kind of novel L sheet material palletizer according to claim 1, is characterized in that, conveying frame (4) comprises top plate, two support frames (7) that are symmetrically arranged on top plate bottom both sides and several horizontal The rotating rollers (6) arranged on the top of the top plate, the two ends of each of the rotating rollers (6) are rotatably connected with the mounting pieces (5) connected to the top of the top plate. 3. A kind of novel L sheet material palletizer according to claim 1, is characterized in that, dragging assembly comprises the placement plate (9) that is connected with the top of placement table (1) by riser (8), is installed on Place the cylinder one (10) on the top of the plate (9), the moving rod (12) fixedly connected to the output end of the cylinder one (10) and the cylinder two (14) installed on one side of the moving rod (12), the cylinder two ( 14) the output end is connected with the hook plate (13) through the sliding sleeve through the moving bar (12). 4. A kind of novel L plate palletizer according to claim 3, is characterized in that, the outer ring of described moving bar (12) is slidably connected with sliding sleeve (11), and the bottom of described sliding sleeve (11) A vertical rod (15) fixedly connected with the top bolt of the placing table (1) is connected. 5. A kind of novel L sheet material palletizer according to claim 1, is characterized in that, one side of described top bracket (2) is provided with the chute that is matched with boom (22), and described top The top center of the support (2) is fixedly connected with a toothed plate (21), the top of the chute is provided with a through groove that is compatible with the toothed plate (21), and the top center of the top bracket (2) is provided with a The horizontal groove connected by the through groove, the inside of the horizontal groove is provided with a gear plate (18), and both sides of the gear plate (18) are rotatably connected with a rotating seat fixedly connected with the top bracket (2) top bolt, and the rotating seat One side is provided with a motor (19) connected to the top of the top bracket (2) through the mounting base (20), and the output shaft of the motor (19) is connected to one side of the gear plate (18) through a shaft sleeve through the rotating seat . 6. A kind of novel L plate palletizer according to claim 1, it is characterized in that, four corners of the bottom of described top bracket (2) are all fixedly connected with support column, the bottom end of each support column All are connected with the top of placing platform (1).
