Abstract

The utility model discloses a silica gel cutting machine, which comprises a base plate, the base plate is provided with two groups of conveying assemblies, each conveying assembly comprises two side plates fixedly arranged at the top of the base plate, two conveying rollers are movably arranged between the two side plates, the top of the base plate is fixedly provided with a supporting plate, the top of the supporting plate is fixedly provided with a cutting plate, the right side of the cutting plate is fixedly provided with a guide plate, the outer side of the cutting plate is provided with a cutting assembly, the inside of the cutting assembly is provided with an auxiliary assembly, and the utility model relates to the technical field of silica gel cutting; this silica gel guillootine moves down through the pneumatic cylinder drive movable block, controls two depression bars and touches the silica gel piece earlier, and the movable block continues to move down, decides the silica gel piece through cutting the sword, and the depression bar of both sides can play the fixed action when cutting, prevents to lead to silica gel to take place to remove under the effect of silica gel elasticity to it is better to make the effect of cutting.

Description

Silica gel guillootine

Technical Field

The utility model relates to a silica gel cuts technical field, specifically is a silica gel guillootine.

Background

Silica gel has good flexibility, tension, excellent insulativity and other properties, so that the silica gel is widely applied to living products, such as silica gel pads, silica gel cup pads and other products, and a silica gel slitter is equipment for cutting the silica gel.

Silica gel slitter is through the reciprocating motion who cuts the sword, mutually supports the silica gel strip that the width is unanimous with silica gel mobile device's step-by-step transportation, and silica gel has certain elasticity and ductility, when cutting through cutting the sword is reciprocal, can lead to silica gel to take place the skew in the effect lower position of cutting sword pressure, probably leads to cutting out silica gel strip parameter nonconformity, and because the ductility of silica gel, the bottom of silica gel can not be decided totally when probably leading to cutting.

Therefore, the utility model provides a silica gel guillootine to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides a silica gel guillootine has solved above-mentioned problem.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a silica gel guillootine, includes the bottom plate, the installation of bottom plate has two sets of conveyor components, conveyor component includes two fixed mounting at the curb plate at bottom plate top, and movable mounting has two conveying rollers between two curb plates, the top fixed mounting of bottom plate has the backup pad, the top fixed mounting of backup pad has the cutting board, the right side fixed mounting of cutting board has the guide board, the outside of cutting board is provided with cutting assembly, cutting assembly's inside has and is provided with auxiliary assembly.

Preferably, the left side conveying roller corresponds to the right side conveying roller in position, the height of the gap between the upper conveying roller and the lower conveying roller is slightly higher than that of the cutting plate, and the right side conveying roller is close to the left side of the cutting plate.

Preferably, the cutting assembly comprises a hydraulic cylinder, a moving block, a spring rod, a pressure rod and a cutting knife, the hydraulic cylinder is fixedly installed at the top of the bottom plate and located on the front side and the rear side of the cutting plate, and the moving block is fixedly installed between the tops of the hydraulic cylinder.

Preferably, the cutting knife is arranged at the top of the moving block, the spring rod is fixedly installed at the bottom of the moving block and located on the left side and the right side of the cutting knife, and the pressing rod is fixedly installed at the bottom of the spring rod.

Preferably, the auxiliary assembly comprises a first sliding groove, a second sliding groove, a sliding block and an electric push rod, the first sliding groove and the second sliding groove are both arranged inside the moving block, the bottom of the first sliding groove is communicated with the bottom of the moving block, and the second sliding groove is not communicated with the bottom of the moving block.

Preferably, the cutting knife is composed of two parts, the cutting knife is connected inside the first sliding groove in a sliding mode, the sliding blocks are fixedly installed on two sides of the cutting knife, and the electric push rods are fixedly installed between the sliding blocks and the inside of the moving block.

Advantageous effects

The utility model provides a silica gel guillootine. Compared with the prior art, the method has the following beneficial effects:

1. this silica gel guillootine moves down through the pneumatic cylinder drive movable block, controls two depression bars and touches the silica gel piece earlier, and the movable block continues to move down, decides the silica gel piece through cutting the sword, and the depression bar of both sides can play the fixed action when cutting, prevents to lead to silica gel to take place to remove under the effect of silica gel elasticity to it is better to make the effect of cutting.

2. This silica gel guillootine, through moving down completely cutting the back at the sword that cuts, the electricity push rod can start, move two combination together's cutting sword to the outside through electricity push rod and slider to carry out the secondary to the silica gel piece and cut, will cut the sword through the electricity push rod after cutting and reset, cut twice with the translation through pushing down of cutting the sword, can greatly reduced the silica gel bottom cut the incomplete condition.

Drawings

Fig. 1 is a perspective view of the external structure of the present invention;

FIG. 2 is a perspective view of the partial structure of the present invention

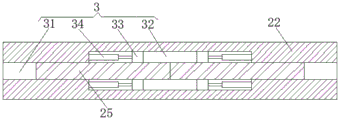

Fig. 3 is a sectional view showing the internal structure of the moving block of the present invention.

In figure 1, a base plate; 2. cutting the assembly; 21. a hydraulic cylinder; 22. a moving block; 23. a spring lever; 24. a pressure lever; 25. cutting knife; 3. an auxiliary component; 31. a first chute; 32. a second chute; 33. a slider; 34. an electric push rod; 4. a side plate; 5. a conveying roller; 6. a support plate; 7. cutting the board; 8. a guide plate.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention will be further described in detail with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

The following detailed description is provided for the specific embodiments of the present invention.

Please refer to fig. 1-2, for the utility model provides an embodiment, a silica gel guillootine, including bottom plate 1, its characterized in that: the conveying device is characterized in that two groups of conveying assemblies are arranged on a bottom plate 1, each conveying assembly comprises two side plates 4 fixedly arranged on the top of the bottom plate 1, two conveying rollers 5 are movably arranged between the two side plates 4, a supporting plate 6 is fixedly arranged on the top of the bottom plate 1, a cutting plate 7 is fixedly arranged on the top of the supporting plate 6, a guide plate 8 is fixedly arranged on the right side of the cutting plate 7, a cutting assembly 2 is arranged on the outer side of the cutting plate 7, and an auxiliary assembly 3 is arranged inside the cutting assembly 2;

the left conveying roller 5 corresponds to the right conveying roller 5 in position, the height of a gap between the upper conveying roller 5 and the lower conveying roller 5 is slightly higher than that of the cutting plate 7, the right conveying roller 5 is close to the left side of the cutting plate 7, power is provided for the conveying rollers 5 by a stepping motor arranged outside, a silica gel sheet is conveyed to the position above the cutting plate 7 through the conveying rollers 5, a roller is arranged on a guide plate 8, the cut silica gel sheet can be conveniently moved into an external collecting device, and the stepping motor can realize stepping movement of the silica gel sheet, so that cutting is facilitated;

the cutting assembly 2 comprises a hydraulic cylinder 21, a moving block 22, a spring rod 23, a pressure rod 24 and a cutting knife 25, the hydraulic cylinder 21 is fixedly installed at the top of the base plate 1 and located on the front side and the rear side of the cutting plate 7, the moving block 22 is fixedly installed between the tops of the hydraulic cylinder 21, the cutting knife 25 is arranged at the top of the moving block 22, the spring rod 23 is fixedly installed at the bottom of the moving block 22 and located on the left side and the right side of the cutting knife 25, the pressure rod 24 is fixedly installed at the bottom of the spring rod 23, the conveying frequency of the conveying roller 5 is the same as the cutting frequency of the cutting knife 25, after the conveying roller 5 conveys, the cutting knife 25 starts cutting, the conveying roller 5 continues conveying after cutting is completed, the action is repeated all the time, the moving block 22 is driven to move downwards through the hydraulic cylinder 21 during cutting, the left pressure rod 24 and the right pressure rod 24 firstly contact the silica gel sheet, the moving block 22 continues moving downwards, the silica gel sheet is cut through the cutting knife 25, the pressure rods 24 on the two sides can play a fixing role during cutting, the effect is prevented from being caused by the action of the elasticity of the silica gel, the silica gel is prevented from moving to the pressing plate, the inner side of a guide plate after cutting, the silica gel is collected, the surface of the silica gel spring rod 23, and the silica gel spring rod can effectively reduce the vibration of the layer of the rubber spring rod, and the rubber spring rod 24.

Please refer to fig. 1-3, as an embodiment of the present invention, the auxiliary assembly 3 includes a first chute 31, a second chute 32, a slider 33 and an electric push rod 34, the first chute 31 and the second chute 32 are all set inside the moving block 22, the bottom of the first chute 31 is communicated with the bottom of the moving block 22, the bottom of the second chute 32 is not communicated with the bottom of the moving block 22, the cutting blade 25 is slidably connected inside the first chute 31, the slider 33 is fixedly mounted on both sides of the cutting blade 25, the electric push rod 34 is fixedly mounted between the slider 33 and the inside of the moving block 22, after the cutting blade 25 completely moves down to cut, the electric push rod 34 starts, the two combined cutting blades 25 move outward through the electric push rod 34 and the slider 33, thereby performing secondary cutting on the silica gel sheet, after cutting, the cutting blade 25 resets through the electric push rod 34, the downward pressing and the translational twice cutting through the cutting blade 25 cut, which can greatly reduce the incomplete cutting condition of the silica gel bottom.

And those not described in detail in this specification are well within the skill of those in the art.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a silica gel guillootine, includes bottom plate (1), its characterized in that: the utility model discloses a cutting machine, including bottom plate (1), bottom plate (1) installs two sets of conveyor components, conveyor components includes curb plate (4) at bottom plate (1) top two fixed mounting have two conveying roller (5) between two curb plate (4), the top fixed mounting of bottom plate (1) has backup pad (6), the top fixed mounting of backup pad (6) has cutting plate (7), the right side fixed mounting of cutting plate (7) has guide board (8), the outside of cutting plate (7) is provided with cutting assembly (2), cutting assembly (2)'s inside has and is provided with auxiliary component (3).

2. The silica gel guillootine of claim 1, characterized in that: the left conveying roller (5) corresponds to the right conveying roller (5), the height of a gap between the upper conveying roller and the lower conveying roller (5) is slightly higher than that of the cutting plate (7), and the right conveying roller (5) is close to the left side of the cutting plate (7).

3. The silica gel guillootine of claim 1, characterized in that: the cutting assembly (2) comprises a hydraulic cylinder (21), a moving block (22), a spring rod (23), a pressing rod (24) and a cutting knife (25), the hydraulic cylinder (21) is fixedly installed at the top of the bottom plate (1) and located on the front side and the rear side of the cutting plate (7), and the moving block (22) is fixedly installed between the tops of the hydraulic cylinder (21).

4. The silica gel guillootine of claim 3, characterized in that: the cutting knife (25) is arranged at the top of the moving block (22), the spring rod (23) is fixedly installed at the bottom of the moving block (22) and located on the left side and the right side of the cutting knife (25), and the pressing rod (24) is fixedly installed at the bottom of the spring rod (23).

5. The silica gel guillotine of claim 3, wherein: the auxiliary assembly (3) comprises a first sliding groove (31), a second sliding groove (32), a sliding block (33) and an electric push rod (34), the first sliding groove (31) and the second sliding groove (32) are arranged inside the moving block (22), the bottom of the first sliding groove (31) is communicated with the bottom of the moving block (22), and the second sliding groove (32) is not communicated with the bottom of the moving block (22).
