Abstract

The utility model discloses a server unit assembled data cabinet, which relates to the technical field of data cabinets and comprises a cabinet shell, the outer surface of the cabinet shell is hinged with a protective door, and the inner wall of the cabinet shell is symmetrically provided with two sets of fixing frames. The insides of the two sets of fixed frames are all provided with installation grooves, and the inside of the installation grooves is connected with a partition plate. The upper surface of the partition plate is symmetrically provided with two fixed blocks, and the inside of the two fixed blocks Both are connected with an adjusting screw, and the end of the adjusting screw is connected with a clamping plate, and one side of the clamping plate is symmetrically provided with two guide rods. The prefabricated data cabinet of the server unit passes through the fixing frame set in the cabinet shell, and there are multiple sets of installation grooves on the fixing frame. When assembling the partition board, the partition board can be assembled to different In the installation groove of the location, it is convenient for the server units of different sizes to be assembled and placed conveniently.

Description

A server unit assembled data cabinet

technical field

The utility model relates to the technical field of data cabinets, in particular to a server unit assembled data cabinet.

Background technique

The cabinet is just a carrier of network equipment, servers and other equipment in the data center computer room. Generally, it is made of cold-rolled steel plate or alloy to store computers and related control equipment. It can provide protection for storage equipment, shield electromagnetic interference, arrange equipment in an orderly and neat manner, and facilitate future maintenance of equipment. Servers in data centers, Equipment such as storage, switching, and security all need to be placed in the cabinet, and basic services such as power and cooling are provided through the cabinet; it is an important part of the data center.

When the existing data cabinet is assembled, because the partition board inside the cabinet is a fixed structure, server units of different sizes cannot be assembled, and it is inconvenient to place server units of different sizes. In view of the above situation, in the existing Technological innovation based on advanced data cabinets.

Utility model content

The purpose of this utility model is to provide a server unit assembled data cabinet to solve the problem of servers of different sizes when the existing data cabinets are assembled in the above background technology because the partition board inside the cabinet is a fixed structure. The unit cannot be assembled, and it is not convenient to place server units of different sizes.

In order to achieve the above purpose, the utility model provides the following technical solutions: a server unit assembled data cabinet, comprising:

The cabinet shell, the outer surface of the cabinet shell is hinged with a protective door, the inner wall of the cabinet shell is symmetrically provided with two sets of fixing frames, and the inside of the two sets of fixing frames are all provided with installation grooves, and the internal connection of the installation grooves There is a partition plate, and two fixed blocks are symmetrically arranged on the upper surface of the partition plate, and the inside of the two fixed blocks is connected with an adjusting screw, and the end of the adjusting screw is connected with a clamping plate, and the clamping plate Two guide rods are symmetrically arranged on one side of the holding plate, and two sets of dust-proof nets are symmetrically arranged on the outer wall of the cabinet shell.

Preferably, the fixing frame is fixedly connected to the cabinet shell, and the partition plate forms an engaging structure through the installation groove and the fixing frame, and the fixing block and the partition plate are integrally fixed.

Preferably, the adjusting screw penetrates into the fixed block, and the clamping plate forms a telescopic structure through the guide rod and the fixed block.

Preferably, the adjusting screw penetrates into the fixed block, and the clamping plate forms a telescopic structure through the guide rod and the fixed block.

Preferably, the air intake pipe and the cabinet shell communicate with each other, the filter screen and the cabinet shell are detachably connected, and the cooling fan and the cabinet shell are connected by screws.

Preferably, the partition is also provided with:

A fixed plate, which is arranged on the right side of the partition plate, an installation tube is fixed inside the fixed plate, a limit rod is arranged inside the installation tube, and a spring is arranged on one side of the limit rod, so that The end of the spring is connected with a movable plate, and the end of the limit rod is connected with a limit hole.

Preferably, the fixed plate and the partition plate are fixedly connected, the limit rod forms an elastic telescopic structure through the movable plate and the spring and the installation pipe, and the horizontal centerline of the limit hole and the limit rod is mutually coincide.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The server unit-assembled data cabinet passes through the fixing frame set in the cabinet shell, and there are multiple sets of installation slots on the fixing frame. When assembling the partition board, the partition board can be assembled according to the size of the server unit. To the installation slots at different positions, so that server units of different sizes cannot be assembled and placed conveniently;

2. The server unit assembled data cabinet rotates the adjusting screw through the adjusting screw provided on the fixed block. With the cooperation of the guide rod, the clamping plate can move horizontally, and the two clamping plates are close to each other, so that the placed The server unit is limited to avoid displacement; the external air can be sucked in through the cooling fan installed in the air intake pipe, so as to dissipate heat from the server unit inside the cabinet shell, and the filter installed can prevent The role of dust, reduce the situation of dust entering the cabinet shell;

3. The prefabricated data cabinet of the server unit installs the spring installed in the pipe, and the compressed spring can push the movable plate to move, thereby driving the front end of the limit rod to be inserted into the limit hole, so as to limit and fix the partition plate , to avoid the separation plate from falling off.

Description of drawings

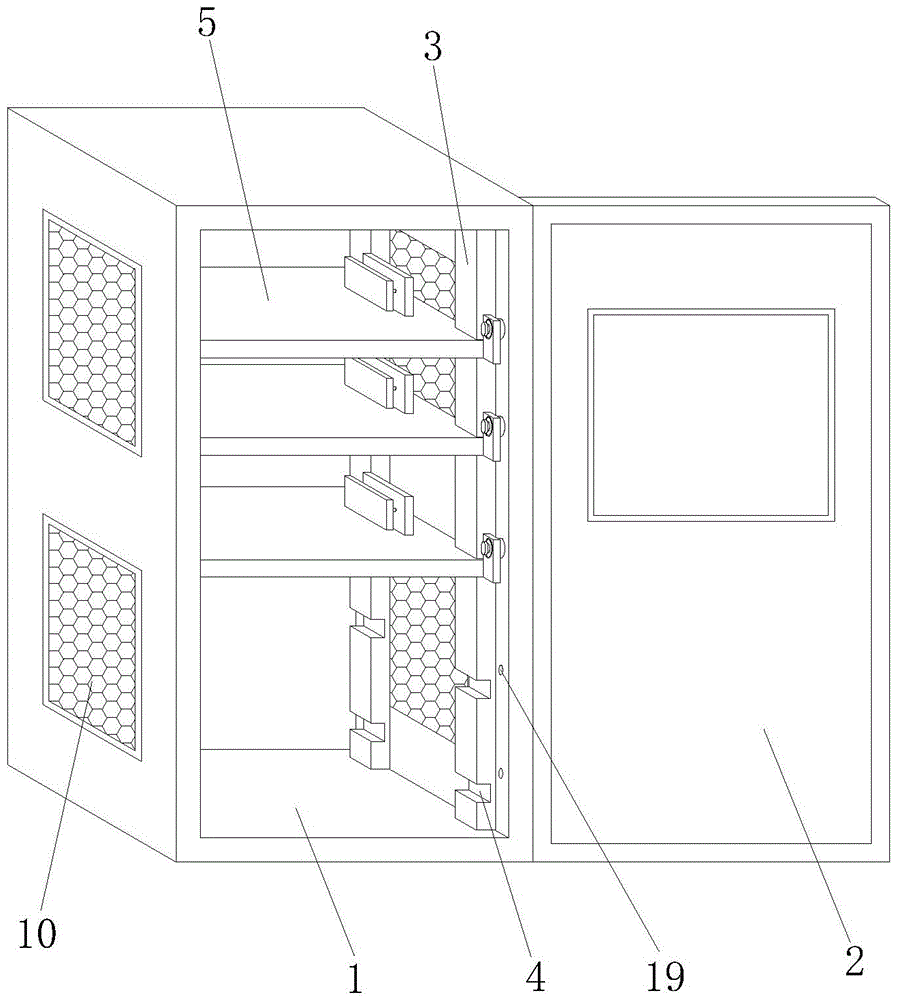

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is a three-dimensional structural schematic diagram of the cabinet shell of the utility model;

Fig. 3 is a schematic diagram of the three-dimensional structure of the partition plate of the present invention;

Fig. 4 is a schematic diagram of the cross-sectional structure of the installation pipe of the present invention.

In the figure: 1. Cabinet shell; 2. Protective door; 3. Fixing frame; 4. Installation groove; 5. Partition plate; 6. Fixing block; 7. Adjusting screw; 8. Clamping plate; 10. Dustproof net; 11. Air intake pipe; 12. Filter screen; 13. Cooling fan; 14. Fixed plate; 15. Installation pipe; 16. Limit rod; 17. Spring; 18. Movable plate; hole.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a server unit assembled data cabinet through improvement, as shown in Figures 1-3, including: a cabinet shell 1, the outer surface of the cabinet shell 1 is hinged with a protective door 2, and the inner wall of the cabinet shell 1 is symmetrical Two sets of fixing frames 3 are provided, and the fixing frames 3 and the cabinet shell 1 are fixedly connected. The insides of the two sets of fixing frames 3 are provided with installation grooves 4, and the insides of the installation grooves 4 are connected with partition plates 5, which 5 Through the engagement structure formed between the installation groove 4 and the fixed frame 3, two fixed blocks 6 are symmetrically arranged on the upper surface of the partition plate 5, and the fixed block 6 and the partition plate 5 are integrally fixed. The fixed frame 3 provided in 1, and there are multiple sets of installation grooves 4 on the fixed frame 3, when the partition plate 5 is assembled, the partition plate 5 can be assembled to the installation grooves at different positions according to the size of the server unit 4, so that server units of different sizes cannot be assembled and placed conveniently; the insides of the two fixed blocks 6 are connected with adjusting screws 7, and the adjusting screws 7 penetrate into the inside of the fixed blocks 6, and the ends of the adjusting screws 7 are connected to There is a clamping plate 8, one side of the clamping plate 8 is symmetrically provided with two guide rods 9, the clamping plate 8 forms a telescopic structure through the guide rod 9 and the fixed block 6, and the outer wall of the cabinet shell 1 is symmetrically provided with two sets of The dust-proof net 10, through the adjusting screw rod 7 provided on the fixed block 6, the adjusting screw rod 7 is screwed, and under the cooperation of the guide rod 9, the clamping plate 8 can be moved horizontally, and the two clamping plates 8 are close to each other, thereby Limit the placed server unit to avoid displacement.

The utility model provides a server unit assembled data cabinet through improvement, as shown in Fig. 1-Fig. The cabinet shells 1 are connected to each other, and the inside of the intake pipe 11 is provided with a filter screen 12. The filter screen 12 is detachably connected to the cabinet shell 1, and the set filter screen 12 can be disassembled for easy replacement. The cooling fan 13 is installed on the left side, and the cooling fan 13 and the cabinet shell 1 are connected by screws. The cooling fan 13 provided in the air intake pipe 11 can draw in the outside air, thereby cooling the server unit inside the cabinet shell 1. Heat dissipation, and the filter screen 12 that is set can play the effect of dust-proof, reduce the situation that dust enters into the inside of the cabinet shell 1; There is a fixed connection between them, the inside of the fixed plate 14 is fixed with a mounting tube 15, the inside of the mounting tube 15 is provided with a limit rod 16, one side of the limit rod 16 is provided with a spring 17, and the end of the spring 17 is connected with a movable plate 18, The limit rod 16 forms an elastic telescopic structure between the movable plate 18 and the spring 17 and the installation pipe 15. The end of the limit rod 16 is connected with a limit hole 19, and the horizontal centerline of the limit hole 19 and the limit rod 16 coincides with each other. Through the spring 17 provided in the installation tube 15, the compressed spring 17 can push the movable plate 18 to move, thereby driving the front end of the limit rod 16 to be inserted into the limit hole 19, thereby limiting and fixing the partition plate 5, Avoid the situation that the partition plate 5 falls off.

The working principle of the server unit assembled data cabinet: Before using the server unit assembled data cabinet, first place the cabinet shell 1 in a suitable position, then open the protective door 2, and when assembling the server unit, first put the The partition plate 5 is taken out, and then the server unit is placed on the partition plate 5, and the adjusting screw rod 7 can be screwed through the adjusting screw rod 7 provided on the fixed block 6, and the clamping plate 8 can be carried out under the cooperation of the guide rod 9. Horizontal movement makes the two clamping plates 8 close to each other, clamping and limiting the server unit to avoid the displacement of the server unit, and then through the installation groove 4 provided on the fixed frame 3, the user can adjust the size of the server unit according to the size of the server unit. Align the partition plate 5 with the appropriate installation groove 4, and then push the partition plate 5 horizontally so that the partition plate 5 is assembled into the cabinet shell 1. During assembly, the installation tube 15 provided on the fixed plate 14, The limit rod 16 can be manually pulled to move, so that the movable plate 18 on the limit rod 16 drives the spring 17 to move and compress. When the partition plate 5 is pushed into the installation groove 4, the limit rod 16 can be loosened by hand. , under the action of the spring 17 itself, it can drive the movable plate 18 to move, thereby driving the limit rod 16 to be inserted into the limit hole 19, and the partition plate 5 is fixed to avoid falling off. Through the air intake pipe 11 provided, The heat dissipation fan 13 can draw in the external air to dissipate heat from the server unit assembled in the cabinet shell 1, and the filter screen 12 provided can prevent external dust from entering, and the hot air can be discharged to the outside through the dust-proof net 10, which is convenient people's use.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A server unit assembled data cabinet, characterized in that, comprising: The cabinet shell (1), the outer surface of the cabinet shell (1) is hinged with a protective door (2), the inner wall of the cabinet shell (1) is symmetrically provided with two sets of fixing frames (3), and the two sets of fixing frames The interior of (3) is provided with installation groove (4), and the interior of described installation groove (4) is connected with dividing plate (5), and the upper surface of described dividing plate (5) is symmetrically provided with two fixing blocks (6), the insides of the two fixed blocks (6) are connected with adjusting screws (7), and the ends of the adjusting screws (7) are connected with clamping plates (8), and the clamping plates (8) Two guide rods (9) are symmetrically arranged on one side of the cabinet shell (1), and two groups of dust-proof nets (10) are symmetrically arranged on the outer wall of the cabinet shell (1). 2. A server unit assembled data cabinet according to claim 1, characterized in that: the fixed frame (3) is fixedly connected to the cabinet shell (1), and the partition plate (5) is installed An engaging structure is formed between the groove (4) and the fixing frame (3), and an integral fixing structure is formed between the fixing block (6) and the partition plate (5). 3. A server unit assembled data cabinet according to claim 1, characterized in that: the adjusting screw (7) penetrates to the inside of the fixing block (6), and the clamping plate (8) passes through the guide rod ( 9) A telescopic structure is formed between the fixed block (6). 4. A server unit assembled data cabinet according to claim 1, characterized in that: the cabinet shell (1) is further provided with: Air intake pipe (11), which is symmetrically arranged on one side of the cabinet shell (1), the inside of the air intake pipe (11) is provided with a filter screen (12), and the left side of the filter screen (12) is installed with Cooling fan (13). 5. A server unit assembled data cabinet according to claim 4, characterized in that: the air intake pipe (11) communicates with the cabinet shell (1), and the filter screen (12) is connected to the cabinet shell ( 1) are detachably connected, and the cooling fan (13) and the cabinet shell (1) are connected by screws. 6. A server unit assembled data cabinet according to claim 1, characterized in that: the partition plate (5) is further provided with: A fixed plate (14), which is arranged on the right side of the partition plate (5), the inside of the fixed plate (14) is fixed with an installation pipe (15), and the inside of the installation pipe (15) is provided with a limit Rod (16), one side of the limit rod (16) is provided with a spring (17), the end of the spring (17) is connected with a movable plate (18), and the end of the limit rod (16) is connected Limit hole (19). 7. A server unit assembled data cabinet according to claim 6, characterized in that: the fixed plate (14) is fixedly connected to the partition plate (5), and the limit rod (16) An elastic telescopic structure is formed between the movable plate (18) and the spring (17) and the installation pipe (15), and the horizontal centerlines of the limiting hole (19) and the limiting rod (16) coincide with each other.
