Abstract

The application belongs to the technical field of barrier gates, and in particular relates to a barrier gate with anti-collision protection, including a gate control machine and a passage gate lever. A control slot is opened inside the gate control machine, and the right side of the gate control machine There is a vertical telescopic slot connected with the control slot, and the movement of the passage brake lever is provided in the control slot and passes through the vertical telescopic slot. There is also an installation compartment in the gate control machine, and a drive is installed in the installation compartment. The drive assembly for the movement of the pass brake lever, and a warning whistle is installed on the upper end of the front of the gate control machine. In the utility model, during the lifting or lowering process of the traffic brake lever, due to the transmission of the first gear and the second gear, the linkage lever rotates synchronously with the reciprocating shaft, and then the spiral blade rotates, so that the wind blows to the warning whistle And a warning sound is issued to warn pedestrians that the gate is in use, avoid scratching, warn pedestrians not to approach the gate, and then prevent pedestrians from bumping into or bumping into the gate to improve safety.

Description

A barrier gate with anti-collision protection

technical field

The utility model relates to a barrier gate, in particular to a barrier gate with anti-collision protection.

Background technique

Barrier gates, also known as car stoppers, are channel entrance and exit management equipment specially used to restrict motor vehicles on the road. They are now widely used in highway toll stations and parking lot systems to manage vehicle passages, and are used to manage vehicle entry and exit. Existing barrier gates Through the electronic components in the electric control box, the rotation of the adjustment shaft is controlled to drive the swing of the railing to realize the opening and closing of the barrier gate. Barrier gate is a channel entrance and exit management equipment specially used to restrict the movement of motor vehicles. It is widely used in residential areas, parking lots, expressway toll stations, hospitals and other places. The barrier is generally composed of a chassis and a barrier. The chassis is equipped with a control part and a transmission structure to control the lifting and lowering of the barrier bar. When the barrier bar is raised, motor vehicles are allowed to pass through, and when the barrier bar is lowered, motor vehicles are prevented from passing through.

With the continuous development of the automobile industry and the increasing number of cars, the demand for barrier gates is also increasing, and higher requirements are put forward for the performance of barrier gates. The collision of pedestrians or vehicles is caused to cause harm to the human body and passing vehicles. The safety warning of the barrier gate is also particularly important, but the existing barrier gate warning effect is not good, and then the safety needs to be improved.

Utility model content

The main purpose of the present disclosure is to provide a barrier gate with anti-collision protection, so as to effectively solve the problems raised by the inventor in the background art above.

For reaching above-mentioned purpose, the technical scheme that the utility model adopts is as follows:

A barrier gate with anti-collision protection, including a gate control machine and a pass gate lever, the gate control machine is provided with a control slot inside, and the right side of the gate control machine is provided with a vertical telescopic slot communicating with the control slot , the movement of the passage brake lever is provided in the control slot and passes through the vertical telescopic groove, the gate control machine is also provided with an installation compartment, and the installation compartment is provided with a drive assembly that drives the movement of the passage gate lever, the gate A warning whistle is installed on the upper end of the front of the control machine.

Preferably, the drive assembly includes a stepper motor, a reciprocating shaft, a coil, a power rope and an adapter sleeve, the stepper motor is fixedly installed in the installation chamber, and the output end of the stepper motor is fixedly connected to the reciprocating shaft, and the The reciprocating shaft is rotatably installed in the installation chamber, the reel is fixedly sleeved on the reciprocating shaft, the power rope is wound on the reel, and the head end of the power rope passes through the movable hole on the gate control machine and is fixedly connected. sleeve, and the connecting sleeve is slidably installed on the guide rail on the traffic brake lever.

Preferably, a circulation opening is opened on the inner wall of the installation warehouse, and the circulation opening faces the warning whistle, and the installation warehouse is provided with a blowing mechanism.

Preferably, the blowing mechanism includes a first gear, a second gear, a linkage shaft and a helical blade, the linkage shaft is rotatably installed in the installation chamber, and the second gear is fixedly sleeved on the linkage shaft, and the linkage shaft One end extends into the flow port and is fixedly connected with the helical blade. A first gear is fixedly sleeved on the reciprocating shaft, and the first gear meshes with the second gear.

Preferably, a sensor is installed on the passage gate.

Preferably, a servo motor is fixedly installed in the control groove, the output end of the servo motor is fixedly connected with a screw rod, the screw rod is rotatably installed in the control groove, and a stepping seat is threaded on the screw rod, The stepping seat is slidably installed on the inner wall of the control groove, and the travel brake lever is hinged on the stepping seat through a pin shaft.

In view of this, compared with the prior art, the beneficial effects of the utility model are:

(1) In this application, the traffic brake lever is in a horizontal state at first, and when the traffic is opened, the stepper motor drives the reciprocating shaft and the reel to rotate, so that the reel can wind up the power rope, and it is connected and sleeved on the guide rail of the traffic brake rod Sliding, and then the power rope pulls the traffic gate lever to swing upwards, so that the passageway can be opened for passage. Ensure the smoothness of the use of the traffic brake lever.

(2) In this application, during the lifting or lowering process of the traffic brake lever, due to the transmission of the first gear and the second gear, the linkage lever rotates synchronously with the reciprocating shaft, and then the spiral blade rotates, so that the wind blows Send a warning whistle and send out a warning sound to warn pedestrians that the gate is in use, avoid scratching, warn pedestrians not to approach the gate, and then prevent pedestrians from bumping or bumping into the gate to improve safety.

(3) In this application, the servo motor drives the screw to rotate, so that the stepping seat on the screw can move up and down in the control groove, so that the passage brake lever can be moved to the required height to be applied, the adjustment is fast, and the passage gate The height of the pole can be adjusted, so that it is suitable for the height limit of different vehicles, and avoids the entry of vehicles with unsafe equipment.

Description of drawings

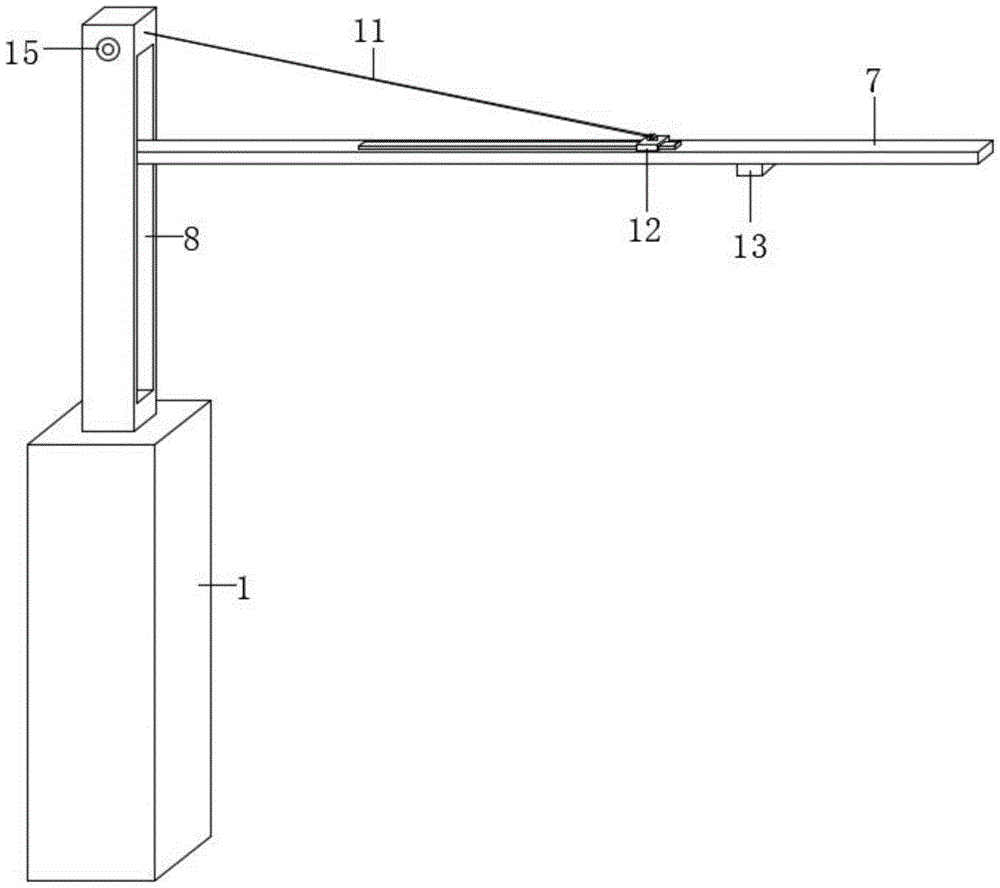

Fig. 1 shows the structure diagram of the barrier gate with anti-collision protection provided by the utility model;

Figure 2 shows the front sectional view of the gate control machine;

Figure 3 is a top view of the gate control machine;

Figure 4 shows a three-dimensional view of the coil.

icon:

1-gate control machine; 2-control slot; 3-servo motor; 4-screw; 5-step seat; 6-pin shaft; 10-drive assembly; 101-stepper motor; 102-reciprocating shaft; 103-coil; 11-power rope; 12-connection sleeve; 13-inductor; 15-warning whistle; 16-first gear; Shaft; 18-second gear; 19-helical blade.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, the utility model provides following embodiment:

A barrier gate with anti-collision protection, comprising a gate control machine 1 and a pass gate lever 7, a control slot 2 is opened inside the gate control machine 1, and a gate communicating with the control slot 2 is opened on the right side of the gate control machine 1 The vertical telescopic slot 8 and the passage brake lever 7 are movable in the control slot 2 and pass through the vertical telescopic groove 8. The gate control machine 1 is also provided with an installation compartment, and the installation compartment is provided with a drive for the passage gate lever 7 to move. Drive assembly, the upper end of gate control machine 1 front is equipped with warning whistle 15.

Specifically, the drive assembly includes a stepper motor 101, a reciprocating shaft 102, a coil 103, a power rope 11, and an adapter sleeve 12. The stepper motor 101 is fixedly installed in the installation compartment 9, and the output end of the stepper motor 101 is fixedly connected to the reciprocating The shaft 102 and the reciprocating shaft 102 are rotatably installed in the installation chamber 9, the reel 103 is fixedly sleeved on the reciprocating shaft 102, the power rope 11 is wound on the reel 103, and the head end of the power rope 11 passes through the gate control machine 1. The movable hole is fixedly connected with the connecting sleeve 12, and the connecting sleeve 12 is slidably installed on the guide rail on the traffic brake lever 7.

Specifically, the inner wall of the installation warehouse 9 is provided with a circulation opening, and the circulation opening faces the warning whistle 15, and the installation warehouse 9 is provided with a blowing mechanism.

Specifically, the blowing mechanism includes a first gear 16, a second gear 18, a linkage shaft 17, and a helical blade 19. The linkage shaft 17 is rotatably installed in the installation chamber 9, and the second gear 18 is fixedly sleeved on the linkage shaft 17. One end of the shaft 17 extends into the flow opening and is fixedly connected to the helical blade 19 . The first gear 16 is fixedly sleeved on the reciprocating shaft 102 , and the first gear 16 meshes with the second gear 18 .

Specifically, a sensor 13 is installed on the traffic brake lever 7 .

Specifically, a servo motor 3 is fixedly installed in the control groove 2, the output end of the servo motor 3 is fixedly connected with a screw rod 4, the screw rod 4 is rotatably installed in the control groove 2, and a step seat 5 is threaded on the screw rod 4, The stepping seat 5 is slidably installed on the inner wall of the control groove 2, and the stepping seat 5 is hinged with the travel gate lever 7 through the pin shaft 6.

The specific implementation of this embodiment is as follows: initially the traffic brake lever 7 is in a horizontal state, and when the traffic is opened, the stepping motor 101 drives the reciprocating shaft 102 and the reel 103 to rotate, so that the reel 103 rewinds the power rope 11, and the connecting sleeve 12 slides on the guide rail of the traffic brake lever 7, and then the power rope 11 pulls the traffic brake lever 7 to swing upwards, so that the passageway can be opened and passed. To the horizontal state, the barrier gate adopting this method can ensure the smoothness of the use of the passage gate lever 7;

During the lifting or lowering process of the traffic brake lever 7, due to the transmission of the first gear 16 and the second gear 18, the linkage shaft 17 rotates synchronously with the reciprocating shaft 102, and then the spiral blade 19 rotates, so that the wind blows to the warning Whistle 15 and a warning sound to warn pedestrians that the gate is in use, avoid scratching, warn pedestrians not to approach the gate, and then prevent pedestrians from bumping or bumping into the gate to improve safety;

The servo motor 3 drives the screw rod 4 to rotate, so that the stepping seat 5 on the screw rod 4 can move up and down in the control groove 2, so that the passage brake lever 7 can be moved to the required height for application, and the adjustment is fast, and the passage brake lever 7 The height can be adjusted to make it applicable to the height limit of different vehicles, and to prevent vehicles from entering with unsafe equipment.

In the description of this specification, descriptions referring to the terms "one embodiment", "example", "specific example" and the like mean that the specific features, structures, materials or characteristics described in conjunction with the embodiment or example are included in the description of the present invention. In at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the specific features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help explain the present invention. The preferred embodiments do not exhaust all details, nor do they limit the utility model to the specific implementations described. Obviously, many modifications and variations can be made based on the contents of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the utility model, so that those skilled in the art can well understand and utilize the utility model. The invention is to be limited only by the claims and their full scope and equivalents.

Claims (6)

1. A barrier gate with anti-collision protection, comprising a gate control machine (1) and a pass gate lever (7), characterized in that: the gate control machine (1) is provided with a control slot (2), And the right side of the gate control machine (1) is provided with a vertical telescopic slot (8) communicating with the control slot (2), and the passage brake lever (7) is movable in the control slot (2) and passes through the vertical Telescoping slot (8), the gate control machine (1) is also equipped with an installation compartment, and the drive assembly for driving the traffic brake lever (7) is arranged in the installation compartment, the upper end of the front of the gate control machine (1) A warning whistle (15) is installed. 2. A barrier gate with anti-collision protection according to claim 1, characterized in that: the drive assembly includes a stepper motor (101), a reciprocating shaft (102), a coil (103), a power rope (11) and the connecting sleeve (12), the stepper motor (101) is fixedly installed in the installation chamber (9), and the output end of the stepper motor (101) is fixedly connected to the reciprocating shaft (102), and the reciprocating shaft (102) is rotatably installed in the installation chamber (9), the reel (103) is fixedly sleeved on the reciprocating shaft (102), the power rope (11) is wound on the reel (103), and the power The head end of the rope (11) passes through the movable hole on the gate control machine (1) and is fixedly connected to the connecting sleeve (12), and the connecting sleeve (12) is slidably installed on the guide rail on the traffic gate lever (7). 3. A barrier gate with anti-collision protection according to claim 2, characterized in that: the inner wall of the installation warehouse (9) is provided with a circulation port, and the circulation port faces the warning whistle (15), the The installation bin (9) is provided with a blowing mechanism. 4. A barrier gate with anti-collision protection according to claim 3, characterized in that: said blowing mechanism comprises a first gear (16), a second gear (18), a linkage shaft (17) and screw blade (19), the linkage shaft (17) is rotatably installed in the installation chamber (9), and the second gear (18) is fixedly sleeved on the linkage shaft (17), and one end of the linkage shaft (17) extends To the flow port and fixedly connected to the helical blade (19), the first gear (16) is fixedly sleeved on the reciprocating shaft (102), and the first gear (16) meshes with the second gear (18). 5. The barrier gate with anti-collision protection according to claim 1, characterized in that: an inductor (13) is installed on the passage gate lever (7). 6. A barrier gate with anti-collision protection according to claim 1, characterized in that: a servo motor (3) is fixedly installed in the control slot (2), and the output of the servo motor (3) The end is fixedly connected with a screw rod (4), and the screw rod (4) is rotatably installed in the control groove (2), and a stepping seat (5) is threaded on the screw rod (4), and the stepping seat (5) Slidingly installed on the inner wall of the control groove (2), the travel brake lever (7) is hinged through the pin shaft (6) on the stepping seat (5).
