CN218365595U - A dispensing equipment for dry-mixed mortar - Google Patents

Abstract

The utility model discloses a batching equipment for dry-mixed mortar, which comprises a batching tank, a connecting ring is arranged on the outer side of the lower part of the batching tank, a supporting leg is connected under the connecting ring, and the top edge of the batching tank extends outwards There are several feeding ports, a motor is connected above the batching tank, the power output end of the motor is set inside the batching tank and a stirring shaft is connected to the stirring shaft, a batching mechanism is connected to the stirring shaft, and the bottom of the batching tank is provided with a discharge A valve is connected to the discharge port, and an elastic filter screen is connected to the inside of the bottom of the batching tank above the discharge port. Compared with the prior art, the utility model has the advantages of simple structure, convenient use, high-efficiency material mixing and smooth output and discharge.

Description

A batching equipment for dry-mixed mortar

technical field

The utility model relates to the technical field of dry-mixed mortar batching, in particular to a batching device for dry-mixed mortar.

Background technique

Dry-mixed mortar (also known as dry powder mortar in the early days) is usually called hydraulic cement mixed mortar, which refers to aggregates (such as quartz sand), inorganic cementitious materials (such as cement) and additives (such as polymers) that have been dried and screened. A granule or powder that is physically mixed in a certain proportion, transported to the construction site in the form of bags or in bulk, and can be used directly after mixing with water.

In the production process of dry-mixed mortar, various ingredients need to be mixed, so a stirring mechanism is needed. The current stirring mechanism generally drives a stirring paddle to rotate through a motor to achieve the mixing effect, but the existing ingredients The stirring effect of the mixing mechanism is poor, and the discharge output effect is not good, especially when there is local agglomeration, it is easy to block the discharge port.

Utility model content

The technical problem to be solved by the utility model is to overcome the above technical defects and provide a batching equipment for dry-mixed mortar with simple structure, convenient use, high-efficiency mixing and smooth output and discharge.

In order to solve the above technical problems, the technical solution provided by the utility model is: a batching equipment for dry-mixed mortar, including a batching tank, a connecting ring is provided on the outside of the lower part of the batching tank, and a supporting leg is connected below the connecting ring , the top edge of the batching tank extends outwards with a number of feeding ports, the top of the batching tank is connected to a motor, the power output end of the motor is located inside the batching tank and connected to a stirring shaft, and the stirring shaft is connected to a batching mechanism , the bottom of the batching tank is provided with a discharge port, the discharge port is connected with a valve, and the inner side of the bottom of the batching tank is located above the discharge port and connected with an elastic filter.

Further, the batching mechanism includes a mixing mechanism, a cleaning mechanism and a feeding mechanism arranged on the stirring shaft from top to bottom.

Further, the mixing mechanism is composed of several groups of mutually symmetrical mixing rods, and the end of the mixing rods away from the stirring shaft is inclined upward.

Further, the cleaning mechanism includes a support rod connected to the stirring shaft, the other end of the support rod is connected with a scraper matched with the inner wall of the batching tank, and the scraper is connected with bristles facing the inner wall of the batching tank.

Further, the feeding mechanism is composed of symmetrically arranged L-shaped rods, and the bottom end of the L-shaped rods is a spherical structure, which presses against the elastic filter net.

Compared with the prior art, the utility model has the following advantages:

Through several groups of feeding ports, it can be fed in proportion according to the needs of use;

The mixing mechanism and cleaning mechanism installed on the stirring shaft can ensure that the materials in the batching tank are fully stirred and mixed, and the residues are prevented from sticking to the inner wall of the batching tank;

The feeding mechanism cooperates with the elastic filter, which can form the vibration of the elastic filter, intercept the agglomerated material and continue to mix, and smoothly discharge the mixed granular material.

Description of drawings

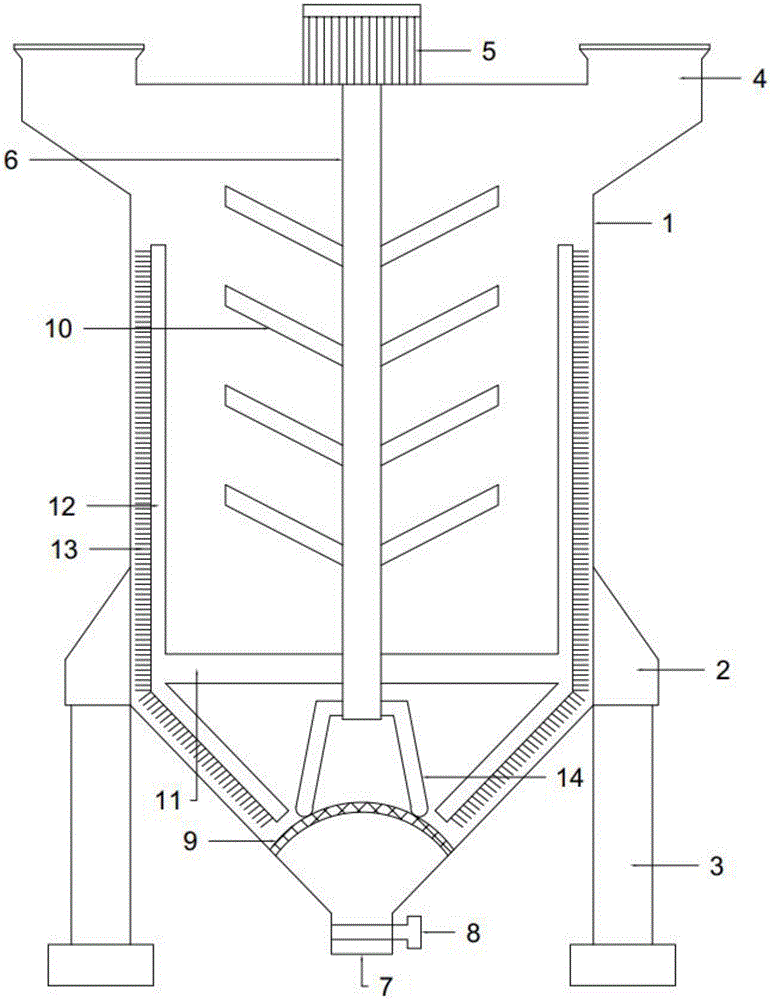

Fig. 1 is a schematic structural diagram of a batching equipment for dry-mixed mortar.

As shown in the figure: 1. Batching tank, 2. Connecting ring, 3. Support leg, 4. Feeding port, 5. Motor, 6. Stirring shaft, 7. Discharging port, 8. Valve, 9. Elastic filter screen, 10, mixing bar, 11, support bar, 12, scraper, 13, bristle, 14, L-shaped bar.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail.

As shown in FIG. 1 , a batching equipment for dry-mixed mortar includes a batching tank 1, a connecting ring 2 is provided on the outside of the lower part of the batching tank 1, and a support leg 3 is connected below the connecting ring 2. The batching There are some feeding openings 4 extending outwards from the top edge of the tank 1. A motor 5 is connected above the batching tank 1. The power output end of the motor 5 is located inside the batching tank 1 and is connected with a stirring shaft 6. The batching mechanism includes an automatic The mixing mechanism, cleaning mechanism and feeding mechanism arranged on the stirring shaft 6 from top to bottom can ensure that the materials in the batching tank are fully stirred and mixed by using the mixing mechanism and cleaning mechanism arranged on the stirring shaft to avoid the residue from sticking to the The inner wall of the batching tank, the mixing shaft 6 is connected with a batching mechanism, the mixing mechanism is composed of several groups of mutually symmetrical mixing rods 10, the end of the mixing rods 10 away from the stirring shaft 6 is inclined upward, and the mixing The material rod 10 will form a sufficient stirring effect on the materials in the batching tank 1. The cleaning mechanism includes a support rod 11 connected to the stirring shaft 6. The other end of the support rod 11 is connected with a scraper that matches the inner wall of the batching tank 1. A plate 12, the scraper 12 is connected with bristles 13 towards the inner wall of the batching tank 1 to keep the inner wall of the batching tank 1 clean and avoid the residue from sticking. The bottom of the batching tank 1 is provided with a discharge port 7, and the discharge port 7 is connected with a valve 8, the inner side of the bottom of the batching tank 1 is located above the discharge port 7 and connected with an elastic filter 9, the feeding mechanism is composed of symmetrically arranged L-shaped rods 14, and the bottom end of the L-shaped rod 14 It has a spherical structure and presses against the elastic filter 9. The feeding mechanism cooperates with the elastic filter 9 to form the vibration of the elastic filter 9, intercept the agglomerated material and continue to mix, and smoothly discharge the mixed granular material.

When the utility model is actually implemented, according to the material ratio, different feeding ports 4 are used to put materials into the batching tank 1, and then the motor 5 is started, and the stirring shaft 6 is driven by the motor 5 to rotate, so that the batching mechanism can be driven to fully form the material. After the mixing is completed, the material can be discharged outward through the valve 8. At this time, the motor 5 is adjusted to a low-speed operation state, and the feeding mechanism mortgages the elastic filter 9. Under the rotation of the feeding mechanism, an elastic filter can be formed. The vibration of the net 9 can quickly discharge the mixed granular materials outwards, and intercept the agglomerated materials to continue stirring and breaking up in the batching tank 1.

The utility model and its implementation have been described above. This description is not restrictive. What is shown in the drawings is only one implementation of the utility model, and the actual structure is not limited thereto. All in all, if a person of ordinary skill in the art is inspired by it, without departing from the purpose of the utility model, without creatively designing a structural method and embodiment similar to the technical solution, it shall be protected by the utility model scope.

Claims (5)

1. A batching equipment for dry-mixed mortar, comprising a batching tank (1), characterized in that: a connecting ring (2) is provided on the outside of the lower part of the batching tank (1), and the bottom of the connecting ring (2) is connected There are supporting legs (3), the top edge of the batching tank (1) extends outwards with several feeding ports (4), the top of the batching tank (1) is connected with a motor (5), and the power of the motor (5) The output end is located inside the batching tank (1) and is connected with a stirring shaft (6). A valve (8) is connected to the discharge port (7), and an elastic filter screen (9) is connected to the inside of the bottom of the batching tank (1) above the discharge port (7). 2. A batching equipment for dry-mixed mortar according to claim 1, characterized in that: the batching mechanism includes a mixing mechanism, a cleaning mechanism and a feeding mechanism arranged on the stirring shaft (6) from top to bottom. mechanism. 3. A batching equipment for dry-mixed mortar according to claim 2, characterized in that: the mixing mechanism is composed of several groups of mutually symmetrical mixing rods (10), and the mixing rods (10 ) away from the end of the stirring shaft (6) inclined upwards. 4. A batching equipment for dry-mixed mortar according to claim 2, characterized in that: the cleaning mechanism includes a support rod (11) connected to the stirring shaft (6), and the support rod (11 ) is connected with a scraper (12) matching the inner wall of the batching tank (1), and the scraper (12) is connected with bristles (13) towards the inner wall of the batching tank (1). 5. A batching equipment for dry-mixed mortar according to claim 2, characterized in that: the feeding mechanism is composed of symmetrically arranged L-shaped rods (14), and the bottom of the L-shaped rods (14) The end is a spherical structure, and presses against the elastic filter screen (9).
