Abstract

The utility model provides a feed mixing device, which relates to the field of feed mixing. The feed mixing device includes a base, a U-shaped plate is fixedly connected to the top of the base, a fixed rod is fixedly connected to the bottom of the U-shaped plate, and a circular plate is fixedly connected to the bottom of the fixed rod. In this feed mixing device, the screw rod and the connecting plate are connected by ball nut pairs, so that the connecting plate drives the scrapers arranged on both sides to move to the inside of the mixing barrel. Both scrapers are in contact with the inner wall of the mixing barrel, and the two scrapers are lowered to The proper position in the mixing tank, and then inject water into the mixing tank through the water injection pipe, and through the setting of the rotating assembly, so that when the stirring rod is rotating, the mixing tank is also in a rotating state, and the inner wall of the mixing tank is scraped by two scrapers. The adhered feed is scraped and cleaned. This operation method solves the problem that personnel do not need to disassemble the cover plate, thereby saving the time of the staff and improving the use effect of the device.

Description

feed mixing device

technical field

The utility model relates to a mixing device, in particular to a feed mixing device, which belongs to the technical field of feed mixing.

Background technique

Feed mainly refers to food for animals raised in agriculture or animal husbandry. Feeds with different nutrients are usually stirred and then fed. During the stirring process, a feed mixing device is required.

A publication number is now disclosed as CN210610982U. This feed mixing device includes a frame and a mixing bucket arranged on the frame. The upper end of the mixing bucket is provided with a detachable cover plate, and the lower end is provided with a discharge port. The mixing bucket is provided with a scraper, the outer layer of the scraper is a rubber structure, the two sides of the scraper are arc-shaped structures adapted to the mixing bucket, and have rubber protrusions, the cover plate There is a motor and a water injection port on the top, the output shaft of the motor is connected to a rotating shaft, and the rotating shaft is provided with a symmetrical upper sleeve and a lower sleeve, and the two ends of the scraper are respectively provided with an upper connecting rod and a lower connecting rod. The upper connecting rod and the lower connecting rod are respectively connected with the upper sleeve and the lower sleeve through positioning bolts.

In the above scheme, when cleaning the inner wall of the mixing tank, personnel are required to remove the cover plate from the mixing tank, manually adjust the two scrapers to contact with the inside of the mixing tank, and then install the cover plate to fill the mixing tank with water , the scraper is used to scrape off the feed adhered to the inner wall of the mixing tank to make it more convenient to clean, but this operation method is relatively complicated, which not only wastes the time of the staff, but also reduces the use effect of the device.

Utility model content

(1) Solved technical problems

The purpose of this utility model is to provide a feed mixing device in order to solve the above problems, so as to solve the problem that when cleaning the inner wall of the mixing tank in the prior art, it is necessary for personnel to disassemble the cover plate from the mixing tank. A scraper is in contact with the inside of the mixing tank, and then the cover is installed, water is poured into the mixing tank, and the feed adhered to the inner wall of the mixing tank is scraped off through the scraper to make cleaning more convenient. However, this operation method It is relatively complicated, which not only wastes the time of the staff, but also reduces the problem of the use effect of the device.

(2) Technical solution

In order to achieve the above purpose, the utility model is achieved through the following technical solutions: a feed mixing device, including a base, the top of the base is fixedly connected with a U-shaped plate, the bottom of the U-shaped plate is fixedly connected with a fixed rod, the fixed The bottom of the rod is fixedly connected with a circular plate, and the outer side of the circular plate is rotatably connected with a mixing barrel, and a stirring rod is arranged inside the mixing barrel, and a rotating assembly is arranged between the stirring rod and the circular plate, and the circular There are two square grooves on the top of the plate, scrapers are arranged inside the two square grooves, a connecting plate is fixedly connected between the two scrapers, and a screw rod is arranged at the bottom of the connecting plate, and the screw rod The top runs through the connecting plate and the connecting plate is connected by a ball nut pair, and the setting of the fixing rod plays a role of fixing and supporting the circular plate.

Preferably, a water injection pipe and a material inlet are installed on the top of the circular plate, and an outlet is installed on the bottom of the mixing tank.

Preferably, the top of the stirring rod penetrates through the circular plate and is rotationally connected with the circular plate, the top of the circular plate is provided with a driving motor, the output end of the driving motor is fixedly connected to the stirring rod, and the driving motor is fixedly connected to the U-shaped board top.

Preferably, the rotating assembly includes a first bevel gear, the first bevel gear is fixedly connected to the outside of the stirring rod, the outside of the first bevel gear is meshed with a second bevel gear, and the rear side of the second bevel gear is fixed Connected with a rotating rod, one end of the rotating rod runs through the fixed rod and is rotationally connected with the fixed rod. Play the role of rotating support.

Preferably, the rotating assembly further includes a fourth bevel gear, the fourth bevel gear is engaged and connected to the outside of the third bevel gear, the bottom of the fourth bevel gear is fixedly connected to a circular frame, and the circular frame is fixedly connected to on top of the mixing tank.

Preferably, the bottom end of the screw rod is rotatably connected to the top of the U-shaped plate, the outer side of the screw rod is fixedly connected with a worm wheel, the outer side of the worm wheel is meshed with a worm, and the top of the U-shaped plate is fixedly connected with a positive and negative motor, so The positive and negative motor output ends are fixedly connected with the worm.

Preferably, a limit rod is provided on the outside of the screw rod, and the limit rod is fixedly connected to the top of the U-shaped plate. The top end of the limit rod passes through the connecting plate and is slidably connected with the connecting plate. The plate acts as a limit, so that when the screw rod rotates forward or reverse, the connecting plate can move downward or upward.

The utility model provides a feed mixing device, which has the following beneficial effects:

1. In this feed mixing device, the screw rod and the connecting plate are connected by ball nut pairs, so that the connecting plate drives the scrapers on both sides to move to the inside of the mixing barrel. Both scrapers are in contact with the inner wall of the mixing barrel. The two scrapers Descend to a suitable position in the mixing tank, and then inject water into the mixing tank through the water injection pipe. Through the setting of the rotating assembly, the mixing tank is also in the rotating state when the stirring rod is rotating, and the mixing is carried out by two scrapers. The feed adhered to the inner wall of the bucket is scraped and cleaned. This operation method solves the problem that personnel do not need to disassemble the cover plate, thus saving the time of the staff and improving the use effect of the device.

2. In the feed mixing device, the first bevel gear meshes with the second bevel gear, the rotating rod drives the third bevel gear to rotate, the third bevel gear meshes with the fourth bevel gear, and the fourth bevel gear drives the mixing through the circular frame. The barrel is in a rotating state, so that the two scrapers entering the mixing barrel evenly scrape and clean the feed adhered to the inner wall of the mixing barrel.

Description of drawings

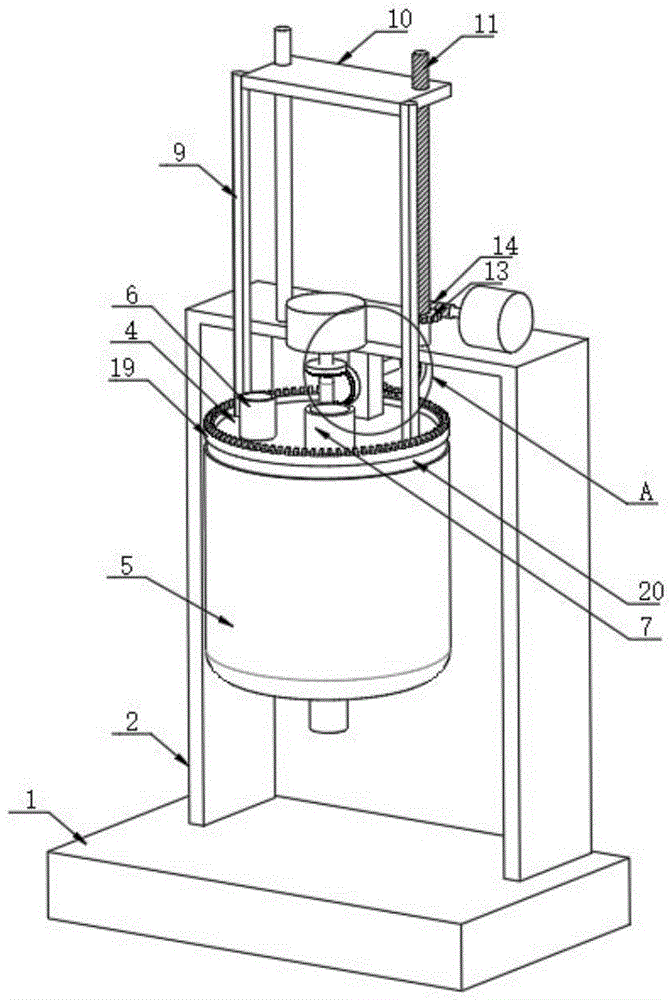

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is a schematic diagram of the internal structure of the mixing tank of the present utility model;

Fig. 3 is an enlarged view of the structure of part A of Fig. 1 of the utility model;

Fig. 4 is a schematic diagram of the circular plate structure of the present invention.

In the figure: 1. base; 2. U-shaped plate; 3. fixed rod; 4. circular plate; 5. mixing bucket; 6. water injection pipe; 7. feed port; 8. square groove; 9. scraper; 10, connecting plate; 11, screw mandrel; 12, first bevel gear; 13, worm gear; 14, worm; 15, stirring rod; 16, second bevel gear; 17, rotating rod; 18, third bevel gear; 19 , the fourth bevel gear; 20, a circular frame.

Detailed ways

The embodiment of the utility model provides a feed mixing device.

Please refer to Figure 1, Figure 2, Figure 3 and Figure 4, including the base 1, the top of the base 1 is fixedly connected with a U-shaped plate 2, the bottom of the U-shaped plate 2 is fixedly connected with a fixed rod 3, and the bottom of the fixed rod 3 is fixedly connected with a circular Plate 4, the outer side of the circular plate 4 is connected with a mixing tank 5, the top of the circular plate 4 is equipped with a water injection pipe 6 and a feed port 7, the bottom of the mixing tank 5 is equipped with a discharge port, and the inside of the mixing tank 5 is provided with a stirring rod 15 , the top of the stirring rod 15 runs through the circular plate 4 and is rotationally connected with the circular plate 4, the top of the circular plate 4 is provided with a driving motor, the output end of the driving motor is fixedly connected with the stirring rod 15, and the driving motor is fixedly connected to the top of the U-shaped plate 2 , a rotating assembly is provided between the stirring rod 15 and the circular plate 4, two square grooves 8 are provided on the top of the circular plate 4, and scrapers 9 are arranged inside the two square grooves 8, and the two scrapers 9 are fixed The connecting plate 10 is connected, the bottom of the connecting plate 10 is provided with a screw 11, the top of the screw 11 runs through the connecting plate 10 and the connecting plate 10 is connected by a ball nut pair, the bottom end of the screw 11 is rotatably connected to the top of the U-shaped plate 2, and the screw The outer side of the rod 11 is fixedly connected with a worm wheel 13, the outer side of the worm wheel 13 is meshed with a worm screw 14, the top of the U-shaped plate 2 is fixedly connected with a positive and negative motor, the output end of the positive and negative motor is fixedly connected with the worm screw 14, and the outer side of the screw rod 11 is provided with a limit rod. The limit rod is fixedly connected to the top of the U-shaped plate 2 , and the top end of the limit rod passes through the connecting plate 10 and is slidably connected with the connecting plate 10 .

Specifically, when cleaning the inner wall of the mixing barrel 5, the positive and negative motors are activated by starting the positive and negative motors. The model of the positive and negative motors is not specifically limited, subject to the matching equipment, the output end of the positive and negative motors drives the worm 14 to rotate forward, and the worm 14 is meshed with the worm wheel 13, and the worm wheel 13 drives the screw rod 11 to rotate. Under the action of the limit rod, the screw rod 11 is connected with the connecting plate 10 through a ball nut pair, so that the connecting plate 10 drives the scrapers 9 arranged on both sides to The inside of the mixing tank 5 moves, and the two scrapers 9 are in contact with the inner wall of the mixing tank 5. The two scrapers 9 descend to a suitable position in the mixing tank 5, and then inject water into the mixing tank 5 through the water injection pipe 6. The setting of the rotating assembly will be further explained later, so that when the stirring rod 15 is rotating, the mixing bucket 5 is also in a rotating state, and the feed adhered to the inner wall of the mixing bucket 5 is scraped and cleaned by two scrapers 9, This operation mode solves the problem that personnel do not need to dismantle the cover plate, thereby saving the time of the staff and improving the use effect of the device.

Please refer to Fig. 1, Fig. 2, Fig. 3 and Fig. 4 again, the rotating assembly includes a first bevel gear 12, the first bevel gear 12 is fixedly connected to the outside of the stirring rod 15, and the outside of the first bevel gear 12 is meshed with a second bevel gear 16. The rear side of the second bevel gear 16 is fixedly connected with a rotating rod 17. One end of the rotating rod 17 runs through the fixed rod 3 and is connected to the fixed rod 3 in rotation. One end of the rotating rod 17 is fixedly connected with the third bevel gear 18. The rotating assembly also includes a second Four bevel gears 19, the fourth bevel gear 19 meshingly connected to the outside of the third bevel gear 18, the bottom of the fourth bevel gear 19 is fixedly connected with a circular frame 20, and the circular frame 20 is fixedly connected to the top of the mixing bucket 5.

Specifically, when water is poured into the mixing tank 5 through the water injection pipe 6, the drive motor is started at this time, and the model of the drive motor is not specifically limited, subject to the matching equipment, the output end of the drive motor drives the stirring rod 15 in the mixing tank 5 The stirring rod 15 drives the first bevel gear 12 fixedly connected to the outside to rotate, the first bevel gear 12 meshes with the second bevel gear 16, and the rotating rod 17 drives the third bevel gear 18 to rotate, and the third bevel gear 18 and The fourth bevel gear 19 is meshed and connected, and the fourth bevel gear 19 drives the mixing bucket 5 to be in a rotating state through the circular frame 20, so that the two scrapers 9 entering the mixing bucket 5 can evenly feed the feed adhered to the inner wall of the mixing bucket 5. Scrape and clean.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A feed mixing device, comprising a base (1), characterized in that: the top of the base (1) is fixedly connected with a U-shaped plate (2), and the bottom of the U-shaped plate (2) is fixedly connected with a fixed rod ( 3), the bottom of the fixed rod (3) is fixedly connected with a circular plate (4), the outer side of the circular plate (4) is rotatably connected with a mixing bucket (5), and the inside of the mixing bucket (5) is provided with a stirring Rod (15), a rotating assembly is arranged between the stirring rod (15) and the circular plate (4), the top of the circular plate (4) is provided with two square grooves (8), and the two square grooves Scrapers (9) are provided inside the grooves (8), and a connecting plate (10) is fixedly connected between the two scraping plates (9), and a screw rod (11) is arranged at the bottom of the connecting plate (10). The top end of the screw rod (11) passes through the connecting plate (10) and the connecting plate (10) is connected through a ball nut pair. 2. A feed mixing device according to claim 1, characterized in that: a water injection pipe (6) and a feeding port (7) are installed on the top of the circular plate (4), and the mixing bucket (5) A discharge port is installed at the bottom. 3. A feed mixing device according to claim 1, characterized in that: the top end of the stirring rod (15) passes through the circular plate (4) and is rotatably connected with the circular plate (4), and the circular plate (4) A drive motor is provided on the top, the output end of the drive motor is fixedly connected to the stirring rod (15), and the drive motor is fixedly connected to the top of the U-shaped plate (2). 4. A feed mixing device according to claim 1, characterized in that: the rotating assembly includes a first bevel gear (12), and the first bevel gear (12) is fixedly connected to the outside of the stirring rod (15) , the outer side of the first bevel gear (12) is meshed with a second bevel gear (16), the rear side of the second bevel gear (16) is fixedly connected with a rotating rod (17), and one end of the rotating rod (17) It passes through the fixed rod (3) and is rotationally connected with the fixed rod (3). One end of the rotating rod (17) is fixedly connected with a third bevel gear (18). 5. A kind of feed mixing device according to claim 4, characterized in that: the rotating assembly also includes a fourth bevel gear (19), and the fourth bevel gear (19) is meshed and connected to the third bevel gear ( 18) On the outside, the bottom of the fourth bevel gear (19) is fixedly connected with a circular frame (20), and the circular frame (20) is fixedly connected with the top of the mixing barrel (5). 6. A feed mixing device according to claim 1, characterized in that: the bottom end of the screw rod (11) is rotatably connected to the top of the U-shaped plate (2), and the outer side of the screw rod (11) is fixedly connected with A worm wheel (13), the outer side of the worm wheel (13) is meshed with a worm (14), the top of the U-shaped plate (2) is fixedly connected with a positive and negative motor, and the output end of the positive and negative motor is fixedly connected with the worm (14) . 7. A feed mixing device according to claim 6, characterized in that: a limit rod is provided on the outside of the screw mandrel (11), and the limit rod is fixedly connected to the top of the U-shaped plate (2). The top end of the limit rod passes through the connecting plate (10) and is slidably connected with the connecting plate (10).
