Abstract

The utility model relates to the technical field of tea processing, and specifically discloses a drum-type tea degreening machine, which includes a cylinder body, a cylinder cover, and a driving box. The drive box is arranged at the end of the cylinder, and the end of the cylinder away from the drive box is provided with a constriction port; the constriction port is open, and a cylinder cover is provided at the opening; the cylinder is provided with a stirring frame, the stirring frame is set against the inner wall of the cylinder; a driving motor is installed in the drive box, the output shaft of the driving motor penetrates into the inside of the cylinder, and drives the stirring frame to rotate, and the driving motor and the controller electric Sexual connection; the mixing frame is provided with a hopper, and the side of the cylinder is provided with supporting legs; the de-greening machine provided by the utility model can flexibly turn over the tea leaves in the barrel and drive them to turn, mainly using the turning of the tea leaves themselves, Avoid direct damage to the tea leaves and effectively improve the processing efficiency of the tea leaves.

Description

A drum type tea greening machine

technical field

The utility model relates to the technical field of tea processing, in particular to a drum type tea greening machine.

Background technique

Tea is a traditional drink in China. China is the hometown of tea. The Chinese discovered and used tea. Tea can be used as a drink. It contains a variety of beneficial ingredients and has health benefits. Tea greening is the most important part of tea processing. The main purpose of greening is to destroy and passivate the oxidase activity in fresh leaves by high temperature, inhibit the enzymatic oxidation of tea polyphenols in fresh leaves, and prevent discoloration during drying. At the same time, it emits green odor and promotes the formation of good aroma. Tea in the cylinder, greening is the key process for the formation of the shape and quality of green tea.

In the existing method, in order to make the tea leaves evenly greened, it is necessary to stir the tea leaves, most of which are stirred by a stirring rod, but when the stirring rod stirs the tea leaves, it is easy to make the stirring rod squeeze the tea leaves, causing the tea leaves to be crushed, thereby improving the quality of the tea leaves. decline.

Utility model content

The purpose of this utility model is to provide a drum-type tea degreening machine to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a drum-type tea degreening machine, including a cylinder body, a cylinder cover, and a driving box. The drive box is arranged at the end of the cylinder body, and the end of the cylinder body away from the drive box is provided with a constriction port; the constriction port is open, and a cylinder cover is provided at the opening; the cylinder body is provided with a Stirrer, the stirrer is set against the inner wall of the cylinder; a drive motor is installed in the drive box, the output shaft of the drive motor penetrates the inside of the cylinder, and drives the stirrer to rotate, the drive motor and the controller Electrically connected; the stirring frame is provided with a hopper, and the side of the cylinder is provided with support legs; the upper end of the cylinder close to the drive box is provided with an air inlet, and the air inlet is connected to an air pump through a pipeline.

Preferably, the stirring frame is set as a disc-shaped structure, and a stirring rod is arranged at the axial center of the stirring frame; The direction is consistent with the rotation direction of the stirring rod, and the cylinder cover is installed at the shrinkage port through a threaded structure.

Preferably, a support seat is installed on the inner side of the cover through a rotating shaft, a C-shaped handle is provided on the outside of the cover, and a supporting groove is provided on the supporting seat, and the supporting groove and the stirring rod are butted with each other.

Preferably, several fan-shaped openings are evenly arranged on the surface of the stirring frame, and a screen is provided in the opening; a sleeve is provided on the side of the stirring rod, and a telescopic rod is connected to the sleeve through an electric push rod, The telescopic rod is connected with the hopper, and the electric push rod is electrically connected with the controller.

Preferably, the end of the telescopic rod is provided with a threaded structure, and the hopper is provided with a threaded head, and the threaded head is connected with the telescopic rod through a threaded structure.

Compared with the prior art, the beneficial effect of the utility model is that: the degreening machine provided by the utility model can flexibly turn over the tea leaves in the barrel to drive them to turn, mainly using the turning of the tea leaves themselves to avoid direct damage to the tea leaves and ensure the tea At the same time, it can effectively improve the processing efficiency of tea greening.

Description of drawings

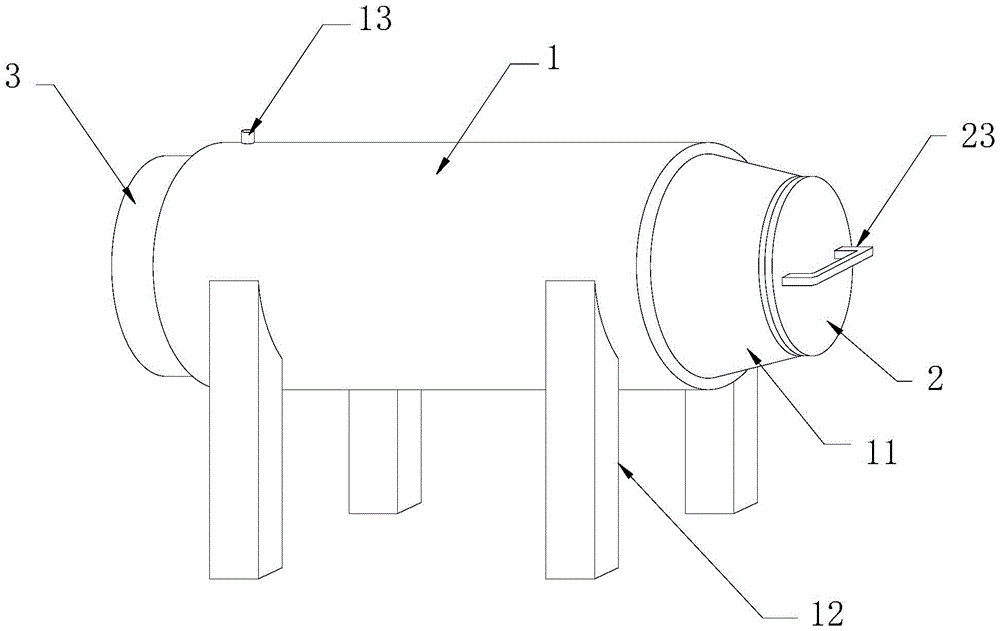

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of stirring frame of the present utility model;

Fig. 3 is a structural schematic diagram of the cylinder cover of the present utility model;

Numbers in the figure: 1, cylinder body; 11, contraction port; 12, support leg; 13, air inlet; 2, cylinder cover; 21, support seat; 22, support groove; 23, handle; 3, drive box; 4. Stirring rack; 41. Stirring rod; 42. Blocking net; 43. Sleeve; 44. Telescopic rod; 5. Hopper; 51. Thread head.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the orientation or positional relationship indicated by the terms "vertical", "upper", "lower" and "horizontal" are based on the orientation or positional relationship shown in the accompanying drawings, only It is for the convenience of describing the utility model and simplifying the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the utility model.

In the description of the present utility model, it should also be noted that, unless otherwise specified and limited, the terms "setting", "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection , can also be detachably connected, or integrally connected; can be mechanically connected, can also be electrically connected; can be directly connected, can also be indirectly connected through an intermediary, and can be internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

Please refer to Figures 1-3. The utility model provides a technical solution: a drum-type tea greening machine, including a cylinder body 1, a cylinder cover 2, and a drive box 3. The cylinder body 1 has a cylindrical structure as a whole. The body 1 is hollowly provided with a greening cavity; the drive box 3 is arranged at the end of the cylinder body 1, and the end of the cylinder body 1 far away from the drive box 3 is provided with a constriction port 11; the constriction port 11 is open, and A cylinder cover 2 is arranged at the mouth; a stirring frame 4 is arranged inside the cylinder body 1, and the stirring frame 4 is arranged against the inner wall of the cylinder body 1; a drive motor is installed in the drive box 3, and the output of the drive motor The shaft penetrates the inside of the cylinder 1 and drives the stirring frame 4 to rotate, and the drive motor is electrically connected to the controller; the stirring frame 4 is provided with a hopper 5, and the side of the cylinder 1 is provided with a supporting leg 12; An air inlet 13 is provided on the upper part of the cylindrical body 1 close to the drive box 3, and the air inlet 13 is connected to an air pump through a pipeline.

Further, the stirring frame 4 is configured as a disc-shaped structure, and a stirring rod 41 is arranged at the axial center of the stirring frame 4; the hopper 5 is distributed on the stirring rod 41 in a circular shape, and the hopper 5 is opened on one side A material trough is provided, and the opening direction is consistent with the rotation direction of the stirring rod 41, and the cylinder cover 2 is installed at the constriction port 11 through a threaded structure.

Further, a support base 21 is installed on the inner side of the cylinder cover 2 through a rotating shaft, a C-shaped handle 23 is arranged on the outside of the cylinder cover 2, a supporting groove 22 is arranged on the supporting base 21, and the supporting groove 22 It is docked with the stirring rod 41.

Further, the surface of the stirring frame 4 is evenly provided with several fan-shaped openings, and a screen 42 is provided in the opening; a sleeve 43 is provided on the side of the stirring rod 41, and an electric push rod is used in the sleeve 43 A telescopic rod 44 is connected, and the telescopic rod 44 is connected with the hopper 5, and the electric push rod is electrically connected with the controller.

Further, the end of the telescopic rod 44 is provided with a threaded structure, and the hopper 5 is provided with a threaded head 51, and the threaded head 51 is connected with the telescopic rod 44 through a threaded structure.

Working principle: In the actual use process, add tea into the barrel 1 through the open end of the barrel 1, and then close the lid 2 to form a closed space for greening. The drive motor in the drive box 3 is controlled by the controller to drive the stirring frame 4 to rotate, and the stirring frame 4 drives the hopper 5 to rotate; the opening direction of the hopper 5 faces the direction of its rotation, so that the lower hopper 5 will carry tea leaves due to inertia Rotate, and the tea leaves will slide down automatically after the hopper 5 is turned to the height; using this sliding process, the tea leaves roll and collide with each other, avoiding the situation that the tea leaves are directly agitated by the structure to cause them to break. Open the cylinder cover 2 after the processing is completed, and the tea leaves can be taken out. For the tea leaves that are relatively behind, the air can be filled into the air inlet 13 by the air pump, and the tea leaves can be blown out and collected from the shrinkage port 11 uniformly.

The controller can drive the telescopic rod 44 to expand and contract in the sleeve 43 by controlling the expansion and contraction of the electric push rod, so as to achieve the purpose of changing the position of the hopper 5; the cylinder cover 2 is stuck outside the stirring rod 41 through the support groove 22 after installation , can provide support for the stirring rod 41 to avoid its deformation during use; the support seat 21 can rotate to cooperate with the work of the stirring rod 41 . The opening at the baffle 42 can reduce the overall quality of the stirring frame 4, and the baffle 42 is set to prevent the tea leaves from entering the gap.

It is worth noting that the whole device is controlled by the main control button. Since the equipment matched with the control button is a common equipment and belongs to the existing mature technology, its electrical connection relationship and specific circuit structure will not be described here.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. a drum type tea greens fixing machine, is characterized in that: comprise cylindrical body (1), cylinder cover (2), driving box (3), described cylindrical body (1) integral body is cylindrical structure, its cylindrical body ( 1) a hollow cavity is provided; the drive box (3) is arranged at the end of the cylinder (1), and the end of the cylinder (1) away from the drive box (3) is provided with a shrinkage port (11); the The constriction opening (11) is opened, and a cylinder cover (2) is arranged at the opening; a stirring frame (4) is arranged inside the cylinder body (1), and the stirring frame (4) is attached to the cylinder body ( 1) The inner wall is set; a drive motor is installed in the drive box (3), and the output shaft of the drive motor penetrates into the cylinder body (1) and drives the stirring frame (4) to rotate. The drive motor and the controller electrical connection; the stirring frame (4) is provided with a hopper (5), and the side of the cylinder (1) is provided with support legs (12); the upper part of the cylinder (1) is close to the drive box (3) One end is provided with an air inlet (13), and the air inlet (13) is connected with an air pump through a pipeline. 2. A kind of drum type tea greening machine according to claim 1, characterized in that: the stirring frame (4) is set to a disc-shaped structure, and a stirring rod ( 41); the hopper (5) is circularly distributed on the stirring rod (41), the hopper (5) is provided with a trough on one side of the opening, and the direction of the opening is consistent with the direction of rotation of the stirring rod (41), the The cylinder cover (2) is mounted on the shrinkage port (11) through a threaded structure. 3. A drum-type tea degreening machine according to claim 2, characterized in that: a support seat (21) is installed on the inside of the cylinder cover (2) through a rotating shaft, and a C-shaped surface is arranged on the outside of the cylinder cover (2). Type handle (23), the support seat (21) is provided with a supporting groove (22), and the supporting groove (22) and the stirring rod (41) are butted with each other. 4. A drum-type tea degreening machine according to claim 2, characterized in that: several fan-shaped openings are evenly arranged on the surface of the stirring frame (4), and a screen (42) is arranged in the opening; A sleeve (43) is arranged on the side of the stirring rod (41), and a telescopic rod (44) is connected to the sleeve (43) through an electric push rod, and the telescopic rod (44) is connected to the hopper (5), The electric push rod is electrically connected with the controller. 5. A drum type tea greening machine according to claim 4, characterized in that: the end of the telescopic rod (44) is provided with a threaded structure, and the hopper (5) is provided with a threaded head (51), the The threaded head (51) is connected with the telescopic rod (44) by a threaded structure.
