Abstract

The utility model belongs to the technical field of bird repelling for electrical equipment, in particular to a bird repelling device, comprising a mounting seat, a magnet is arranged inside the mounting seat, the upper surface of the mounting seat is fixedly connected to one end of a spring, and the other end of the spring is connected to The inside of the cover body is fixedly connected, and the spring is fixed with a container for placing bird-repelling medicine particles. There are bird-repelling medicine grains in the bird-repelling grain storage container, and the cover body includes a hemispherical surface structure and a cylindrical surface structure that cooperates with the hemispherical surface structure, and a reflective film is provided on the surface of the hemispherical surface structure. The surface of the cylindrical structure is provided with a plane reflective lens. The beneficial effects of the utility model are: it can be installed with electricity while ensuring the safety of installers, and can ensure the effect of repelling birds. The utility model has low cost, simple manufacture, obvious effect of repelling birds, and is suitable for popularization and application.

Description

a bird repellent

technical field

The utility model belongs to the technical field of bird repelling for electric equipment, in particular to a bird repelling device.

Background technique

On transmission and distribution lines, some birds often stay and nest on iron towers or poles, and the frequency of power supply equipment failures directly or indirectly caused by bird activities also increases, which brings serious hidden dangers to power supply safety. At present, the power sector mainly prevents bird damage by installing bird repellents on power equipment, reduces the impact on the operation of line equipment, and ensures the safe, economical and reliable operation of power lines.

Existing bird repelling device is various, mainly is to rotate under the effect of wind by the impeller that mirror is housed, makes mirror rotate and reflects sunlight and plays the purpose of driving away bird. The problem of this kind of bird repellent is that when the weather is good and the wind is low, the impeller is not easy to rotate, and the reflection angle is limited. After a long time of use, the joint between the rotating shaft and the impeller is prone to rust, which affects the bird repellent effect; and the bottom support seat is general. It is fixed on the iron tower or pole by bolts, which is inconvenient to install.

In order to improve the bird repelling effect, Chinese patent CN104255699A discloses a new type of wind-powered reflective bird repellent, which is composed of a support seat, a support rod, a support sleeve, and a multi-point reflective goggle. Installed on the outer wall of the support sleeve, through the rotation of the support sleeve on the support rod, the multi-point reflective goggles reflect light, so that the birds approaching the cross arm will be frightened and fly away. Chinese patent CN207803310U provides an electric bird repellent, the bird repellent installation frame (base) is fixedly connected with the lower end of the fixed rod (rotating shaft), the top of the fixed rod is connected with the self-adjusting control seat of the speed, and the self-adjusting control seat of the speed is passed through the connecting rod Connected with the bowl-shaped mirror cover, the upper surface of the speed self-adjusting control seat is also provided with an ultrasonic generating seat and an ultrasonic generating probe, which automatically adjusts the speed of the bird repellent by sensing the surrounding light conditions.

Although the above-mentioned technologies have improved the bird repelling effect, the support base at the bottom is still fixed on the iron tower or pole by bolts during installation, and the line needs to be powered off first, and then manually installed, which not only affects the normal operation of the transmission and distribution line , and brought economic losses to electricity companies, which is not conducive to the development of the power industry. The connection between the vertical shaft and the impeller is prone to aging or rusting during long-term wind and sun exposure, which affects the rotation of the lens. Therefore still need to further improve bird repellent.

Utility model content

In order to overcome the deficiencies of the above-mentioned prior art, the utility model provides a bird repelling device, which can be installed live while ensuring the safety of the installation personnel, and can ensure the bird repelling effect.

In order to achieve the above object, the utility model adopts the following technical solutions:

A bird repellent, comprising a mounting seat, a magnet is provided inside the mounting seat, the upper surface of the mounting seat is fixedly connected to one end of a spring, the other end of the spring is fixedly connected to the inside of the cover body, and the spring is provided with a drive The bird repellent pellet container is fixed in the helical spring coil through the stretching and recovery of the spring. Air diffuser holes are provided at the bottom of the medicine particle storage container, and there are bird repellent medicine grains in the bird repellent medicine grain storage container, and the cover body includes a hemispherical surface structure and a cylindrical surface structure that cooperates with the hemispherical surface structure, and the hemispherical surface structure A reflective film is provided on the surface of the planar structure, and a plane reflective lens is provided on the surface of the cylindrical structure.

Preferably, a bird repelling bell is also provided at the bottom of the bird repelling medicine pellet container.

Further preferably, the bird-repelling bell is connected to the suspension ring provided at the bottom center of the bird-repelling medicine particle storage container through a connecting piece, and the bird-repelling bell is located in the hollow position of the spring.

Preferably, the mounting base is provided with an auxiliary mounting hole in the horizontal direction, and further preferably, the auxiliary mounting hole is a through hole penetrating through the horizontal center of the mounting base.

Preferably, the air-diffusing holes are evenly distributed at the bottom of the bird repelling medicine pellet storage container.

Preferably, the hemispherical structure and the cylindrical structure are an integral structure.

Preferably, the plane reflective lens matches the contact surface of the cylindrical structure and is vertically bonded together.

Preferably, the number of the plane reflective lenses is four.

Preferably, four circular convex lenses are arranged on the side of the hemispherical structure.

Preferably, the outer surface of the spring is provided with an anti-corrosion and anti-rust protective layer.

The beneficial effects of the utility model are: a magnet is set in the mounting seat, which is convenient for installation and disassembly; when installing the bird repellent, insert the end of the operating rod into the auxiliary installation hole, place the bird repellent at the corresponding position, and then absorb it through the magnet Fix it, and then just pull out the operating rod from the auxiliary installation hole. There is no need to cut off the power during the loading and unloading process, ensuring the normal operation of the power transmission and distribution lines; using a spring instead of a rotating shaft or a straight rod, the spring can shake in the breeze, and the spring When shaking, it can drive the bird-repelling bell to make a sound, and make the reflective film on the cover and the plane reflective lens shake, so as to achieve the effect of sound repelling birds and lens reflection to repel birds. bird.

The bird-repelling medicine container is installed in the spiral coil of the spring through the extension and restoration of the spring. When replacing the bird-repelling medicine, the bird-repelling medicine grain container stuck in the spring will be pulled out at the same time through the stretching of the spring, which is convenient Add the bird-repelling medicine grains from the mouth of the bird-repelling medicine grain placement container upper end, without the need to dismantle the bird-repelling medicine grain placement container, and the bird-driving medicine grain placement container is restored to the cover body after the spring recovers. The bird repelling medicine granule is placed in a container for easy loading and unloading, and the replacement of the bird repelling medicine granule is also convenient.

The length of the spring is longer, once the breeze activates the bird repellent, even in the absence of wind, due to inertia, the spring will continue to shake for a period of time, ensuring that the bird repellent continues to repel birds through sound, smell, and light. A protected area is formed to prevent birds from approaching, which greatly improves the effect of repelling birds.

The bird repelling device of the utility model has the advantages of low cost, simple manufacture, fast installation, electrified disassembly and assembly, no need for power failure, low installation environment requirements, obvious bird repelling effect, and is suitable for popularization and application.

Description of drawings

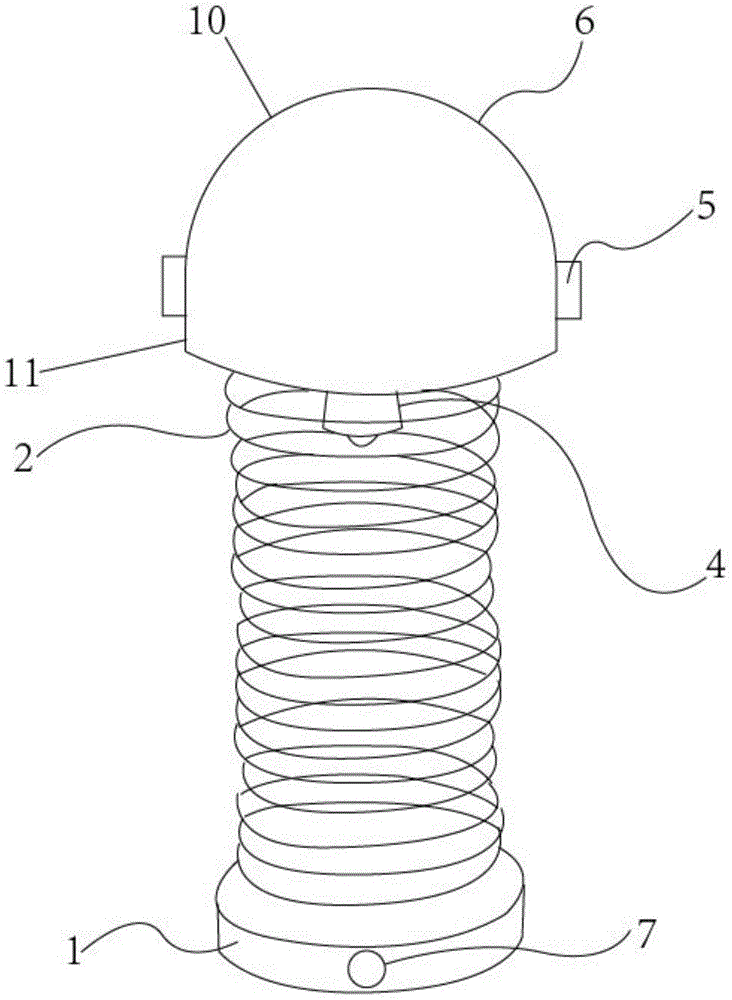

Fig. 1 is the overall structure schematic diagram of the utility model bird repellent;

Fig. 2 is a schematic diagram of the connection between the storage container and the spring of the bird repelling medicine grains of the present invention.

In the figure: 1. Mounting seat, 2. Spring, 3. Container for placing bird-repelling pills, 4. Bird-repelling bell, 5. Flat reflective lens, 6. Cover body, 7. Auxiliary mounting hole, 8. Hanging ring, 9. Connector, 10, hemispherical structure, 11, cylindrical structure.

Detailed ways

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two parts. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention through specific situations.

In order to make the purpose, technical solutions and advantages of the present utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings. Obviously, the described embodiments are only some embodiments of the utility model, rather than all implementations example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example

As shown in FIG. 1 , the bird repellent of this embodiment includes a mount 1 , a spring 2 , a cover 6 , a container 3 for bird repellent medicine grains and a bird repellent bell 4 .

The mounting base 1 is the bottom of the bird repeller, and is used for fixed connection with iron towers, utility poles or cross-arms. A magnet is set inside the mounting base 1, and an auxiliary installation that runs through the mounting base 1 in the horizontal direction is provided on the mounting base 1. hole 7, and the auxiliary installation hole 7 is located at the horizontal center of the mounting base 1. When installing, insert the end of the operating rod into the auxiliary mounting hole 7, place the bird repellent at the corresponding position and directly absorb it through the magnet, and then pull the operating rod out of the auxiliary mounting hole 7. No bolts are used in the installation process , It does not need power-off installation, and the operation is simple and convenient.

One end of the spring 2 is fixedly connected to the upper surface of the mounting base 1 , and the other end of the spring 2 is fixedly connected to the inside of the cover 6 above it. In this embodiment, the length of the spring is longer, for example, the length of the spring can be set to 15cm. Once the breeze starts the bird repellent, even in the case of no wind, the spring will continue to shake for a period of time due to inertia, which greatly improves the bird repellent. bird effect. In order to further improve the bird-repelling effect, the bird-repelling medicine particle container 3 is placed in the spiral coil of the spring 2, and the bird-repelling medicine grain container 3 is stuck in the spiral coil of the spring 2 by the spring 2, as shown in FIG. 2 . The opening end of the container 3 for bird-repelling medicine is placed near the inside of the cover body 6. The bottom of the container 3 for bird-repelling medicine is provided with evenly distributed air holes. The smell of the bird-repelling medicine can be distributed evenly, and the smell can drive the birds. When replacing the bird-repelling pills, the spring 2 stretches when stretched, so that the bird-repelling pill container 3 stuck in the spring 2 is pulled out at the same time, and it is convenient to add bird-repelling pills from the upper mouth of the bird-repelling pill placement container 3 Pills, without the need to dismantle the bird-repelling medicine grain placement container 3, when the spring 2 recovers, the bird-piercing medicine grain placement container 3 is restored in the cover body 6.

The cover body 6 of this embodiment includes a hemispherical structure 10 and a cylindrical structure 11 mated with the hemispherical structure 10 , and the hemispherical structure 10 and the cylindrical structure 11 are an integral structure. In order to further improve the bird-repelling effect, a layer of reflective film is provided on the surface of the hemispherical structure 10, and four plane reflective lenses 5 are uniformly distributed on the surface of the cylindrical structure 11, and the contact surfaces of the plane reflective lens 5 and the cylindrical structure 11 are matched and vertically adhered. Connect together, wherein the quantity of plane reflective lens 5 is 4. Drive the birds by reflecting light through the plane reflective lens 5 and the reflective film, which can enhance the reflective effect and keep the birds away. In addition, four circular convex lenses (not shown in the figure) can be arranged on the side of the hemispherical structure 10 as required.

Simultaneously, drive bird bell 4 is installed at the lower end of container 3 bottom centers at drive bird medicine grain, with reference to accompanying drawing 2, drive bird drive bell 4 sound drive bird. In order to connect the bird-repelling bell 4, a suspension ring 8 is set at the center of the bird-repelling medicine particle container 3, and the bird-repelling bell 4 is directly connected through the suspension ring 8, or connected with the suspension ring 8 through a connector 9. The bird-repelling bell 4 is located in the hollow position of the spring 2, and its size does not affect the rocking of the spring 2. The connecting piece 9 can be a rope, a metal wire, a hook and other structures, and any structure that can realize the connection between the bird repelling bell 4 and the container bottom 7 can be used, which is not limited in this embodiment.

In this embodiment, the spring 2 is used to replace the rotating shaft or the straight rod, and the spring 2 can be shaken under the breeze. When the spring 2 shakes, the bird driving bell 4 can be driven to make a sound, and the cover 6 and the reflective lens on the cover 6 5. Shake to achieve the functions of sound repelling birds and mirror reflection to repel birds, and at the same time, it is also conducive to the distribution of bird repelling pills.

Since the bird repellent will experience wind and sun during long-term use, in order to prevent the bird repellent from being corroded or rusted, a layer of anti-corrosion and anti-rust protective layer can be coated on the outer surface of the spring 2 to extend the life of the bird repellent. service life.

The bird repelling device of the utility model is mainly applicable to power transmission and distribution lines of electric power systems, outdoor switching sites of substations and other occasions where birds need to be repelled. Birds can be driven away from the tower to prevent nesting, so as to prevent bird damage and ensure safety.

The examples of the utility model have been described in detail above, but the content is only a preferred embodiment of the utility model, and cannot be considered as limiting the implementation scope of the utility model. All equal changes and improvements made according to the application scope of the utility model should still belong to the scope covered by the patent of the utility model.

Claims (10)

1. A bird repellent, comprising a mount, characterized in that: the inside of the mount is provided with a magnet, the upper surface of the mount is fixedly connected to one end of the spring, and the other end of the spring is fixedly connected to the inside of the cover, so A bird-repelling medicine container is fixed inside the spring, and the opening end of the bird-repelling medicine container is close to the inside of the cover, and the bottom of the bird-repelling medicine container is provided with air holes, and the bird-repelling medicine is placed There are bird-repelling medicine particles in the container, and the cover body includes a hemispherical structure and a cylindrical structure cooperating with the hemispherical structure, the surface of the hemispherical structure is provided with a reflective film, and the surface of the cylindrical structure is provided with a plane reflective lens. 2. The bird repelling device according to claim 1, characterized in that: a bird repelling bell is also provided at the bottom of the container for placing the bird repelling medicine grains. 3. The bird repelling device according to claim 2, characterized in that: the bird repelling bell is connected to the suspension ring provided at the bottom center of the bird repelling medicine grain storage container through a connecting piece, and the bird repelling bell is located at the Describe the hollow position of the spring. 4. The bird repeller according to claim 1, characterized in that: the mounting base is provided with auxiliary mounting holes in the horizontal direction. 5 . The bird repeller according to claim 4 , wherein the auxiliary mounting hole is a through hole penetrating through the horizontal center of the mounting base. 6 . 6. The bird repelling device according to claim 1, characterized in that: the air diffuser holes are evenly distributed on the bottom of the bird repelling medicine particle storage container. 7. The bird repeller according to claim 1, characterized in that: the hemispherical structure and the cylindrical structure are an integral structure. 8. The bird repellent according to claim 1, characterized in that: the plane reflective mirror is vertically matched with the contact surface of the cylindrical structure and bonded together, and the number of the plane reflective mirror is four . 9. The bird repeller according to claim 1, characterized in that four circular convex lenses are arranged on the side of the hemispherical structure. 10. The bird repeller according to claim 1, characterized in that: the outer surface of the spring is provided with an anti-corrosion and anti-rust protective layer.
