Abstract

The utility model discloses a drug extraction device, which relates to the technical field of traditional Chinese medicine. The drug extraction device includes a tank body, the bottom of the tank body is provided with a discharge pipe communicating with the inside of the tank body, and the bottom of the discharge pipe is provided with a The fixed plate is provided with a mounting block inside the fixed plate, and the top of the mounting block is provided with a filter tank communicating with the inside of the discharge pipe. The inside of the filter tank is provided with a filter screen, and the top of the filter screen is provided with a cleaning plate. , the medicine dregs filtered on the top of the filter screen are cleaned by the brush, and to a certain extent, the medicine liquid is filtered and discharged, because the medicine dregs accumulate on the top of the filter screen, so that the mesh of the filter screen is blocked. And the situation that the discharge and collection speed of the medicinal liquid is affected through the filter screen occurs, so that the filtering speed of the medicinal liquid is guaranteed, and the staff can use the device to extract the medicinal liquid more conveniently.

Description

A drug extraction device

technical field

The utility model relates to the technical field of traditional Chinese medicine, in particular to a medicine extracting device.

Background technique

Chinese medicine is traditional Chinese medicine, which is a special medicine of traditional Chinese medicine. According to the processing technology, Chinese medicine is divided into Chinese patent medicine and Chinese medicinal materials, including herbal medicine, animal medicine and mineral medicine. The medicinal components in the medicinal materials are extracted. In the prior art, the extraction is performed by an extraction device.

Currently published patent: CN214680147U, which discloses a drug extraction device, by putting the medicinal material and water into the tank through the feeding hopper, turning on the heating plate, the heating plate boils the water in the tank, and boiling the medicinal material. At the same time, the steam generated by the boiled water enters the casing through the air hole to drive the fan blade to rotate, the fan blade drives the rotating rod to rotate, and the rotating rod drives the stirring rod to rotate. The liquid enters the installation tank through the feeding pipe, and the medicinal residue is separated from the medicinal liquid under the action of the filter screen to complete the extraction, which avoids the waste of medicinal materials and improves the extraction efficiency at the same time.

But this scheme also can appear following problem in the process of using: although the device in the comparison scheme can improve the advantage of extraction efficiency, because the filter screen of the device in the comparison scheme is in the process of filtering the medicine dregs, the medicine residue is easy to Accumulated on the top of the filter screen, and the mesh of the filter screen is blocked, so that the discharge and collection speed of the liquid medicine through the filter screen is affected, thereby reducing the filtration speed of the liquid medicine.

Utility model content

The purpose of this utility model is to at least solve one of the technical problems existing in the prior art, and provide a drug extraction device, which can solve the problem that drug residues are easy to accumulate on the top of the filter screen, and cause the mesh of the filter screen to be blocked, making the drug The problem that the liquid is discharged and collected through the filter screen is affected.

In order to achieve the above purpose, the utility model provides the following technical solutions: a drug extraction device, including a tank body, the bottom of the tank body is provided with a discharge pipe communicating with the inside of the tank body, and the bottom of the discharge pipe is provided with a fixing plate , the inside of the fixed plate is provided with a mounting block, the top of the mounting block is provided with a filter tank connected to the inside of the discharge pipe, the inside of the filter tank is provided with a filter screen, and the top of the filter screen is provided with a cleaning plate, which is close to the side of the filter screen There is a brush on one side, and a cleaning power transmission device is installed inside the discharge pipe. The power transmission device includes a fixed frame. The surface of the fixed frame is fixedly connected with the inner wall of the discharge pipe. The fixed frame is T-shaped, and the inside of the fixed frame is Hollow structure, the outer surface of the discharge pipe is fixedly connected with a motor, the output end of the motor rotates through the outer surface of the discharge pipe and extends to the inside of the discharge pipe, and the output end of the motor is fixedly connected with a transmission that is rotationally connected with the inner wall of the fixed frame Rod, the internal rotation of the vertical plate of the fixed frame is connected with a rotating shaft.

Preferably, the bottom of the fixing plate is provided with a mounting groove communicating with the inside of the discharge pipe, and the inside of the mounting groove is screwed to the surface of the mounting block.

Preferably, the inside of the filter tank is threadedly connected with a frame, and the filter screen is arranged inside the frame.

Preferably, the rotating shaft and the transmission rod are perpendicular to each other, one end of the rotating shaft rotates through the inside of the fixing frame and extends to the outside of the fixing frame, and the surface of the rotating shaft outside the fixing frame is fixedly connected to the surface of the cleaning plate.

Preferably, the surface of the transmission rod is fixedly connected with a first bevel gear, and the other end of the rotating shaft is fixedly connected with a second bevel gear meshed with the surface of the first bevel gear.

Compared with the prior art, the beneficial effects of the utility model are:

(1), the medicine extracting device cleans the medicine dregs filtered on the top of the filter screen through the brush, and reduces the liquid medicine to a certain extent during the process of filtering and discharging, because the medicine dregs accumulate on the top of the filter screen, so that the The mesh of the filter screen is clogged, and the discharge and collection speed of the liquid medicine through the filter screen is affected, so that the filtration speed of the liquid medicine is guaranteed, and the staff can use the device to extract the liquid medicine more conveniently.

(2), the drug extraction device, through the threaded connection between the mounting block and the mounting groove, and the threaded connection between the frame and the filter tank, makes the disassembly and installation of the mounting block and the frame more convenient, and at the same time enables the staff to a certain extent It is more convenient to clean the medicine residue on the top of the filter screen, and make the later maintenance of the filter screen more convenient, so that after the filter screen is damaged, the staff can disassemble and repair the filter screen more conveniently, so that the filter screen is not damaged. The filtration quality of the liquid medicine is guaranteed.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

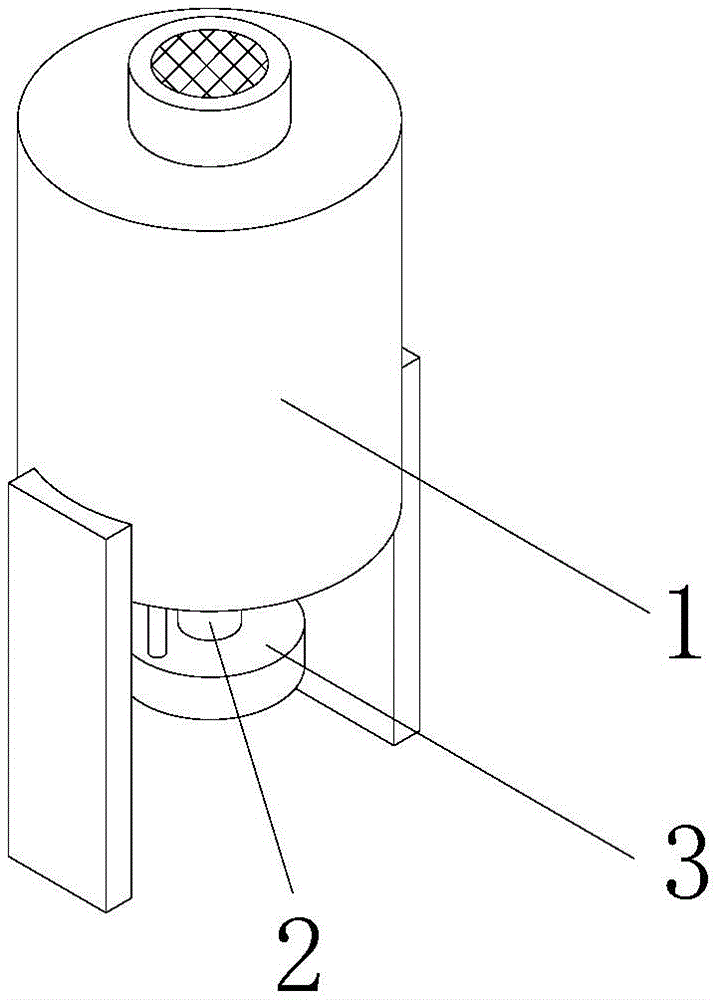

Fig. 1 is the structural representation of a kind of medicine extraction device of the present utility model;

Fig. 2 is a schematic cross-sectional view of the utility model discharge pipe;

Fig. 3 is a left plan view of the fixing frame of the present invention.

Reference signs: 1, tank body; 2, discharge pipe; 3, fixed plate; 4, fixed frame; 5, rotating shaft; 6, cleaning plate; 7, brush; 8, motor; 9, transmission rod; 10 11. The second bevel gear; 12. The frame; 13. The installation slot; 14. The installation block; 15. The filter tank; 16. The filter screen.

Detailed ways

Please refer to Figures 1-3, the utility model provides a technical solution: a drug extraction device, including a tank body 1, the tank body 1 is an existing structure and will not be described in detail here, the bottom of the tank body 1 is provided with a The discharge pipe 2 connected inside the tank body 1 can discharge the traditional Chinese medicine. The bottom of the discharge pipe 2 is provided with a fixed plate 3, and the inside of the fixed plate 3 is provided with a mounting block 14. The top of the mounting block 14 is provided with a There is a filter tank 15 communicating with the inside of the discharge pipe 2, the bottom of the mounting block 14 is provided with a drain pipe communicating with the inside of the filter tank 15, the inside of the filter tank 15 is provided with a filter screen 16, and the liquid medicine can be treated by the filter screen 16. The impurities in the filter screen are filtered, the top of the filter screen 16 is provided with a cleaning plate 6, and the side of the cleaning plate 6 close to the filter screen 16 is provided with a brush 7, and the cleaning plate 6 rotates by driving the brush 7, so that the brush 7 can The medicinal residue on the top of the filter screen 16 is cleaned, and the inside of the discharge pipe 2 is provided with a cleaning power transmission device.

Further, the bottom of the fixing plate 3 is provided with a mounting groove 13 communicating with the inside of the discharge pipe 2 , and the inside of the mounting groove 13 is threadedly connected with the surface of the mounting block 14 .

Further, the inside of the filter tank 15 is threadedly connected with the frame body 12, the filter screen 16 is arranged inside the frame body 12, and a sealing ring is arranged between the top of the frame body 12 and the installation groove 13, so that the installation groove 13 and the frame body The tightness between 12 has been improved to a certain extent.

Through the threaded connection between the mounting block 14 and the mounting groove 13, and the threaded connection between the frame body 12 and the filter tank 15, the disassembly and installation of the mounting block 14 and the frame body 12 are more convenient, and at the same time, the staff can be more convenient to a certain extent. Clean up the medicinal residues on the top of the filter screen 16, and make the post-maintenance of the filter screen 16 more convenient, so that after the filter screen 16 is damaged, the staff can disassemble and repair the filter screen 16 more conveniently, so that the filter screen 16 pairs of liquid medicine filtration quality is guaranteed.

The power transmission device includes a fixed frame 4, the surface of the fixed frame 4 is fixedly connected with the inner wall of the discharge pipe 2, the fixed frame 4 is T-shaped, the inside of the fixed frame 4 is a hollow structure, and the outer surface of the discharge pipe 2 is fixedly connected with a motor 8. The output end of the motor 8 rotates through the outer surface of the discharge pipe 2 and extends to the inside of the discharge pipe 2. The motor 8 is an existing structure, so it will not be repeated here. The output end of the motor 8 is fixedly connected with The transmission rod 9 that is rotatably connected to the inner wall of the fixed frame 4 is connected with the rotating shaft 5 inside the vertical plate of the fixed frame 4. The rotating shaft 5 and the transmission rod 9 are perpendicular to each other. One end of the rotating shaft 5 rotates through the inside of the fixed frame 4 and extends To the outside of the fixed frame 4 , the surface of the rotating shaft 5 located outside the fixed frame 4 is fixedly connected with the surface of the cleaning plate 6 .

Further, the surface of the transmission rod 9 is fixedly connected with the first bevel gear 10 , and the other end of the rotating shaft 5 is fixedly connected with the second bevel gear 11 meshingly connected with the surface of the first bevel gear 10 .

Start the motor 8 by the staff, the motor 8 drives the transmission rod 9 to rotate, and at the same time, the transmission rod 9 drives the rotation shaft 5 to rotate through the meshing connection between the first bevel gear 10 and the second bevel gear 11, and makes the cleaning The plate 6 and the brush 7 are rotated on the top of the filter screen 16, and at the same time, the drug residue filtered on the top of the filter screen 16 is cleaned by the brush 7, and to a certain extent, the drug liquid is filtered and discharged. The slag accumulates on the top of the filter screen 16, so that the mesh of the filter screen 16 is blocked, and the situation that the liquid medicine is discharged through the filter screen 16 and the collection speed is affected occurs, so that the filtration speed of the liquid medicine is guaranteed, and the staff can The device can be used to extract the medicinal liquid more conveniently.

Working principle: the drug extraction device starts the motor 8 by the staff during use, and the motor 8 drives the transmission rod 9 to rotate. At the same time, the meshing connection between the first bevel gear 10 and the second bevel gear 11 makes the transmission rod 9 drives the rotating shaft 5 to rotate, and makes the cleaning plate 6 and the hairbrush 7 rotate on the top of the filter screen 16, and simultaneously the medicine dregs filtered on the top of the filter screen 16 are cleaned by the hairbrush 7, and reduces the amount of medicine to a certain extent. During the process of filtering and discharging the liquid, because the medicine dregs accumulate on the top of the filter screen 16, the mesh of the filter screen 16 is blocked, and the situation that the liquid medicine is discharged through the filter screen 16 and the collection speed is affected occurs, so that the medicine liquid The filtration speed of the liquid is guaranteed. Through the thread connection between the installation block 14 and the installation tank 13, and the thread connection between the frame body 12 and the filter tank 15, the disassembly and installation of the installation block 14 and the frame body 12 are more convenient, and at the same time, to a certain extent Make the staff can more conveniently make the installation block 14 unscrew the inside of the installation groove 13, and after the staff makes the installation block 12 unscrew the inside of the filter tank 15, the staff can more smoothly filter the medicine on the top of the filter screen 16 The slag is cleaned, and the later maintenance of the filter screen 16 is more convenient, so that after the filter screen 16 is damaged, the staff can more easily disassemble and repair the filter screen 16, so that the filtering quality of the filter screen 16 for the liquid medicine can be improved. Assure.

The above embodiments of the utility model have been described in detail in conjunction with the accompanying drawings, but the utility model is not limited to the above-mentioned embodiments. Make various changes below.

Claims (5)

1. A drug extraction device, comprising a tank body (1), is characterized in that: the bottom of the tank body (1) is provided with a discharge pipe (2) communicated with the inside of the tank body (1), the discharge pipe ( 2) The bottom is provided with a fixed plate (3), the inside of the fixed plate (3) is provided with a mounting block (14), and the top of the mounting block (14) is provided with a filter tank (15) communicating with the inside of the discharge pipe (2). ), the inside of the filter tank (15) is provided with a filter screen (16), the top of the filter screen (16) is provided with a cleaning plate (6), and the cleaning plate (6) is provided with a brush near the side of the filter screen (16) (7), the inside of the discharge pipe (2) is provided with a cleaning power transmission device, the power transmission device includes a fixed mount (4), the surface of the fixed mount (4) is fixedly connected with the inner wall of the discharge pipe (2), and the fixed mount (4) is T-shaped, the interior of the fixed frame (4) is a hollow structure, the outer surface of the discharge pipe (2) is fixedly connected with a motor (8), and the output end of the motor (8) rotates through the discharge pipe (2) and extend to the inside of the discharge pipe (2), the output end of the motor (8) is fixedly connected with a drive rod (9) that is rotatably connected to the inner wall of the fixed frame (4), and the vertical plate of the fixed frame (4) The inner rotation is connected with a rotating shaft (5). 2. A drug extraction device according to claim 1, characterized in that: the bottom of the fixed plate (3) is provided with an installation groove (13) communicating with the inside of the discharge pipe (2), and the installation groove (13) ) is threaded on the surface of the mounting block (14). 3. A kind of drug extracting device according to claim 1, characterized in that: the internal thread of the filter tank (15) is connected with a frame (12), and the filter screen (16) is arranged on the frame (12) internal. 4. A medicine extracting device according to claim 1, characterized in that: the rotating shaft (5) and the transmission rod (9) are perpendicular to each other, and one end of the rotating shaft (5) rotates through the fixed frame (4). Inside and extending to the outside of the fixed frame (4), the surface of the rotating shaft (5) located outside the fixed frame (4) is fixedly connected with the surface of the cleaning plate (6). 5. A drug extraction device according to claim 4, characterized in that: the surface of the transmission rod (9) is fixedly connected with a first bevel gear (10), and the other end of the rotating shaft (5) is fixedly connected There is a second bevel gear (11) in meshing connection with the surface of the first bevel gear (10).
