Abstract

The utility model discloses an automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt, which relates to the technical field of material sheet conveying. The automatic mechanism applicable to the automatic material receiving sheet conveyor belt includes a conveying table body, the top surface of the conveying table body is fixedly connected with a processing chamber, the material sheet is placed on the conveying table body, and the front end of the conveying table body is fixedly connected with a lower The material plate and the front side of the unloading plate are provided with a collection box, the interior of the processing chamber is provided with a dust suction device, and the interior of the processing chamber is provided with a calibration device. Through the setting of the calibration device, two calibration rods are used to move the material to move. , so that the material moves to the central axis of the conveyor belt, and the position of the material is calibrated, so that when the material passes under the connecting cover, the connecting cover can accurately clean the dust on the material, thereby improving the dust collection The accuracy ensures that each piece of material can be accurately vacuumed, improving the quality of vacuuming.

Description

Automatic Mechanism for Fully Automatic Receiver Conveyor Belt

technical field

The utility model relates to the technical field of sheet conveying, in particular to an automatic mechanism suitable for a fully automatic sheet receiving conveyor belt.

Background technique

Conveyor belt, also known as conveyor belt, is a rubber, fiber, metal composite product, or plastic and fabric composite product used to carry and transport materials in the belt conveyor belt. Conveyor belt is widely used in cement, coking, metallurgy, chemical industry , steel and other industries where the conveying distance is short and the conveying volume is small.

When the conveyor belt transports the material, there will be dust on the top surface of the material, which will affect the color and appearance of the material. In order to clean the dust, the material will be cleaned by the dust suction device during the conveying process. However, most of the dust collection devices on the conveyor table are fixed, which leads to the fixed position of the suction port, but the position of the material sheets on the conveyor table is not uniform, which leads to the movement of some sheets to the bottom of the dust suction port. At the same time, it cannot be vacuumed accurately, thereby affecting the efficiency of dust collection, so there is an urgent need for an automatic mechanism for the conveyor belt that can adjust the position of the material plate.

Utility model content

The purpose of the utility model is to solve at least one of the technical problems in the prior art, to provide an automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt, and to solve the problem of poor dust removal effect during the material sheet conveying process.

In order to achieve the above purpose, the utility model provides the following technical solutions: an automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt, including a conveyor body, the top surface of the conveyor body is fixedly connected with a processing chamber, and the conveyor body is placed There are blanks, the front end of the conveying table body is fixedly connected with a blanking plate, the inclined state of the blanking plate is set on the front side of the conveying table body, the front side of the blanking plate is provided with a collection box, and the inside of the processing chamber is provided with a suction Dust device, the inside of the processing chamber is equipped with a calibration device, the rear side of the conveyor body is equipped with a frame, the inner wall of the frame is slidably connected with a lifting platform, the top surface of the lifting platform is fixedly connected with a push rod motor, and the top surface of the lifting platform is The material plate is slidingly connected, the movable end of the push rod motor is fixedly connected with the bottom surface of the material plate, the top surface of the inner wall of the frame is fixedly connected with a double-axis motor, and the two output ends of the double-axis motor are fixedly connected with a rotating rod. Both the rotating rods are connected with the frame in rotation, and the two rotating rods are fixedly sleeved with sprockets, and the two sprockets are meshed and sleeved with chains, and the outer wall of the lifting platform is fixedly connected with two connecting parts, and the two chains One of the ends of the two chains is fixedly connected with the corresponding connector, and the other ends of the two chains are fixedly connected with counterweights.

Preferably, the dust collection device includes a negative pressure fan, the negative pressure fan is fixedly connected to the top surface of the processing chamber, the output end of the negative pressure fan is fixedly connected with a connecting pipe, and the lower end of the connecting pipe extends to the inside of the processing chamber and is connected to the processing chamber. The warehouse is fixedly connected, the bottom surface of the connecting pipe is fixedly connected with a connecting cover, the bottom surface of the connecting cover is open, the connecting pipe communicates with the inside of the connecting cover, the inside of the connecting pipe is fixedly connected with a filter screen, and the rear surface of the connecting cover is fixedly connected with a sewage Tube.

Preferably, the inside of the processing chamber is fixedly connected with a hollow connecting plate, and two connecting grooves are opened on the front surface of the connecting plate, both of which communicate with the inside of the connecting plate.

Preferably, a motor is fixedly connected to the rear surface of the connecting plate, the output end of the motor extends to the inside of the connecting plate, and the output end of the motor is fixedly connected to the first bevel gear.

Preferably, the calibration device includes two threaded rods, the two threaded rods are respectively rotatably connected to the left and right surfaces inside the connecting plate, the opposite ends of the two threaded rods are fixedly connected with second bevel gears, and the two second bevel gears The gears are meshed and connected with the first bevel gear, the two threaded rods are threaded with threaded sleeves, the front surfaces of the two threaded sleeves are fixedly connected with sliding rods, and the front ends of the two sliding rods respectively pass through the corresponding connecting grooves and It is slidably connected with the corresponding connecting groove, and the front ends of the two sliding rods are fixedly connected with calibration rods.

Preferably, the two calibration rods are both "L" shaped.

Preferably, both said alignment rods are in contact with the web.

Compared with the prior art, the beneficial effects of the utility model are:

(1) The automatic mechanism suitable for the automatic material receiving conveyor belt, through the setting of the calibration device, uses two calibration rods to move the material to move, so that the material moves to the central axis of the conveyor belt, and the material is aligned. The position of the sheet is calibrated, so that when the sheet passes under the connecting cover, the connecting cover can accurately clean the dust on the sheet, thereby improving the accuracy of vacuuming and ensuring that each sheet can be accurately cleaned Vacuuming improves the quality of vacuuming.

(2) The automatic mechanism applicable to the automatic material receiving conveyor belt, through the setting of the dust suction device, can clean the dust on the material sheet during the material sheet conveying process, which improves the quality and appearance of the material sheet, without the need for Manual cleaning alone improves the practicability of the device. At the same time, through the setting of the filter, the debris can be filtered to prevent the debris from entering the connecting pipe and causing damage to the negative pressure fan, thus improving the durability of the device. sex and longevity.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

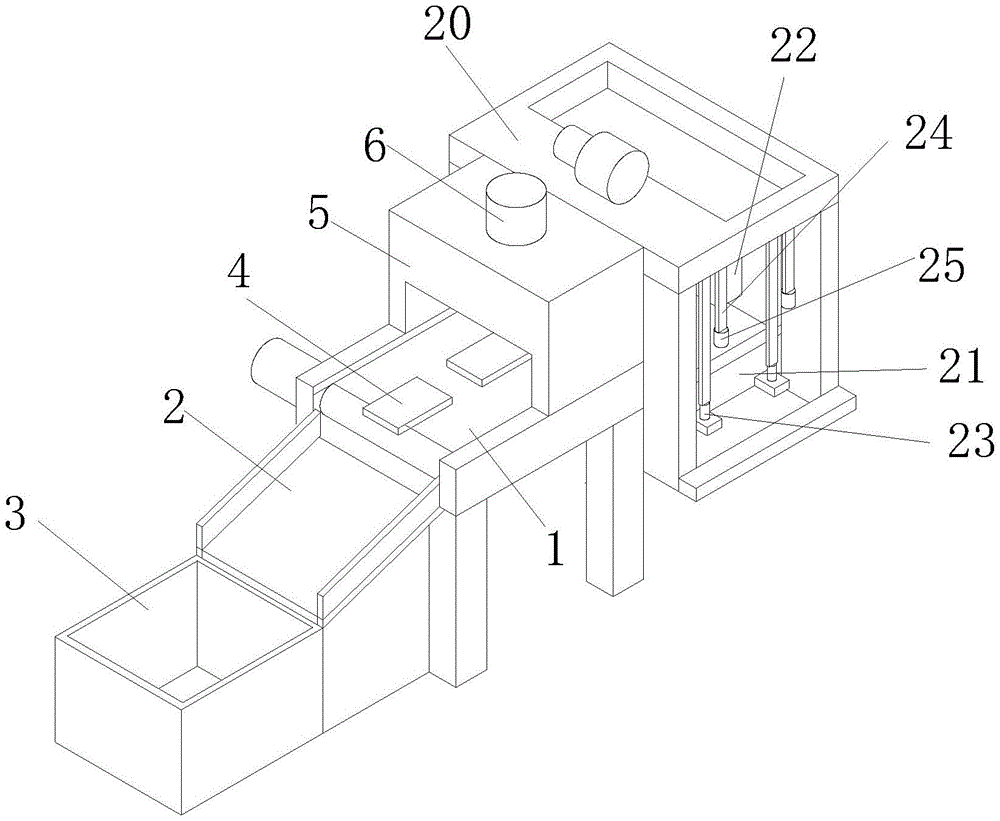

Fig. 1 is the structural representation of the automatic mechanism of the utility model applicable to the automatic material receiving piece conveyor belt;

Fig. 2 is the structural representation of the automatic mechanism frame of the utility model applicable to the automatic material receiving sheet conveyor belt;

Fig. 3 is the schematic diagram of the planar structure of the automatic mechanism rotating rod of the utility model applicable to the automatic material receiving piece conveyor belt;

Fig. 4 is the schematic diagram of the automatic mechanism calibration rod of the utility model applicable to the fully automatic material receiving sheet conveyor belt;

Fig. 5 is a schematic plan view of the threaded rod of the automatic mechanism of the utility model applicable to a fully automatic material receiving piece conveyor belt;

Fig. 6 is a schematic plan view of the automatic mechanism dust-absorbing device of the utility model suitable for a fully automatic material-receiving sheet conveyor belt.

Reference signs: 1. Conveyor body; 2. Blanking plate; 3. Collection box; 4. Material sheet; 5. Processing warehouse; 6. Negative pressure fan; 7. Connecting plate; 8. Motor; 9. Connecting groove ; 10, threaded rod; 11, threaded sleeve; 12, sliding rod; 13, calibration rod; 14, first bevel gear; 15, second bevel gear; 16, connecting pipe; 17, connecting cover; 18, filter screen; 19. Sewage pipe; 20. Rack; 21. Lifting platform; 22. Biaxial motor; 23. Connector; 24. Chain; 25. Counterweight; 26. Material plate; 27. Push rod motor; 28. Rotation Rod; 29, chain wheel.

detailed description

This part will describe the concrete embodiment of the utility model in detail, and the preferred embodiment of the utility model is shown in the accompanying drawing, and the function of the accompanying drawing is to supplement the description of the text part of the specification with figures, so that people can visually and vividly Each technical feature and overall technical solution of the present utility model should be understood, but they should not be construed as limiting the protection scope of the present utility model.

In the description of the present utility model, it should be understood that when it comes to orientation descriptions, for example, the orientations or positional relationships indicated by up, down, front, back, left, right, etc. are based on the orientations or positional relationships shown in the accompanying drawings, only It is for the convenience of describing the utility model and simplifying the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the utility model.

In the description of the present utility model, greater than, less than, exceeding, etc. are understood as not including the original number, and above, below, within, etc. are understood as including the original number. If the description of the first and second is only for the purpose of distinguishing the technical features, it cannot be understood as indicating or implying the relative importance or implicitly indicating the number of the indicated technical features or implicitly indicating the order of the indicated technical features relation.

In the description of the utility model, unless otherwise clearly defined, words such as setting, installation, and connection should be understood in a broad sense, and those skilled in the art can reasonably determine the specific meanings of the above-mentioned words in the utility model in combination with the specific content of the technical solution .

Embodiment one:

Please refer to Figures 1-6, the utility model provides a technical solution: an automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt, including a conveyor body 1, the top surface of the conveyor body 1 is fixedly connected with a processing chamber 5, and the conveyor A sheet 4 is placed on the table body 1, and the front end of the conveying table body 1 is fixedly connected with a blanking plate 2, and the inclined state of the blanking plate 2 is set on the front side of the conveying table body 1, and the front side of the blanking plate 2 There are 3 collection boxes.

Further, a frame 20 is arranged on the rear side of the conveyor body 1, the inner wall of the frame 20 is slidably connected with a lifting platform 21, the top surface of the lifting platform 21 is fixedly connected with a push rod motor 27, and the top surface of the lifting platform 21 is slidably connected There is a material plate 26, the movable end of the push rod motor 27 is fixedly connected with the bottom surface of the material plate 26, the top surface of the frame 20 inner wall is fixedly connected with a biaxial motor 22, and the two output ends of the biaxial motor 22 are fixedly connected with a rotating Rod 28, two rotating rods 28 are all rotatably connected with frame 20, are all fixedly sleeved with sprocket 29 on the two rotating rods 28, are all meshed with chain 24 on the two sprocket 29, the outer wall of elevating table 21 Two connecting pieces 23 are fixedly connected to the top, one end of the two chains 24 is fixedly connected to the corresponding connecting piece 23 , and the other ends of the two chains 24 are fixedly connected to a counterweight 25 .

Further, when using the device, the material sheet 4 is placed on the material plate 26, the two-axis motor 22 is started to drive the two rotating rods 28 to rotate, and the two rotating rods 28 are rotated to drive the two sprockets 29 to rotate. The rotation of the sprocket 29 drives the two chains 24 to move, and the movement of the chain 24 drives the lifting platform 21 to move upwards to move the material plate 26 to the conveyor body 1, and the push rod motor 27 drives the material plate 26 to move so that the material plate 26 is close to the conveyor platform Ontology 1.

Further, when using the device, the material sheet 4 is conveyed through the conveying table body 1, and the material sheet 4 enters the blanking plate 2 and enters the collecting box 3 through the conveying table body 1, thereby completing automatic material collection and saving manual material collection cost, thereby reducing the cost of using the device and improving the processing efficiency of the device.

Further, the interior of the processing chamber 5 is provided with a dust suction device, the dust suction device includes a negative pressure fan 6, the negative pressure fan 6 is fixedly connected to the top surface of the processing chamber 5, and the output end of the negative pressure fan 6 is fixedly connected with a connecting pipe 16 The lower end of the connecting pipe 16 extends to the inside of the processing chamber 5 and is fixedly connected with the processing chamber 5. The bottom surface of the connecting pipe 16 is fixedly connected with a connecting cover 17. The bottom surface of the connecting pipe 17 is open, and the connection between the connecting pipe 16 and the connecting cover 17 The inside is connected, the inside of the connection pipe 16 is fixedly connected with a filter screen 18 , and the rear surface of the connection cover 17 is fixedly connected with a sewage pipe 19 .

Further, when using the device, start the negative pressure fan 6 by connecting the external power supply to generate suction, and when the tablet 4 enters the inside of the processing chamber 5 and passes under the connection cover 17, the suction produced by the negative pressure fan 6 is used to press the tablet. The dust and debris on the 4 are adsorbed, and the absorbed debris enters the inside of the connection cover 17, and the debris inside the connection cover 17 is discharged through the sewage pipe 19. Through the setting of the dust suction device, it can be cleaned during the conveyance of the tablet 4 The dust on the material sheet 4 improves the quality and appearance of the material sheet 4, and does not need to be cleaned manually, which improves the practicability of the device. At the same time, through the setting of the filter screen 18, the sundries can be filtered to avoid The entry of sundries into the connecting pipe 16 will cause damage to the negative pressure fan 6, thereby improving the durability and service life of the device.

Embodiment two;

Please refer to Figures 1-6, on the basis of Embodiment 1, the inside of the processing chamber 5 is fixedly connected with an internal hollow connecting plate 7, and the front surface of the connecting plate 7 is provided with two connecting grooves 9, and the two connecting grooves 9 are It communicates with the inside of the connecting plate 7, the rear surface of the connecting plate 7 is fixedly connected with a motor 8, the output end of the motor 8 extends to the inside of the connecting plate 7, and the output end of the motor 8 is fixedly connected with the first bevel gear 14, when using the During installation, the first bevel gear 14 is driven to rotate inside the connecting plate 7 by connecting the external power supply to start the motor 8 .

Further, the interior of the processing chamber 5 is provided with a calibration device, the calibration device includes two threaded rods 10, the two threaded rods 10 are respectively rotatably connected to the left and right surfaces of the connecting plate 7, and the opposite ends of the two threaded rods 10 are fixed A second bevel gear 15 is connected, and the two second bevel gears 15 are meshed with the first bevel gear 14. The two threaded rods 10 are threaded with threaded sleeves 11, and the front surfaces of the two threaded sleeves 11 are fixed. A slide rod 12 is connected, and the front ends of the two slide rods 12 pass through the corresponding connection groove 9 and are slidably connected with the corresponding connection groove 9. The front ends of the two slide rods 12 are fixedly connected with a calibration rod 13, and the two calibration rods 13 The shape of each is "L" shape, and the two calibration rods 13 are all in contact with the tablet 4.

Further, when using the device, the rotation of the first bevel gear 14 drives the rotation of the two second bevel gears 15, the rotation of the two second bevel gears 15 is opposite, and the rotation of the two second bevel gears 15 drives the two screw threads. When the rod 10 rotates, the two threaded rods 10 rotate in opposite directions. The rotation of the two threaded rods 10 drives the two threaded sleeves 11 to move in the opposite direction. The movement of the threaded sleeves 11 drives the sliding rod 12 to move, and the sliding rod 12 moves to drive the calibration rod. 13 to move, and the two calibration rods 13 move to push the tablet 4 to move.

Further, through the setting of the calibration device, two calibration rods 13 are used to move and push the tablet 4 to move, so that the tablet 4 moves to the central axis of the conveyor belt, and the position of the tablet 4 is calibrated, so that when the tablet 4 When passing through the bottom of the connection cover 17, the connection cover 17 can accurately clean up the dust on the material sheet 4, thereby improving the accuracy of dust collection, ensuring that each piece of material sheet 4 can be accurately vacuumed, and improving the cleaning efficiency. The quality of vacuuming.

working principle:

When using the device, at first the first bevel gear 14 is driven to rotate inside the connecting plate 7 by connecting the external power supply starter motor 8, and the rotation of the first bevel gear 14 drives the rotation of the two second bevel gears 15, and the two second bevel gears 15 rotate. The rotation of the bevel gear 15 drives the two threaded rods 10 to rotate, and the rotation of the two threaded rods 10 drives the two threaded sleeves 11 to move in the opposite direction. Move, the two calibration rods 13 move to push the tablet 4 to move, and start the negative pressure fan 6 to generate suction by connecting the external power supply. The generated suction absorbs the dust and debris on the tablet 4, and the absorbed debris enters the inside of the connecting cover 17, and the debris inside the connecting cover 17 is discharged through the sewage pipe 19, and finally the tablet 4 is transported through the conveying table body 1 , the tablet 4 enters the blanking plate 2 and enters the collection box 3 through the conveying table body 1 .

The above embodiments of the utility model have been described in detail in conjunction with the accompanying drawings, but the utility model is not limited to the above-mentioned embodiments. Make various changes below.

Claims (6)

1. An automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt, including a conveyor body (1), the top surface of the conveyor body (1) is fixedly connected with a processing chamber (5), and it is characterized in that: the conveyor body A sheet (4) is placed on (1), the front end of the conveyor body (1) is fixedly connected with a blanking plate (2), and the blanking plate (2) is arranged in the front of the conveyor body (1) in an inclined state. side, the front side of the blanking plate (2) is provided with a collection box (3), the interior of the processing chamber (5) is provided with a dust suction device, and the interior of the processing chamber (5) is provided with a calibration device; A frame (20) is arranged on the rear side of the conveying table body (1), the inwall of the frame (20) is slidably connected with a lifting platform (21), and the top surface of the lifting platform (21) is fixedly connected with a push rod motor ( 27), the top surface of the lifting platform (21) is slidingly connected with a material plate (26), the movable end of the push rod motor (27) is fixedly connected with the bottom surface of the material plate (26), and the top surface of the frame (20) inner wall is fixed. Be connected with biaxial motor (22), the two output ends of biaxial motor (22) are all fixedly connected with rotating rod (28), and two rotating rods (28) are all connected with frame (20) rotation, two rotating All fixedly socketed with sprocket wheel (29) on the bar (28), on two sprocket wheels (29) all meshed with socketed chain (24), on the outer wall of lifting platform (21) fixedly connected with two connectors ( 23), one end of the two chains (24) is fixedly connected to the corresponding connector (23), and the other ends of the two chains (24) are fixedly connected with a counterweight (25); The dust collection device comprises a negative pressure fan (6), and the negative pressure fan (6) is fixedly connected to the top surface of the processing chamber (5), and the output end of the negative pressure fan (6) is fixedly connected with a connecting pipe (16). The lower end of the pipe (16) extends to the inside of the processing chamber (5) and is fixedly connected with the processing chamber (5). The bottom surface of the connecting pipe (16) is fixedly connected with a connection cover (17), and the bottom surface of the connection cover (17) is open. Type, connecting pipe (16) communicates with the inside of connecting cover (17), and the inside of connecting pipe (16) is fixedly connected with filter screen (18), and the rear surface of connecting cover (17) is fixedly connected with blowdown pipe (19). 2. the automatic mechanism applicable to the automatic material receiving sheet conveyor belt according to claim 1, characterized in that: the inside of the processing warehouse (5) is fixedly connected with an internal hollow connection plate (7), the connection plate ( The front surface of 7) is provided with two connection grooves (9), and both connection grooves (9) communicate with the inside of the connection plate (7). 3. The automatic mechanism applicable to the automatic material receiving sheet conveyor belt according to claim 2, characterized in that: the rear surface of the connecting plate (7) is fixedly connected with a motor (8), and the output of the motor (8) end extends to the inside of the connecting plate (7), and the output end of the motor (8) is fixedly connected with a first bevel gear (14). 4. The automatic mechanism applicable to the automatic material receiving sheet conveyor belt according to claim 3, characterized in that: the calibration device comprises two threaded rods (10), and the two threaded rods (10) are respectively rotatably connected to On the left and right surfaces of the connecting plate (7), the opposite ends of the two threaded rods (10) are fixedly connected with a second bevel gear (15), and the two second bevel gears (15) are connected with the first bevel gear (14) ) meshing connection, two threaded rods (10) are threaded with threaded sleeves (11), the front surfaces of the two threaded sleeves (11) are fixedly connected with slide bars (12), and the two slide bars (12) The front ends of the two sliding rods (12) are fixedly connected with the calibration rods (13) through the corresponding connecting grooves (9) and are slidably connected with the corresponding connecting grooves (9). 5. The automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt according to claim 4, characterized in that: the two calibration rods (13) are both "L" shaped. 6. The automatic mechanism suitable for a fully automatic material receiving sheet conveyor belt according to claim 4, characterized in that: both said calibration rods (13) are in contact with the material sheet (4).
