The utility model is suitable for a sheet metal machining technical field discloses a sheet metal working frock of buckling of polishing for sheet metal machining, and it includes the board, the left side on board top is provided with the frame, the top of frame is provided with electric putter, and the inside of frame is provided with the slip shell, the spout has been seted up to the outer wall of slip shell, and the spout embeds there is the slider, the thread groove has been seted up to the lateral wall of slider, the internally mounted of slider has grinding motor, grinding motor's motor shaft runs through in the outside of slider, and is provided with the piece of polishing on grinding motor's the motor shaft, the inside right side of slip shell is provided with the rotating electrical machines. The utility model discloses a be provided with centre gripping grinding machanism on the board, at the in-process of polishing of the panel beating of bending, can form the firm centre gripping of the curved panel beating of fifty percent discount to the face of polishing of the panel beating of guaranteeing to bend forms the efficient effect of polishing.
Description
Technical Field
The utility model is suitable for a sheet metal working technical field especially relates to a sheet metal working is with panel beating frock of buckling of polishing.
Background
At present, the sheet metal processing is a pivot technology which is required to be held by a sheet metal technical staff, and is also an important process for forming sheet metal products, the sheet metal processing comprises the traditional methods and process parameters of cutting blanking, blanking processing, bending and pressing forming and the like, and also comprises various cold stamping die structures and process parameters, various equipment working principles and operation methods, and also comprises a new stamping technology and a new process, and the processing of a part metal plate is called the sheet metal processing.
After the bending is dragged in sheet metal machining, the polishing problem of the bent sheet metal always has an efficiency problem, and the sheet metal is not convenient to clamp after being bent, so that polishing is inconvenient, the efficiency of manual polishing is too low, the efficient polishing effect cannot be formed on the outer wall of the bent sheet metal, and the problem existing in the prior art is solved, so that the sheet metal machining polishing and bending tool is provided.
SUMMERY OF THE UTILITY MODEL
The utility model provides a pair of panel beating is with panel beating frock of buckling of polishing has solved the problem of proposing in the background art.
In order to realize the purpose, the utility model adopts the following technical scheme:
the utility model provides a panel beating processing is with panel beating frock of buckling of polishing, includes the machine plate, the left side on machine plate top is provided with the frame, the top of frame is provided with electric putter, and the inside of frame is provided with the slip shell, the spout has been seted up to the outer wall of slip shell, and the spout embeds there is the slider, the thread groove has been seted up to the lateral wall of slider, the internally mounted of slider has grinding motor, grinding motor's motor shaft runs through in the outside of slider, and is provided with the polishing piece on grinding motor's the motor shaft, the inside right side of slip shell is provided with the rotating electrical machines, the motor shaft of rotating electrical machines runs through in the inside of spout, and is provided with the lead screw on rotating electrical machines's the motor shaft, the pole groove has all been seted up to the both sides on machine plate top, and the pole inslot has the slide bar, the right side on machine plate top is provided with the holding frame, and the top of holding frame is provided with the pneumatic cylinder, the holding frame embeds there is the clamp plate, the panel beating has been placed at the top of machine plate and has been bent.
Preferably, the rack and the clamping frame are both U-shaped.
Preferably, the bottom end of the clamping frame is located inside the rod groove, and the sliding rod penetrates through the inner wall of the clamping frame.
Preferably, the screw rod is located inside the thread groove, and the screw rod is matched with the thread size of the thread groove and forms a rotating mechanism.
Preferably, the tail end of a push rod of the electric push rod penetrates through the inside of the rack, the tail end of the push rod of the electric push rod is fixedly butted with the top of the sliding shell, a piston rod of the hydraulic cylinder penetrates through the inside of the clamping frame, and the piston rod of the hydraulic cylinder is fixedly butted with the top of the pressing plate.
Preferably, the top of frame is provided with the switch, the switch is electric connection with electric putter, grinding motor, rotating electrical machines and pneumatic cylinder.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a be provided with centre gripping grinding machanism on the board, at the in-process of polishing of the panel beating of bending, can form the firm centre gripping of the curved panel beating of fifty percent discount to guarantee to form the efficient effect of polishing to the face of polishing of the panel beating of bending.
2. The utility model discloses a bottom of holding frame is provided with the inside in pole groove, and the holding frame can slide based on the inside in pole groove, can form the free regulation to the position of holder, does benefit to taking and placing to the panel beating of bending to adjust the face to the panel beating of bending.
Drawings

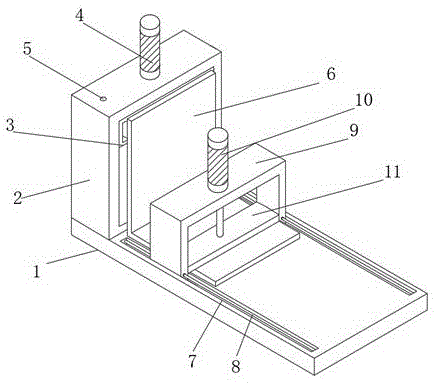

Fig. 1 is a schematic view of the overall structure of a sheet metal grinding and bending tool for sheet metal machining according to the present invention;
fig. 2 is a schematic view of a top structure of a machine body of a polishing and bending sheet metal tool for sheet metal processing according to the present invention;
fig. 3 is a schematic view of an internal structure of a sliding shell of the metal plate polishing and bending tool for metal plate processing according to the present invention;
fig. 4 is the utility model provides a sheet metal working is with slider inner structure schematic diagram of the panel beating frock of buckling of polishing.
In the figure: 1. a machine plate; 2. a frame; 3. a slide case; 4. an electric push rod; 5. a switch; 6. bending the metal plate; 7. a rod groove; 8. a slide bar; 9. a clamping frame; 10. a hydraulic cylinder; 11. pressing a plate; 12. a chute; 13. a slider; 14. grinding the sheets; 15. a rotating electric machine; 16. a screw rod; 17. a thread groove; 18. the motor polishes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the description of the present invention, it should be noted that, unless explicitly stated or limited otherwise, the terms "mounted," "connected" and "disposed" are to be interpreted broadly, and may be, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed; the utility model discloses in provide with the model of electrical apparatus only refer to, can be through changing the different models that the function is the same according to the in-service use condition with electrical apparatus, to the ordinary technical personnel in this field, can understand above-mentioned term according to particular case and be in the utility model provides a concrete meaning.
Referring to fig. 1-4, a sheet metal working is processed with metal working and is bent panel beating frock, including quick-witted board 1, the left side on quick-witted board 1 top is provided with frame 2, the top of frame 2 is provided with electric putter 4, and the inside of frame 2 is provided with the skuller 3, spout 12 has been seted up to the outer wall of skuller 3, and spout 12 embeds there is slider 13, thread groove 17 has been seted up to the lateral wall of slider 13, slider 13's internally mounted has grinding motor 18, grinding motor 18's motor shaft runs through the outside in slider 13, and is provided with grinding disc 14 on grinding motor 18's the motor shaft, the inside right side of skuller 3 is provided with rotating electrical machines 15, rotating electrical machines 15's motor shaft runs through the inside of spout 12, and is provided with lead screw 16 on rotating electrical machines 15's the motor shaft, rod groove 7 has all been seted up to the both sides on quick-witted board 1 top, and rod groove 7 slide bar 8, the right side on quick-witted board 1 top is provided with holding frame 9, and the top of holding frame 9 is provided with pneumatic cylinder 10, holding frame 9 embeds there is provided with clamp plate 6, and the built-in this embodiment, through grinding plate 1, the clamp plate 6 that the clamp plate is provided with the bending mechanism, the bending that can form the efficient bending to the bending that the bending process of polishing, and the bending that the clamp is firm bending is formed.
In this embodiment, the frame 2 and the clamping frame 9 are both U-shaped.
In this embodiment, the bottom end of the clamping frame 9 is located inside the rod groove 7, the sliding rod 8 penetrates through the inner wall of the clamping frame 9, the clamping frame 9 slides based on the inside of the rod groove 7, and the sliding rod 8 ensures the stability of the clamping frame 9 in the sliding process.
In this embodiment, the screw rod 16 is located inside the thread groove 17, the screw rod 16 is matched with the thread size of the thread groove 17 and forms a rotating mechanism, when the screw rod 16 rotates, the screw rod is located inside the thread groove 17 and rotates, and the slider 13 moves left and right based on the inside of the sliding groove 12.
In this embodiment, the end of the push rod of the electric push rod 4 penetrates through the inside of the frame 2, the end of the push rod of the electric push rod 4 is fixedly butted with the top of the slide housing 3, the piston rod of the hydraulic cylinder 10 penetrates through the inside of the clamping frame 9, the piston rod of the hydraulic cylinder 10 is fixedly butted with the top of the pressing plate 11, the electric push rod 4 drives the slide housing 3 to move up and down, and the hydraulic cylinder 10 drives the pressing plate 11 to move up and down.
In this embodiment, a switch 5 is disposed at the top of the frame 2, and the switch 5 is electrically connected to the electric push rod 4, the grinding motor 18, the rotating motor 15, and the hydraulic cylinder 10.
The utility model discloses during the use: the metal plate 6 of bending is placed at the top of the machine plate 1, make the laminating of the face of polishing of the panel metal 6 of bending at the surface of piece 14 of polishing, promote holding frame 9 this moment, the bottom of holding frame 9 will be located the inside slip of rod groove 7, the bottom of holding frame 9 will be located slide bar 8 and slide this moment, when holding frame 9 slides to the top of the panel metal 6 of bending, switch 5 starts pneumatic cylinder 10, pneumatic cylinder 10 will drive clamp plate 11 and push down, form the centre gripping of fastening to the panel metal plate 6 of bending of placing, after the centre gripping is accomplished, switch 5 starts electric putter 4, rotating electrical machines 15 and grinding electrical machines 18, grinding pieces 14 of driving are rotatory and are polished to the panel metal plate 6 of bending, rotating electrical machines 15 will drive lead screw 16 and rotate, lead screw 16 will be located the thread groove 17 that slider 13 lateral wall was seted up, slider 13 will be based on the inside left and right movement of spout 12, drive grinding pieces 14 and left and right movement, and right movement will be promoted sliding shell 3 when electric putter 4 worked, thereby drive grinding pieces 14, the face of polishing forms comprehensive effect of polishing, it reciprocates to drive to bend, it forms the face of polishing to bend, design is simple, it is practical.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The sheet metal working bending polishing tool for sheet metal machining is characterized by comprising a machine plate (1), a rack (2) is arranged on the left side of the top end of the machine plate (1), an electric push rod (4) is arranged on the top end of the rack (2), a sliding shell (3) is arranged inside the rack (2), a sliding groove (12) is formed in the outer wall of the sliding shell (3), a sliding block (13) is arranged inside the sliding groove (12), a threaded groove (17) is formed in the side wall of the sliding block (13), a polishing motor (18) is arranged inside the sliding block (13), a motor shaft of the polishing motor (18) penetrates through the outer portion of the sliding block (13), a polishing sheet (14) is arranged on the motor shaft of the polishing motor (18), a rotating motor (15) is arranged on the right side of the inside of the sliding shell (3), a motor shaft of the rotating motor (15) penetrates through the inside of the sliding groove (12), a screw rod (16) is arranged on the motor shaft of the rotating motor (15), rod grooves (7) are formed in two sides of the top end of the machine plate (1), a clamping frame (9) is internally provided with a hydraulic cylinder (9), and a pressing plate (11) is arranged on the top end of the clamping frame, and a bent metal plate (6) is placed at the top of the machine plate (1).
2. The sheet metal working bending grinding tool according to claim 1, wherein the frame (2) and the clamping frame (9) are both U-shaped.
3. The sheet metal working of grinding bending frock of claim 1, characterized in that, the bottom of holding frame (9) is located the inside of pole groove (7), slide bar (8) run through in the inner wall of holding frame (9).
4. The sheet metal working of polishing bending frock of claim 1 wherein, lead screw (16) is located the inside of thread groove (17), lead screw (16) and the thread size looks adaptation of thread groove (17), just constitute slewing mechanism.
5. The sheet metal working bending grinding tool according to claim 1, wherein the tail end of a push rod of the electric push rod (4) penetrates through the inside of the rack (2), the tail end of the push rod of the electric push rod (4) is fixedly butted with the top of the sliding shell (3), a piston rod of the hydraulic cylinder (10) penetrates through the inside of the clamping frame (9), and the piston rod of the hydraulic cylinder (10) is fixedly butted with the top of the pressing plate (11).
6. The sheet metal working of claim 1 is with polishing bending panel beating frock, characterized in that, the top of frame (2) is provided with switch (5), switch (5) and electric putter (4), grinding motor (18), rotating electrical machines (15) and pneumatic cylinder (10) are electric connection.
