CN218302699U - A garden mobile sprinkler - Google Patents

Abstract

The utility model belongs to the technical field of water spraying devices, and discloses a garden mobile water spraying device, which includes a water tank, a water pump is installed on one side of the top of the water tank, and a water suction pipe is installed at the water inlet end of the water pump. The water suction pipe leads into and extends to the inner bottom of the water tank, the water outlet end of the water pump is equipped with an outlet pipe, and the water outlet end of the water outlet pipe is connected with a hose. , when it is necessary to adjust the spray height, the height of the water spray can be adjusted by moving the movable rod up or down from the hollow rod. At the same time, the hollow rod drives the nozzle on the movable rod to swing left and right through the rotation of the positive and negative motor, and the stopper plays a role in limiting the range of movement of the iron block, which solves the problem of unsatisfactory spraying area.

Description

A garden mobile sprinkler

technical field

The utility model belongs to the technical field of water spray devices, in particular to a garden mobile water spray device.

Background technique

Water spray devices are very common in daily life, and there are various types. People will buy and use water spray devices according to their own needs. The invention and use of water spray devices provide people with convenience in life and greatly save It saves manpower and plays a vital role in farmland irrigation and fire extinguishing. Among them, water sprinklers are often used in the construction of landscape projects.

When the traditional sprinkler is in use, the spray height and spray area are not ideal, the operation is time-consuming and laborious, and the spray angle cannot be adjusted effectively. In addition, when adding water to the sprinkler, the impurities in the water and the sand carried are easy to Accumulated in the water tank, it is difficult to clean up, and secondly when spraying water, the water spray nozzle easily flows out from the muzzle in a small amount when opening and closing, causing the waste of water.

Utility model content

The purpose of this utility model is to provide a garden mobile water spray device to solve the problem of unsatisfactory water spray height and spray area of the traditional water spray device proposed in the above-mentioned background technology and the waste of water.

In order to achieve the above purpose, the utility model provides the following technical solutions: a garden mobile water spray device, including a water tank, a water pump is installed on the top side of the water tank, and a water suction pipe is installed at the water inlet end of the water pump. The water suction pipe leads into and extends to the inner bottom of the water tank, a water outlet pipe is installed at the water outlet end of the water pump, a hose is connected to the water outlet end of the water outlet pipe, and a water spray head is installed at the end of the hose far away from the water outlet pipe, The top of the water tank is equipped with a motor box, the motor box is located below the water spray head, the top of the motor box is welded with a fixed ring, the inside of the fixed ring is provided with a ring hole, and the inner end of the ring hole is set There is a block, the inner bottom of the motor box is installed with a positive and negative motor, the output end of the positive and negative motor is connected with a hollow rod, and the hollow rod runs through the motor box and the fixing ring, and the outer end of the hollow rod is installed with a An iron block, the iron block is located in the ring hole, a rod groove is provided inside the hollow rod, a threaded hole is opened on the inner side wall of the upper end of the rod groove, and a movable rod is pierced inside the rod groove. Limiting grooves are set on the side wall of the movable rod, and the limiting grooves are equally spaced on the outside of the movable rod, and the end of the movable rod far away from the rod groove is welded on the outside of the sprinkler head, and the threaded hole is screwed to connect There are bolts, and the bolts are embedded in the limiting slots.

Preferably, a water inlet bucket is provided on the top of the water tank, the water inlet bucket is installed under the water spray head, a bucket groove is opened on the inner side wall of the water inlet bucket, and a filter layer, the filter layer is embedded in the bucket groove, and a water guide plate is arranged on the top of the water inlet bucket and below the sprinkler head.

Preferably, the filter layer includes a filter net and a handle, and the handle is installed at the center of the filter net.

Preferably, a support plate is provided at the bottom of the water tank, and wheels are installed under the support plate.

Preferably, the wheels are set as rotating wheels, and there are four wheels in total.

Preferably, a push rod is installed on one side of the water tank 1, and a rubber sleeve is provided at the handle of the push rod.

Compared with the prior art, the beneficial effects of the utility model are:

(1) The utility model can adjust the height of water spray by setting the hollow rod, the movable rod and the limit groove, etc., by moving the movable rod upward or downward from the hollow rod when the spray height needs to be adjusted. In addition, By setting the fixed ring, iron block and stopper, when a large area of water spray is required, the hollow rod will drive the nozzle on the movable rod to swing left and right through the rotation of the positive and negative motor, and the stopper plays a role in limiting the range of movement of the iron block. , to solve the problem of unsatisfactory injection area.

(2) The utility model is provided with a water inlet bucket, a filter layer and a water guide plate. When adding water to the water tank, the impurities and silt in the water will stay on the filter layer, which solves the problem of water in the water spraying device. The impurities and the carried sand are easy to accumulate in the water tank, which is difficult to clean up. In addition, when the water spray device sprays water, a small amount of water flowing out of the water spray head will drop onto the water guide plate and slide down to the water tank for recycling. This reduces water waste.

Description of drawings

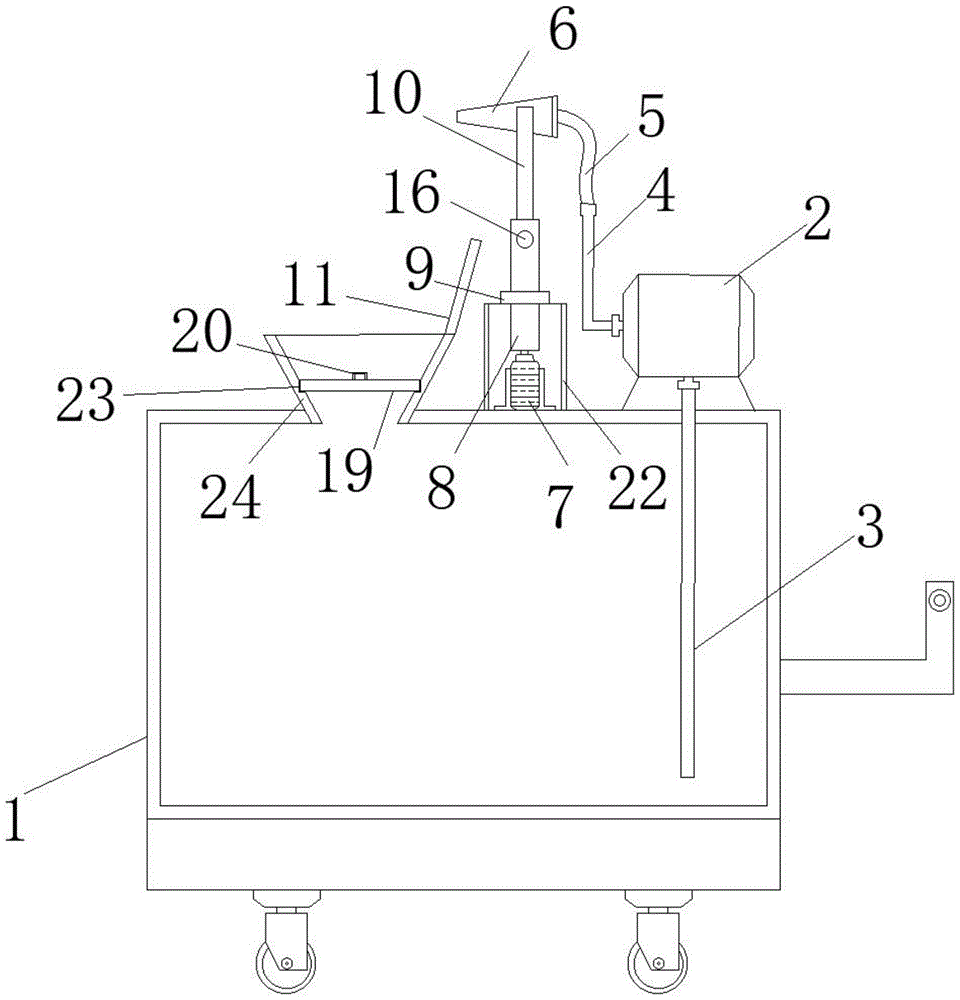

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top view of the utility model fixed ring;

Fig. 3 is a cross-sectional view of the utility model hollow rod;

Fig. 4 is the plan view of filter layer of the present utility model;

In the figure: 1, water tank; 2, water pump; 3, water suction pipe; 4, water outlet pipe; 5, hose; 6, sprinkler head; 7, positive and negative motor; Movable rod; 11, water guide plate; 12, iron block; 13, ring hole; 14, block; 15, rod groove; 16, bolt; 17, threaded hole; 18, limit groove; 19, filter layer; 20 , handle; 21, filter screen; 22, motor box; 23, bucket groove; 24, water inlet bucket.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides the following technical solutions: a garden mobile water spray device, including a water tank 1, a water pump 2 is installed on the top side of the water tank 1, and a water pump 2 is installed on the water inlet end of the water pump 2. The water suction pipe 3 leads into and extends to the inner bottom of the water tank 1, the water outlet end of the water pump 2 is installed with a water outlet pipe 4, and the water outlet end of the water outlet pipe 4 is connected with a hose 5, and the end of the hose 5 is far away from the water outlet pipe 4 Water spray head 6 is installed, and motor box 22 is installed on the top of water tank 1, and motor box 22 is positioned at the below of water spray head 6, and the top of motor box 22 is welded with fixing ring 9 inside fixed ring 9 and offers ring hole 13, ring hole The inner end of 13 is provided with a stopper 14, and the inner bottom of the motor box 22 is equipped with a positive and negative motor 7, and the output end of the positive and negative motor 7 is connected with a hollow rod 8, and the hollow rod 8 runs through the motor box 22 and the fixing ring 9, and the hollow rod The outer end of 8 is equipped with iron piece 12, and iron piece 12 is positioned at ring hole 13, and the interior of hollow rod 8 is provided with rod groove 15, and the inner wall of rod groove 15 upper end is provided with threaded hole 17, and the inside of rod groove 15 is penetrated There is movable rod 10, and limit groove 18 is offered on the side wall of movable rod 10, and limit groove 18 is on the outer side of movable rod 10 respectively at equal intervals, and the end of movable rod 10 away from rod groove 15 is welded on the outside of sprinkler head 6, A bolt 16 is screwed in the threaded hole 17 , and the bolt 16 is inserted into the limiting groove 18 .

Through the above technical scheme: when using the device, the water is sucked into the water outlet pipe 4 connected to the water pump 2 in the water tank 1 through the water suction pipe 3 connected to the water inlet end of the water pump 2, and the water passes through the hose 5 connected to the water outlet pipe 4. The water spray head 6 sprays out, wherein, the output end of the positive and negative motor 7 drives the hollow rod 8 to rotate, and the hollow rod 8 drives the movable rod 10 welded on the water spray head 6 to rotate. 8. When the outer iron block 12 is rotating, the stopper 14 set at the inner end of the ring hole 13 limits the position of the hollow rod 8, so as to avoid the excessive rotation angle and cause the hose 5 to be bent and damaged. The bolt 16 connected in the threaded hole 17 and the limit groove 18 moves the movable rod 10 up or down from the hollow rod 8 to adjust the height of the water spray, and then the bolt 16 is screwed into the hole set by the hollow rod 8. In the threaded hole 17, and embedded in the limit groove 18 that the movable rod 10 offers, it can be fixed.

Further, the top of the water tank 1 is provided with a water inlet bucket 24, and the water inlet bucket 24 is installed below the water spray head 6. The inner side wall of the water inlet bucket 24 is provided with a bucket groove 23, and a filter layer is arranged inside the water inlet bucket 24. 19. The filter layer 19 is embedded in the bucket groove 23, and the top of the water inlet bucket 24 is provided with a water guide plate 11 below the sprinkler head 6. When adding water to the water tank 1, impurities and sediment in the water will remain On the filter layer 19, when adding water to the water spraying device, the impurity in the water and the carried sand are easy to accumulate in the water tank 1, which is difficult to clean up. In addition, when the water spraying device sprays water, a small amount of water flows out from the mouth of the water spraying head 6 The water will drop onto the water guide plate 11 and slide down to the water tank 1 for recycling, thereby reducing the waste of water.

Further, the filter layer 19 includes a filter screen 21 and a handle 20, the handle 20 is installed at the center of the filter screen 21, by taking the handle 20 installed at the center of the filter screen 21, the filter layer 19 can be easily removed from the water inlet Take out in the bucket 24, conveniently clean up the impurity etc. that remain on the filter layer 19.

Further, the bottom of the water tank 1 is provided with a support plate, and wheels are installed under the support plate. The wheels are set as rotating wheels, and there are four wheels in total. The installation of the support plate well protects the bottom of the water tank 1 from being scratched. , the four rotating wheels that are provided with at the bottom of the water tank 1 are convenient for the water spray device to move.

Further, a push rod is installed on one side of the water tank 1, and the handle of the push rod is provided with a rubber sleeve. device, the rubber sleeve set at the handle plays the role of increasing the friction of the palm and protecting the hand.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a portable water jet equipment in gardens which characterized in that: including water tank (1), water pump (2) is installed to top one side of water tank (1), water suction pipe (3) is installed to the inlet end of water pump (2), water suction pipe (3) lets in and extends to the inside bottom of water tank (1), outlet pipe (4) are installed to the outlet end of water pump (2), the outlet end of outlet pipe (4) is connected with hose (5), hose (5) are kept away from the one end of outlet pipe (4) and are installed sprinkler bead (6), motor box (22) are installed on the top of water tank (1), motor box (22) are located the below of sprinkler bead (6), the top welding of motor box (22) has solid fixed ring (9), gu fixed ring (9) inside annular ring (13) of having seted up, the inner of annular ring (13) is provided with dog (14), positive and negative motor (7) are installed to the inside bottom of motor box (22), the output of positive and negative motor (7) is connected with well core rod (8), well core rod (8) run through motor box (22) and solid fixed ring (9), the outer end of well core rod (8) is installed, iron block (12) are located interior core rod (12), well core rod (15) are equipped with well core rod (13), threaded hole (17) are seted up to pole groove (15) upper end inside wall, movable rod (10) are worn to be equipped with in the inside of pole groove (15), spacing groove (18) have been seted up on the lateral wall of movable rod (10), spacing groove (18) equidistant respectively in the outside of movable rod (10), the one end welding that pole groove (15) were kept away from in movable rod (10) is in the outside of sprinkler bead (6), it is connected with bolt (16) to close soon in screw hole (17), bolt (16) imbed to spacing groove (18).

2. The garden mobile water spraying device according to claim 1, wherein: the top of water tank (1) is provided with into water fill (24), it installs in the below of sprinkler bead (6) to advance water fill (24), fill groove (23) have been seted up to the inside lateral wall of advancing water fill (24), it is provided with filter layer (19) in fill (24) to advance water, filter layer (19) imbed to fill in groove (23), the top of advancing water fill (24) and the below of position sprinkler bead (6) are provided with water guide plate (11).

3. The garden mobile water spraying device according to claim 2, wherein: the filter layer (19) is internally provided with a filter screen (21) and a handle (20), and the handle (20) is arranged at the central position of the filter screen (21).

4. The garden mobile water spraying device according to claim 3, wherein: the bottom of water tank (1) is provided with the backup pad, install the wheel under the backup pad.

5. The garden mobile water spraying device according to claim 4, wherein: the wheels are set to be rotating wheels, and the number of the wheels is four.

6. The garden mobile water spraying device according to claim 5, wherein: a push rod is installed on one side of the water tank (1), and a rubber sleeve is arranged at a grab handle of the push rod.
