Abstract
The utility model discloses a high tension switchgear winding displacement device belongs to high tension switchgear technical field, including the winding displacement board, the top of winding displacement board evenly is provided with the card line subassembly, and one side of winding displacement board is provided with the plug block, and the slot has been seted up to the opposite side of winding displacement board, and the inside of slot is provided with fixed subassembly, and the bilateral symmetry of winding displacement board top is provided with the chucking subassembly, the utility model discloses a set up fixed subassembly, realized that the staff is convenient to assemble the effect of using between the winding displacement board for the device is when using, makes things convenient for the staff to assemble the use between the winding displacement board, has improved the convenience of using, the utility model discloses a set up the chucking subassembly, realized conveniently fixing the winding displacement board and carry out the effect of using in the high tension switchgear, when making the device when using, make things convenient for the staff to use in fixing the high tension switchgear, improved the convenience of using.
Description
Technical Field
The utility model belongs to the technical field of the high tension switchgear, concretely relates to high tension switchgear winding displacement device.
Background
The high-voltage switch cabinet is used for power generation, power transmission, power distribution, electric energy conversion and consumption of an electric power system to play roles of on-off, control or protection and the like, the number of line bodies in the high-voltage switch cabinet is large at present, and a wire arranging device is needed to arrange lines for line safety when the high-voltage switch cabinet is used.
The Chinese patent application number 202220811149.8 discloses a high-voltage switch cabinet wire arranging device which comprises a plurality of spliced wire arranging plates, wherein a plurality of clamping wires which are uniformly distributed are arranged on the surfaces of the wire arranging plates, and a fixing mechanism is arranged between every two adjacent wire arranging plates; fixed establishment includes stationary blade, movable plate, two screws and two nuts, two the screw rod is the symmetry fixed set up in the top of stationary blade, the top of movable plate is seted up and is used for two the jack that the screw rod passed, adjacent two the fixed orifices that the position corresponds is all seted up to one side that the winding displacement board is close to, the screw rod passes the inside of fixed orifices and with the nut cooperation is adjacent two it is fixed between the winding displacement board. The utility model discloses can select the figure of winding displacement board according to winding displacement space and length, improve the inside wiring quality of high tension switchgear
Above-mentioned patent of disclosing, it is when using, assembles the use through fixed establishment between to the winding displacement board, but it is when using, and is convenient inadequately when the equipment, and when using, offers the mounting hole through the winding displacement board to fix the winding displacement board in high tension switchgear's inside through the mounting hole, but it is when using, and is convenient inadequately to the winding displacement board is fixed, and the convenience is high inadequately.
Disclosure of Invention
To solve the problems set forth in the background art described above. The utility model provides a high tension switchgear winding displacement device has the convenience and assembles the use between the winding displacement board, and the convenience is fixed the winding displacement board in high tension switchgear's inside, characteristics that the convenience is high.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a high tension switchgear winding displacement device, includes the winding displacement board, the top of winding displacement board evenly is provided with the card line subassembly, and one side of winding displacement board is provided with the plug block, and the slot has been seted up to the opposite side of winding displacement board, and the inside of slot is provided with fixed subassembly, and the bilateral symmetry of winding displacement board top is provided with the chucking subassembly.
Preferably, the fixing assembly comprises a pull rod, a clamping block and a fixing spring, wherein the clamping block is arranged above the inserting block, the pull rod is arranged at one end, far away from the inserting block, of the clamping block, the fixing spring is arranged on the surface of the pull rod, and the fixing spring is arranged inside the inserting groove.
Preferably, a fixing hole is formed above the inserting block, and the clamping block can be inserted into the fixing hole under the action of the fixing spring.
Preferably, the clamping assembly comprises a clamping rod, a clamping spring, a limiting rod, a limiting spring and an extrusion block, wherein the clamping rod is arranged inside the wire arranging plate, the clamping spring is arranged on one side of the clamping rod, the limiting rod is arranged above the clamping rod, the extrusion block is fixedly arranged on the surface of the limiting rod, the limiting spring is arranged on one side, away from the clamping rod, of the extrusion block, and the limiting spring is also arranged on the surface of the limiting rod.
Preferably, a sliding block is arranged below the clamping rod, and a sliding groove matched with the sliding block is formed in the wire arranging plate.
Preferably, a limiting hole is formed above the clamping rod, and the limiting rod can be inserted into the limiting hole under the action of the limiting spring.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up fixed subassembly, the effect of conveniently assembling between the winding displacement board and using has been realized, when needs assemble adjacent winding displacement board, insert in the slot of another winding displacement board through the plug block with the winding displacement board, the plug block removes and drives the fixture block and remove compression fixed spring, when the plug block removes fixture block and fixed orifices coincidence, fixed spring resumes deformation and drives the fixture block and insert the fixed orifices, fix the plug block, thereby fix adjacent winding displacement board, make the device when using, conveniently assemble the use between the winding displacement board, the convenience of using has been improved.
2. The utility model discloses a set up the chucking subassembly, the effect of using in the convenient line bank board is fixed to the high tension switchgear has been realized, when needs are fixed the line bank board to the inside of high tension switchgear, through pulling the chucking pole, chucking pole compression chucking spring makes in the chucking pole income line bank board, then the gag lever post is fixed the chucking pole in inserting spacing hole, thereby it is inside to put into the high tension switchgear with the line bank board, then the pulling gag lever post makes the gag lever post break away from spacing hole, then the chucking spring resets and drives the chucking pole insert in the high tension switchgear chucking hole can, make the device when using, conveniently use the line bank board in being fixed to the high tension switchgear, the convenience of using is improved.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;

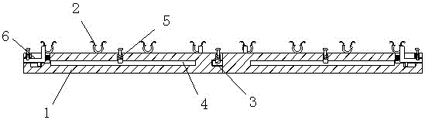

FIG. 2 is a side view of the cutting structure of the present invention;
fig. 3 is a schematic structural view of the fixing assembly of the present invention;
fig. 4 is a schematic structural view of the clamping assembly of the present invention.
In the figure: 1. a wire arranging plate; 2. a wire clamping component; 3. inserting a block; 4. inserting slots; 5. a fixing component; 51. a pull rod; 52. a clamping block; 53. fixing the spring; 54. a fixing hole; 6. a clamping assembly; 61. a clamping rod; 62. a chucking spring; 63. a limiting rod; 64. a limiting spring; 65. extruding the block; 66. a slider; 67. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides a high tension switchgear winding displacement device, includes winding displacement board 1, and winding displacement board 1's top evenly is provided with card line subassembly 2, and one side of winding displacement board 1 is provided with plug 3, and slot 4 has been seted up to winding displacement board 1's opposite side, and slot 4's inside is provided with fixed subassembly 5, and the bilateral symmetry of winding displacement board 1 top is provided with chucking subassembly 6.
Specifically, the fixing assembly 5 includes a pull rod 51, a latch 52 and a fixing spring 53, wherein the latch 52 is disposed above the insert 3, the pull rod 51 is disposed at one end of the latch 52 far away from the insert 3, the fixing spring 53 is disposed on the surface of the pull rod 51, and the fixing spring 53 is disposed inside the slot 4.
Through adopting above-mentioned technical scheme, when needs are assembled the use to the winding displacement board 1, insert in the slot 4 of another winding displacement board 1 through the plug 3 with winding displacement board 1, plug 3 removes and drives fixture block 52 and remove compression fixing spring 53, when plug 3 removes fixture block 52 and fixed orifices 54 coincidence, fixing spring 53 drives fixture block 52 and inserts in the fixed orifices 54, fix plug 3, thereby accomplish the equipment to winding displacement board 1, make things convenient for the staff to assemble the use as required, the convenience of use has been improved.
Specifically, a fixing hole 54 is formed above the inserting block 3, and the latch 52 can be inserted into the fixing hole 54 under the action of the fixing spring 53.
By adopting the technical scheme, the fixing holes 54 are convenient for the fixture blocks 52 to be inserted into and fix the insert block 3.
In use, the present embodiment: when needs are assembled the use to the winding displacement board 1, insert in the slot 4 of another winding displacement board 1 through the plug 3 with winding displacement board 1, the plug 3 removes and drives fixture block 52 and remove compression fixed spring 53, when the plug 3 removes fixture block 52 and fixed orifices 54 coincidence, fixed spring 53 drives fixture block 52 and inserts in the fixed orifices 54, fix the plug 3, thereby accomplish the assembly of winding displacement board 1, make things convenient for the staff to assemble the use to winding displacement board 1 as required, the convenience of use has been improved.
Example 2
The present embodiment is different from embodiment 1 in that: specifically, chucking subassembly 6 includes chucking pole 61, chucking spring 62, gag lever post 63, spacing spring 64 and extrusion piece 65, wherein, the inside of winding displacement board 1 is provided with chucking pole 61, one side of chucking pole 61 is provided with chucking spring 62, the top of chucking pole 61 is provided with gag lever post 63, the fixed surface of gag lever post 63 is provided with extrusion piece 65, one side that chucking pole 61 was kept away from to extrusion piece 65 is provided with spacing spring 64, and spacing spring 64 also sets up the surface at gag lever post 63.
Through adopting above-mentioned technical scheme, when needs are used with the inside of winding displacement board 1 fixed to high tension switchgear, through pulling clamping rod 61, clamping rod 61 removes compression chucking spring 62 and makes the inside of clamping rod 61 income winding displacement board 1, when clamping rod 61 removes gag lever post 63 and spacing hole coincidence, spacing spring 64 drives gag lever post 63 and fixes clamping rod 61 in inserting the spacing hole, then arrange winding displacement board 1 inside the department of installing of treating in the high tension switchgear, then align the inside chucking pore with chucking rod 61 adaptation of clamping rod 61 and high tension switchgear, then pulling gag lever post 63 makes gag lever post 63 break away from the spacing hole, then chucking spring 62 resumes deformation and drives clamping rod 61 and insert and fix winding displacement board 1 in the chucking hole, make the device when using, conveniently use winding displacement board 1 is fixed to the high tension switchgear in, the convenience of using has been improved.
Specifically, a sliding block 66 is arranged below the clamping rod 61, and a sliding groove 67 matched with the sliding block 66 is formed in the wire arranging plate 1.
Through adopting above-mentioned technical scheme, the slider 66 and the spout 67 cooperation are convenient for the chucking pole 61 can be stable remove in the inside of winding displacement board 1.
Specifically, a limiting hole is formed above the clamping rod 61, and the limiting rod 63 can be inserted into the limiting hole under the action of the limiting spring 64.
Through adopting above-mentioned technical scheme, spacing hole be convenient for gag lever post 63 insert spacing to chucking pole 61, prevent that chucking pole 61 from kick-backing.
This embodiment is used: when needs are fixed the interior of high tension switchgear with winding displacement board 1 and are used, through pulling chucking pole 61, chucking pole 61 removes compression chucking spring 62 and makes chucking pole 61 income winding displacement board 1's inside, when chucking pole 61 removes gag lever post 63 and spacing hole coincidence, spacing spring 64 drives gag lever post 63 and fixes chucking pole 61 in inserting the spacing hole, then arrange winding displacement board 1 inside the department of installing of treating in the high tension switchgear, then the inside chucking pore alignment with chucking pole 61 adaptation of chucking pole 61 and high tension switchgear, then pulling gag lever post 63 makes gag lever post 63 break away from the spacing hole, then chucking spring 62 resumes deformation and drives chucking pole 61 and insert and fix winding displacement board 1 in the chucking hole, slider 66 and the inside removal at winding displacement board 1 that the cooperation of spout 67 is convenient for chucking pole 61 can be stable, make the device when using, conveniently fix winding displacement board 1 and use in the high tension switchgear, the convenience of using has been improved.
The utility model provides a card line subassembly 2's structure and theory of use have disclosed in the high tension switchgear winding displacement device that chinese patent application number is 202220811149.8 discloses, and its theory of operation is, and card line subassembly 2 includes card line portion and plug wire portion, and card line portion adopts the arc structure, and plug wire portion adopts the inverted V-shaped structure, and the fixed rubber protection pad that is equipped with of inside wall of card line portion, rubber protection pad can protect the terminal wire.
The utility model discloses a theory of operation and use flow: the high-voltage switch cabinet is used for power generation, power transmission, power distribution, electric energy conversion and consumption of an electric power system to play the roles of on-off, control or protection and the like, when the high-voltage switch cabinet is used, a wire arranging device is needed to arrange the circuits, when the high-voltage switch cabinet is used, firstly, the number of the wire arranging boards 1 needed to be used is determined according to the size of the high-voltage switch cabinet, then, the wire arranging boards 1 are assembled and used through the fixing component 5, then, the wire arranging boards 1 are clamped in the high-voltage switch cabinet through the clamping component 6, the circuits are arranged and arranged through the wire clamping part and the wire plugging part, when the fixing component 5 is used, when the wire arranging boards 1 are needed to be assembled and used, the plug blocks 3 of the wire arranging boards 1 are inserted into the slots 4 of another wire arranging board 1, the plug blocks 3 move to drive the fixture blocks 52 to move and compress the fixing springs 53, when the plug blocks 3 move to the fixture blocks 52 and the fixing holes 54 to be overlapped, the fixing spring 53 drives the clamping block 52 to be inserted into the fixing hole 54 to fix the plug 3, so that the assembly of the flat cable panel 1 is completed, when the device is used, a worker can conveniently assemble and use the flat cable panel 1 according to needs, the use convenience is improved, when the clamping assembly 6 is used, when the flat cable panel 1 needs to be fixed inside a high-voltage switch cabinet for use, the clamping rod 61 is pulled, the clamping rod 61 moves and compresses the clamping spring 62, so that the clamping rod is taken into the flat cable panel 1, when the clamping rod 61 moves to the position where the limiting rod 63 is overlapped with the limiting hole, the limiting spring 64 drives the limiting rod 63 to be inserted into the limiting hole to fix the clamping rod 61, then the flat cable panel 1 is arranged at a position to be installed inside the high-voltage switch cabinet, then the clamping rod 61 is aligned with the clamping hole matched with the clamping rod 61 in the high-voltage switch cabinet, then pulling gag lever post 63 makes gag lever post 63 break away from spacing hole, then chucking spring 62 resumes deformation and drives chucking pole 61 and insert in the chucking hole and fix winding displacement board 1, and slider 66 and the cooperation of spout 67 are convenient for chucking pole 61 can be stable the inside removal at winding displacement board 1 for the device when using, conveniently fixes winding displacement board 1 and uses in the high tension switchgear, has improved the convenience of using.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a high tension switchgear winding displacement device, includes the winding displacement board, its characterized in that: the wiring board is characterized in that a wiring clamping assembly is uniformly arranged above the wiring board, a plug block is arranged on one side of the wiring board, a slot is formed in the other side of the wiring board, a fixing assembly is arranged inside the slot, and clamping assemblies are symmetrically arranged on two sides above the wiring board.
2. The electrical flat cable device of claim 1, wherein: the fixing assembly comprises a pull rod, a clamping block and a fixing spring, wherein the clamping block is arranged above the inserting block, the pull rod is arranged at one end, away from the inserting block, of the clamping block, the fixing spring is arranged on the surface of the pull rod, and the fixing spring is arranged inside the inserting groove.
3. The high-voltage switch cabinet cable arrangement device according to claim 2, wherein: the fixing hole is formed above the inserting block, and the clamping block can be inserted into the fixing hole under the action of the fixing spring.
4. The electrical flat cable device of claim 1, wherein: the clamping assembly comprises a clamping rod, a clamping spring, a limiting rod, a limiting spring and an extrusion block, wherein the clamping rod is arranged inside the wire arranging plate, the clamping spring is arranged on one side of the clamping rod, the limiting rod is arranged above the clamping rod, the extrusion block is fixedly arranged on the surface of the limiting rod, the limiting spring is arranged on one side, away from the clamping rod, of the extrusion block, and the limiting spring is also arranged on the surface of the limiting rod.
5. The electrical conduit device of claim 4, wherein: the below of chucking pole is provided with the slider, and the spout of cooperation slider is seted up to the inside of winding displacement board.
6. The electrical conduit device of claim 4, wherein: and a limiting hole is formed above the clamping rod, and the limiting rod can be inserted into the limiting hole under the action of a limiting spring.
