Abstract

The utility model relates to a communication cabinet, in particular to a communication cabinet which is convenient for adjusting the height of a power distribution row. The utility model provides a communication cabinet which is convenient for adjusting the height of the power distribution row. The communication cabinet uses the first connecting rod to move the power distribution row to achieve the purpose of adjusting the height of the power distribution row. The utility model provides such a communication cabinet which is convenient for adjusting the height of the power distribution bar, which includes a cabinet body, a revolving door, a power distribution bar and a fixed frame. A slide rail is connected, and a sliding bar is arranged in a sliding type in the slide rail, and a fixing frame is arranged on the sliding bar. By pushing the handle up and down by the staff, the handle drives the first connecting rod, the fixed frame and the sliding bar to move up and down, and the fixed frame drives the power distribution bar to move up and down, thereby achieving the purpose of adjusting the height of the power distribution bar, so that it is convenient for the staff to view the storage equipment and Wire connections between distribution bars.

Description

A communication cabinet that is convenient for adjusting the height of the power distribution row

technical field

The utility model relates to a communication cabinet, in particular to a communication cabinet which is convenient for adjusting the height of a power distribution row.

Background technique

The communication chassis cabinet is processed by sheet metal equipment and used for communication chassis cabinets. It provides space for power supplies, motherboards, various expansion boards, drives and other storage devices, and through the brackets inside the chassis, various screws or clips Connectors such as these fix these parts inside the chassis to form an intensive whole, while the power distribution bar refers to the connection copper bar or aluminum bar between the main switch in the electric cabinet and the switches in each branch circuit in the power supply system .

The storage equipment in the communication cabinet needs to be connected to the power distribution bar through wires, but the power distribution bar is usually fixed on the upper part of the communication cabinet with bolts, and it is not easy to move. Clearly check the wire connection between the storage device and the power distribution bar, which will affect the maintenance efficiency.

Therefore, it is necessary to design a communication cabinet that is convenient for adjusting the height of the power distribution bar. The communication cabinet moves the power distribution bar by pushing the handle up and down, so as to achieve the purpose of adjusting the height of the power distribution bar.

Utility model content

In order to overcome the fact that the power distribution bar is usually fixed on the upper part of the communication cabinet with bolts, and it is not easy to move, so that when the staff inspects the storage device and the power distribution bar, it is impossible to clearly check the wire connection between the storage device and the power distribution bar , thus affecting the efficiency of maintenance. The purpose of this utility model is to provide a communication cabinet that is convenient for adjusting the height of the power distribution bar. The communication cabinet uses the first connecting rod to move the power distribution bar to adjust the height of the power distribution bar. the goal of.

The utility model is realized through the following technical approaches: a communication cabinet which is convenient for adjusting the height of the power distribution bar, including a cabinet body, a revolving door, a power distribution bar, a fixing frame, a first connecting rod, a sliding bar, a slide rail, a first elastic Parts, insert rods, support plates and handles, the front side of the cabinet body is rotated with a revolving door, the left and right sides of the cabinet body are connected with slide rails, the sliding type inside the slide rails is provided with slide bars, and the slide bars are provided with fixed frames. There is a power distribution bar between the front sides of the two fixing frames. The right side of the power distribution bar is connected to the first connecting rod. There are chutes on the left and right sides of the cabinet. The first connecting rod slides in the chute on the right. The right end of the first connecting rod is slidingly provided with a handle, the first connecting rod is covered with a first elastic member, one end of the first elastic member is connected with the handle, the other end of the first elastic member is connected with the first connecting rod, and the front side of the handle is connected There is an insertion rod, and a support plate is connected to the right side of the cabinet body. There are multiple card slots on the support plate, and the insertion rod can be inserted into the card slots.

As an improvement of the above scheme, it also includes a second connecting rod, a second elastic member and a pressing plate. A second elastic piece is provided, one end of the second elastic piece is connected with the pressing plate, and the other end of the second elastic piece is connected with the second connecting rod.

As an improvement of the above scheme, it also includes a screw, a first guide rod, a rotating block, a hand wheel and a fixed plate. The bottom of the cabinet body is equipped with a rotating block on the left side, the top of the rotating block is connected to a screw rod, and the bottom of the cabinet body is connected to the right side. There is a first guide rod, the top of the screw rod is connected with a hand wheel, the screw rod is threadedly provided with a fixing plate, and the fixing plate slides on the first guide rod.

As an improvement of the above solution, a limiting plate is also included, the top of the cabinet body is connected to the limiting plate, and the first guide rod and the screw rod pass through the limiting plate.

As an improvement of the above solution, an insulating sleeve is also included, and the handle is provided with an insulating sleeve.

As an improvement of the above scheme, it also includes a second guide rod, the left and right sides of the cabinet are connected with the second guide rod, the second connecting rod slides on the second guide rod on the left side, and the first connecting rod slides on the second guide rod on the right side. Slide on the second guide rod.

Using the above description of the structure of the utility model, it can be known that the design starting point, concept and advantages of the utility model are: 1. Push the handle up and down by the staff, so that the handle drives the first connecting rod, the fixed frame and the slide bar to move up and down, and the fixed frame Drive the power distribution bar to move up and down, and then achieve the purpose of adjusting the height of the power distribution bar, so that it is convenient for the staff to check the wire connection between the storage device and the power distribution bar.

2. After the staff releases the pressure plate, the second elastic member drives the pressure plate to reset to the right, and then supports the power distribution bar, thereby preventing the power distribution bar from tilting.

3. When the staff turns the handwheel, the handwheel drives the screw to rotate, and the screw drives the fixed plate to move up and down to a suitable position, so that the fixed plate can fix and protect the storage equipment inside the cabinet.

Description of drawings

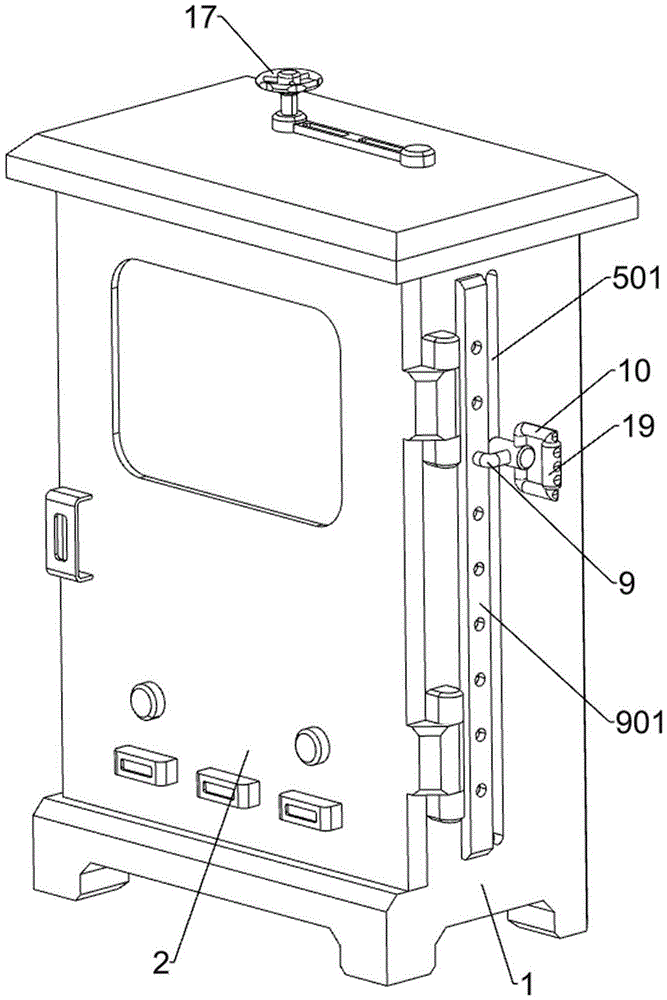

Fig. 1 is a three-dimensional structure schematic diagram of the present utility model.

Fig. 2 is a three-dimensional cross-sectional structural schematic diagram of the cabinet body, the power distribution bar and the fixing frame.

Fig. 3 is a perspective structural schematic diagram of a first connecting rod, a sliding bar and a first elastic member.

Fig. 4 is a perspective cross-sectional structural schematic view of the second connecting rod, the second elastic member and the pressing plate.

Fig. 5 is a three-dimensional cross-sectional structural schematic diagram of the screw and the handwheel.

Label names in the figure: 1, cabinet body, 2, revolving door, 3, power distribution bar, 4, fixed frame, 5, first connecting rod, 501, chute, 6, sliding bar, 7, slide rail, 8, The first elastic piece, 9, the insertion rod, 901, the support plate, 902, the slot, 10, the handle, 11, the second connecting rod, 12, the second elastic piece, 13, the pressure plate, 14, the screw, 1401, the first Guide rod, 15, rotating block, 16, handwheel, 17, fixed plate, 18, limit plate, 19, insulating cover, 20, the second guide rod.

detailed description

The above solution will be further described below in conjunction with specific embodiments. It should be understood that these examples are used to illustrate the present application and not limit the scope of the present application. The implementation conditions used in the examples can be further adjusted according to the conditions of specific manufacturers, and the implementation conditions not indicated are usually the conditions in routine experiments.

Example 1

Referring to Figures 1-3, a communication cabinet that is convenient for adjusting the height of the power distribution bar includes a cabinet body 1, a revolving door 2, a power distribution bar 3, a fixing frame 4, a first connecting rod 5, a sliding bar 6, and a slide rail 7. The first elastic member 8, the insertion rod 9, the support plate 901 and the handle 10, the front side of the cabinet body 1 is provided with a revolving door 2, and the left and right sides of the cabinet body 1 are connected with slide rails 7, inside the slide rail 7 The sliding type is provided with a sliding bar 6, a fixing frame 4 is arranged on the sliding bar 6 through bolts, a power distribution bar 3 is arranged through bolts between the front sides of the two fixing frames 4, and a first connecting rod is connected to the right side of the power distribution bar 3 5. There are chute 501 on the left and right sides of the cabinet body 1, the first connecting rod 5 slides in the chute 501 on the right side, the right end of the first connecting rod 5 is slidingly provided with a handle 10, and the first connecting rod 5 is put on There is a first elastic member 8, one end of the first elastic member 8 is connected to the handle 10, the other end of the first elastic member 8 is connected to the first connecting rod 5, the front side of the handle 10 is connected to the insertion rod 9, and the right side of the cabinet body 1 is connected to There is a support plate 901, and a plurality of slots 902 are opened on the support plate 901, and the insertion rod 9 can be inserted into the slots 902.

Referring to Fig. 1 and Fig. 2, an insulating sheath 19 is also included, the handle 10 is provided with an insulating sheath 19, and the insulating sheath 19 can play an insulating role.

When the staff needs to use the device, the staff pulls the handle 10 to the right, the handle 10 presses the first elastic member 8 to the right on the first connecting rod 5, the first elastic member 8 is deformed, and the handle 10 drives the insertion rod 9 Move to the right, the inserting rod 9 breaks away from the card slot 902, then the staff pushes the handle 10 up and down, the handle 10 drives the fixed frame 4 and the sliding bar 6 to move up and down through the first connecting rod 5, and the sliding bar 6 moves up and down in the slide rail 7, The fixed frame 4 drives the power distribution bar 3 to move up and down, and then achieves the purpose of adjusting the height of the power distribution bar, so that it is convenient for the staff to check the wire connection between the storage device and the power distribution bar. When the power distribution bar 3 moves to a suitable position, the working The personnel releases the handle 10, the first elastic member 8 drives the handle 10 to reset to the left, the handle 10 drives the insertion rod 9 to reset to the left, the insertion rod 9 snaps into the slot 902 to the left, and the insertion rod 9 fixes the first connecting rod 5 .

Example 2

On the basis of Embodiment 1, referring to Fig. 4, it also includes a second connecting rod 11, a second elastic member 12 and a pressing plate 13, the left end of the first connecting rod 5 is welded with a second connecting rod 11, and the second connecting rod 11 Slide in the chute 501 on the left side, the second connecting rod 11 is slidably provided with a pressing plate 13, the first connecting rod 5 is sleeved with a second elastic member 12, one end of the second elastic member 12 is connected with the pressing plate 13, the second The other ends of the two elastic members 12 are connected to the second connecting rod 11 .

Referring to Fig. 2, it also includes a second guide rod 20, the left and right sides of the cabinet body 1 are welded with the second guide rod 20, the second connecting rod 11 slides on the second guide rod 20 on the left side, the first connecting rod 5 Sliding on the second guide rod 20 on the right side, the second connecting rod 11 can play a guiding role.

When the staff pulls the pressure plate 13 to the left, the pressure plate 13 presses the second elastic member 12 to the left on the second connecting rod 11, and the second elastic member 12 is deformed, and the staff can push the handle 10 up and down, when the power distribution bar 3 When moving to a proper position, the staff releases the pressing plate 13, and the second elastic member 12 drives the pressing plate 13 to reset to the right, and then supports the power distribution bar 3, thereby preventing the power distribution bar 3 from tilting.

Referring to Fig. 5, it also includes a screw rod 14, a first guide rod 1401, a rotating block 15, a hand wheel 16 and a fixed plate 17, a rotating block 15 is arranged on the left side of the bottom of the cabinet body 1, and a screw rod is connected to the top of the rotating block 15 14. A first guide rod 1401 is connected to the right side of the inner bottom of the cabinet body 1, a hand wheel 16 is connected to the top of the screw rod 14, and a fixing plate 17 is threaded on the screw rod 14, and the fixing plate 17 slides on the first guide rod 1401.

Referring to FIG. 5 , it also includes a limiting plate 18 . The limiting plate 18 is welded on the top of the cabinet body 1 . The first guide rod 1401 and the screw rod 14 pass through the limiting plate 18 . The limiting plate 18 can limit the reset of the fixing plate 17 .

The staff rotates the handwheel 16, and the handwheel 16 drives the screw rod 14 to rotate, and the screw rod 14 drives the fixed plate 17 to move up and down to a suitable position, so that the fixed plate 17 can fix and protect the storage device inside the cabinet body 1.

Although the present utility model has been described in detail with reference to the above embodiments, it is obvious to those skilled in the art through this disclosure that the present utility model can be modified without departing from the principle and spirit scope of the present utility model defined by the claims. Various changes or modifications are made to the utility model. Therefore, the detailed description of the embodiments of the present disclosure is only for explaining, not for limiting the utility model, but the scope of protection is defined by the content of the claims.

Claims (6)

1. A communication cabinet convenient for adjusting the height of a power distribution bar comprises a cabinet body (1) and a rotating door (2), wherein the rotating door (2) is rotatably arranged at the front side of the cabinet body (1), and the communication cabinet is characterized by further comprising the power distribution bar (3), fixing frames (4), first connecting rods (5), sliding strips (6), sliding rails (7), first elastic pieces (8), inserting rods (9), a supporting plate (901) and a handle (10), the sliding rails (7) are respectively connected to the left side and the right side of the cabinet body (1), the sliding strips (6) are arranged in the sliding manner in the sliding rails (7), the fixing frames (4) are arranged on the sliding strips (6), the power distribution bar (3) is arranged between the front sides of the two fixing frames (4), the first connecting rods (5) are connected to the right side of the power distribution bar (3), the sliding grooves (501) are respectively formed in the left side and the right side of the cabinet body (1), the first connecting rods (5) slide in the sliding grooves (501) on the right side, a handle (10) is arranged at the right end of the sliding manner in the sliding manner, the first connecting rods (5) are sleeved with the first elastic pieces (8), and the other ends of the first connecting rods (9) are connected with the inserting rods (10), the right side of the cabinet body (1) is connected with a supporting plate (901), the supporting plate (901) is provided with a plurality of clamping grooves (902), and the inserted bar (9) can be clamped into the clamping grooves (902).

2. The communication cabinet convenient for adjusting the height of the power distribution bar according to claim 1, further comprising a second connecting rod (11), a second elastic member (12) and a pressing plate (13), wherein the second connecting rod (11) is connected to the left end of the first connecting rod (5), the pressing plate (13) is slidably disposed on the second connecting rod (11), the second elastic member (12) is sleeved on the first connecting rod (5), one end of the second elastic member (12) is connected to the pressing plate (13), and the other end of the second elastic member (12) is connected to the second connecting rod (11).

3. The communication cabinet convenient to adjust the height of the power distribution row of claim 2, further comprising a screw (14), a first guide rod (1401), a rotating block (15), a hand wheel (16) and a fixing plate (17), wherein the rotating block (15) is rotatably arranged on the left side of the inner bottom of the cabinet body (1), the screw (14) is connected to the top of the rotating block (15), the first guide rod (1401) is connected to the right side of the inner bottom of the cabinet body (1), the hand wheel (16) is connected to the top end of the screw (14), the fixing plate (17) is arranged on the screw (14) in a threaded manner, and the fixing plate (17) slides on the first guide rod (1401).

4. The communication cabinet convenient to adjust the height of the power distribution bar according to claim 3, further comprising a limiting plate (18), wherein the limiting plate (18) is connected to the top inside the cabinet body (1), and the first guide rod (1401) and the screw (14) penetrate through the limiting plate (18).

5. The communication cabinet convenient for adjusting the height of the power distribution bar as recited in claim 4, further comprising an insulating sleeve (19), wherein the handle (10) is provided with the insulating sleeve (19).

6. The communication cabinet convenient to adjust the height of the power distribution bar according to claim 5, further comprising second guide rods (20), wherein the second guide rods (20) are connected to the left and right sides of the cabinet body (1), the second connecting rod (11) slides on the second guide rod (20) on the left side, and the first connecting rod (5) slides on the second guide rod (20) on the right side.
