Abstract

The utility model discloses a computer cooling bracket, which comprises a base, the top of the base is equipped with a bearing plate through an angle adjustment mechanism, the top of the bearing plate is provided with equidistantly distributed cooling holes, and the bearing plate The top end is fixed with protruding pillars distributed equidistantly, and the protruding pillars and cooling holes are distributed in a staggered manner. The heat dissipation fins distributed at a distance, the bottom end of the bearing plate is fixedly provided with an air duct, the side wall of the air duct is provided with several heat dissipation ports, and the bottom end of the air duct is fixedly installed with a heat dissipation fin through a round groove opened. fan. The heat conduction plate of the utility model can absorb the heat of the notebook, cooperate with the heat dissipation fins to improve the heat dissipation effect, and then the raised column can make a certain gap between the notebook and the bearing plate, so that the bottom side of the entire notebook can have airflow passing through, further Improve cooling effect.

Description

computer heat sink

technical field

The utility model relates to the technical field of computer auxiliary equipment, in particular to a computer cooling bracket.

Background technique

Computers are divided into desktop and mobile. Mobile computers are commonly known as notebook computers. Notebook computers tend to heat up when they are in use. The heat not only affects the running speed of the computer, but also has a negative impact on the computer hardware. It is very important for the heat dissipation of the notebook computer. Yes, most cooling methods use cooling brackets to lift the laptop for cooling.

In the prior art, a patent such as CN202120300526.7 discloses a computer heat dissipation bracket. In the above-mentioned patent, the notebook computer is placed on the carrying plate, and the heat is dissipated through the holes on the fan and the carrying plate. The notebook computer and the carrying plate are closely connected. The effect of contact, heat dissipation and ventilation is not very good and needs to be improved.

Utility model content

The purpose of this utility model is to provide a computer heat dissipation bracket to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model adopts the following technical solutions:

A computer heat dissipation support, comprising a base, the top of the base is equipped with a bearing plate through an angle adjustment mechanism, the top of the bearing plate is provided with equidistantly distributed heat dissipation holes, and the top of the bearing plate is fixed with etc. The protruding pillars with distance distribution, the protruding pillars and the cooling holes are distributed alternately, the top of the bearing plate is fixedly connected with the heat conducting plate through the opening installation groove, and the bottom end of the heat conducting plate is provided with equidistantly distributed heat dissipation fins The bottom end of the bearing plate is fixedly provided with an air duct, the side wall of the air duct is provided with several heat dissipation openings, and the bottom end of the air duct is fixedly equipped with a heat dissipation fan through a circular groove opened.

As a further improvement of the technical solution: the outer surface of the heat dissipation fins is provided with circular holes distributed equidistantly.

As a further improvement of the technical solution: the angle adjustment mechanism includes symmetrically distributed support columns fixed on the front side of the top top of the base, and the top ends of the support columns are hinged to the bottom end of the bearing plate.

As a further improvement of this technical solution: the top and rear side of the base are rotated and provided with symmetrically distributed screw rods, and the outside of the screw rods is connected with a moving block through threads, and the top end of the moving block and the bottom end of the bearing plate Commonly hinged with connecting rods.

As a further improvement of the technical solution: the support column is a telescopic telescopic rod, and the outside of the telescopic telescopic rod is threaded to a limit screw.

As a further improvement of the technical solution: the four corners of the bottom end of the base are fixedly provided with supporting feet, and the material of the supporting feet is rubber.

As a further improvement of the technical solution: a limiting plate is fixedly arranged on the front side of the top end of the bearing plate, and the limiting plates are symmetrically distributed left and right.

Compared with the prior art, the beneficial effects of the utility model are:

1. It is used for a computer heat dissipation bracket. It is equipped with a heat dissipation fan and a heat dissipation hole to dissipate heat from the notebook on the carrier board, and the heat conduction plate can absorb the heat of the notebook, and cooperate with the heat dissipation fins to improve the heat dissipation effect, and then protrude The column can make a certain gap between the notebook and the load board, so that the airflow can pass through the entire bottom side of the notebook, and further improve the heat dissipation effect.

2. It is used in a computer heat dissipation bracket. By providing circular holes, that is, the heat dissipation fins are provided with circular holes at equal intervals, which can greatly increase the contact area with the air, thereby improving the heat dissipation effect.

3. It is used for a computer heat dissipation stand. By setting an angle adjustment mechanism, it can adjust the angle and height of the placed notebook, which is suitable for different people's usage habits and has good flexibility.

The above description is only an overview of the technical solution of the utility model. In order to understand the technical means of the utility model more clearly and implement it according to the contents of the specification, the following is a detailed description of the preferred embodiment of the utility model with accompanying drawings. rear. The specific embodiment of the utility model is given in detail by the following examples and accompanying drawings.

Description of drawings

The drawings described here are used to provide a further understanding of the utility model and constitute a part of the application. The schematic embodiments of the utility model and their descriptions are used to explain the utility model and do not constitute improper limitations to the utility model. In the attached picture:

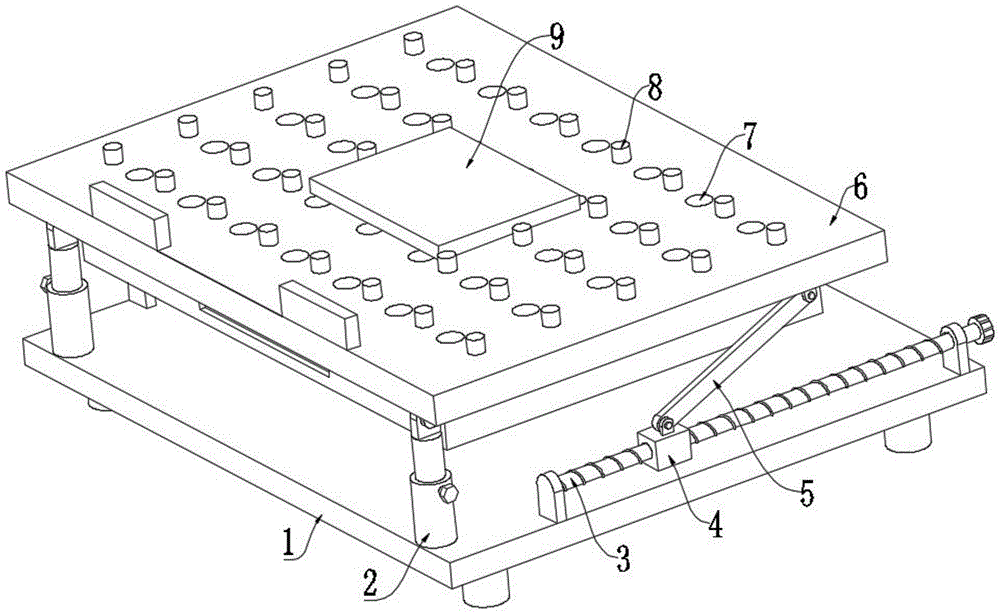

Fig. 1 is the overall structure schematic diagram of a kind of computer cooling bracket that the utility model proposes;

Fig. 2 is the structure schematic diagram of the heat dissipation fan of a kind of computer heat dissipation support that the utility model proposes;

FIG. 3 is a structural schematic diagram of a heat dissipation fin of a computer heat dissipation bracket proposed by the present invention.

In the accompanying drawings, the list of parts represented by each label is as follows:

1. Base; 2. Support column; 3. Screw rod; 4. Moving block; 5. Connecting rod; 6. Loading plate; 7. Cooling hole; 8. Protruding column; 11. Cooling fan; 12. Cooling fins; 13. Round hole; 14. Cooling port.

detailed description

The principles and features of the present utility model are described below in conjunction with the accompanying drawings, and the examples given are only used to explain the utility model, and are not used to limit the scope of the utility model. In the following paragraphs, the present utility model is described more specifically by way of example with reference to the accompanying drawings. According to the description below, the advantages and features of the present utility model will be more clear. It should be noted that all the drawings are in very simplified form and use inaccurate scales, which are only used to facilitate and clearly illustrate the purpose of the embodiment of the present utility model.

It should be noted that when a component is said to be "fixed" to another component, it can be directly on the other component or there can also be an intervening component. When a component is said to be "connected" to another component, it may be directly connected to the other component or there may be intervening components at the same time. When a component is said to be "set on" another component, it may be set directly on the other component or there may be an intervening component at the same time. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for purposes of illustration only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field of this invention. The terminology used in the description of the utility model herein is only for the purpose of describing specific embodiments, and is not intended to limit the utility model. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Please refer to Figures 1 to 3. In the embodiment of the present utility model, a computer heat dissipation bracket includes a base 1. A bearing plate 6 is installed on the top of the base 1 through an angle adjustment mechanism. The angle of the bearing plate 6 can be adjusted. The top of 6 is provided with equidistantly distributed heat dissipation holes 7, and the top of the bearing plate 6 is pasted with equidistantly distributed raised columns 8, and the raised columns 8 and the heat dissipation holes 7 are alternately distributed, so that the notebook is placed on the bearing plate 6 At this time, it will be located on the raised column 8. At this time, there will be a certain gap between the bottom of the notebook computer and the bearing plate 6, which will improve the circulation of the air, and then improve the heat dissipation. The installation groove is fixedly connected with a heat conduction plate 9, that is, the heat conduction plate 9 runs through the carrying plate 6, and the top of the heat conduction plate 9 abuts against the bottom of the notebook computer. The heat conduction plate 9 is preferably made of metal material, such as copper or aluminum, which can well absorb the notebook computer. The heat of the computer improves the heat dissipation. The bottom end of the heat conducting plate 9 is integrally formed with heat dissipation fins 12 distributed equidistantly. The material of the heat dissipation fins 12 is the same as that of the heat conduction plate 9. The cylinder 10, the side wall of the air cylinder 10 is provided with several cooling outlets 14, the cooling openings 14 serve as an auxiliary air intake to improve the circulation of the air flow, mainly the cooling holes 7 for the cooling of the notebook computer, the bottom of the air cylinder 10 The heat dissipation fan 11 is fixedly installed on the end through the opened circular groove. The heat dissipation fan 11 draws the air in the air cylinder 10 away, and the airflow enters from the heat dissipation hole 7, and then absorbs the heat of the notebook computer, and the heat conduction plate 9 can absorb the heat of the notebook computer. , cooperate with the heat dissipation fins 12 to improve the heat dissipation effect, and then the raised column 8 can make a certain gap between the notebook and the carrying plate 6, so that the bottom side of the entire notebook can have airflow passing through, further improving the heat dissipation effect.

In the present invention, the outer surface of the heat dissipation fins 12 is provided with circular holes 13 distributed equidistantly, which can greatly increase the contact area with the air, thereby improving the heat dissipation effect.

In the utility model, the angle adjustment mechanism includes support columns 2 fixedly connected to the front side of the top of the base 1 and symmetrically distributed. Rotate to adjust the angle.

In the utility model, the rear side of the top of the base 1 is rotated and provided with symmetrically distributed screw rods 3, as shown in Figure 1, two sets of mounting blocks are arranged on the rear side of the base 1, and the screw rod 3 is arranged between a set of mounting blocks. The screw rod 3 is connected with a moving block 4 through threads, the top of the moving block 4 and the bottom end of the bearing plate 6 are jointly hinged with a connecting rod 5, and one end of the screw rod 3 passes through the mounting block and is equipped with a knob , turn the screw rod 3 through the knob, the screw rod 3 acts on the moving block 4 to make it move, the moving block 4 acts on the connecting rod 5, and the connecting rod 5 acts on the bearing plate 6, so that it can be rotated along the supporting column 2 for angle adjustment .

In the utility model, the support column 2 is a sleeve-type telescopic rod, and the outside of the sleeve-type telescopic rod is connected with a limit screw through a thread, and the height of the support column 2 can be adjusted, and then the height of the placed notebook computer can be adjusted. Tighten the limit screw.

In the utility model, the four corners of the bottom end of the base 1 are fixedly provided with support feet, and the material of the support feet is rubber, which improves the stability of placement.

In the utility model, the front side of the top of the carrying plate 6 is fixedly provided with a limit plate, which is distributed symmetrically on the left and right, and limits the front side of the notebook computer to prevent it from sliding down from the carrying plate 6 .

The working principle of the utility model is:

The electrical components appearing in this application are all externally connected to the power supply and control switch when in use. First, place the bracket at a suitable position on the desktop, place the notebook computer on the carrying plate 6, and turn the screw rod 3 when the angle adjustment is required. , the screw rod 3 acts on the moving block 4 to make it move, the moving block 4 acts on the connecting rod 5, and the connecting rod 5 acts on the bearing plate 6, so that it can rotate along the supporting column 2 for angle adjustment, and stop at a suitable angle Just rotate, start the heat dissipation fan 11 when using the notebook computer, the heat dissipation fan 11 will take away the air in the air duct 10, and the airflow enters from the heat dissipation hole 7, and then absorbs the heat of the notebook computer, and the heat conducting plate 9 can absorb the heat of the notebook computer. Heat, cooperate with the heat dissipation fins 12 to improve the heat dissipation effect, and then the raised column 8 can make a certain gap between the notebook and the bearing plate 6, so that the bottom side of the entire notebook can have airflow passing through, further improving the heat dissipation effect.

Although the utility model has been described in detail with reference to the aforementioned embodiments, those skilled in the art can modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principles of the utility model, any modification, equivalent replacement, improvement, etc., should be included in the protection scope of the utility model.

Claims (7)

1. The utility model provides a computer heat dissipation support, includes base (1), its characterized in that, loading board (6) are installed through angle adjustment mechanism in the top of base (1), louvre (7) that are provided with the equidistance and distribute are run through on the top of loading board (6), and the top rigid coupling of loading board (6) has protruding post (8) that the equidistance distributes, protruding post (8) and louvre (7) crisscross distribution, the top of loading board (6) has heat-conducting plate (9) through the mounting groove rigid coupling of seting up, the bottom of heat-conducting plate (9) is provided with radiating fin (12) that the equidistance distributes, the bottom mounting of loading board (6) is provided with dryer (10), the lateral wall of dryer (10) is provided with a plurality of thermovent (14), the bottom of dryer (10) has radiating fan (11) through the circular slot fixed mounting who sets up.

2. The computer heat dissipation bracket according to claim 1, wherein the outer surface of the heat dissipation fins (12) is provided with circular holes (13) distributed at equal intervals.

3. The computer heat dissipation bracket according to claim 1, wherein the angle adjustment mechanism comprises support pillars (2) that are fixed to the front side of the top end of the base (1) and symmetrically distributed, and the top ends of the support pillars (2) are hinged to the bottom end of the carrier plate (6).

4. The computer heat dissipation bracket according to claim 3, wherein the base (1) is rotatably provided with symmetrically distributed lead screws (3) at the rear side of the top end, the exterior of the lead screws (3) is connected with a moving block (4) through threads, and the top end of the moving block (4) and the bottom end of the bearing plate (6) are jointly hinged with a connecting rod (5).

5. The computer heat dissipation bracket according to claim 4, wherein the supporting column (2) is a telescopic rod, and a limit screw is connected to the outside of the telescopic rod through a thread.

6. The computer heat dissipation support according to claim 1, wherein supporting legs are fixedly arranged at four corners of the bottom end of the base (1), and the supporting legs are made of rubber.

7. The computer heat dissipation bracket as recited in claim 1, wherein a limiting plate is fixedly arranged at the front side of the top end of the bearing plate (6), and the limiting plates are symmetrically distributed.
