Abstract

The utility model discloses a processing edge trimming equipment, which relates to the technical field of edge trimming equipment and aims to solve the problems that the height of the beam is difficult to adjust and the adjustment range is limited, and the edge trimming device needs to be manually moved and is not easy to fix. Lifting mechanism and beam, through the lifting mechanism on the column, the height of the edge trimming device under the beam can be controlled, and then the edge trimming operation of the object can be implemented without manual adjustment, saving time and effort, and the adjustment range is greatly increased ;By setting the moving mechanism and the mounting plate, the top of the moving mechanism is connected to the beam, and the bottom is connected to the edge trimming device through the mounting plate, so that the edge trimming device can be driven by the moving mechanism, and then move left and right in the horizontal direction, so that the staff no longer need to Manually move the edge trimming device, and at the same time, the edge trimming device is more firm after moving to the designated position, and will not move back and forth, and will not be dislocated during the edge trimming process.

Description

A processing trimming device

technical field

The utility model relates to the technical field of trimming equipment, in particular to a processing and trimming equipment.

Background technique

After most objects are handed over, there are often redundant parts such as redundant burrs. For example, in the process of steel rolling, it needs to go through multiple processes, so that after the workpiece is formed, the edges are often not smooth enough, which will affect the subsequent use. Cause adverse effects, in order to solve this situation, it is necessary to use trimming equipment.

Chinese patent CN202022697105.0 discloses a non-ferrous metal calendering processing edge trimming equipment. The technical solution adopted is to include a base, and columns are fixedly connected to both sides of the top of the base. There is edge trimming equipment, and both sides of the bottom of the edge trimming equipment are equipped with stabilizing mechanisms. The stabilizing mechanism includes multiple extension frames, which are respectively embedded in the four corners of the edge trimming equipment. The extension frames are slidingly connected with the edge trimming equipment. The bottom of the frame is fixedly connected with a horizontal frame, and the outer sides of the two adjacent extension frames are equipped with second springs, and multiple second springs are arranged at the bottom of the trimming equipment, and the bottom of the horizontal frame is fixedly connected with multiple telescopic rods. The bottom of each telescopic rod is fixedly connected with a mounting block, and the bottom of the mounting block is fixedly provided with a guide wheel; the problem in this technical solution is that the height of the beam needs to be adjusted manually, which is time-consuming and laborious. At the same time, the beam can only be fixed to the threaded At the position of the positioning hole, the adjustment range is greatly reduced; although the trimming equipment can move back and forth on the beam and adjust the position in the horizontal direction, it still adopts a manual method, and at the same time, it cannot be fixed after moving to the designated position , Misalignment is prone to occur in the process of cutting the edge of the object.

Utility model content

In view of the problems existing in the prior art, the utility model discloses a processing edge trimming device, the adopted technical solution is to include a bottom plate, an edge trimming device, and a control circuit, and the edge trimming device is used for the edge trimming operation of an object , the control circuit is provided with a microprocessor, and the trimming device is connected to the microprocessor to facilitate unified control and management of each electrical component in the device; it also includes a column, a lifting mechanism, a beam, and a guide rod , a moving mechanism, a mounting plate, an elastic telescopic mechanism, a pressing plate, and a sliding part, the base plate is provided with the column and the guide rod for connection and fixing, and the column is provided with the lifting mechanism for lifting , the left side of the beam is connected to the lifting mechanism so that the beam can be driven up and down, the right side is provided with a guide hole and is slidably connected to the guide rod for guidance, and the bottom is connected to the mounting plate through the moving mechanism , for connection and fixation, the bottom of the mounting plate is provided with the trimming device and several elastic telescopic mechanisms, the top of the pressing plate is connected with the elastic telescopic mechanisms, and the bottom is provided with the sliding part, which can compress the object at the same time The normal movement of the object will not be affected, and the lifting mechanism and the moving mechanism are connected with the microprocessor, which is convenient for unified operation and management.

As a preferred technical solution of the utility model, scales are provided on the uprights to facilitate the control of the height of the beams.

As a preferred technical solution of the present utility model, the lifting mechanism includes a first motor, a first screw, and a first slider, and the right side of the column is provided with a groove and is axially connected to the first screw, so that the The first screw can rotate, the first motor is located at the top of the column and connected to the first screw, which can provide power, and the first slider is provided with a first threaded hole inside and engaged on the first screw , turn the first screw to move the first slider up and down, the right end is connected to the beam so that both can move at the same time, the first motor is connected to the microprocessor for unified manipulation .

As a preferred technical solution of the present invention, the guide rod is in the shape of a prism, which can prevent the horizontal beam from rotating, and has a better guiding effect.

As a preferred technical solution of the present utility model, the moving mechanism includes a second motor, a fixed plate, a second screw, and a second slider. The second screw is connected to the shaft between the two, so that the second screw can rotate, and the second motor is located on one side of the fixed plate and connected to the second screw, which can provide power , the top of the second slider is slidably connected to the crossbeam for guidance, and the bottom is fixedly connected to the mounting plate so that the two can move at the same time, and a second threaded hole is provided inside and engaged on the second screw rod, Rotating the second screw rod can cause the second slider to rotate.

As a preferred technical solution of the present invention, the elastic telescopic mechanism includes a telescopic rod and a spring, the telescopic rod is covered with the spring, the tops of both are connected to the mounting plate, and the bottoms are connected to the pressing plate. The telescopic rod can be guided, and the spring can provide elastic force, and then press down on the pressure plate.

As a preferred technical solution of the present invention, the sliding part is made of balls, which will not affect the movement of the object during edge trimming, and the balls are embedded in the bottom of the pressing plate.

Beneficial effects of the utility model: the utility model can control the height of the trimming device under the beam through the lifting mechanism on the column by setting the column, the lifting mechanism, and the beam, and then implement the edge trimming operation of the object without using manual labor. It can be adjusted in a simple way, which saves time and effort, and the adjustment range is greatly increased; by setting the moving mechanism and the mounting plate, the top of the moving mechanism is connected to the beam, and the bottom is connected to the edge trimming device through the mounting plate, so that the edge trimming device can be driven by the moving mechanism. Move left and right in the horizontal direction, so that the staff no longer need to manually move the edge trimming device, and at the same time, the edge trimming device is more firm after moving to the designated position, and will not move back and forth, and will not be misplaced during the edge trimming process. Phenomenon.

Further, by setting the scale on the column, the height of the edge trimming device can be grasped more accurately, which is beneficial to the edge trimming operation of the object.

Description of drawings

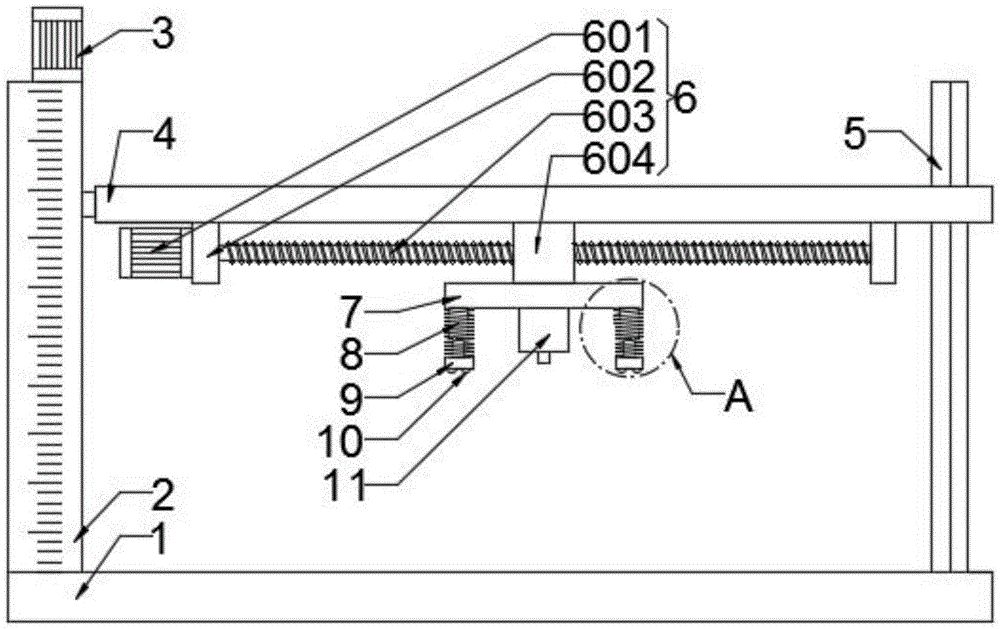

Fig. 1 is the structural representation of the utility model front view;

Fig. 2 is the sectional structure schematic diagram of the front view of the utility model;

Fig. 3 is the structural schematic diagram of the top view of the guide rod of the present invention;

Fig. 4 is a structural schematic diagram of a side view of a second slider of the present invention;

Fig. 5 is a schematic diagram of an enlarged structure at A of the present invention.

In the figure: 1, bottom plate; 2, column; 3, lifting mechanism; 301, first motor; 302, first screw; 303, first slider; 4, beam; 5, guide rod; 6, moving mechanism; 601 , the second motor; 602, the fixed plate; 603, the second screw rod; 604, the second slider; 7, the mounting plate; 8, the elastic telescopic mechanism; 801, the telescopic rod; 802, the spring; Department; 11, trimming device.

detailed description

Example 1

As shown in Fig. 1 to Fig. 5, the utility model discloses a processing and trimming device. In order to support and fix each component, a bottom plate 1 is provided in this embodiment as the bottom layer of the whole device.

In the trimming process, the heights of different objects are different, in order to be able to flexibly adjust the height of the trimming device 11, a column 2, a lifting mechanism 3, and a beam 4 are provided in this embodiment, and the lifting mechanism 3 on the column 2 can Control the height of the edge trimming device 11 below the beam 4, and then implement the edge trimming operation on the object.

Only the lifting mechanism 3 drives the crossbeam 4 to move up and down, and shaking may occur. In order to make the edge trimming device 11 more stable during use, it is necessary to maintain the stability of the crossbeam 4. Therefore, a guide rod 5 is provided in this embodiment, so that The crossbeam 4 can move along the direction of the guide bar 5, and the moving process is smoother and smoother.

The staff not only trims objects of different thicknesses, but also performs corresponding operations on objects of different widths. At this time, it is necessary to adjust the position of the trimming device 11 accordingly. The position of 11, in this embodiment, a moving mechanism 6 and a mounting plate 7 are provided, the top of the moving mechanism 6 is connected to the beam 4, and the bottom is connected to the edge trimming device 11 through the mounting plate 7, so that the edge trimming device 11 can be driven by the moving mechanism 6, Further, it moves left and right in the horizontal direction.

In the process of cutting the edge of the object, the object may be upturned, dislocated, etc., which will lead to an unsatisfactory edge cutting effect. In order to avoid this situation, an elastic telescopic mechanism 8 and a pressing plate 9 are provided in this embodiment. , the sliding part 10, the top of the elastic telescopic mechanism 8 is connected to the mounting plate 7, and the bottom is connected to the sliding part 10 through the pressing plate 9. When the trimming device 11 descends, the sliding part 10 will first contact the object, so that the object is in the process of trimming The center can always receive a downward force, which is more stable and firm, and at the same time, the sliding part 10 is slidingly connected with the object without affecting the normal movement of the object.

In order to visually see the height of the trimming device 11 , a scale is provided on the column 2 in this embodiment.

In order to enable the lifting mechanism 3 to drive the beam 4 to move up and down, a first motor 301, a first screw 302, and a first slider 303 are provided in this embodiment, and the right side of the column 2 is provided with a groove and is axially connected to the first screw 302. The first screw 302 can be rotated. The first motor 301 is located at the top of the column 2 and connected to the first screw 302 to provide power. The first slider 303 is provided with a first threaded hole and engaged with the first screw 302 to rotate the first screw 302. A screw rod 302 can make the first slide block 303 move up and down, and the right end is connected with the crossbeam 4 so that the two can move simultaneously. The first motor 301 is connected with the microprocessor for unified manipulation.

In order to prevent the beam 4 from rotating in the horizontal direction, the guide rod 5 is set in a prismatic shape in this embodiment, and the guiding effect is better.

In order to enable the moving mechanism 6 to drive the mounting plate 7 to move left and right, a second motor 601, a fixed plate 602, a second screw 603, and a second slider 604 are provided in this embodiment. The connecting crossbeam 4 is used for connection and fixing, and the shaft is connected with the second screw rod 603 between the two, so that the second screw rod 603 can rotate. The second motor 601 is located on one side of one of the fixing plates 602 and connected to the second screw rod 603, which can provide power , the top of the second slider 604 is slidingly connected to the crossbeam 4, which can be guided, and the bottom is fixedly connected to the mounting plate 7, so that the two can move at the same time. There is a second threaded hole inside and engaged on the second screw rod 603, and the second screw rod is rotated 603, to make the second slider 604 rotate.

In order to enable the elastic telescopic mechanism 8 to press down on the pressure plate 9, a telescopic rod 801 and a spring 802 are provided in this embodiment, and the outside of the telescopic rod 801 is covered with a spring 802. Both tops are connected to the mounting plate 7 and bottoms are connected to the pressure plate 9. , the telescopic rod 801 can be guided, and the spring 802 can provide elastic force, and then press the pressing plate 9 downward.

In order to enable the sliding part 10 to be slidingly connected with the trimmed object, balls are selected in this embodiment, which will not affect the movement of the object during the trimming process, and the balls are embedded in the bottom of the pressing plate 9, which is more firm.

The working principle of the utility model: put the object to be trimmed on the bottom plate 1, first drive the mounting plate 7 to move left and right through the moving mechanism 6, so that the trimming device 11 moves to the position of the object to be trimmed, and then pass through the column 2 The lifting mechanism 3 on the top makes the beam 4 move downward along the guide rod 5. During the movement, the sliding part 10 at the bottom of the pressure plate 9 will first touch the object, and under the elastic action of the elastic telescopic mechanism 8, a downward force will be applied to the object. After that, the edge trimming device 11 will touch the object and trim the edge. The sliding part 10 will not affect the movement of the object, so the object can be trimmed during the moving process; when the lifting mechanism 3 is in use, start the first motor 301 to drive The first screw rod 302 rotates, and the first slider 303 can drive the crossbeam 4 to move up and down; when the moving mechanism 6 is in use, start the second motor 601, so that the second screw rod 603 between the two fixed plates 602 rotates, and the second slider 604 can drive the mounting plate 7 to move left and right; when the elastic telescopic mechanism 8 is in use, the telescopic rod 801 can be guided so that the pressing plate 9 can move up and down, and the spring 802 can provide elastic force and press the pressing plate 9 downward.

The microprocessor involved in the utility model adopts the Atmel 89C51 single-chip microcomputer, which is used to start and stop the motor. Those skilled in the art can refer to teaching materials or technical manuals published by manufacturers to obtain technical inspiration.

The circuit connection involved in the utility model is a common means used by those skilled in the art, and the technical inspiration can be obtained through a limited number of tests, which belongs to common knowledge.

Components not specified herein are prior art.

Although the specific embodiments of the present utility model have been described in detail above, the present utility model is not limited to the above-mentioned embodiments. Within the scope of knowledge possessed by those of ordinary skill in the art, it can also be used without departing from the purpose of the present utility model Various changes are made, and modifications or deformations without creative work are still within the protection scope of the present utility model.

Claims (7)

1. A processing and trimming device comprises a bottom plate (1), a trimming device (11) and a control circuit, wherein a microprocessor is arranged in the control circuit, and the trimming device (11) is connected with the microprocessor; the method is characterized in that: still include stand (2), elevating system (3), crossbeam (4), guide bar (5), moving mechanism (6), mounting panel (7), elastic expansion mechanism (8), clamp plate (9), sliding part (10), be equipped with on bottom plate (1) stand (2) with guide bar (5), be equipped with on stand (2) elevating system (3), crossbeam (4) left side is connected elevating system (3), right side are equipped with guiding hole and sliding connection guide bar (5), bottom are passed through moving mechanism (6) are connected mounting panel (7), mounting panel (7) bottom is equipped with trimming device (11) and a plurality of elastic expansion mechanism (8), clamp plate (9) top is connected elastic expansion mechanism (8), the bottom is equipped with sliding part (10), elevating system (3) moving mechanism (6) all with microprocessor is connected.

2. A machine-edge trimming apparatus according to claim 1 wherein: scales are arranged on the upright post (2).

3. A machine-edge trimming apparatus according to claim 1 wherein: elevating system (3) include first motor (301), first screw rod (302), first slider (303), stand (2) right side is equipped with the recess and the hub connection first screw rod (302), first motor (301) are located stand (2) top is connected first screw rod (302), inside first screw hole that is equipped with of first slider (303) and meshing are in on first screw rod (302), the right-hand member is connected crossbeam (4), first motor (301) with microprocessor is connected.

4. The trimming machine according to claim 1, wherein: the guide rod (5) is prism-shaped.

5. The trimming machine according to claim 1, wherein: moving mechanism (6) include second motor (601), fixed plate (602), second screw rod (603), second slider (604), fixed plate (602) is provided with two relatively, and the top all connects crossbeam (4), the hub connection between the two second screw rod (603), second motor (601) are located one of them fixed plate (602) one side and connect second screw rod (603), second slider (604) top sliding connection crossbeam (4), bottom fixed connection mounting panel (7), inside is equipped with the second screw hole and meshes on second screw rod (603).

6. The trimming machine according to claim 1, wherein: elastic telescoping mechanism (8) include telescopic link (801), spring (802), telescopic link (801) outside cover is equipped with spring (802), and both tops are all connected mounting panel (7), and the bottom is all connected clamp plate (9).

7. The trimming machine according to claim 1, wherein: the sliding part (10) adopts balls which are embedded at the bottom of the pressure plate (9).
