CN218282928U - A cleaning device for dental medical instruments - Google Patents

Abstract

The utility model provides a cleaning device for dental medical equipment, which relates to the technical field of medical equipment cleaning, and includes an ultrasonic cleaning device, a waste water treatment device and an ultraviolet sterilizing device. To clean medical instruments, the ultrasonic cleaning device is used to clean the medical instruments to be cleaned immersed in the cleaning solution. The waste water produced by the device is treated. The cleaning device for dental medical instruments provided by the utility model can prevent the residual bacteria on the medical instruments from adversely affecting the human body.

Description

A cleaning device for dental medical instruments

technical field

The utility model relates to the technical field of medical instrument cleaning, in particular to a dental medical instrument cleaning device.

Background technique

Dental medical instruments include tooth extraction forceps, dental elevators, dental excavators and other surgical instruments. Most of them are reusable dental instruments, therefore, after a dental operation is completed, it is necessary to effectively clean the dental instrument before it can be used again. However, the current cleaning devices for dental medical instruments generally only have the function of cleaning. However, the surface of the instrument after cleaning with liquid is prone to residual microorganisms or bacteria, and if it is used directly, it will have adverse effects on the human body. Therefore, it is urgent to invent a new type of dental cleaning device. Medical equipment cleaning device to solve the above problems.

Utility model content

The purpose of this utility model is to provide a cleaning device for dental medical instruments to solve the above-mentioned problems in the prior art and avoid adverse effects on the human body.

In order to achieve the above object, the utility model provides the following scheme:

The utility model provides a cleaning device for dental medical instruments, which comprises an ultrasonic cleaning device, a waste water treatment device and an ultraviolet sterilizing device. The ultrasonic cleaning device is equipped with a cleaning chamber, and the cleaning chamber is used to accommodate cleaning liquid and medical devices to be cleaned. , the ultrasonic cleaning device is used to clean the medical instruments to be cleaned immersed in the cleaning liquid, the ultraviolet sterilizing device is fixedly arranged on the top of the cleaning chamber and can irradiate the sterilizing light to the cleaning chamber, so The wastewater treatment device is used to treat the wastewater generated by the ultrasonic cleaning device.

Preferably, the ultrasonic cleaning device includes a box body and a cover body, the top of the box body is open, and the space formed in the box body is the cleaning chamber, and the cover body can be sealed on the box body The top is opened and the cleaning chamber is sealed, the light emitting end of the ultraviolet sterilizing device is fixedly arranged inside the cover, and the switch of the ultraviolet sterilizing device is arranged outside the cover.

Preferably, the outer side of the cover is also fixedly provided with a red light and a green light for indicating the working state of the ultraviolet sterilizing device. After the ultraviolet sterilizing device is turned on, the red light is on; after the ultraviolet sterilizing device is turned off, The green light is on.

Preferably, a drying device is also included, and the drying device is used for drying the cleaned medical instruments.

Preferably, a draining basket is detachably arranged in the cleaning chamber, the draining basket is suspended in the cleaning chamber, the draining basket is used to install the medical equipment to be cleaned, and all the medical equipment The drain basket can also be placed in the drying cavity of the drying device.

Preferably, the ultrasonic cleaning device is equipped with a drain pipe, the drain pipe is detachably connected to the water inlet pipe of the waste water treatment device, a check valve is arranged in the water inlet pipe, and the waste water treatment device also has a liquid level The liquid level gauge is used to monitor and display the liquid level in the treatment chamber of the wastewater treatment device.

Preferably, the inner wall of the box is coated with a reflective layer.

Preferably, the bottom of the ultrasonic cleaning device is provided with moving wheels, and the moving wheels have brake pads.

Compared with the prior art, the utility model has achieved the following technical effects:

The cleaning device for dental medical instruments provided by the utility model is equipped with an ultraviolet sterilizing device, which is used to irradiate and sterilize the cleaning solution in the cleaning cavity and the surface of the medical equipment to be cleaned, so that there is no residual bacteria on the surface of the medical equipment, thereby improving the use The safety of the device can avoid adverse effects on patients due to the bacteria contained in the device.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only the present invention. For some embodiments of the present invention, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

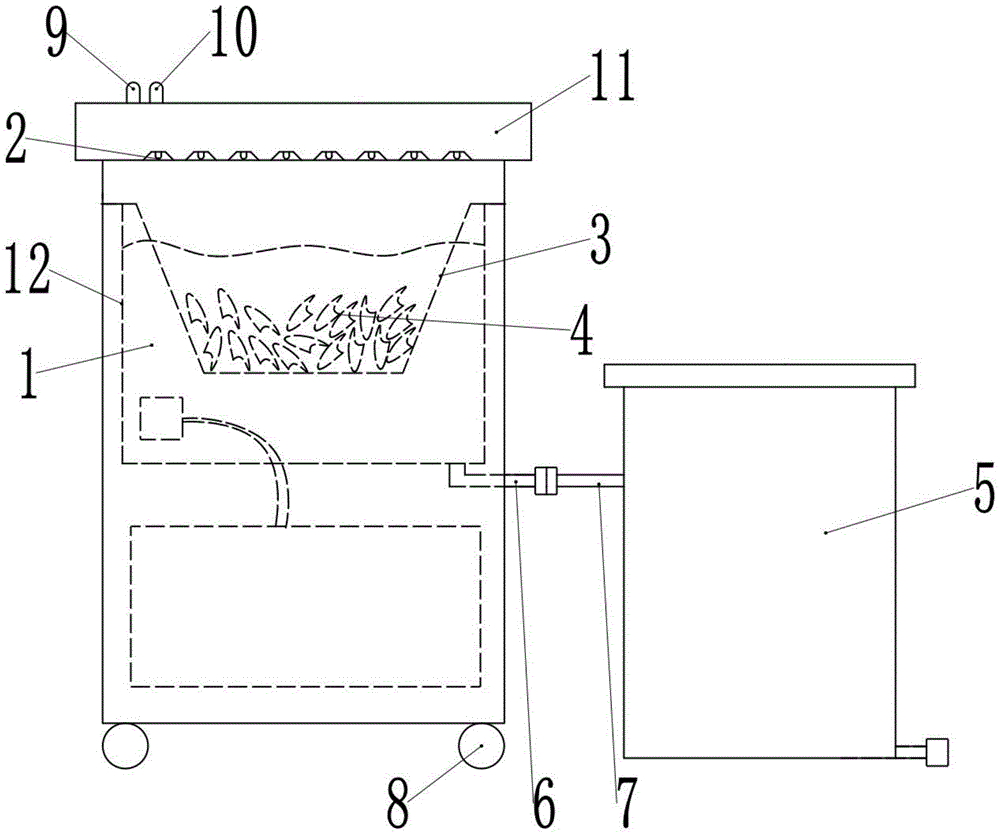

Fig. 1 is the structural representation of the cleaning device for dental medical instruments provided by the utility model;

In the figure: 1. Cleaning chamber; 2. Ultraviolet sterilizing device; 3. Drain basket; 4. Medical equipment to be cleaned; 5. Wastewater treatment device; 6. Drainage pipe; 7. Water inlet pipe; 8. Moving wheel; ; 10, red light; 11, cover body; 12, box body.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The purpose of this utility model is to provide a cleaning device for dental medical instruments to solve the above-mentioned problems in the prior art and avoid adverse effects on the human body.

In order to make the above purpose, features and advantages of the utility model more obvious and understandable, the utility model will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

The utility model provides a dental medical instrument cleaning device, as shown in Figure 1, comprising an ultrasonic cleaning device, a waste water treatment device 5 and an ultraviolet sterilizing device 2, the ultrasonic cleaning device is equipped with a cleaning chamber 1, and the cleaning chamber 1 is used to accommodate cleaning liquid and the medical device 4 to be cleaned, the ultrasonic cleaning device is used to clean the medical device 4 to be cleaned immersed in the cleaning liquid, the ultraviolet sterilizing device 2 is fixedly installed on the top of the cleaning chamber 1 and can irradiate sterilizing light to the cleaning chamber 1, The wastewater treatment device 5 is used to treat the wastewater generated by the ultrasonic cleaning device.

The cleaning device for dental medical instruments provided by the utility model is equipped with an ultraviolet sterilizing device 2, which is used to sterilize the cleaning solution in the cleaning chamber 1 and the surface of the medical instrument 4 to be cleaned by light irradiation, so that there is no residual bacteria on the surface of the medical instrument , so as to improve the safety of use and avoid adverse effects on patients due to bacteria in the device.

Further, the ultrasonic cleaning device comprises a box body 12 and a cover body 11, the top opening of the box body 12, and the space formed in the box body 12 is the cleaning chamber 1, and the cover body 11 can be sealed on the top opening of the box body 12 and The cleaning chamber 1 is sealed, the light emitting end of the ultraviolet sterilizing device 2 is fixedly arranged on the inside of the cover body 11, and the switch of the ultraviolet sterilizing device 2 is arranged on the outside of the cover body 11. After irradiation sterilization, place the medical device 4 to be cleaned in the cleaning solution for cleaning and irradiation sterilization, or directly place the medical device 4 to be cleaned in the cleaning solution, close the cover 11 and open the ultraviolet sterilization device 2 to perform ultraviolet sterilization The device 2 simultaneously sterilizes the cleaning solution and the medical instruments therein.

Further, because ultraviolet rays have certain harm to human skin, in order to avoid ultraviolet rays from irradiating workers, a red light 10 and a green light 9 for indicating the working status of the ultraviolet sterilizing device 2 are fixedly arranged on the outside of the cover body 11, and the ultraviolet sterilizing device 2 After it is turned on, the red light 10 is on; after the ultraviolet sterilizing device 2 is turned off, the green light 9 is on, which improves the safety of use.

Further, the cleaning device for dental medical instruments also includes a drying device, which is used to dry the cleaned medical instruments, and a special drying device is provided to improve drying efficiency, thereby improving work efficiency.

Further, a draining basket 3 is detachably arranged in the cleaning chamber 1, and the draining basket 3 is suspended in the cleaning chamber 1. The draining basket 3 is used to install the medical equipment 4 to be cleaned, and the draining basket 3 equipped with the medical equipment can also be Placed in the drying chamber of the drying device, because the size of dental medical instruments is generally small, it is set to carry the dental medical instrument drainer basket 3 so that the staff can transfer and store the dental medical instruments.

Further, the ultrasonic cleaning device is equipped with a drain pipe 6, and the drain pipe 6 is detachably connected to the water inlet pipe 7 of the waste water treatment device 5, and a check valve is arranged in the water inlet pipe 7, and the waste water treatment device 5 also has a liquid level gauge, and the liquid level The meter is used to monitor the liquid level in the treatment chamber of the waste water treatment device 5 and display the liquid level. Wastewater is sterile treated.

Furthermore, the inner wall of the box body 12 is coated with a reflective layer to improve the utilization rate of ultraviolet rays.

Further, the bottom of the ultrasonic cleaning device is provided with a moving wheel 8, and the moving wheel 8 has brake pads, which is convenient for moving the ultrasonic cleaning device.

When using the cleaning device for dental medical instruments provided by the utility model to clean medical instruments, the medical instruments 4 to be cleaned are first collected in the draining basket 3, and the draining basket 3 is suspended in the cleaning chamber 1, the specific suspension The method can be to erect the shoulder of the draining basket 3 on a step surface or set a bracket at the bottom of the draining basket 3, then add a sufficient amount of cleaning liquid to the cleaning chamber 1 until the liquid level is covered by the medical device 4 to be cleaned, and then cover it Body 11, open the ultrasonic vibrator and ultraviolet sterilizing device 2 in the ultrasonic cleaning device to sterilize and clean the medical device 4 to be cleaned, after a period of time to be sterilized and cleaned, turn off the ultraviolet sterilizing device 2 and the ultrasonic vibrator, open the cover 11 to After the drain basket 3 and the medical instruments in it are taken out, they are placed in the drying chamber for drying treatment, the drain pipe 6 and the water inlet pipe 7 are connected, the valve at the drain pipe 6 is opened, and the waste water in the cleaning chamber 1 passes through the drain pipe 6 and the water inlet pipe 7. The water inlet pipe 7 flows into the treatment chamber for aseptic treatment.

The ultrasonic vibrator in the utility model can adopt the structure in the prior art, that is, the cleaning liquid is driven to vibrate by the ultrasonic vibrator so that the cleaning liquid can clean the medical equipment.

The above "further" means "in another specific embodiment".

In the utility model, specific examples have been used to illustrate the principle and implementation of the utility model, and the descriptions of the above examples are only used to help understand the method of the utility model and its core idea; meanwhile, for those of ordinary skill in the art , according to the idea of the utility model, there will be changes in the specific implementation and application range. To sum up, the contents of this specification should not be understood as limiting the utility model.

Claims (4)

1. A cleaning device for dental medical instruments, characterized in that: it comprises an ultrasonic cleaning device, a waste water treatment device and an ultraviolet sterilizing device, the ultrasonic cleaning device is provided with a cleaning chamber, and the cleaning chamber is used to accommodate cleaning fluid and to-be-cleaned For medical instruments, the ultrasonic cleaning device is used to clean the medical instruments to be cleaned immersed in the cleaning solution, and the ultraviolet sterilizing device is fixedly installed on the top of the cleaning chamber and can irradiate sterilizing light to the cleaning chamber , the wastewater treatment device is used to treat the wastewater produced by the ultrasonic cleaning device; the ultrasonic cleaning device includes a box and a cover, the top of the box is open, and the space formed in the box is For the cleaning chamber, the cover can be sealed and set on the top opening of the box to seal the cleaning chamber, the light emitting end of the ultraviolet sterilizing device is fixedly arranged on the inside of the cover, and the The switch of the ultraviolet sterilizing device is arranged on the outside of the cover; the outside of the cover is also fixedly provided with a red light and a green light for indicating the working state of the ultraviolet sterilizing device. After the ultraviolet sterilizing device is turned on, the red light is on After the ultraviolet sterilizing device is turned off, the green light is on; a drying device is also included, and the drying device is used to dry the cleaned medical instruments; the inner wall of the box is coated with a reflective layer. 2. The cleaning device for dental medical instruments according to claim 1, characterized in that: a draining basket is detachably arranged in the cleaning cavity, the draining basket is suspended in the cleaning cavity, and the draining basket is used in the cleaning cavity. When installing the medical instruments to be cleaned, the drain basket containing the medical instruments can also be placed in the drying chamber of the drying device. 3. The cleaning device for dental medical instruments according to claim 1, characterized in that: the ultrasonic cleaning device is provided with a drain pipe, and the drain pipe is detachably connected to the water inlet pipe of the waste water treatment device, and the water inlet pipe A one-way valve is arranged in the waste water treatment device, and the waste water treatment device is also equipped with a liquid level gauge, and the liquid level gauge is used to monitor and display the liquid level in the treatment chamber of the waste water treatment device. 4. The cleaning device for dental medical instruments according to claim 1, characterized in that: the bottom of the ultrasonic cleaning device is provided with moving wheels, and the moving wheels are provided with brake pads.
