Abstract

The utility model discloses an instant millet porridge cooking device, which comprises: a body, one end of the body is a feed end, the other end is a discharge end, a water tank is connected to the body, and the two ends of the water tank respectively correspond to the feed end and the discharge end. Material end; feeding assembly, the feeding assembly is rotatably connected to the machine body, the feeding assembly includes a top conveying section and a bottom recovery section, the top conveying section is located in the water tank, and the bottom recovery section is located at the outer bottom of the water tank; the heating assembly, in the heating assembly The heating pipe is laid in the water tank to heat the water in the water tank; the clear water preheating tank, the clear water preheating tank is connected with the water tank to inject rice cooking water at a certain temperature into the water tank; the rice soup recovery tank, the rice soup recovery tank is connected with the water tank for The rice soup after cooking is recovered; the draining transmission assembly, one end of the draining transmission assembly is used to receive the cooked rice poured out of the conveying assembly; the dryer, the dryer is fixed on the other end of the draining transmission assembly, and the dryer is used for Drying cooked rice, the device has high processing efficiency and saves energy.

Description

A kind of instant millet porridge cooking equipment

technical field

The utility model relates to the technical field of agricultural product processing, in particular to a cooking device for instant millet porridge.

Background technique

With the improvement of people's living standards, the development and production of convenient, fast and nutritious traditional food has become one of the modern food needs. Millet porridge is a unique porridge made from millet. It has a light taste, a clear fragrance, and has the characteristics of invigorating the stomach and eliminating food.

Millet is corn. As one of the "five grains", millet is a drought-resistant and barren crop, and has the characteristics of short growth period, wide adaptability, storage resistance, and low price. Millet can open up the intestines and stomach, tonify deficiency and damage, and benefit the dantian. It can be used as a tonic for those who suffer from qi and blood deficiency, weak constitution, and poor appetite. Edible, is a kind of food with both medicine and food. Northerners like to eat millet porridge, and they use it as nutrition for infants and pregnant women. However, traditional millet porridge takes a long time to cook and is limited by cooking utensils, which cannot meet the accelerated pace of people's life and lifestyle changes. requirements. Instant millet porridge can meet modern people's requirements for fast and convenient products while ensuring the typical flavor and taste of millet porridge, and can reflect people's attention to dietary health and pursuit of high-quality life, which has important research significance and Practical significance.

Therefore, how to provide an instant millet porridge cooking device is an urgent problem to be solved by those skilled in the art.

Utility model content

In view of this, the utility model provides an instant millet porridge cooking equipment, which is used for cooking millet or rice, batch processing, low energy consumption and loss.

In order to achieve the above object, the utility model adopts the following technical scheme: a kind of instant millet porridge cooking equipment, which comprises:

Body, one end of the body is a feed end, the other end is a discharge end, a water tank is fixedly connected to the body, and the two ends of the water tank correspond to the feed end and the discharge end respectively;

A conveying assembly, the conveying assembly is rotatably connected to the machine body, the conveying assembly includes a top conveying section and a bottom recovery section, the top conveying section is located in the water tank, and the bottom recovery section is located at the outer bottom of the water tank;

A heating assembly, the heating pipe in the heating assembly is laid in the water tank to heat the water in the water tank;

A clear water preheating tank, the clear water preheating tank is located on the outside of the body, and the clear water preheating tank is connected with the water tank for injecting rice cooking water at a certain temperature into the water tank;

A rice soup recovery tank, the rice soup recovery tank is located on the outside of the body, and the rice soup recovery tank is connected to the water tank for recovering the boiled rice soup;

Draining and conveying assembly, one end of the draining and conveying assembly is used to receive cooked rice poured out from the conveying assembly;

Dryer, the dryer is fixed at the other end of the water draining transmission assembly, and the dryer is used for drying cooked rice.

The beneficial effects of the utility model are: one end of the feeding assembly corresponds to the feed end of the machine body, the other end of the feeding assembly corresponds to the discharge end, the top conveying section of the feeding assembly is located in the water tank, the bottom recovery section is located outside the water tank, and the water tank Add pre-heated clean water inside, and cook rice during the conveying process of the conveying component. The rice soup after cooking is recycled by the rice soup recovery tank. The components are drained, and the drained cooked rice is dried in the dryer, and finally packed, the overall process is streamlined, batch processing is possible, energy is saved, and it is fast and convenient.

Preferably, support legs are fixedly connected around the body, the water tank includes a cold water tank and a hot water tank, the hot water tank is close to the feed end, the cold water tank is close to the discharge end, the cold water tank and the hot water tank are The top is fixedly connected with a cover, and the two ends of the cover are fixedly connected with exhaust pipes.

The resulting beneficial effects are: the body is suspended in the air, providing space for the loop operation of the conveying assembly, the top section of the conveying assembly is inside the water tank, the bottom section is outside the water tank, the cold water tank is convenient for rapid cooling of cooked rice, and the cover can reduce heat loss and discharge The air pipe can discharge water vapor, avoiding discharge from the feed end or discharge end, which will affect the processing of cooked rice.

Preferably, the conveying assembly includes a driving wheel, a driven wheel, a conveying chain, a rice hopper and a conveying motor, and the driving wheel and the driven wheel are respectively connected to the discharge end and the feed end of the body in one-to-one correspondence, so that The conveying chain is connected to the driving wheel and the driven wheel, and there are multiple rice hoppers, and the multiple rice hoppers are respectively connected to the conveying chain, the conveying motor is fixed on the body, and the output of the conveying motor The shaft is connected to the driving wheel by transmission. The body is fixedly connected with side rails supporting the sliding of the conveying material strip. Transition guide rails are provided on the two inner side walls of the transition between the cold water tank and the hot water tank. The conveyor chain The edges on both sides are slidingly connected to the transition rails.

The resulting beneficial effect is: the conveying chain is driven by the connection between the driving wheel and the driven wheel, and the side rail and the transition guide rail are used as a whole to make the conveying chain drive according to the predetermined route, and then drive the rice bucket to enter the hot water tank for processing, and continue to enter the cold water tank for cooling .

Preferably, a plurality of water permeable holes are opened on the rice bucket, the diameter of the water permeable holes is smaller than that of millet, and the top opening of the rice bucket is higher than the water level in the water tank.

The resulting beneficial effect is that the rice hopper can hold the rice to be processed and enter the hot water tank, water can enter the rice hopper through the permeable hole, and water can pass through when the water comes out. Prevent the millet from being scattered outside the rice hopper during rice cooking.

Preferably, the heating pipe coil is arranged at the bottom of the hot water tank, one end of the heating pipe extends out of the outer wall of the water tank and is connected to an external steam heating source, a heating valve is connected to the heating pipe, and the The heating valve is located on the outside of the body.

The resulting beneficial effect is: the heating pipe is connected to an external steam heat source, which can quickly heat water and cook millet, and is controlled by a heating valve, so that the heating process is controllable.

Preferably, a water pipe is connected between the clean water preheating tank and the hot water tank, and a water pump is connected to the water pipe.

The resulting beneficial effect is: the water in the clear water preheating tank is preheated, and then pumped into the water tank, so that the water in the heating tank has an initial temperature, which is convenient for quickly reaching a predetermined temperature value and reduces heating loss.

Preferably, a recovery pipe is connected between the rice soup recovery tank and the hot water tank, and a recovery pump is connected to the recovery tube.

The resulting effect is: the rice soup recovery tank recovers the rice soup through the recovery pump for further processing and utilization, and also prevents the rice soup from being too viscous, which affects the subsequent heating process and the taste of cooked rice.

Preferably, the drainage transmission assembly includes a frame, a perforated conveyor belt, a transmission motor and a material receiving guard plate, the perforated conveyor belt is connected to the frame through roller rotation, the transmission motor is connected to the frame, and the The output shaft of the transmission motor is connected with the roller drive, and the material receiving guard is fixed at one end of the frame.

The resulting beneficial effect is that the perforated conveyor belt can drain the moisture of the cooked rice during the transmission process, which is convenient for subsequent drying.

Preferably, one end of the frame is connected with a water spray pipe, and the water spray pipe is used to rinse the cooked rice in the hopper onto the perforated conveyor belt, and the perforated conveyor belt drains the water of the cooked rice and transfers it to the drying machine dry.

The resulting beneficial effect is that the water spray pipe can wash down the cooked rice in the rice bucket when the rice bucket is dumped, preventing the cooked rice from adhering to the rice bucket.

Preferably, a control box is also included, and the control box is electrically connected with the water pump, the recovery pump, the material conveying motor, the dryer, the heating valve and the conveying motor respectively.

The resulting beneficial effects are: overall automatic control, high degree of process, suitable for batch processing.

Description of drawings

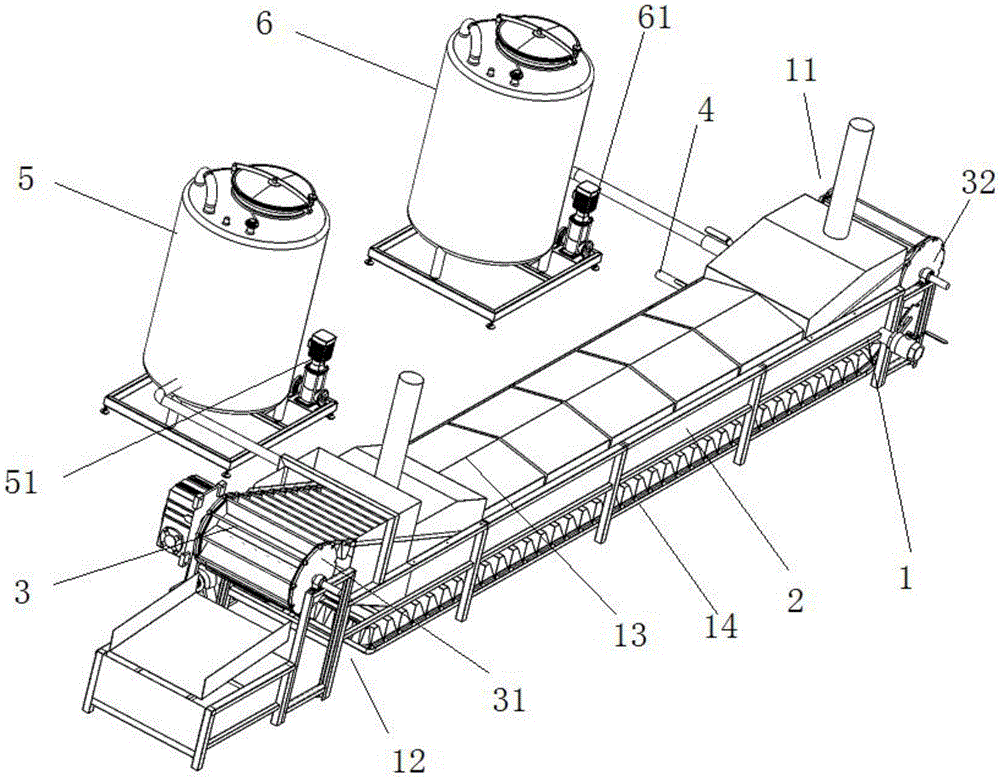

Fig. 1 is a schematic diagram one of a kind of instant millet porridge cooking equipment of the present invention;

Fig. 2 is the schematic diagram two of a kind of instant millet porridge cooking equipment of the present invention;

Fig. 3 is a schematic diagram three of a kind of instant millet porridge cooking equipment of the present invention;

Fig. 4 is a processing flowchart of a kind of instant millet porridge cooking equipment of the present invention.

1 machine body, 11 feed end, 12 discharge end, 13 cover, 14 side rail, 2 water tank, 21 hot water tank, 22 cold water tank, 3 feeding assembly, 31 driving wheel, 32 driven wheel, 33 conveyor chain, 34 meters Bucket, 35 material conveying motor, 4 heating assembly, 41 heating pipe, 42 heating valve, 5 clear water preheating tank, 51 water pump, 6 rice soup recovery tank, 61 recovery pump, 7 draining transmission component, 8 dryer, 9 water spray Tube.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Referring to accompanying drawings 1 to 4 of the utility model, a kind of instant millet porridge cooking equipment according to the embodiment of the utility model, it comprises:

A body 1, one end of the body 1 is a feed end 11, and the other end is a discharge end 12, the body 1 is fixedly connected with a water tank 2, and the two ends of the water tank 2 correspond to the feed end 11 and the discharge end 12 respectively;

The material conveying component 3 is rotatably connected to the machine body 1. The material conveying component 3 includes a top conveying section and a bottom recovery section, the top conveying section is located in the water tank, and the bottom recovery section is located at the outer bottom of the water tank;

The heating assembly 4, the heating pipe 41 in the heating assembly 4 is laid in the water tank 2 to heat the water in the water tank;

The clear water preheating tank 5, the clear water preheating tank 5 is located on the outside of the body, the clear water preheating tank 5 communicates with the water tank 2 and is used to inject rice cooking water at a certain temperature into the water tank;

Rice soup recovery tank 6, the rice soup recovery tank 6 is located on the outside of the body, and the rice soup recovery tank 6 is connected to the water tank 2 for recovering rice soup after cooking rice;

Drainage transmission assembly 7, one end of the drainage transmission assembly 7 is used to receive cooked rice poured out of the conveying assembly; specifically, a dehydration vibrating screen is installed between the drainage transmission assembly and the dryer.

Drier 8, drier 8 is fixed on the other end of draining transmission assembly, and drier is used for drying cooked rice.

In some other embodiments, support legs are fixedly connected around the body 1, the water tank 2 includes a cold water tank 22 and a hot water tank 21, the hot water tank 21 is close to the feed end 11, the cold water tank 22 is close to the discharge end 12, the cold water tank 22 and the A cover 13 is fixedly connected to the top of the hot water tank 21 , and exhaust pipes are fixedly connected to both ends of the cover 13 .

In some other specific embodiments, the material conveying assembly 3 includes a driving wheel 31, a driven wheel 32, a conveying chain 33, a rice bucket 34 and a material conveying motor 35, and the driving wheel 31 and the driven wheel 32 are connected to the machine body 1 in one-to-one corresponding rotation. The discharge end and the feed end of the feeder, the conveying chain 33 is connected on the driving wheel and the driven wheel, there are multiple rice buckets 34, and the multiple rice buckets 34 are respectively connected on the conveying chain 33, and the conveying motor 35 is fixed on the body 1 , the output shaft of the feeding motor 35 is connected to the reducer, the reducer is connected to the drive wheel 31 in transmission, the body 1 is fixedly connected with the side rail 14 supporting the sliding of the conveying material strip, and the two inner sides of the transition between the cold water tank 22 and the hot water tank 21 Transition guide rails are provided on the tank walls, and the edges on both sides of the conveyor chain 33 are slidably connected to the transition guide rails. The rice cooking and cooling process is continuous, and the rice bucket is just cooked at the speed of walking in the hot water tank to the hot water tank.

In some other embodiments, a plurality of permeable holes are provided on the rice bucket 34. The diameter of the permeable holes is smaller than the diameter of the millet, which is convenient to hold the millet. fight. The top opening of the rice bucket is higher than the water level in the water tank to prevent rice from falling out of the rice bucket.

Specifically, the heating pipe 41 is arranged at the bottom of the hot water tank 21. One end of the heating pipe 41 extends out of the outer wall of the water tank and is connected to an external steam heating source. The heating pipe 41 is connected to a heating valve 42, which is located in the body outside. It is convenient to quickly heat the water in the hot water tank to the predetermined temperature.

More specifically, a water pipe is connected between the clean water preheating tank 5 and the hot water tank, and a water pump 51 is connected to the water pipe. The clean water pre-heating tank is to pre-heat clean water to a certain temperature. When it is poured into the hot water tank, it can quickly cook rice, improve efficiency and save waiting time.

In some other embodiments, a recovery pipe is connected between the rice soup recovery tank 6 and the hot water tank, and a recovery pump 61 is connected to the recovery tube. It is convenient to recycle rice soup.

In some other embodiments, the drainage transmission assembly 7 includes a frame, a perforated conveyor belt, a transmission motor and a material receiving guard plate, the perforated conveyor belt is connected to the frame by roller rotation, the transmission motor is connected on the frame, and the transmission motor The output shaft is connected with the roller drive, and the material receiving guard is fixed at one end of the frame.

In some other embodiments, one end of the frame is connected with a water spray pipe 9, and the water spray pipe 9 is used to wash the cooked rice in the hopper onto the perforated conveyor belt, and the perforated conveyor belt drains the water of the cooked rice and conveys it to the oven. Machine dry.

A control box is also included, and the control box is electrically connected with the water pump, the recovery pump, the material conveying motor, the dryer, the heating valve and the conveying motor respectively, so as to realize the automatic control of the whole rice cooking process.

The specific rice cooking process is that the rice is first sent to the feeding end and enters the rice hopper in the conveying assembly. The rice hopper first passes through the hot water pool for cooking, then enters the cold water pool for cooling, and then enters the dryer after draining the conveying assembly. , and finally sealed and packaged.

The goal of this technology is to process and produce instant millet porridge products that meet the needs of the public, and it is a processing technology for instant millet products. The product is a dehydrated solid product. When brewed with boiling water, it can form a certain consistency, and there are millet particles visible to the naked eye. It has a state and taste similar to home-cooked millet porridge. It can be used as a student, work It is not only a convenient breakfast porridge for the family, but also can be used as a kind of travel and leisure food. Solved technical problems such as ripening, anti-adhesion, shape maintenance, flavor maintenance, and dehydration.

As for the device and the method of use disclosed in the embodiment, since it corresponds to the method disclosed in the embodiment, the description is relatively simple, and for the related parts, please refer to the description of the method part.

The above description of the disclosed embodiments enables those skilled in the art to realize or use the utility model. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the invention. Therefore, the present invention will not be limited to these embodiments shown herein, but will conform to the widest scope consistent with the principles and novel features disclosed herein.

Claims (10)

1. A kind of instant millet porridge cooking equipment, is characterized in that, comprises: Body (1), one end of the body (1) is a feed end (11), the other end is a discharge end (12), the body (1) is fixedly connected with a water tank (2), and the water tank ( 2) The two ends respectively correspond to the feed end (11) and the discharge end (12); A conveying assembly (3), the conveying assembly (3) is rotatably connected to the machine body (1), the conveying assembly (3) includes a top conveying section and a bottom recovery section, the top conveying section is located in the water tank, The bottom recovery section is located at the outer bottom of the water tank; The heating assembly (4), the heating pipe (41) in the heating assembly (4) is laid in the water tank (2) to heat the water in the water tank; Clear water preheating tank (5), described clear water preheating tank (5) is positioned at the outside of body, described clear water preheating tank (5) communicates with water tank (2) and is used for injecting the rice cooking water of certain temperature into water tank; A rice soup recovery tank (6), the rice soup recovery tank (6) is located on the outside of the body, and the rice soup recovery tank (6) is communicated with the water tank (2) for recovering rice soup after cooking rice; Drainage transmission assembly (7), one end of the drainage transmission assembly (7) is used to receive the cooked rice poured out in the material delivery assembly; Drier (8), described drier (8) is fixed on the other end of draining transmission assembly, and described drier is used for drying cooked rice. 2. A kind of instant millet porridge cooking equipment according to claim 1, characterized in that support legs are fixedly connected around the body (1), and the water tank (2) includes a cold water tank (22) and a hot water tank (21), the hot water tank (21) is close to the feed end (11), the cold water tank (22) is close to the discharge end (12), and the tops of the cold water tank (22) and the hot water tank (21) are fixed A cover (13) is connected, and exhaust pipes are fixedly connected to both ends of the cover (13). 3. A kind of instant millet porridge cooking equipment according to claim 2, characterized in that, the feeding assembly (3) comprises a driving wheel (31), a driven wheel (32), a conveying chain (33), a rice bucket (34) and the feeding motor (35), the driving wheel (31) and the driven wheel (32) are connected to the discharge end and the feed end of the body (1) in one-to-one correspondence respectively, and the conveying chain (33 ) is connected on the driving wheel and the driven wheel, and there are multiple rice buckets (34), and multiple rice buckets (34) are respectively connected on the conveying chain (33), and the feeding motor (35) is fixed on On the body (1), the output shaft of the conveying motor (35) is connected to the drive wheel (31), and the body (1) is fixedly connected with a side rail (14) supporting the sliding of the conveying material strip. Transition guide rails are provided on the two inner sides of the transition between the cold water tank (22) and the hot water tank (21), and the two side edges of the conveying chain (33) are slidably connected to the transition guide rails. 4. A kind of instant millet porridge cooking equipment according to claim 3, characterized in that, a plurality of permeable holes are provided on the rice hopper (34), the diameter of the permeable holes is smaller than the diameter of millet, and the rice hopper The top opening of the tank is higher than the water level in the tank. 5. A kind of instant millet porridge cooking equipment according to claim 3, characterized in that, the heating pipe (41) plate is arranged at the bottom of the hot water tank (21), and the heating pipe (41) One end extends out of the outer wall of the water tank and is connected to an external steam heating source. The heating pipe (41) is connected with a heating valve (42), and the heating valve (42) is located outside the body. The instant millet porridge cooking device according to claim 5, characterized in that, a water pipe is connected between the clear water preheating tank (5) and the hot water tank, and a water pump (51) is connected to the water pipe. 7. A kind of instant millet porridge cooking equipment according to claim 6, characterized in that, a recovery pipe is connected between the rice soup recovery tank (6) and the hot water tank, and a recovery pump (61 ). 8. A kind of instant millet porridge cooking equipment according to claim 7, characterized in that, the draining transmission assembly (7) includes a frame, a perforated conveyor belt, a transmission motor and a material receiving guard plate, and the perforated conveyor belt It is connected to the frame through the rotation of the rollers, the transmission motor is connected to the frame, the output shaft of the transmission motor is connected to the roller transmission, and the material receiving guard is fixed on one end of the frame. 9. A kind of instant millet porridge cooking equipment according to claim 8, characterized in that, one end of the frame is connected with a water spray pipe (9), and the water spray pipe (9) is used for washing the water in the hopper. The cooked rice is transferred to a perforated conveyor belt that drains the water from the cooked rice and conveys it to a dryer for drying. 10. A kind of instant millet porridge cooking equipment according to claim 9, is characterized in that, also comprises control box, and described control box is connected with water pump, recovery pump, conveying motor, dryer, heating valve and transmission electric motor respectively. electromechanical connection.
