Abstract

The utility model relates to a cart special for orchid greenhouses, comprising: a cart main body and a storage tube for accommodating plant poles and construction tools; the storage tube is fixed to the cart main body; object plate and two connecting frames; the upper object plate and the lower object plate are located between the two connecting frames and the upper object plate and the lower object plate are fixed to the connecting frame; the connecting frame includes: two vertical rods and a A horizontal bar; two ends of the horizontal bar are connected to two vertical bars; the horizontal bar and the two vertical bars are integrally bent to form an inverted U shape; the vertical bars are fixed to the upper loading board and the lower loading board; each vertical bar is fixed with One storage tube; support rollers mounted on bottom of each upright. The beneficial effect of the utility model is that: an independent storage tube is provided, and the main body of the trolley realizes the storage of flowers by realizing the storage of the plant poles and construction tools, which is convenient to use.

Description

Special trolley for orchid greenhouse

technical field

The utility model relates to a cart special for orchid greenhouses.

Background technique

Orchids first draw out flower arrows when blooming, and flowers bloom on the flower arrows. For the beauty and shape of the flower and arrow inflorescence, this flower arrow needs to be inserted into the matrix with an additional "iron stick". desired shape. The traditional trolley lacks a special container for storing the "iron sign". It is inconvenient to take and put the iron sign.

In addition, the orchid is placed on the trolley, if it is not limited, it may cause damage to the orchid when it is dumped.

Utility model content

The purpose of this utility model is to provide a special trolley for orchid greenhouses to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A special trolley for orchid greenhouses, including: a main body of the trolley and a storage tube for containing plant poles and construction tools; a connecting frame; the upper object plate and the lower object plate are located between the two connecting frames and the upper object plate and the lower object plate are fixed to the connecting frame; the connecting frame includes: two vertical bars and a horizontal bar for the user to hold; The two ends of the rod are connected to two vertical rods; the horizontal rod and the two vertical rods are integrally bent to form an inverted U shape; the vertical rods are fixed to the upper loading plate and the lower loading plate; each vertical rod is fixed with a storage tube; Support rollers are installed at the bottom of each vertical bar.

As a further solution of the present utility model: a special trolley for orchid greenhouses also includes: a first positioning component for assisting the positioning of flowers on the loading plate;

The first positioning assembly includes: a first fixed guard plate, a first movable plate, a first inner positioning block, a first outer positioning block, and a first locking assembly for locking the position of the first movable plate;

The first fixed guard plate is fixed to the loading plate; the first movable plate is provided with a plurality of first positioning holes for assisting the positioning of flowers; the first movable plate is rotatably connected to the first fixed guard plate;

The first movable board has a storage position and a use position;

The first inner positioning block is fixed to the inner side of the first movable plate; the first outer positioning block is fixed to the outer side of the first movable plate;

When the first movable plate is in the storage position, the first outer positioning block abuts against the first fixed guard plate, and the first inner positioning block does not contact the first fixed guard plate;

When the first movable plate is in the use position, the first inner positioning block abuts against the first fixed guard plate, and the first outer positioning block does not contact the first fixed guard plate;

The first locking assembly includes: two locking blocks and a rotating shaft; the two locking blocks are fixed to the rotating shaft to realize synchronous rotation; the rotating shaft is rotatably connected to the first fixed guard plate; the two locking blocks are located on both sides of the first fixed guard side;

The locking block has a first rotational position and a second rotational position;

When the first movable plate is in the storage position, the locking block is at the first rotation position, and the first movable plate is located between the two locking blocks so that the position of the first movable plate is locked by the two locking blocks;

When the first movable plate is in the use position, the locking block is in the second rotation position, and the locking block is located under the first movable plate and out of contact with the first movable plate.

As a further solution of the utility model: when the first movable plate is in the storage position, the first movable plate is flush with the first fixed guard plate;

When the first movable plate is in the use position, the first movable plate is perpendicular to the first fixed guard plate.

As a further solution of the present invention: the first positioning component includes: two first locking components; the two first locking components are installed on both ends of the first fixed guard plate.

As a further solution of the present utility model: a special trolley for orchid greenhouses also includes: two second positioning assemblies for assisting the positioning of flowers on the loading object board; left and right ends;

The second positioning assembly includes: a second fixed guard plate, a second movable plate, a second inner positioning block, a second outer positioning block, and a second locking assembly for locking the position of the second movable plate;

The second fixed guard plate is fixed to the lower object plate; the second movable plate is provided with a plurality of second positioning holes for assisting the positioning of flowers;

The second movable plate is rotatably connected to the second fixed guard plate; the second movable plate has a storage position and a use position; the second inner positioning block is fixed to the inner side of the second movable plate; the second outer positioning block is fixed to the second movable plate outside;

When the second movable plate is in the storage position, the second outer positioning block abuts against the second fixed guard plate, and the second inner positioning block does not contact the second fixed guard plate;

When the second movable plate is in the use position, the second inner positioning block abuts against the second fixed guard plate, and the second outer positioning block does not contact the second fixed guard plate;

The second locking assembly has the same structure as the first locking assembly; the second outer positioning block has the same structure as the first outer positioning block; the first inner positioning block has the same structure as the first inner positioning block.

As a further solution of the present invention: when the second movable plate is in the use position, the two second movable plates of the two second positioning assemblies are flush.

As a further solution of the present invention: the height of the second movable plate is higher than that of the first movable plate when it is in the use position.

As a further solution of the utility model: the first positioning component is installed on the rear end of the loading plate;

When the second movable plate is in the stored position and the first movable plate is in the stored position, the lower object plate, the upper object plate, the first positioning assembly and the two second positioning assemblies together form an outwardly open accommodation space.

As a further solution of the present invention: the diameter of the second positioning hole is smaller than the diameter of the first positioning hole.

As a further solution of the utility model: a special trolley for orchid greenhouses also includes a fence; the fence is installed on the upper loading plate.

Compared with the prior art, the beneficial effect of the utility model is that: an independent storage tube is provided, and the storage of the plant poles and construction tools is realized, and the main body of the cart realizes the storage of flowers, which is convenient to use.

The first positioning component and the second positioning component can assist the positioning of the flowers on the loading plate to avoid the flowers on the loading plate from toppling over.

The first positioning component and the second positioning component can adapt to flowers of different heights to realize the positioning of flowers.

The arrangement of the first outer positioning block and the first inner positioning block can limit the rotation range of the first movable plate, thereby facilitating the positioning of the first movable plate. Similarly, the arrangement of the second outer positioning block and the second inner positioning block can limit the rotation range of the second movable plate, thereby facilitating the positioning of the second movable plate.

Other features and advantages of the present utility model will be disclosed in detail in the following specific embodiments and accompanying drawings.

Description of drawings

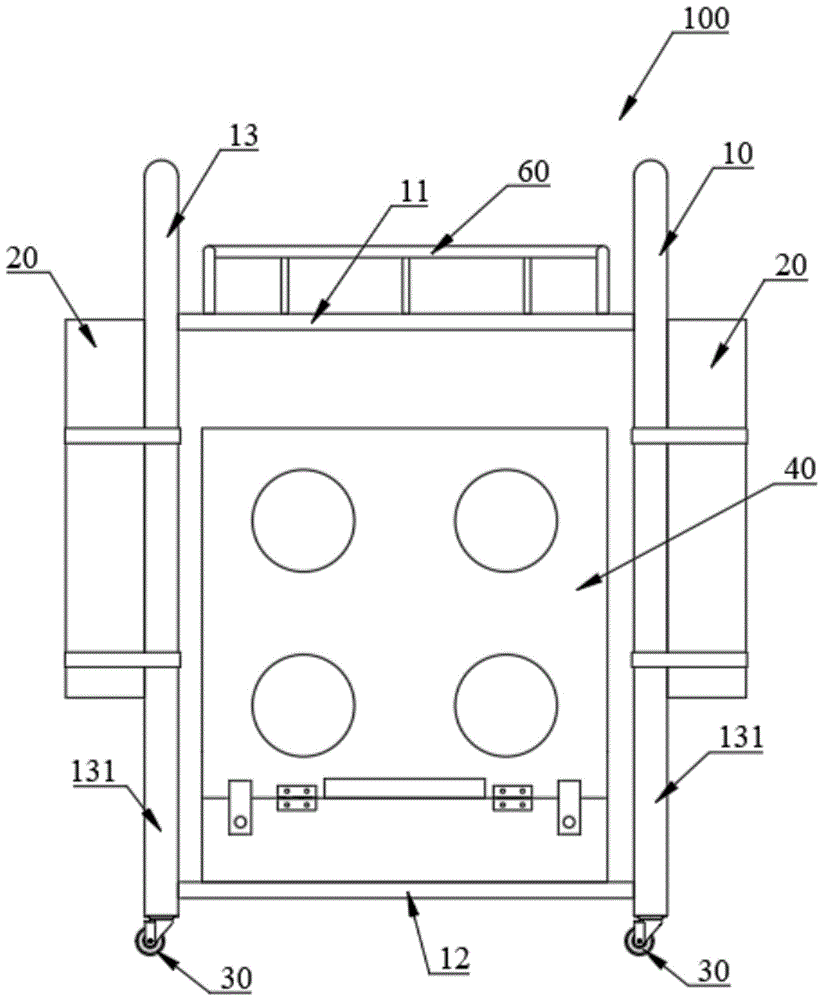

Fig. 1 is the front view of a special cart for orchid greenhouse of the present invention;

Fig. 2 is the top view of the special trolley for orchid greenhouse in Fig. 1;

Fig. 3 is the right view of the cart dedicated to the orchid greenhouse in Fig. 1;

Fig. 4 is the left view of the cart dedicated to the orchid greenhouse in Fig. 1;

Fig. 5 is a schematic diagram of the inner side of the first positioning assembly of the special trolley for orchid greenhouse in Fig. 1;

Fig. 6 is a schematic diagram of the outer side of the first positioning assembly in Fig. 5, wherein the locking block is in the first rotational position;

Fig. 7 is a schematic diagram of the outer side of the first positioning assembly in Fig. 6, wherein the locking block is in the second rotational position;

Fig. 8 is a schematic diagram of the first movable plate of the first positioning assembly in Fig. 5 in a storage position;

Fig. 9 is a schematic diagram of the first movable plate of the first positioning assembly in Fig. 8 in the use position;

Fig. 10 is a schematic diagram of the inner side of the second positioning assembly of the special trolley for orchid greenhouse in Fig. 1;

Fig. 11 is a schematic view of the outer side of the second positioning assembly in Fig. 10 .

List of reference numerals: special trolley 100 for orchid greenhouse, main body of the trolley 10, upper loading board 11, lower loading board 12, connecting frame 13, vertical bar 131, horizontal bar 132, storage tube 20, support roller 30, the first Positioning assembly 40, first fixed guard plate 41, first movable plate 42, first positioning hole 421, first inner positioning block 43, first outer positioning block 44, first locking assembly 45, locking block 451, shaft member 452 , the second positioning assembly 50 , the second fixed guard plate 51 , the second movable plate 52 , the second positioning hole 521 , the second inner positioning block 53 , the second outer positioning block 54 , the second locking assembly 55 , and the fence 60 .

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to FIG. 1 to FIG. 11 , in the embodiment of the present utility model, a special trolley 100 for an orchid greenhouse includes: a main body 10 of the trolley and a storage tube 20 . The storage tube 20 is fixed to the cart main body 10 . The storage tube 20 is used to accommodate plant poles and construction tools.

As a specific implementation, the cart body 10 includes: an upper loading board 11 , a lower loading board 12 and two connecting frames 13 . The upper object plate 11 and the lower object plate 12 can be used for users to place flowers or corresponding tools and the like.

The upper object plate 11 and the lower object plate 12 are located between the two connecting frames 13 and the upper object plate 11 and the lower object plate 12 are fixed to the connecting frames 13 .

The connecting frame 13 includes: two vertical bars 131 and a horizontal bar 132 . The cross bar 132 is for the user to hold. The user can hold the two crossbars 132 with both hands to move the special trolley 100 for orchid greenhouse. Two ends of the horizontal bar 132 are connected to two vertical bars 131 . The horizontal bar 132 and the two vertical bars 131 are integrally bent to form an inverted U shape. That is, the connecting piece 13 is formed by bending a long rod. Vertical rods 131 are fixed to the upper object loading plate 11 and the lower object loading plate 12 . Each vertical rod 131 is fixed with a storage tube 20 . Support rollers 30 are installed at the bottom of each vertical bar 131 . Specifically, the number of storage tubes 20 is four. The number of supporting rollers 30 is four.

Specifically, the upper object plate 11 and the lower object plate 12 are fixed to the cross bar 132 by welding. The upper object board 11 and the lower object board 12 are fixed as a whole through two connecting frames 13 .

The cart main body 10 has a simple structure, and the storage tube 20 can accommodate plant poles and construction tools, and is easy to use.

As a preferred implementation manner, a special trolley 100 for an orchid greenhouse further includes: a first positioning component 40 . The first positioning component 40 is used for assisting the positioning of flowers on the loading board 12 . The first positioning component 40 realizes positioning for the flowers wrapping the root or the flowers transplanted into the pot.

The first positioning assembly 40 includes: a first fixed guard plate 41, a first movable plate 42, a first inner positioning block 43, a first outer positioning block 44, and a first locking assembly 45 for locking the position of the first movable plate 42 .

The first fixed guard 41 is fixed to the lower object plate 12 . The first movable plate 42 is provided with a plurality of first positioning holes 421 for assisting the positioning of flowers. Each flower can be inserted in a positioning hole 421, and the hole wall of the positioning hole 421 is limited.

The first movable plate 42 is rotatably connected to the first fixed guard plate 41 . Specifically, the first movable plate 42 is rotatably connected to the first fixed guard plate 41 through a hinge. The first movable panel 42 has a storage position and a use position. The first inner positioning block 43 is fixed to the inner side of the first movable plate 42 . The first outer positioning block 44 is fixed to the outer side of the first movable plate 42 .

When the first movable plate 42 is in the storage position, the first outer positioning block 44 is in contact with the first fixed guard plate 41 , and the first inner positioning block 43 is not in contact with the first fixed guard plate 41 .

When the first movable plate 42 is in the use position, the first inner positioning block 43 abuts against the first fixed guard plate 41 , and the first outer positioning block 44 does not contact the first fixed guard plate 41 .

The rotation range of the first movable plate 42 can be limited by the first outer positioning block 44 and the first inner positioning block 43, so that the first movable plate 42 can rotate 90 degrees between the vertical position and the horizontal position. As an optional embodiment, the first outer positioning block 44 and the first inner positioning block 43 may not be provided, and the first movable plate 42 can be moved 90 degrees between the vertical position and the horizontal position by using a 90-degree living hinge. degrees of rotation. The setting of the first outer positioning block 44 and the first inner positioning block 43 does not need to select a specific living hinge, and does not need the living hinge to undertake the positioning function, thereby improving structural stability and reliability.

The first positioning component 40 can assist the positioning of the flowers on the loading plate 12 and prevent the flowers on the loading plate 12 from toppling over.

As a preferred implementation manner, the first locking assembly 45 includes: two locking blocks 451 and a shaft member 452 . The two locking blocks 451 are fixed to the shaft member 452 to achieve synchronous rotation. The shaft member 452 is rotatably connected to the first fixed guard plate 41 . The two locking blocks 451 are located on both sides of the first fixed guard plate 41 . The locking block 451 has a first rotational position and a second rotational position. The user can dial the locking block 451 to rotate the locking block 451 . The position of the locking block 451 may be maintained by frictional force. As an optional embodiment, an additional structure may also be used to limit the position of the locking block 451 .

When the first movable plate 42 is in the stored position, the locking block 451 is at the first rotation position, and the first movable plate 42 is located between the two locking blocks 451 so that the position of the first movable plate 42 is locked by the two locking blocks 451 .

When the first movable plate 42 is in the use position, the locking block 451 is in the second rotation position, and the locking block 451 is located under the first movable plate 42 and out of contact with the first movable plate 42 .

As a preferred embodiment, when the first movable plate 42 is in the storage position, the first movable plate 42 is flush with the first fixed guard plate 41 . Both the first movable plate 42 and the first fixed guard plate 41 are arranged vertically. When the first movable plate 42 is in the use position, the first movable plate 42 is perpendicular to the first fixed guard plate 41 . At this moment, the first movable plate 42 is arranged horizontally, and the first movable plate 42 is parallel to the loading plate 12 .

As a specific implementation manner, the first positioning component 40 includes: two first locking components 45 . Two first locking assemblies 45 are mounted to both ends of the first fixed guard plate 41 .

As a preferred embodiment, the special trolley 100 for orchid greenhouse further includes: two second positioning components 50 for assisting in positioning the flowers on the loading board 12 .

The two second positioning components 50 are mounted on the left and right ends of the object loading plate 12 respectively. The first positioning assembly 40 is mounted to the rear end of the loading plate 12 .

The second positioning assembly 50 includes: a second fixed guard plate 51, a second movable plate 52, a second inner positioning block 53, a second outer positioning block 54, and a second locking assembly 55 for locking the position of the second movable plate 52 .

The working principles of the first positioning assembly 40 and the second positioning assembly 50 are the same. The second locking component 55 has the same structure as the first locking component 45 . The second outer positioning block 54 has the same structure as the first outer positioning block 44 . The first inner positioning block 43 has the same structure as the first inner positioning block 43 . The difference between the first positioning assembly 40 and the second positioning assembly 50 is that the structure of the second fixed guard plate 51 is different from that of the first fixed guard plate 41, and the structure of the second movable plate 52 is different from that of the first movable plate 42. .

The second fixed guard 51 is fixed to the lower object plate 12 . The second movable plate 52 is provided with several second positioning holes 521 for assisting the positioning of flowers. The second movable plate 52 is rotatably connected to the second fixed guard plate 51 . The connection mode between the second movable plate 52 and the second fixed guard plate 51 is the same as that of the first movable plate 42 and the first fixed guard plate 41 .

The second movable panel 52 has a storage position and a use position. The second inner positioning block 53 is fixed to the inner side of the second movable plate 52 . The second outer positioning block 54 is fixed to the outer side of the second movable plate 52 .

When the second movable plate 52 is in the storage position, the second outer positioning block 54 abuts against the second fixed guard plate 51 , and the second inner positioning block 53 does not contact the second fixed guard plate 51 .

When the second movable plate 52 is in the use position, the second inner positioning block 53 abuts against the second fixed guard plate 51 , and the second outer positioning block 54 does not contact the second fixed guard plate 51 .

As a specific implementation manner, when the second movable plate 52 is in the use position, the two second movable plates 52 of the two second positioning assemblies 50 are flush.

As a preferred implementation manner, the height of the second movable plate 52 at the use position is higher than the height of the first movable plate 42 at the use position. The diameter of the second positioning hole 521 is smaller than the diameter of the first positioning hole 421 .

When the second movable plate 52 is in the storage position and the first movable plate 42 is in the storage position, the lower object plate 12, the upper object plate 11, the first positioning assembly 40 and the two second positioning assemblies 50 together form a circle open to the outside. of accommodation space.

A special trolley 100 for an orchid greenhouse also includes a fence 60 . A fence 60 is mounted to the upper object loading plate 11 .

When it is necessary to locate flowers with a lower height, the first positioning component 40 can be used for auxiliary positioning. When it is necessary to locate taller flowers, the second positioning component 50 can be used for auxiliary positioning. When no positioning is required, the first positioning component 40 and the two second positioning components 50 can provide three-sided protection.

It is obvious to those skilled in the art that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential features of the present invention. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to fall within the scope of the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In addition, it should be understood that although this specification is described according to implementation modes, not each implementation mode only includes an independent technical solution, and this description in the specification is only for clarity, and those skilled in the art should take the specification as a whole , the technical solutions in the various embodiments can also be properly combined to form other implementations that can be understood by those skilled in the art.

Claims (10)

1. A special cart for orchid greenhouse, comprising: a cart main body and a storage tube for accommodating plant poles and construction tools; the storage tube is fixed to the main body of the cart; The main body includes: an upper loading board, a lower loading board and two connecting frames; the upper loading board and the lower loading board are located between the two connecting frames and the upper loading board and the lower loading board are fixed to The connecting frame; the connecting frame includes: two vertical bars and a horizontal bar for users to hold; the two ends of the horizontal bar are connected to the two vertical bars; the horizontal bar and the two vertical bars The rods are integrally bent to form an inverted U shape; the vertical rods are fixed to the upper object board and the lower object board; each of the vertical rods is fixed with one of the storage tubes; each of the vertical rods The bottoms are equipped with supporting rollers. 2. A special trolley for orchid greenhouse according to claim 1, characterized in that, The special trolley for the orchid greenhouse further includes: a first positioning component for assisting the positioning of the flowers on the loading plate; The first positioning assembly includes: a first fixed guard plate, a first movable plate, a first inner positioning block, a first outer positioning block, and a first locking assembly for locking the position of the first movable plate; The first fixed guard plate is fixed to the loading plate; the first movable plate is provided with a plurality of first positioning holes for assisting the positioning of flowers; the first movable plate is rotatably connected to the first Fixed guard; The first movable panel has a storage position and a use position; The first inner positioning block is fixed to the inner side of the first movable plate; the first outer positioning block is fixed to the outer side of the first movable plate; When the first movable plate is in the storage position, the first outer positioning block is in contact with the first fixed guard plate, and the first inner positioning block is not in contact with the first fixed guard plate; When the first movable plate is in the use position, the first inner positioning block is in contact with the first fixed guard plate, and the first outer positioning block is not in contact with the first fixed guard plate; The first locking assembly includes: two locking blocks and a rotating shaft; the two locking blocks are fixed to the rotating shaft for synchronous rotation; the rotating shaft is rotatably connected to the first fixed guard plate; two The locking blocks are located on both sides of the first fixed guard plate; The locking block has a first rotational position and a second rotational position; When the first movable plate is in the storage position, the locking block is in the first rotation position, the first movable plate is located between the two locking blocks so that the first movable plate is locked by the two locking blocks. the position of the board; When the first movable plate is in the use position, the locking block is in the second rotation position, and the locking block is located under the first movable plate and out of contact with the first movable plate. 3. A special trolley for orchid greenhouse according to claim 2, characterized in that, When the first movable plate is in the storage position, the first movable plate is flush with the first fixed guard plate; When the first movable plate is in the use position, the first movable plate is perpendicular to the first fixed guard plate. 4. A special trolley for orchid greenhouse according to claim 2, characterized in that, The first positioning component includes: two first locking components; the two first locking components are mounted on both ends of the first fixing guard plate. 5. A special trolley for orchid greenhouse according to claim 2, characterized in that, The special trolley for the orchid greenhouse also includes: two second positioning assemblies for assisting the positioning of flowers on the loading board; the two second positioning assemblies are respectively installed on the left and right ends; The second positioning assembly includes: a second fixed guard plate, a second movable plate, a second inner positioning block, a second outer positioning block, and a second locking assembly for locking the position of the second movable plate; The second fixed guard plate is fixed to the lower object plate; the second movable plate is provided with a plurality of second positioning holes for assisting the positioning of flowers; The second movable plate is rotatably connected to the second fixed guard plate; the second movable plate has a storage position and a use position; the second inner positioning block is fixed to the inner side of the second movable plate; the The second outer positioning block is fixed to the outer side of the second movable plate; When the second movable plate is in the storage position, the second outer positioning block is in contact with the second fixed guard plate, and the second inner positioning block is not in contact with the second fixed guard plate; When the second movable plate is in the use position, the second inner positioning block is in contact with the second fixed guard plate, and the second outer positioning block is not in contact with the second fixed guard plate; The second locking assembly has the same structure as the first locking assembly; the second outer positioning block has the same structure as the first outer positioning block; the first inner positioning block has the same structure as the first inner positioning block same. 6. A special trolley for orchid greenhouse according to claim 5, characterized in that, When the second movable plate is in the use position, the two second movable plates of the two second positioning assemblies are flush. 7. A special trolley for orchid greenhouse according to claim 6, characterized in that, The height of the second movable panel at the use position is higher than the height of the first movable panel at the use position. 8. A special trolley for orchid greenhouse according to claim 5, characterized in that, The first positioning component is installed to the rear end of the loading plate; When the second movable plate is in the stored position and the first movable plate is in the stored position, the lower object plate, the upper object plate, the first positioning component and the two second positioning components are in common Enclose an open accommodation space. 9. A special trolley for orchid greenhouse according to claim 5, characterized in that, The diameter of the second positioning hole is smaller than the diameter of the first positioning hole. 10. A special trolley for orchid greenhouse according to claim 1, characterized in that, The special trolley for the orchid greenhouse also includes a fence; the fence is installed on the upper loading board.
