Abstract

The utility model belongs to the technical field of water environment treatment, in particular to a sewage filter device for water environment treatment, comprising a filter box, a water pump is fixedly installed at the left end of the filter box, and a water inlet pipe is fixedly installed at the output end of the water pump. There is an inspection door on the left side of the front end of the box, a filter mechanism is fixedly installed between the inner upper wall and the inner lower wall of the filter box, a drainage pipe is fixedly installed on the lower part of the right end of the filter box, and a A cleaning device, the interior of the cleaning device communicates with the interior of the filter box, the four corners of the lower end of the filter box are jointly fixed with a support base, and the right part of the inner lower wall of the support base is fixed with a controller. The utility model can prevent the clogging of the filter plate, and can clean the filter holes on the filter plate by itself to prevent clogging, and can collect garbage through the provided cleaning device to prevent the clogging of the sewage tank.

Description

A sewage filter device for water environment treatment

technical field

The utility model relates to the technical field of water environment treatment, in particular to a sewage filter device for water environment treatment.

Background technique

The water environment is one of the basic elements of the environment, an important place for the survival and development of human society, and the most seriously disturbed and damaged area by human beings. The pollution and destruction of the water environment has become one of the main environmental problems in the world today, so the treatment of the water environment is very necessary. Since there are some garbage floating in many lakes and rivers, which pollutes the water, in the process of water environment treatment Among them, the more direct method is to treat the polluted water through a filter device to reduce water pollution. The existing sewage filter device for water environment treatment has at least the following disadvantages in the use process: 1. During the use of the existing sewage filter device for water environment treatment, the common filter will filter the garbage in the sewage through the filter screen. Filtration treatment, so as to reduce the pollution caused by garbage rotting in the water, but the filter screen installed in the traditional filter device is prone to clogging in the process, so that the work of sewage filtration cannot be carried out, and the filter screen needs to be disassembled. Thereby just can continue to filter, very troublesome, efficiency is low; After filtering, the large garbage will block the water outlet, causing accumulation and blockage, and the garbage will return with the water flow, so that the larger garbage cannot be filtered, and the filtering effect is low. Therefore, we introduce a new water environment Sewage filtration device for treatment.

Utility model content

The main purpose of the utility model is to provide a sewage filter device for water environment treatment, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

A sewage filter device for water environment treatment, comprising a filter box, a water pump is fixedly installed at the left end of the filter box, a water inlet pipe is fixedly installed at the output end of the water pump, an inspection door is arranged at the left end of the front end of the filter box, and the filter A filter device is fixedly installed between the upper wall and the inner lower wall of the box, a drainage pipe is fixedly installed at the lower part of the right end of the filter box, and a cleaning device is fixedly installed at the left part of the lower end of the filter box. The inside of the cleaning device and the inside of the filter box In the same way, the four corners of the lower end of the filter box are jointly fixed with a support base, and the right part of the inner lower wall of the support base is fixed with a controller.

Preferably, the filter device includes a movable filter plate, the left end of the movable filter plate is provided with a number of No. 1 filter holes, the four corners of the right end of the movable filter plate are fixed with tooth columns, and the outer surfaces of the two tooth columns above are The outer surfaces of the lower and lower two toothed columns are provided with gear openings, and the four toothed columns are interspersed and fixedly connected with rotating rods. The front ends of the two rotating rods are fixedly equipped with drive motors. The right part of the outer surface of the column is interspersed with a fixed cylinder, and the right ends of the four toothed columns are fixedly equipped with springs, and the right ends of the four springs are respectively in contact with the inner right walls of the four fixed cylinders. A self-cleaning device is interspersed and flexibly connected in the middle of the outer surface.

Preferably, the self-cleaning device includes a fixed filter plate, and the left end of the fixed filter plate is provided with several No. Cone thorns are respectively interlaced with several No. 2 filter holes.

Preferably, the four corners of the left end of the fixed filter plate are respectively interspersed and movably connected with four tooth columns, and the outer surfaces of several of the cone thorns are respectively interspersed and movably connected with several No. 1 filter holes, and the upper and lower ends of the fixed filter plate are connected with The inner wall of the filter box is fixedly connected, the rear ends of the two drive motors are fixedly connected with the front end of the filter box, the rear ends of the two rotating rods are connected with the inner rear wall bearings of the filter box, and the four fixed cylinders are connected with the filter box The four corners of the inner right wall are fixedly connected.

Preferably, the cleaning device includes a garbage collection box, the lower front end of the garbage collection box is provided with a sewage door, the upper front end of the garbage collection box is fixed with a drive motor, and the output end of the drive motor is fixed with a rotary rod. The rear end of the rotary rod is connected to the inner rear wall bearing of the garbage collection box. Several stirring rods are fixedly installed on the outer surface of the rotary rod. The several stirring rods are distributed in an equidistant circular array. The left wall of the garbage collection box is Several scraping rods are fixedly installed, and the outer surfaces of the several stirring rods are interlaced with several scraping rods respectively.

Preferably, the upper end of the garbage collection box is fixedly connected to the lower end of the filter box, and the inside of the garbage collection box communicates with the inside of the filter box.

Compared with the prior art, the utility model has the following beneficial effects:

1. In this utility model, a self-cleaning device is installed on the filter mechanism. The self-cleaning device is composed of a fixed filter plate and several cones. After entering, the sewage is filtered through the No. 1 filter hole set on the movable filter plate. The garbage and debris in the water will be blocked by the movable filter plate. Since the smaller garbage will block the No. 1 filter hole, it is controlled by the controller. Start two driving motors to drive the two rotating rods to rotate, so that the four special-shaped gears drive the tooth column to rotate to the right. Since the outer surface of the special-shaped gear only has a general tooth opening, during the rotation process, the tooth column is driven to the inside of the fixed cylinder. Sliding, so that it is squeezed with the spring in the fixed cylinder, so that several No. 1 filter holes on the movable filter plate are inserted and connected with several cone piercings, so that the garbage in the No. 1 filter holes is processed, and the special-shaped gear When it is rotated to the side without the tooth mouth, the tooth column will be ejected from the tooth column in the fixed cylinder by the spring due to inertia, so that the movable filter plate can filter without the risk of clogging;

2. In the utility model, a driving motor is installed on the cleaning device. After the sewage enters the filter box, the controller controls the opening lever to rotate clockwise. Since several scraping levers are fixedly installed on the upper part of the right wall in the garbage collection box , several scraping rods and several stirring rods fixedly installed on the outer surface of the rotating rod are interleaved, so that when the rotating rod rotates clockwise, the several stirring rods are not in contact with the scraping rod when rotating, so that when rotating, the water will be The garbage is rotated clockwise into the garbage collection box, and the garbage is scraped into the garbage collection box through the scraper rod and will not run out with the stirring rod, so as to collect the garbage and keep the interior unblocked. The garbage collection box can be removed through the sewage door. It is very convenient to process the internal garbage, and it is convenient for the use of sewage filtration in water environment treatment.

Description of drawings

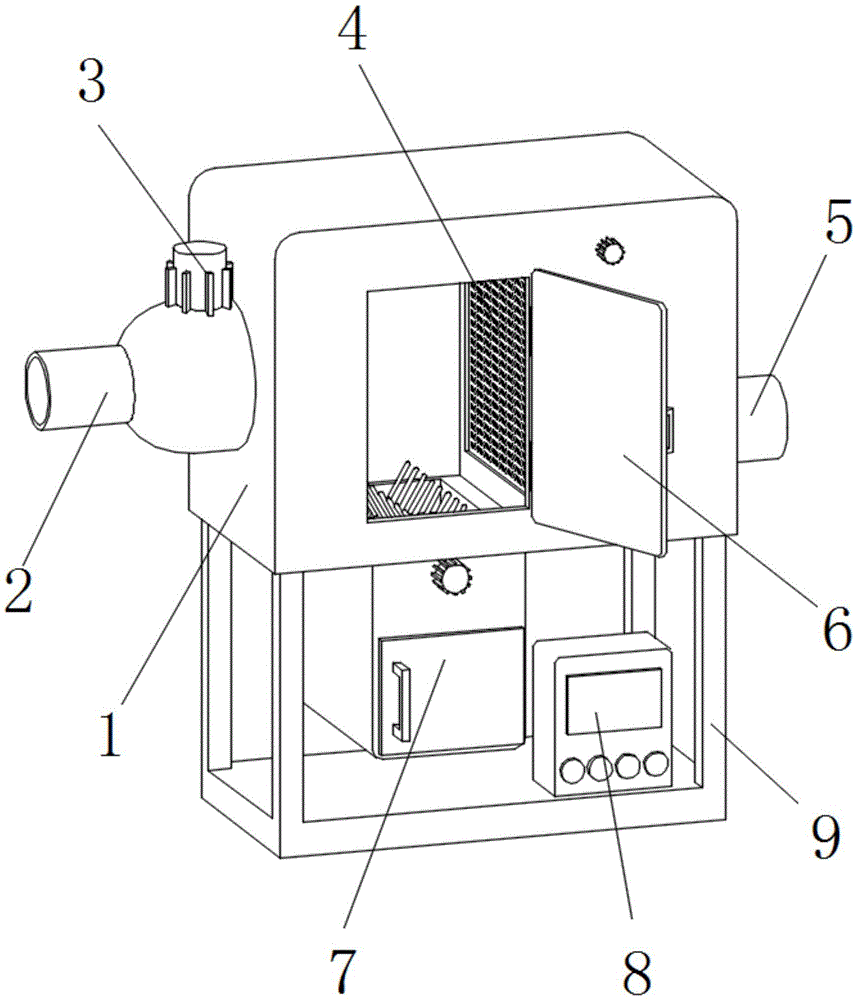

Fig. 1 is the overall structure schematic diagram of a kind of water environment treatment sewage filtering device of the present utility model;

Fig. 2 is a schematic diagram of the overall structure of the filter mechanism of a sewage filter device for water environment treatment of the present invention;

Fig. 3 is a schematic diagram of the overall structure of the self-cleaning device of a sewage filter device for water environment treatment of the present invention;

Fig. 4 is a schematic diagram of the overall structure of a cleaning device of a sewage filter device for water environment treatment according to the present invention.

In the figure: 1, filter box; 2, water inlet pipe; 3, water pump; 4, filter mechanism; 401, movable filter plate; 402, No. 1 filter hole; 403, tooth column; 404, special-shaped gear; 406, rotating rod; 407, spring; 408, fixed cylinder; 409, self-cleaning device; 41, fixed filter plate; 42, No. 2 filter hole; 43, cone thorn; 5, drainage pipe; 6, maintenance door; 7, Cleaning device; 701, garbage collection box; 702, sewage door; 703, driving motor; 704, rotating rod; 705, stirring rod; 706, scraping rod; 8, controller; 9, supporting base.

detailed description

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

In the description of the present utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "another end" The orientation or positional relationship indicated by ", etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, so as to Specific orientation configurations and operations, therefore, should not be construed as limitations on the invention. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise specified and limited, the terms "installed", "set with", "connected", etc. should be understood in a broad sense, such as "connected", which can be a fixed The connection can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Example

Please refer to Figure 1-4, the utility model provides a technical solution:

A sewage filter device for water environment treatment, comprising a filter box 1, a water pump 3 is fixedly installed at the left end of the filter box 1, a water inlet pipe 2 is fixedly installed at the output end of the water pump 3, an inspection door 6 is arranged on the left front end of the filter box 1, and the filter box 1 A filter mechanism 4 is fixedly installed between the inner upper wall and the inner lower wall, a drain pipe 5 is fixedly installed at the lower part of the right end of the filter box 1, and a cleaning device 7 is fixedly installed at the left part of the lower end of the filter box 1, and the inside of the cleaning device 7 is connected with the filter box 1 The inside is connected, and the four corners of the lower end of the filter box 1 are jointly fixedly installed with a support base 9, and the right part of the inner lower wall of the support base 9 is fixedly equipped with a controller 8.

In the present embodiment, the filter mechanism 4 includes a movable filter plate 401, the left end of the movable filter plate 401 has a number of No. 1 filter holes 402, and the four corners of the right end of the movable filter plate 401 are fixedly equipped with tooth columns 403. The lower part of the surface and the upper part of the outer surface of the two toothed columns 403 below are all provided with tooth gaps, and the outer surfaces of the four toothed columns 403 are meshed with special-shaped gears 404, and the four special-shaped gears 404 are interspersed and fixed in pairs. The front ends of the rotating rod 406 are all fixedly equipped with a drive motor 405, and the right parts of the outer surfaces of the four toothed columns 403 are interspersed with a fixed cylinder 408, and the right ends of the four toothed columns 403 are fixedly installed with a spring 407, and the right ends of the four springs 407 are respectively connected to the The inner right walls of the four fixed cylinders 408 are in contact, and the middle parts of the outer surfaces of the four tooth columns 403 are interspersed with a self-cleaning device 409; No. 2 filter holes 42, several fixed filter plates 41 left ends are fixedly installed with several cone thorns 43, and several cone thorns 43 are respectively interlaced with several No. 2 filter holes 42; The column 403 is interspersed and movably connected, and the outer surfaces of several cones 43 are interspersed and movably connected with several No. 1 filter holes 402 respectively. It is fixedly connected with the front end of the filter box 1, the rear ends of the two rotating rods 406 are connected with the inner rear wall bearings of the filter box 1, and the four fixed cylinders 408 are fixedly connected with the four corners of the inner right wall of the filter box 1; Self-cleaning device 409, self-cleaning device 409 is made up of fixed filter plate 41 and several cones 43, by setting several No. 2 filter holes 42 on the fixed filter plate 41, after the dirt enters the filter box 1, it is filtered The No. 1 filter hole 402 set on the plate 401 filters the sewage, and the garbage and debris in the water will be blocked by the movable filter plate 401. Since the smaller garbage will block the No. 1 filter hole 402, the controller 8 controls the start Two driving motors 405 thus drive two rotating rods 406 to rotate, thereby making four special-shaped gears 404 drive the tooth column 403 to rotate to the right. Since the outer surface of the special-shaped gear 404 has only a general tooth mouth, thereby driving the tooth column 403 slides to the inside of the fixed cylinder 408, so as to be squeezed with the spring 407 in the fixed cylinder 408, so that several No. The garbage in the filter hole 402 is processed. When the special-shaped gear 404 rotates to the side without the tooth mouth, the tooth column 403 will be ejected from the tooth column 403 in the fixed cylinder 408 by the spring 407 due to inertia, so that the movable filter plate 401 is filtered. There is no risk of clogging.

In this embodiment, the cleaning device 7 includes a garbage collection box 701, the bottom of the front end of the garbage collection box 701 is provided with a sewage discharge door 702, the top of the front end of the garbage collection box 701 is fixedly installed with a driving motor 703, and the output end of the driving motor 703 is fixedly installed with a rotary rod 704 , the rear end of the rotary rod 704 is connected with the inner rear wall bearing of the garbage collection box 701, and several stirring rods 705 are fixedly installed on the outer surface of the rotary rod 704, and the several stirring rods 705 are distributed in an equidistant annular array. Several scraping bars 706 are fixedly installed, and the outer surfaces of several stirring bars 705 are interlaced with several scraping bars 706; Connected; drive motor 703 is set on the cleaning device 7, after the sewage enters the filter box 1, the opening lever 704 is controlled by the controller 8 to rotate clockwise. Rod 706, several scraping rods 706 and several stirring rods 705 fixedly installed on the outer surface of the rotating rod 704 are interleaved, so that when the rotating rod 704 rotates clockwise, the several stirring rods 705 are not in contact with the scraping rod 706 when rotating , so that when rotating, the garbage in the water is rotated clockwise into the garbage collection box 701, and the garbage is scraped into the garbage collection box 701 by the scraper rod 706 and will not run out following the stirring rod 705, so that the garbage is collected and kept The interior is unimpeded, and the garbage in the garbage collection box 701 can be processed through the sewage discharge door 702, which is very convenient and convenient for the use of sewage filtration for water environment treatment.

It should be noted that this utility model is a sewage filter device for water environment treatment. Device 409, self-cleaning device 409 is made up of fixed filter plate 41 and several cones 43, by setting several No. The No. 1 filter hole 402 provided on the top filters the sewage, and the garbage and debris in the water will be blocked by the movable filter plate 401. Since the smaller garbage will block the No. 1 filter hole 402, the two filters will be activated by the controller 8. The drive motor 405 thus drives the two rotating rods 406 to rotate, so that the four special-shaped gears 404 drive the toothed columns 403 to rotate to the right. The inside of the fixed cylinder 408 slides, so as to be squeezed with the spring 407 in the fixed cylinder 408, so that several No. 1 filter holes 402 on the movable filter plate 401 are interspersed and connected with several cone thorns 43, so that the No. 1 filter holes The garbage in 402 is processed. When the special-shaped gear 404 rotates to the side without the tooth mouth, the tooth column 403 will be ejected from the tooth column 403 in the fixed cylinder 408 by the spring 407 due to inertia, so that the movable filter plate 401 can filter and clean up. The drive motor 703 is set on the device 7, and after the sewage enters the filter box 1, the controller 8 controls the opening lever 704 to rotate clockwise. Several stirring rods 705 that are fixedly installed on the outer surface of a scraping rod 706 and the rotating rod 704 are interleaved, so that when the rotating rod 704 rotates clockwise, the several stirring rods 705 are not in contact with the scraping rod 706 when rotating, thereby rotating At this time, the garbage in the water is rotated clockwise into the garbage collection box 701, and the garbage is scraped into the garbage collection box 701 by the scraper bar 706 and will not run out following the stirring bar 705, thereby collecting the garbage and keeping the interior unblocked. The garbage in the garbage collection box 701 can be processed through the sewage door 702, which is very convenient and convenient for the use of sewage filtration for water environment treatment.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A sewage filtering device for water environment treatment, comprising a filter box (1), characterized in that: a water pump (3) is fixedly installed at the left end of the filter box (1), and a water pump (3) is fixedly installed at the output end of the water pump (3) The water inlet pipe (2), the front left part of the filter box (1) is provided with an inspection door (6), and the filter mechanism (4) is fixedly installed between the inner upper wall and the inner lower wall of the filter box (1). A drainage pipe (5) is fixedly installed on the lower part of the right end of the filter box (1), and a cleaning device (7) is fixedly installed on the left part of the lower end of the filter box (1). The inside is connected, and the four corners of the lower end of the filter box (1) are jointly fixed with a support base (9), and the right part of the inner lower wall of the support base (9) is fixed with a controller (8). 2. A sewage filter device for water environment treatment according to claim 1, characterized in that: the filter mechanism (4) includes a movable filter plate (401), and the left end of the movable filter plate (401) has several No. 1 filter hole (402), the four corners of the right end of the movable filter plate (401) are fixedly equipped with tooth columns (403), the lower part of the outer surface of the two tooth columns (403) above and the two tooth columns (403) below ) are provided with gear openings on the outer surface, and the outer surfaces of the four teeth columns (403) are meshed with special-shaped gears (404), and the four special-shaped gears (404) are interspersed and fixedly connected with rotating rods (406) in pairs. ), the front ends of the two rotating rods (406) are fixedly equipped with drive motors (405), and the right parts of the outer surfaces of the four tooth columns (403) are interspersed with fixed cylinders (408) for flexible connection. Springs (407) are fixedly installed on the right ends of the tooth columns (403), the right ends of the four springs (407) are respectively in contact with the inner right walls of the four fixed cylinders (408), and the outer surfaces of the four tooth columns (403) A self-cleaning device (409) is interspersed with a movable connection in the middle part. 3. A sewage filter device for water environment treatment according to claim 2, characterized in that: the self-cleaning device (409) includes a fixed filter plate (41), and the left end of the fixed filter plate (41) has a Several No. 2 filter holes (42) pass through, and several awl thorns (43) are fixedly installed on the left end of several said fixed filter plates (41), and several said awl thorns (43) are connected with several No. 2 filter holes respectively. The holes (42) are distributed in a staggered manner. 4. A sewage filter device for water environment treatment according to claim 3, characterized in that: the four corners of the left end of the fixed filter plate (41) are respectively interspersed and movable connected with four tooth columns (403), and several of the The outer surface of the cone thorns (43) is respectively interspersed and movable connected with several No. 1 filter holes (402), the upper and lower ends of the fixed filter plate (41) are fixedly connected with the inner wall of the filter box (1), and the two drive motors (405) rear ends are fixedly connected with the front end of the filter box (1), the rear ends of the two rotating rods (406) are connected with the inner rear wall bearings of the filter box (1), and the four fixed cylinders (408) are all It is fixedly connected with the four corners of the inner right wall of the filter box (1). 5. A sewage filter device for water environment improvement according to claim 1, characterized in that: the cleaning device (7) comprises a garbage collection box (701), and the lower part of the front end of the garbage collection box (701) is provided with Sewage discharge door (702), a drive motor (703) is fixedly installed on the upper front end of the garbage collection box (701), and a rotary rod (704) is fixedly mounted on the output end of the drive motor (703), and the rotary rod (704) The rear end is connected to the inner rear wall bearing of the garbage collection box (701), and several stirring rods (705) are fixedly installed on the outer surface of the rotating rod (704), and the several stirring rods (705) are distributed in an equidistant annular array A plurality of scraper bars (706) are fixedly installed on the inner left wall of the garbage collection box (701), and the outer surfaces of the plurality of stirring bars (705) are respectively interlaced with the plurality of scraper bars (706). 6. A sewage filter device for water environment treatment according to claim 5, characterized in that: the upper end of the garbage collection box (701) is fixedly connected to the lower end of the filter box (1), and the garbage collection box (701) ) internally communicates with the filter box (1).
