Abstract

The utility model discloses a device for raising the limbs of a patient, which comprises a mounting frame. Two crossbeams are slidingly connected to the outside of the mounting frame. Two movable grooves are arranged symmetrically on the inside of the two beams and on both sides of the mounting frame. The interior of each movable groove is movably connected with vertical beams, and the inside of the crossbeam is provided with a through groove on one side of the movable groove. The utility model can adjust the distance between the two crossbeams on the mounting frame. , so that it can adapt to patients of different heights, and the patient's arms and legs can be lifted through the vertical beams with the placement box at the bottom. At the same time, the two vertical beams inside each beam can be adjusted, so that it can be adjusted according The distance between the arms and legs can be adjusted according to actual use requirements, which is conducive to improving the flexibility of equipment use, and the placement box can be rotated inside the fixed box to adapt to the inclination angle generated when the arms or legs are lifted, thus The comfort of the device can be improved.

Description

A patient's limb raising device

technical field

The utility model relates to the technical field, in particular to a device for raising limbs of a patient.

Background technique

Scald is the tissue damage caused by hot liquid, steam, etc. It is a kind of thermal burn. After the burn, the human skin needs plastic surgery to repair the skin. Plastic surgery is a branch of surgery, also known as plastic surgery. Reconstructive surgery or plastic surgery mainly treats skin, muscle, bone and other traumas, diseases, congenital or acquired defects and deformities of tissues or organs. Skin grafting can effectively improve the skin of the burned area and reduce the occurrence of lesions. In the process of treatment, the medical staff will lift the patient's limbs according to the needs, so as to facilitate the treatment. Chinese patent 202121652957.6 discloses a support device for limb skin grafting in burn plastic surgery, including a bed board. The bottom of the bed board is provided with four A support assembly, two slide grooves are opened on the top of the bed board, the insides of the two slide grooves are slidably connected to the sliding blocks, and a connecting rod is fixedly connected between the two sliding blocks, and the connecting rods are connected to each other. The bottom is fixedly connected with two foot rests. This utility model supports the bed board through four supporting components, allowing the patient to lie flat on the bed board, and then start the driving mechanism inside the two grooves to drive the movable support mechanism to move to suit the needs of different patients. height, and the movable support mechanism can provide multi-point support for the patient's feet and legs, so that the device can provide multi-point support for the patient's legs, reduce the patient's fatigue, and can be flexible for different patient heights The advantages of adjustment, but it is not easy to adjust the distance between the legs or arms during use, which limits the flexibility of use. At the same time, it sets the device inside the hospital bed, which not only takes up the space required by the patient space, but also affect the comfort of the entire hospital bed.

Invention content:

The purpose of this utility model is to provide a patient's limb raising device in order to solve the above problems, which solves the problems mentioned in the background technology.

In order to solve the above problems, the utility model provides a technical solution:

A device for raising limbs of a patient, comprising a mounting frame, a crossbeam, a vertical beam, a connection box, a fixing box and a placement box. There are two movable grooves symmetrically opened on both sides of each of the movable grooves, and vertical beams are movably connected to the inside of each of the movable grooves, and a through groove is opened in the inside of the crossbeam and on one side of the movable groove, and the inside of the vertical beams is A T-shaped chute is provided, the inside of the T-shaped chute is slidably connected with a screw, and one end of the screw extends to the outside of the vertical beam through the through groove and is threaded with a nut. The bottom of each vertical beam is A connection box is detachably connected, and one side of each connection box is fixedly connected with a fixed box, and the inside of the fixed box is rotatably connected with a placement box through a damping shaft.

As a preferred solution of the present invention, a positioning pin is detachably connected to the inside of each connection box, and one end of the positioning pin extends to the inside of the vertical beam.

As a preferred solution of the present invention, each of the storage boxes is provided with an arc-shaped groove inside, and a rubber pad is arranged inside the arc-shaped groove.

As a preferred solution of the present utility model, both ends of the mounting frame are fixedly connected with connecting frames, and the bottom of each connecting frame is symmetrically fixedly connected with two C-shaped parts, and each of the C-shaped parts The interior of each is threaded with a first fastening bolt, and the top end of the first fastening bolt extends to the inside of the C-shaped piece to be rotatably connected with an extruded plate.

As a preferred solution of the present invention, second fastening bolts are threaded inside the two cross beams, and the bottom ends of the second fastening bolts penetrate the cross beams and contact the top of the installation frame.

The beneficial effect of the utility model is: through the two beams arranged on the mounting frame, the distance between them can be adjusted, so that it can adapt to patients of different heights, and the vertical beam can be matched with the placement box at the bottom, which can The patient's arms and legs are lifted, and at the same time, the two vertical beams inside each beam can be adjusted, so that the distance between the arms and legs can be adjusted according to actual needs, which is conducive to improving the flexibility of equipment use In addition, the placement box can be rotated inside the fixed box, which can adapt to the inclination angle generated when the arm or leg is lifted, thereby improving the comfort of the device.

Description of drawings:

For ease of illustration, the utility model is described in detail by the following specific implementation and accompanying drawings.

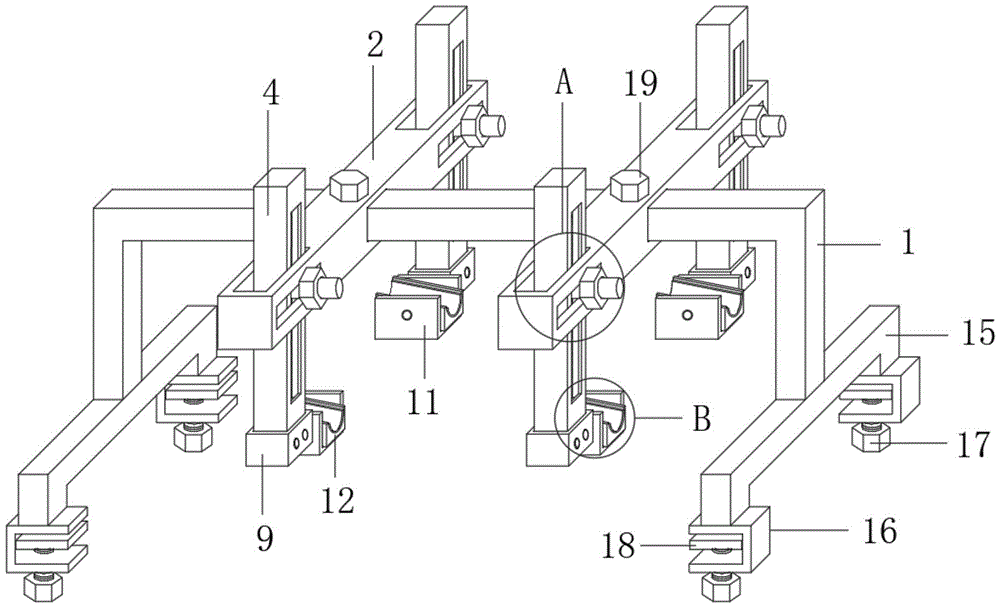

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is the enlarged view of place A in Fig. 1 of the utility model;

Fig. 3 is an enlarged view of place B in Fig. 1 of the present utility model.

In the figure: 1. Mounting frame; 2. Beam; 3. Movable slot; 4. Vertical beam; 5. Through slot; 6. T-shaped chute; 7. Screw rod; 8. Nut; 9. Connection box; 10. Positioning pin; 11, fixed box; 12, placement box; 13, arc groove; 14, rubber pad; 15, connecting frame; 16, C-shaped piece; 17, first fastening bolt; , the second fastening bolt.

detailed description:

As shown in Figures 1-3, this embodiment adopts the following technical solutions:

Example:

A device for raising limbs of a patient, comprising a mounting frame 1, a beam 2, a vertical beam 4, a connecting box 9, a fixing box 11 and a placement box 12, two beams 2 are slidingly connected to the outside of the mounting frame 1, and the mounting frame 1 The distance between the two crossbeams 2 arranged on the top can be adjusted so as to adapt to patients of different heights. Two movable grooves 3 are symmetrically opened inside the two crossbeams 2 and located on both sides of the mounting frame 1. The inside of each movable groove 3 is movably connected with a vertical beam 4, and the inside of the crossbeam 2 is provided with a through groove 5 on one side of the movable groove 3, and the inside of the vertical beam 4 is provided with a T-shaped chute 6, and the T-shaped chute The inside of 6 is slidingly connected with screw rod 7, and one end of screw rod 7 extends to the outside of vertical beam 4 through through groove 5 and is threadedly connected with nut 8, vertical beam 4 can be fixed, thereby can guarantee vertical beam 4 and place box 12 stability, the bottom of each vertical beam 4 can be detachably connected with a connection box 9, and one side of each connection box 9 is fixedly connected with a fixed box 11, and the vertical beam 4 is matched with the placement box 12 at the bottom, which can be The patient's arms and legs are lifted, and at the same time, the two vertical beams 4 inside each beam 2 can be adjusted, so that the distance between the arms and legs can be adjusted according to the actual use requirements, which is conducive to improving the use of equipment. flexibility, the interior of the fixed box 11 is connected with the placement box 12 through the rotation of the damping shaft, the placement box 12 can be rotated inside the fixed box 11, and can adapt to the inclination angle generated when the arm or leg is lifted, thereby improving the stability of the device comfort.

Further, each connection box 9 is detachably connected with a positioning pin 10 , and one end of the positioning pin 10 extends to the inside of the vertical beam 4 , which can facilitate the replacement of the placement box 12 .

Further, each placement box 12 is provided with an arc-shaped groove 13 inside, and a rubber pad 14 is arranged inside the arc-shaped groove 13, and the comfort of placement can be improved through the rubber pad 14 inside the arc-shaped groove 13 .

Further, both ends of the installation frame 1 are fixedly connected with connecting frames 15, and the bottom of each connecting frame 15 is symmetrically fixedly connected with two C-shaped parts 16, and the inside of each C-shaped part 16 is threaded with a first Tightening bolts 17, the top of the first fastening bolts 17 extends to the inside of the C-shaped piece 16 and is connected with an extruded plate 18 for rotation, which can be fixed on the frames at both ends of the bed without occupying the space on the bed surface, thereby ensuring Patient comfort.

Further, the insides of the two crossbeams 2 are screwed with second fastening bolts 19, and the bottom ends of the second fastening bolts 19 penetrate the crossbeams 2 and contact with the top of the installation frame 1, so that the crossbeams 2 can be fixed, ensuring Stability during use.

Specifically, when using the limb raising device, first clamp the C-shaped piece 16 at the bottom of the connecting frame 15 on the frame of the head of the bed and the bed, and rotate the first fastening bolt 17, at this time the second fastening bolt 19 Drive the extrusion plate 18 to move inside the C-shaped piece 16, so that it can squeeze the frame, and this time the installation of the mounting frame 1 can be completed, and then the distance between the two beams 2 can be adjusted according to the height of the patient , and turn the second fastening bolt 19 inside the cross beam 2 to position it, drive the fixed box 11 and the placement box 12 to move downward through the vertical beam 4, and then place the patient's legs or arms inside the placement box 12 In the arc-shaped groove 13, the comfort of placement can be improved through the rubber pad 14 inside the arc-shaped groove 13, and the vertical beam 4 is pushed to move inside the movable groove 3 according to the demand for lifting the patient. At this time, the vertical beam 4 drives the screw 7 slides inside the through slot 5, and then the vertical beam 4 is lifted up, at this time, the patient's legs or arms can be lifted, and at the same time, the screw rod 7 slides inside the T-shaped chute 6, when the patient's When the limbs are lifted to the required position, turn the nut 8 on the outside of the screw rod 7. At this time, the nut 8 can cooperate with the screw rod 7 to lock the vertical beam 4. As the vertical beam 4 moves up, it drives the placement box 12 to carry out At the same time, the placement box 12 rotates inside the fixed box 11, so that it can adapt to the inclination generated when it is lifted, thereby ensuring the comfort of the patient. When the placement box 12 needs to be replaced, the vertical beam 4 and the positioning pin 10 inside the connection box 9 are taken out, and can be replaced at this moment.

In the description of the present utility model, it should be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", " The orientation or positional relationship indicated by "top", "inner", "front", "central", "both ends" etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the utility model and simplifying the description , rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as limiting the utility model.

In addition, the terms "first", "second", "third" and "fourth" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance or implicitly specifying the number of indicated technical features, Thus, a feature defined as "first", "second", "third" and "fourth" may explicitly or implicitly include at least one of such features.

In this utility model, unless otherwise clearly specified and limited, terms such as "installation", "setting", "connection", "fixation" and "rotation" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection, or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction of two components Unless otherwise clearly defined, those skilled in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a device is raised to patient's four limbs, its characterized in that, include mounting bracket (1), crossbeam (2), erect roof beam (4), connecting box (9), fixed box (11) and place box (12), the outside sliding connection of mounting bracket (1) has two crossbeams (2), two equal symmetry in both sides that the inside of crossbeam (2) just is located mounting bracket (1) has seted up two activity grooves (3), every the equal swing joint in inside of activity groove (3) has perpendicular roof beam (4), logical groove (5) have been seted up to the inside of crossbeam (2) and one side that is located activity groove (3), T type spout (6) have been seted up to the inside of erecting roof beam (4), the inside sliding connection of T type spout (6) has screw rod (7), the one end of screw rod (7) extends to the outside and threaded connection of erecting roof beam (4) through logical groove (5) has nut (8), every the bottom of erecting roof beam (4) all can be dismantled and be connected with connecting box (9), every the equal fixedly connected with fixed box (11) of one side of connecting box (9), the inside damping box (11) is placed through pivot (12).

2. A patient limb lifting device according to claim 1, wherein a locating pin (10) is removably attached to the inside of each connection box (9), and one end of the locating pin (10) extends to the inside of the vertical beam (4).

3. The patient limb lifting device according to claim 1, wherein each placing box (12) is provided with an arc-shaped groove (13) inside, and a rubber pad (14) is arranged inside the arc-shaped groove (13).

4. The patient limb lifting device according to claim 1, wherein the two ends of the mounting frame (1) are fixedly connected with connecting frames (15), the bottom of each connecting frame (15) is symmetrically and fixedly connected with two C-shaped pieces (16), the inside of each C-shaped piece (16) is in threaded connection with a first fastening bolt (17), and the top end of each first fastening bolt (17) extends to the inside of the C-shaped piece (16) to be rotatably connected with a pressing plate (18).

5. A patient limb lifting device according to claim 1, characterized in that the inside of both said cross beams (2) is threaded with a second fastening bolt (19), the bottom end of said second fastening bolt (19) penetrating the cross beam (2) and contacting the top of the mounting frame (1).
