Abstract

The utility model discloses a log breaking machine for processing wood products, which comprises a base and a log. The top of the base is provided with a log, and the top of the base above the log is provided with a walking frame. The bottom of the frame is equipped with a walking seat, and the outer wall of the base under the walking seat is equipped with a rack, and the rack is fixedly connected with the base. The base is slidingly connected, and the outer wall of the walking seat is provided with a rotary driving part, and the bottom end of the rotary driving part is provided with a gear, and the gear and the rack are meshed with each other. The utility model not only realizes the automatic moving multi-section cutting and breaking processing of the log by the log breaking machine, facilitates the automatic movement to adjust the length of the breaking tube, but also improves the convenience of the multi-section processing of the log.

Description

Log breaker for wood product processing

technical field

The utility model relates to the technical field of log barrel breaking machines, in particular to a log barrel breaking machine for processing wood products.

Background technique

Wood processing specifically refers to the processing of wood as raw material, mainly by mechanical or chemical methods, and its products still maintain the basic characteristics of wood. Wood processing technology mainly includes wood cutting, wood drying, wood gluing, and wood surface decorative lighting. Basic processing technology , Various wood processing machine tools used in the manufacture of wood furniture, commonly used are band saws, circular saws, planers, planers, tenoning machines, milling machines, log breaking machines, etc., to mechanize the furniture production process And automation, maximizing labor productivity, reducing labor intensity, reducing raw material consumption, and reducing production costs. Log breakers have important applications in wood product processing.

Although the existing log breaker has the function of cutting and breaking the barrel, the workers manually cut the logs into the specified shape, and the cutting length of the workers each time has a certain difference. It is generally not convenient to automatically move the logs when using them. Multi-stage cutting and barrel breaking processing, and the adjustable processing of the length of the barrel breaking, greatly affects the convenience of multi-stage barrel breaking and cutting when the log barrel breaking machine is used.

Utility model content

The purpose of the utility model is to provide a log breaker for processing wood products, so as to solve the problem that the log breaker is not convenient for automatic moving multi-section cutting and breaking processing of logs in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a log breaking machine for processing wood products, including a base and a log, the top of the base is provided with a log, and the base above the log The top is provided with a walking frame, and the bottom ends of the walking frames on both sides of the log are equipped with a walking seat, and a rack is installed on the outer wall of the base below the walking seat, and the rack is fixedly connected with the base. The bottom end of the walking seat is provided with two sets of walking wheels, and the walking wheels are all slidably connected with the base, and the outer wall of the walking seat is equipped with a rotating drive member, and the bottom end of the rotating drive member is equipped with a gear, and The gear and the rack mesh with each other.

Preferably, a stopper is installed on the top of the base on one side of the log, and a clamp seat is installed on the side of the top of the base away from the stopper.

Preferably, a threaded sleeve is installed on the top of the fixture seat, a threaded rod is provided inside the threaded sleeve, and both ends of the threaded rod extend to the outside of the threaded sleeve.

Preferably, a handle is mounted on one end of the threaded rod, a support rod is mounted on the other end of the threaded rod, and a clamp head is mounted on a side of the support rod close to the log.

Preferably, the inside of the walking frame is provided with a cutting box, the inside of the cutting box is provided with a cutting sheet, and four sets of telescopic driving parts are installed inside the walking frame above the cutting box, and the bottom ends of the telescopic driving parts Push rods are all installed, and the bottom ends of the push rods are all connected with the cutting box.

Preferably, a control panel is installed on the outer wall of the walking frame, and the output end of the control panel is electrically connected to the input end of the rotary driving member.

Compared with the prior art, the beneficial effect of the utility model is that the log breaker not only realizes the automatic moving multi-section cutting and breaking process of the log, but also facilitates the automatic movement to adjust the length of the broken barrel. , and improve the convenience of round wood multi-stage processing;

(1) The gear is driven to rotate by the rotating driving part, and under the cooperation of the gear and the rack, the rotating driving part drives the traveling seat to move horizontally, and the traveling seat drives the traveling frame to move horizontally, and the traveling wheel slides and supports the traveling seat. The walking frame is adjusted horizontally, the cutting piece is driven by the walking frame to move, and the cutting piece is used for multi-stage barrel breaking processing of the round wood, which realizes the automatic mobile multi-stage cutting and breaking processing of the round wood by the log barrel breaking machine, which is convenient for automatic movement. The length of the broken cylinder is adjusted and processed, which improves the convenience of multi-section processing of logs;

(2) The handle drives the threaded rod to rotate, and under the thread cooperation of the threaded rod and the threaded sleeve, the threaded rod moves horizontally, the threaded rod drives the support rod and the clamping head to move, and the clamping head clamps and fixes the log to realize The convenient clamping and fixing of logs by the log breaker improves the convenience of log clamping;

(3) The push rod is driven downward by the telescopic driver, and the cutting box is driven downward by the push rod, and the log is cut by the cutting piece. When the cutting is completed, the cutting piece is lifted to facilitate the next step. The cutting process of a section of logs realizes the convenient operation and control of the log breaker and improves the convenience of the log breaker operation.

Description of drawings

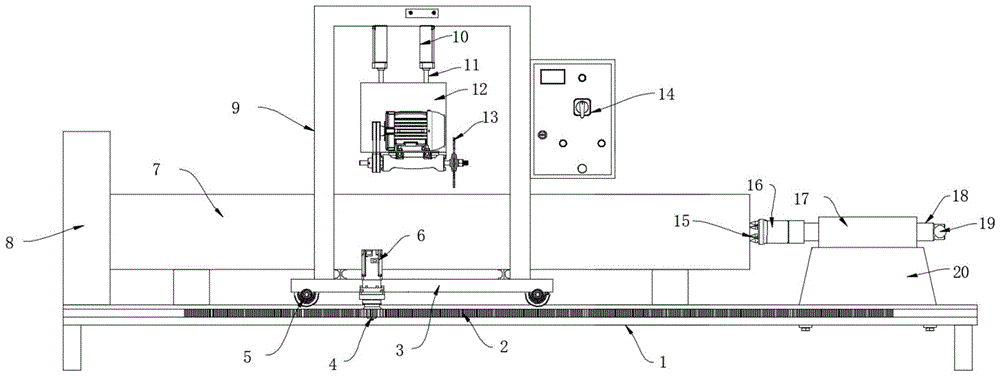

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

Fig. 2 is a side view sectional structure schematic diagram of the utility model;

Fig. 3 is the schematic diagram of the front view section structure of the threaded rod of the present utility model;

Fig. 4 is a schematic diagram of an enlarged cross-sectional structure at A in Fig. 2 of the present invention.

In the figure: 1. Base; 2. Rack; 3. Traveling seat; 4. Gear; 5. Traveling wheel; 6. Rotary drive; 7. Log; 8. Block; Telescopic driver; 11. Push rod; 12. Cutting box; 13. Cutting piece; 14. Control panel; 15. Clamp head; 16. Support rod; 17. Thread sleeve; Fixture seat.

detailed description

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the drawings in the embodiments of the present invention. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, an embodiment provided by the utility model: a log breaking machine for processing wood products, including a base 1 and a log 7, the top of the base 1 is provided with a log 7, and the log The top of the base 1 above the 7 is provided with a walking frame 9, and the bottom ends of the walking frame 9 on both sides of the log 7 are equipped with a walking seat 3, and the outer wall of the base 1 below the walking seat 3 is equipped with a rack 2. The bar 2 is fixedly connected with the base 1, and the bottom end of the walking seat 3 is provided with two groups of walking wheels 5, and the walking wheels 5 are all slidably connected with the base 1, and the walking wheels 5 play the role of sliding support. Rotary driving parts 6 are installed on the outer walls, and the rotating driving parts 6 play the role of power driving. The bottom end of the rotating driving parts 6 is equipped with a gear 4, and the gear 4 and the rack 2 are meshed with each other;

During use, the log 7 is placed on the top of the base 1, and the log 7 is cut and processed by the cutting piece 13. After the cutting is completed, the operating control panel 14 opens the rotary drive 6, and the rotary drive 6 drives the gear 4. Rotation, under the cooperation of the gear 4 and the rack 2, under the support of the base 1 to the rack 2, the rotating drive member 6 drives the traveling seat 3 to move horizontally, and the traveling seat 3 drives the traveling frame 9 to move horizontally, and the traveling wheel 5 Sliding support is carried out on the walking seat 3 to adjust the level of the walking frame 9. The cutting piece 13 is driven by the walking frame 9 to move, and the cutting piece 13 performs multi-stage cylinder breaking processing on the log 7. The driving part 6 is controlled, and the rotating driving part 6 is controlled by the operation control panel 14, which realizes the automatic mobile multi-section cutting and breaking processing of the log by the log breaking machine, facilitates the automatic movement to adjust the length of the broken barrel, and improves the roundness. The convenience of wood multi-stage processing;

Block 8 is installed on the base 1 top of log 7 one side, and clamp seat 20 is installed on the side of base 1 top away from block 8, and the top of clamp seat 20 is equipped with threaded sleeve 17, and the inside of threaded sleeve 17 is provided with Threaded rod 18 is arranged, and the two ends of threaded rod 18 all extend to the outside of threaded sleeve 17, and one end of threaded rod 18 is equipped with handle 19, and the other end of threaded rod 18 is equipped with support rod 16, and support rod 16 is close to log 7 One side of the clamp block head 15 is installed;

During use, the log 7 is placed on the top of the base 1, the log 7 is supported by the stopper 8, the handle 19 is rotated, the handle 19 drives the threaded rod 18 to rotate, and the threaded rod 18 and the threaded sleeve 17 are threaded. Next, the threaded rod 18 moves horizontally, the threaded rod 18 drives the support rod 16 and the clamping head 15 to move, and the clamping head 15 clamps and fixes the log 7, realizing the convenient clamping and fixing of the log by the log breaker. Improve the convenience of log clamping;

The inside of the walking frame 9 is provided with a cutting box 12, the cutting box 12 is slidably connected with the walking frame 9, the inside of the cutting box 12 is provided with a cutting piece 13, and the inside of the walking frame 9 above the cutting box 12 is equipped with four groups of telescopic drive parts 10, The telescopic driver 10 plays the role of power drive, the bottom of the telescopic driver 10 is equipped with a push rod 11, and the bottom of the push rod 11 is connected with the cutting box 12, and the outer wall of the walking frame 9 is equipped with a control panel 14. The output end of the control panel 14 is electrically connected to the input end of the telescopic drive member 10 and the rotary drive member 6;

During use, the telescopic driver 10 is opened by operating the control panel 14. Under the support of the walking frame 9, the telescopic driver 10 drives the push rod 11 to move downward, and the push rod 11 drives the cutting box 12 to move downward. Carry out cutting processing on the log 7, when the cutting is completed, the telescopic drive member 10 performs a reset operation to lift the cutting piece 13 to facilitate the cutting processing of the next segment of the log 7, realizing the convenient operation and control of the log breaking machine , which improves the convenience of log breaker operation.

When the embodiment of the present application is in use: firstly, the log 7 is placed on the top of the base 1, and the log 7 is cut and processed by the cutting piece 13. After the cutting is completed, the operating control panel 14 opens the rotary drive member 6, and the The rotation driving part 6 drives the gear 4 to rotate, and under the cooperation of the gear 4 and the rack 2, under the support of the base 1 to the rack 2, the rotation driving part 6 drives the traveling seat 3 to move horizontally, and the traveling seat 3 drives the traveling frame 9 moves horizontally, the walking wheels 5 slide and support the walking seat 3 to adjust the level of the walking frame 9, the cutting piece 13 is driven by the walking frame 9 to move, and the cutting piece 13 performs multi-stage cylinder breaking processing on the log 7, and then By placing the log 7 on the top of the base 1, the log 7 is supported by the block 8, the handle 19 is rotated, and the threaded rod 18 is driven by the handle 19 to rotate, and under the threaded cooperation of the threaded rod 18 and the threaded sleeve 17, The threaded rod 18 moves horizontally, and the threaded rod 18 drives the support rod 16 and the clamping head 15 to move, and the log 7 is clamped and fixed by the clamping head 15, and then the telescopic driver 10 is opened by operating the control panel 14. Under the support, the push rod 11 is driven to move downward by the telescopic driver 10, and the cutting box 12 is driven to move downward by the push rod 11, and the log 7 is cut and processed by the cutting piece 13. After the cutting is completed, the telescopic drive 10 is The reset operation is to lift the cutting piece 13 to facilitate the cutting of the next log 7 and to complete the use of the log breaker.

Claims (6)

1. A log breaker for wood product processing, comprising a base (1) and a log (7), characterized in that: the top of the base (1) is provided with a log (7), and the round The top of the base (1) above the log (7) is provided with a walking frame (9), and the bottom ends of the walking frame (9) on both sides of the log (7) are equipped with a walking seat (3). (3) Racks (2) are installed on the outer wall of the base (1) below, and the racks (2) are fixedly connected to the base (1). A set of traveling wheels (5), and the traveling wheels (5) are all slidably connected with the base (1), and the outer wall of the traveling seat (3) is equipped with a rotary drive (6), and the rotary drive (6) ) is equipped with a gear (4) at the bottom, and the gear (4) and the rack (2) mesh with each other. 2. A log breaker for wood product processing according to claim 1, characterized in that: a stopper (8) is installed on the top of the base (1) on one side of the log (7), and the A fixture seat (20) is installed on the side of the top of the base (1) away from the stopper (8). 3. A log breaker for wood product processing according to claim 2, characterized in that: a threaded sleeve (17) is installed on the top of the clamp seat (20), and the inside of the threaded sleeve (17) A threaded rod (18) is provided, and both ends of the threaded rod (18) extend to the outside of the threaded sleeve (17). 4. A log breaker for wood product processing according to claim 3, characterized in that: a handle (19) is installed at one end of the threaded rod (18), and a handle (19) is installed at the other end of the threaded rod (18) A support rod (16) is installed, and a clamp head (15) is installed on the side of the support rod (16) close to the log (7). 5. A log barrel breaker for wood product processing according to claim 1, characterized in that: the inside of the walking frame (9) is provided with a cutting box (12), and the inside of the cutting box (12) A cutting piece (13) is provided, and four sets of telescopic driving parts (10) are installed inside the walking frame (9) above the cutting box (12), and push rods are installed at the bottom ends of the telescopic driving parts (10) (11), and the bottom ends of the push rod (11) are all connected with the cutting box (12). 6. A log breaker for wood product processing according to claim 1, characterized in that: a control panel (14) is installed on the outer wall of the walking frame (9), and the control panel (14) The output end is electrically connected with the input end of the rotary driving member (6).
