Abstract

The utility model relates to the technical field of sorting equipment, in particular to a sorting machine with a sorting and connecting structure. There is a motor at the center of the surface, and there are a number of careening plates at the bottom of the sorting shaft. The sieve plate is placed in the chute to slide and connect with the sieve plate, and the feed hopper is clamped on the slot of the feed hopper; Sorting machine, the user pours plastic particles from the hopper, starts the motor to make the plastic particles fall through the sieve plate into the discharge hopper, and slides into the receiving box along the discharge ramp. After the screening is completed, the rotation Move the equipment to the top of another material receiving box, pull out the sieve plate, and make the waste slide into the material receiving box along the discharge inclined block. The size of the material receiving box can be selected or increased according to the actual situation. This design has changed the traditional plastic Particle sorting equipment has the disadvantage of being cumbersome to undertake, which is convenient for users to quickly sort and transfer materials.

Description

A sorting machine with sorting and receiving structure

technical field

The utility model relates to the technical field of sorting equipment, in particular to a sorting machine with a sorting and connecting structure.

Background technique

Plastic particles refer to granular plastics, which are generally divided into more than 200 types and can be subdivided into thousands of types. Common plastic particles include general-purpose plastics, engineering plastics, and special plastics, while modified plastic particles refer to physical and chemical methods. The shape or properties of the material, the final plastic particles; the sorting equipment is the equipment for grading and screening the products;

The utility model patent with the authorized notification number CN211515088U discloses a sorting device for modified plastic particles, including a base plate, columns are arranged on both sides of the top, and a plurality of card slots are opened on the top of the column, and the inner middle of the column is fixed. There is a sorting sieve plate, the outer side of the sorting sieve plate is provided with a protective side plate, the inner side of the column is provided with a loading groove and a loading notch, and both sides of the receiving box are fixedly connected with a loading rod, and one end of the loading rod is located at Inside the loading slot, blocks are fixed on both sides of the lower surface of the mounting plate, and a servo motor is installed on the mounting plate. The output end of the servo motor is keyed to a drive shaft, and multiple smoothing paddles are installed on the bottom of the drive shaft. ;

Although this technical solution has the advantages of strong flexibility and high sorting efficiency, the way to accept the receiving boxes is relatively cumbersome. In view of this, we propose a sorting machine with a sorting and receiving structure.

Utility model content

The purpose of this utility model is to provide a sorting machine with a sorting and receiving structure to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A sorting machine with a sorting and receiving structure, including a base, a discharge hopper is rotatably connected to the base, a discharge slant block is arranged inside the discharge hopper, and an equipment shell is clamped on the top of the discharge hopper. The top of the equipment shell is clamped with a top cover, and the center of the top surface of the top cover is provided with a motor, and the coaxial key of the motor is connected with a sorting shaft. A sieve plate placement frame is provided at the bottom, and a sieve plate placement chute for slidingly inserting the sieve plate is provided between the bottom of the equipment casing and the bottom surface of the sieve plate placement frame. A feed hopper is clamped on the slot of the feed hopper.

Preferably, a turning rail is provided on the base, and a turning groove is provided at the bottom of the hopper, and the turning groove is rotatably connected with the turning rail.

Preferably, pull holes are provided on both ears of the sieve plate protruding.

Preferably, a material receiving box is provided below the outlet of the hopper, and the size of the material receiving box is larger than the size of the outlet of the hopper.

Preferably, handles are provided at the middle positions of the left and right sides of the discharge hopper.

Preferably, the length of the smoothing plate is adapted to the radius of the inner wall of the device housing.

Preferably, the slot size of the sieve plate placement chute is adapted to the sieve plate.

Preferably, a feed inlet is provided at the bottom of the feed hopper, and the feed inlet matches the size of the slot of the feed hopper.

Compared with the prior art, the beneficial effect of the utility model is: the sorting machine with a sorting and holding structure, the user pours the plastic particles from the feeding hopper, and starts the motor to drive the sorting shaft to drive the smoothing plate to rotate to achieve The standard plastic particles fall through the sieve plate into the discharge hopper, and slide into the material receiving box along the discharge inclined block. After the screening is completed, pull the handle to turn the equipment to the top of another material receiving box, and the sieve plate is removed from the sieve The board is placed in the chute and pulled out, so that the waste material slides into the receiving box along the discharge inclined block, and there is no need to move back and forth to replace the receiving box of standard products and waste products. The size of the receiving box can be selected or increased according to the actual situation. Quantity, this design has changed the shortcomings of traditional plastic particle sorting equipment which is relatively cumbersome, and it is convenient for users to quickly sort and transfer materials.

Description of drawings

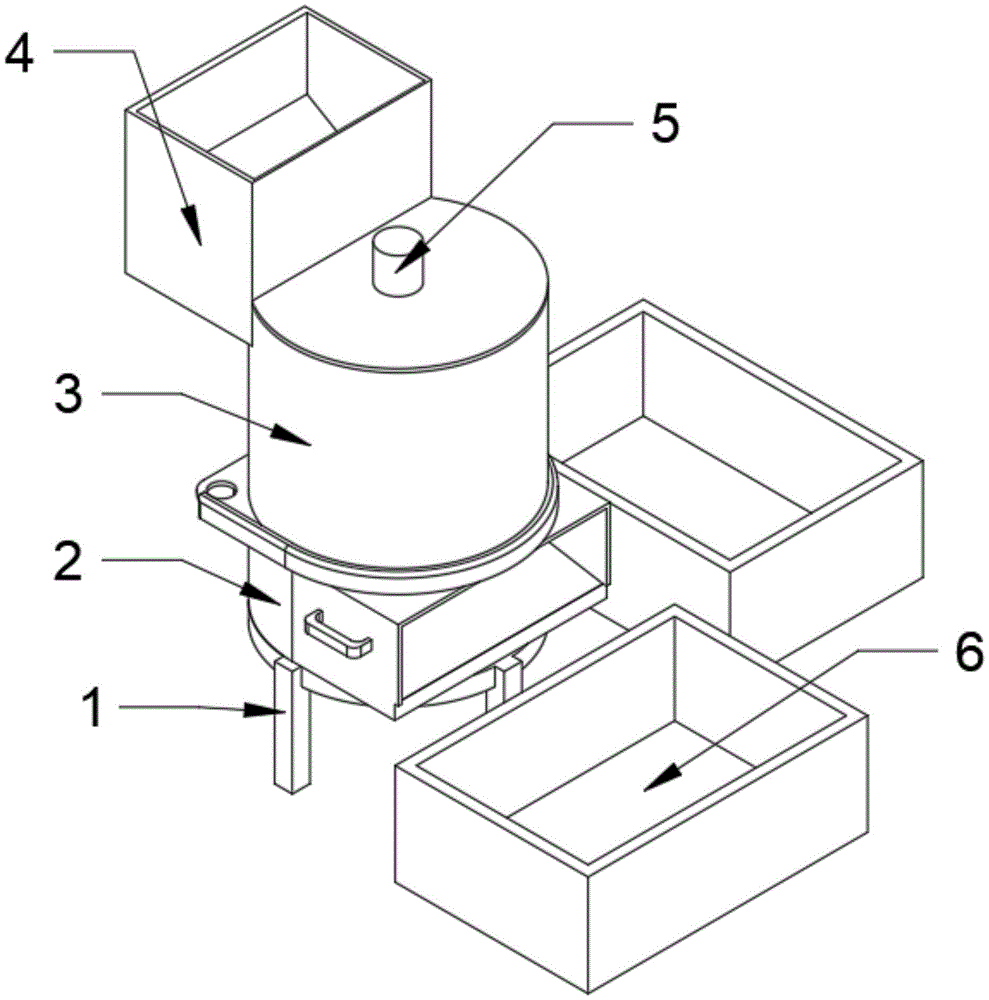

Fig. 1 is the overall structure schematic diagram of utility model;

Fig. 2 is the schematic diagram of the feed hopper structure in the utility model;

Fig. 3 is a schematic diagram of the explosion structure of the sorting equipment in the utility model;

Fig. 4 is the structural representation of the discharge hopper in the utility model;

Fig. 5 is the structural representation of the discharge hopper in the utility model;

Fig. 6 is a schematic diagram of the base structure in the utility model.

In the figure: 1, base; 11, transfer rail; 2, discharge hopper; 21, discharge inclined block; 22, transfer groove; 23, handle; 3, equipment shell; 31, top cover; 32, sorting shaft; 321, 33, sieve plate; 331, pull hole; 34, feed hopper slotting; 35, sieve plate placement frame; 351, sieve plate placement chute; 4, feed hopper; 41, feed port; 5, Motor; 6. Material receiving box.

detailed description

The technical solution in the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the utility model. Apparently, the utility model described is only a part of the utility model, rather than all the utility models. Based on the utility model in the utility model, all other utility models obtained by persons of ordinary skill in the art without making creative work belong to the scope of protection of the utility model.

In describing the present invention, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", Orientation indicated by "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", etc. Or the positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred device or element must have a specific orientation, be configured in a specific orientation, and operation, and therefore cannot be construed as a limitation of the utility model.

Please refer to Figure 1-6, the utility model provides a technical solution:

A sorting machine with a sorting and receiving structure, including a base 1, a discharge hopper 2 is rotatably connected to the base 1, a discharge slant block 21 is arranged inside the discharge hopper 2, and an equipment shell 3 is clamped on the top of the discharge hopper 2. The top of the housing 3 is clamped with a top cover 31, and the center of the top surface of the top cover 31 is provided with a motor 5. The motor 5 is coaxially connected with a sorting shaft 32, and the bottom of the sorting shaft 32 is provided with a number of flattening plates 321. A sieve plate placement frame 35 is provided at the bottom, a sieve plate placement chute 351 for slidingly inserting the sieve plate 33 is provided between the bottom of the equipment casing 3 and the inner bottom surface of the sieve plate placement frame 35, and a feed hopper opening is provided at the top of the equipment casing 3. Groove 34, the feed hopper slot 34 is clipped with the feed hopper 4, so that the sorting shaft 32 drives the smoothing plate 321 to rotate so that the plastic particles that have reached the standard pass through the sieve plate 33 and fall into the discharge hopper 2, and along the outlet Material inclined block 21 slides out.

In this embodiment, the base 1 is provided with a turning rail 11, and the bottom of the discharge hopper 2 is provided with a turning groove 22, and the turning groove 22 is connected to the turning rail 11 in rotation, so that the discharging hopper 2 can rotate along the turning rail 11, thereby changing the output of the discharging hopper 2. The direction of the mouth.

In this embodiment, pull holes 331 are provided on both protruding ears of the sieve plate 33 to facilitate the placement and removal of the sieve plate 33 .

In addition, being equipped with a plurality of sieve plates 33 with different sieve hole sizes can make the sorting machine suitable for sorting plastic particles with different sizes and specifications.

In this embodiment, a material receiving box 6 is provided below the outlet of the hopper 2, and the size of the material receiving box 6 is larger than the size of the outlet of the hopper 2, and the independently provided material receiving box 6 can improve the working efficiency of the user. , and prevent plastic granules from falling outside because of the too small size of the receiving box 6 to cause waste.

Furthermore, handles 23 are provided at the middle positions on the left and right sides of the discharge hopper 2, so that the rotation of the equipment is more convenient.

In this embodiment, the length of the smoothing plate 321 is adapted to the radius of the inner wall of the device housing 3, so that all particles can be stirred when the smoothing plate 321 rotates.

In this embodiment, the slot size of the sieve plate placing chute 351 matches the sieve plate 33 to increase the overall sealing performance and prevent plastic particles from being stuck in the gap between the sieve plate 33 and the sieve plate placing chute 351 .

In this embodiment, a feeding port 41 is provided at the bottom of the feeding hopper 4 , and the size of the feeding port 41 matches the size of the slot 34 of the feeding hopper, so as to prevent a part of plastic particles from accumulating in the feeding hopper 4 .

When the sorting machine of the utility model with a sorting and connecting structure is in use, the user pours the plastic particles from the feed hopper 4, and starts the motor 5 to make the sorting rotating shaft 32 drive the caressing plate 321 to rotate so that the plastic particles reaching the standard pass through. The sieve plate 33 falls into the discharge hopper 2, and slides into the material receiving box 6 along the discharge inclined block 21. After the screening is completed, pull the handle 23 to rotate the device to the top of another material receiving box 6, and the sieve plate 33 Pull it out from the sieve plate placement chute 351, so that the waste slides into the material receiving box 6 along the discharge inclined block 21. The size of the material receiving box 6 can be selected or increased according to the actual situation. This design changes the traditional plastic Particle sorting equipment has the disadvantage of being cumbersome to undertake, which is convenient for users to quickly sort and transfer materials.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above utility model, and the above utility model and description are only preferred examples of the utility model, and are not used to limit the utility model, without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (8)

1. A sorting machine with a sorting and receiving structure, comprising a base (1), characterized in that: the base (1) is rotatably connected with a discharge hopper (2), and the inside of the discharge hopper (2) is provided with The discharge inclined block (21), the top of the discharge hopper (2) is clamped with the equipment casing (3), the top of the equipment casing (3) is clamped with a top cover (31), and the top cover (31) is A motor (5) is arranged at the center of the surface, and the coaxial key of the motor (5) is connected with a sorting shaft (32), and the bottom end of the sorting shaft (32) is provided with some caressing plates (321). A sieve plate placement frame (35) is provided at the bottom of the housing (3), and a sieve plate placement chute for slidingly inserting the sieve plate (33) is provided between the bottom of the equipment housing (3) and the inner bottom surface of the sieve plate placement frame (35) (351), the top of the equipment casing (3) is provided with a feed hopper slot (34), and the feed hopper slot (34) is clamped with a feed hopper (4). 2. The sorting machine with classification and receiving structure according to claim 1, characterized in that: the base (1) is provided with a transfer rail (11), and the bottom of the discharge hopper (2) is provided with a transfer slot ( 22), the turning groove (22) is rotationally connected with the turning rail (11). 3. The sorting machine with sorting and receiving structure according to claim 1, characterized in that: the sieve plate (33) is provided with pull holes (331) on both protruding ears. 4. The sorting machine with classification and receiving structure according to claim 1, characterized in that: a material receiving box (6) is provided below the outlet of the hopper (2), and the material receiving box (6) ) is larger than the size of the outlet of the hopper (2). 5. The sorting machine with sorting and receiving structure according to claim 1, characterized in that: handles (23) are provided at the middle positions of the left and right sides of the discharge hopper (2). 6. The sorting machine with sorting and receiving structure according to claim 1, characterized in that: the length of the smoothing plate (321) is adapted to the radius of the inner wall of the equipment casing (3). 7. The sorting machine with a sorting and receiving structure according to claim 1, characterized in that: the slot size of the sieve plate placement chute (351) is adapted to the sieve plate (33). 8. The sorting machine with classification and receiving structure according to claim 1, characterized in that: the bottom of the feed hopper (4) is provided with a feed port (41), and the feed port (41) Adapt to the size of the feed hopper slot (34).
