CN218213406U - Meter connecting device for electric energy meter detection - Google Patents

Abstract

The utility model relates to a meter connection device for electric energy meter detection, which comprises an operation panel, a base provided on one side of the operation panel, a mounting seat provided on the base, and a mounting seat provided on one side of the mounting seat. The first probe set, the base, the mounting seat and the operation panel enclose a housing cavity with an opening facing the other side of the operation panel; the other side of the operation panel is provided with a storage slot. The meter connection device of the utility model can be applied to the detection of different versions of electric energy meters, which facilitates the detection of electric energy meters when the old and new electricity information collection terminals are in the stage of interactive use; there is no need to purchase a large number of new detection devices, The waste of equipment, capital and energy is avoided.

Description

A meter connection device for electric energy meter detection

technical field

The utility model relates to the technical field of detection devices for electricity information collection terminals, in particular to a meter connection device for electric energy meter detection.

Background technique

The energy controller in the station area, that is, the modular collection terminal, is designed to further improve the stability and practical level, remove redundant information, facilitate installation and operation and maintenance, and design the power consumption information collection terminal into multiple modules with independent functions The structural type, through the combination of modules, has different function expansions, and improves the reliability of terminal operation through a unified operating system, forming a core product of a new generation of power consumption information collection system.

Due to the relatively short launch time of the station area energy controller, the old and new electricity consumption information collection terminals are in the stage of interactive use, and the new station area energy controller is still in the process of continuous updating and optimization. Once a large adjustment is made to the energy controller of the station area in the subsequent optimization process, the newly purchased detection device will be idle and discarded because it cannot function, resulting in a waste of funds and resources.

Utility model content

The purpose of the utility model is to solve the above problems, and to provide a meter connection device for electric meter detection based on an energy controller.

In order to solve the problems of the technologies described above, the technical solution adopted by the utility model is as follows:

A meter connection device for electric energy meter detection, suitable for electric meter detection based on energy controllers, which includes an operation panel, a base on one side of the operation panel, a mounting seat on the base, and a The first probe group on one side of the mounting base, the base, the mounting base and the operation panel enclose a housing cavity with an opening facing the other side of the operation panel; the other side of the operation panel With storage slot.

Preferably, an installation frame is provided at the position corresponding to the operation panel and the base, and the base is detachably connected to the installation frame.

Preferably, a second probe assembly is provided in the accommodating cavity, and the second probe assembly includes a second probe group arranged in the same direction as the first probe assembly.

Preferably, the meter connection device further includes a sliding assembly arranged on the other side of the operation panel and mated with the storage slot, the sliding assembly includes a slide slot provided on the storage slot, a set A push block vertically arranged in the storage slot and the chute, a supporting plate slidably connected in the chute and connected with the push block, and arranged on the push block and matched with the chute The connected slider; the side of the supporting plate close to the mounting seat is provided with a stopper, and the supporting plate is provided with a corresponding groove corresponding to the chute, and the sliding block passes through the chute and the chute at the same time. corresponding slot settings described above.

Preferably, the other side of the operation panel is provided with a drive assembly for driving the sliding assembly to move, the drive assembly includes a drive motor and an electric push rod connected to the output end of the drive motor, the electric The push rod is connected with the push block.

Preferably, the pallet is provided with a first limiting slot parallel to the sliding direction of the pallet, and the storage slot is provided with a first limiting block that cooperates with the first limiting slot .

Preferably, the bottom surface of the pallet is provided with a second limiting block, and the storage slot is provided with a second limiting groove that is cooperatively connected with the second limiting block.

Preferably, the plane of the pallet, the top surfaces of the first limiting block and the slider are flush with the top surface of the operation panel.

Preferably, a limit post is provided on an edge area of the storage slot parallel to the extending direction of the first probe set.

Preferably, a flexible anti-collision layer is provided on the side of the limiting column facing the storage slot.

The beneficial effects of the utility model at least include:

The meter connecting device of the present invention includes a first probe group and a second probe set arranged in the accommodating cavity surrounded by the base, the mounting seat and the operation panel with an opening facing the other side of the operation panel. Probe assembly, you can choose the appropriate probe assembly according to the version model of the electric energy meter to be tested. When the watt-hour meter to be tested is an watt-hour meter based on an energy controller, select the first probe set; Two probe sets can be used for detection.

The meter connection device described in the utility model can be applied to the detection of different versions of electric energy meters, which facilitates the detection of electric energy meters when the old and new electricity information collection terminals are in the stage of interactive use; there is no need to purchase a large number of new detection devices, avoiding Reduced waste of equipment, funds and energy.

Description of drawings

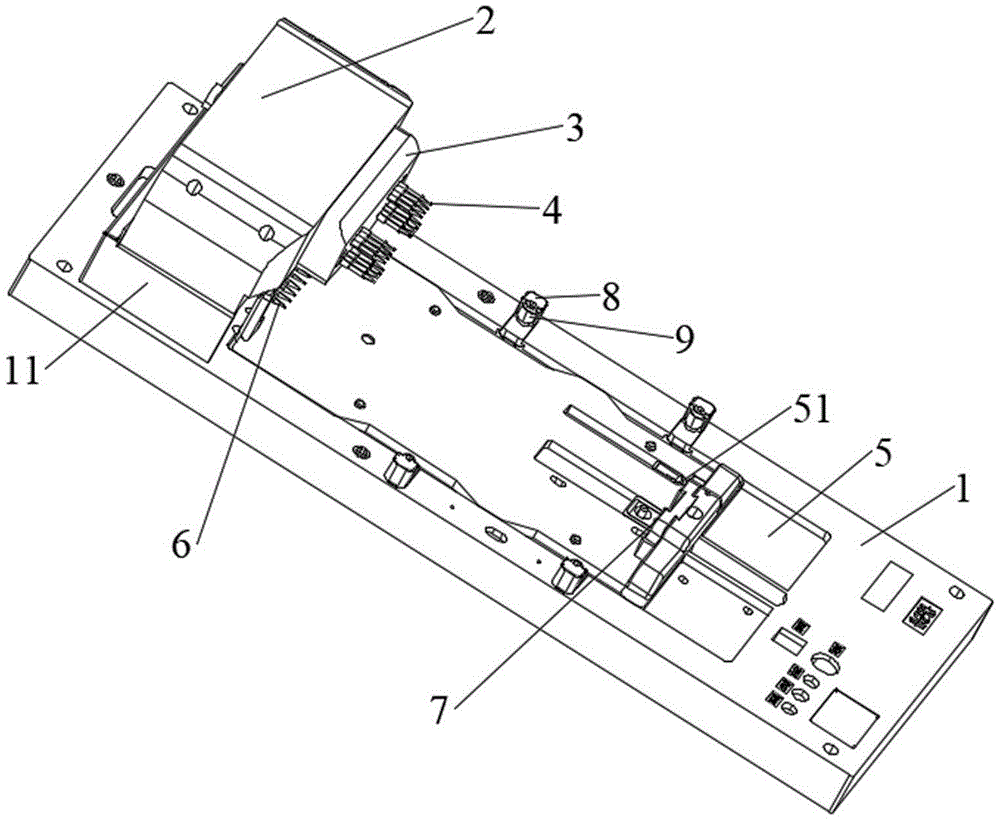

Fig. 1 is the schematic diagram of the meter connection device that the electric energy meter detection of the present utility model is used;

Figure 2 is a schematic diagram of the connection between the mounting frame and the mounting seat shown in Figure 1;

Figure 3 is a schematic diagram of the connection of the sliding assembly;

Fig. 4 is a schematic diagram of the use state of the meter connecting device of the present invention.

Among them, 1 is the operation panel, 11 is the installation frame, 2 is the base, 3 is the installation base, 4 is the first probe set, 5 is the storage slot, 51 is the first limit block, 6 is the second probe set, 7 is a sliding assembly, 71 is a chute, 72 is a push block, 73 is a supporting plate, 731 is a corresponding groove, 732 is a first limit groove, 74 is a slider, 75 is a stopper, 8 is a limit column, 9 is a flexible anti-collision layer, and 10 is an electric energy meter to be tested.

detailed description

In order to facilitate the understanding of the utility model, the utility model will be described more fully below with reference to the relevant drawings. Preferred embodiments of the utility model are provided in the accompanying drawings. However, the invention can be embodied in many different forms and is not limited to the embodiments described herein. On the contrary, the purpose of providing these embodiments is to make the understanding of the disclosure of the present utility model more thorough and comprehensive.

It should be noted that when an element is referred to as being “fixed” to another element, it can be directly on the other element or there can also be an intervening element. When an element is referred to as being "connected to" another element, it can be directly connected to the other element or intervening elements may also be present.

In the present application, descriptions such as "first", "second" and so on are used for description purposes only, and should not be understood as indicating or implying their relative importance or implicitly indicating the quantity of indicated technical features.

Example

Fig. 1 is the schematic diagram of the meter connecting device used for electric energy meter detection of the present utility model, with reference to shown in Fig. 1, a kind of meter connecting device used for electric energy meter detection, can be used for the electric energy meter detection based on energy controller, and it comprises operation panel 1. The base 2 provided on one side of the operation panel 1, the mounting seat 3 provided on the base 2, and the first probe set 4 provided on the side of the mounting seat 3, the first probe The needle group 4 extends from the mounting seat 3 toward the other side of the operation panel 1, and the base 2, the mounting seat 3 and the operation panel 1 enclose an opening facing the other side of the operation panel 1 Accommodating cavity; the other side of the operation panel 1 is provided with a storage slot 5 . The arrangement of the first probe set 4 is suitable for the electric energy meter based on the energy controller. Further, the base 2 is arranged on one side in the longitudinal direction of the operation panel 1; the first probe set 4 is arranged on the side of the mounting seat 3 facing the storage slot 5, and the storage slot 5 is arranged on the other side of the operation panel 1 in the longitudinal direction.

Figure 2 is a schematic diagram of the connection between the installation frame and the mounting seat shown in Figure 1, referring to Figures 1 and 2, the operation panel 1 is provided with an installation frame 11 corresponding to the base, and the base 2 is detachably connected to on the mounting frame 11. Further, the installation frame 11 is perpendicular to the plane of the operation panel 1 and the installation frame 11 is U-shaped with an opening facing the other side of the operation panel 1; specifically, the installation frame 11 is U-shaped Or type.

Referring to FIG. 1 , a second probe assembly is provided in the accommodating cavity, and the second probe assembly includes a second probe set 6 arranged in the same direction as the first probe set 4 . In the embodiment of the present utility model, the second probe group 6 is adapted to the original version of the electric energy meter, and the second probe group 6 is included in the accommodating cavity, that is, the second probe group The projection of the end of 6 to the operation panel 1 covers the projection area of the end of the first probe set 4 to the operation panel 1 . When in use, when an energy controller-based electric energy meter to be tested is connected to the first probe set 4, the second probe set 6 avoids the first needle set and will not interfere with the electric energy meter to be tested. detection, when it is necessary to replace the electric energy meter with the original version, the installation seat 3 can be removed from the base 2. As an option, the setting position of the second probe assembly is not limited to the above-mentioned preferred method, the second probe set can be arranged outside the accommodating cavity, as long as the second probe assembly is not in contact with the The first probe group interferes with each other so that the first probe group and the second probe group can independently detect different types of electric energy meters to be tested.

Referring again to FIG. 1 , the meter connection device further includes a sliding assembly 7 arranged on the other side of the operation panel 1 and mated with the storage slot 5 . FIG. 3 is a schematic diagram of the connection of the sliding assembly. Referring to FIG. The vertically arranged push block 72, the slide block 74 that is arranged on the push block 72 and is connected with the chute 71, and the supporting plate 73 that is slidably connected in the chute 71 and connected with the push block 72; The supporting plate 73 is provided with a block 75 on the side close to the mounting base 3 to prevent the electric energy meter to be measured from protruding from the supporting plate 73 and improve the stability of the electric energy meter on the supporting plate 73 . As an option, in order to make the watt-hour meter to be tested more stably arranged on the push plate, the slider 74 and the push plate can be provided with a clamping structure that is compatible with the watt-hour meter to be tested. . Further, the chute 71 is arranged perpendicular to the extending direction of the first probe set 4 . The support plate 73 is provided with a corresponding groove 731 corresponding to the chute 71, the slider 74 is set through the chute 71 and the corresponding groove 731 at the same time, and the corresponding groove 731 is arranged on the support plate 73 is away from the edge area of the side of the stopper 75 .

The other side of the operation panel 1 is provided with a drive assembly for driving the sliding assembly 7 to move, the drive assembly includes a drive motor and an electric push rod connected to the output end of the drive motor, the electric push rod The rod is connected with the push block 72 . The electric push rod is preferably a telescopic rod. The electric push rod can be replaced by a threaded rod that is threadedly connected with the slider 74 .

3, the supporting plate 73 is provided with a first limiting groove 732 parallel to the sliding direction of the supporting plate 73, and the storage slot 5 is provided with the first limiting groove 732. 732 fit the first limit block 51. The first limiting groove 732 is arranged parallel to the storage groove 5, and the length of the first limiting groove 732 is equal to the maximum sliding amount of the supporting plate 73, that is, the length of the first limiting groove 732 It is equal to the length difference between the storage slot 5 and the supporting plate 73 . It should be noted that the "equal" mentioned here not only includes the situation that the length of the first limiting groove 732 is completely equal to the difference between the length of the storage groove 5 and the supporting plate 73, but also includes the situation that the length of the first limiting groove 732 The length of a limiting slot 732 is greater than the case where the length difference between the storage slot 5 and the supporting plate 73 is 0.1-1.5 mm.

The bottom surface of the supporting plate 73 is provided with a second limiting block, and the storage slot 5 is provided with a second limiting groove which is matched and connected with the second limiting block. The length of the second limiting slot is equal to that of the first limiting slot 732 .

The plane of the support plate 73 , the top surfaces of the first limiting block 51 and the sliding block 74 are flush with the top surface of the operation panel 1 . It should be noted that the top surface mentioned in the embodiment of the present utility model refers to the side on which the base 2 is provided.

Referring to FIG. 3 , a limit post 8 is provided on the edge area of the storage slot 5 parallel to the extension direction of the first probe set 4 .

A flexible anti-collision layer 9 is provided on the side of the limit post 8 facing the storage slot 5 . The flexible material layer is made of foam material or rubber material.

Fig. 4 is the use status schematic diagram of the meter connection device of the present utility model, with reference to shown in Fig. 4, during use, the watt-hour meter 10 to be tested is arranged on the supporting plate 73, and now the watt-hour meter 10 to be tested is based on energy control. The electric energy meter of the device, the driving assembly pushes the push block 72 to move towards the stopper 75, and the push block 72 abuts against the electric energy meter 10 to be tested, so that both sides of the electric energy meter 10 to be tested are respectively connected to the push block 72 Abut against the block 75, and then the push block 72 continues to slide along the chute 71 under the drive of the drive assembly, and drives the supporting plate 73 to move in the storage slot 5, and then drives the electric energy meter 10 to be tested to approach the first probe. The needle set 4 moves until the first probe set 4 is inserted into the detection hole of the electric energy meter 10 to be tested.

When the energy meter under test 10 is the original version, the base 2 is removed from the mounting frame 11 to expose the first probe assembly, so that the second probe set 6 can be connected to the energy meter under test 10 . The meter connecting device described in the utility model can be applied to electric energy meters of different versions at the same time.

The technical features of the above embodiments can be combined arbitrarily. To make the description concise, all possible combinations of the technical features in the above embodiments are not described. However, as long as there is no contradiction in the combination of these technical features, they should be It is considered to be within the range described in this specification.

The above examples only express the preferred implementation of the utility model, and the description thereof is more specific and detailed, but it should not be interpreted as limiting the scope of the utility model patent. It should be noted that those skilled in the art can make several modifications and improvements without departing from the concept of the present invention, and these all belong to the protection scope of the present invention. Therefore, the scope of protection of the utility model patent should be based on the appended claims.

Claims (10)

1. A meter connection device for electric energy meter detection, characterized in that: it includes an operation panel, a base located on one side of the operation panel, a mounting seat provided on the base, and a mounting seat located on the mounting seat The first probe group on one side, the base, the mounting seat and the operation panel enclose an accommodating cavity with an opening facing the other side of the operation panel; the other side of the operation panel is provided with a storage slot . 2 . The meter connection device according to claim 1 , wherein a mounting frame is provided at a position corresponding to the operation panel and the base, and the base is detachably connected to the mounting frame. 3 . 3. The meter connecting device according to claim 1, characterized in that: a second probe assembly is provided in the accommodating cavity, and the second probe assembly includes a probe set in the same direction as the first probe assembly the second probe set. 4. The meter connecting device according to claim 1, characterized in that: the meter connecting device further comprises a sliding assembly arranged on the other side of the operation panel and cooperatingly connected with the storage slot, the sliding The assembly includes a chute arranged on the storage slot, a push block arranged in the storage slot and perpendicular to the chute, a supporting plate slidably connected in the chute and connected with the push block, and A slider arranged on the push block and connected with the chute; a stopper is provided on the side of the supporting plate close to the mounting seat, and a corresponding position is provided on the supporting plate and the chute. slot, and the slider is set through the sliding slot and the corresponding slot at the same time. 5. The meter connecting device according to claim 4, characterized in that: the other side of the operation panel is provided with a drive assembly for driving the sliding assembly to move, the drive assembly includes a drive motor and a An electric push rod connected to the output end of the driving motor, and the electric push rod is connected with the push block. 6. The meter connecting device according to claim 4, characterized in that: the supporting plate is provided with a first limiting groove parallel to the sliding direction of the supporting plate, and the storage groove is provided with a The first limiting block matched with the first limiting groove. 7. The meter connection device according to claim 4, characterized in that: the bottom surface of the supporting plate is provided with a second limit block, and the storage slot is provided with a second limit block that is connected with the second limit block. limit slot. 8. The meter connection device according to claim 4, characterized in that: the plane of the support plate, the top surface of the first limit block and the slider are flush with the top surface of the operation panel. 9 . The meter connection device according to claim 1 , wherein a limit post is provided on an edge area of the storage slot parallel to the extension direction of the first probe set. 10 . 10. The meter connection device according to claim 9, characterized in that: a flexible anti-collision layer is provided on the side of the limiting post facing the storage slot.
