Abstract

The utility model belongs to the technical field of auxiliary tools for sintering machines, and in particular relates to a wheel failure judgment device for a sintering machine table, which includes an outer layer clamping groove and an inner layer clamping groove, and a connecting piece for connecting the outer layer clamping groove and the inner layer clamping groove The outer layer card slot and the inner layer card slot are arc-shaped, and the ends of the outer layer card slot and the inner layer card slot are connected and fixed by connecting pieces, the outer layer card slot is adapted to the outer edge of the trolley wheel, and the inner layer The draw-in groove is compatible with the inner edge of the platform wheel, the middle part of the draw-in groove of the outer layer is connected with a connecting rod, and the end of the connecting rod is connected with a handle. Through the double-layer card slot on the platform wheel, you can quickly judge whether the platform wheel is loose by pulling the handle, which replaces the way of manually contacting the platform wheel to judge the fault, making the operator safer and more efficient during the operation. The judging device has been widely used in the sintering production of the company after being made, and is used to judge the running status of the wheels of the sintering machine, and the actual effect is good.

Description

A sintering machine wheel fault judgment device

technical field

The utility model belongs to the technical field of sintering machine auxiliary tools, and in particular relates to a wheel failure judgment device for a sintering machine table.

Background technique

At present, iron and steel smelting is mainly based on long-process ironmaking, that is, sintering→blast furnace→converter→steel rolling. The raw materials for blast furnace ironmaking are mainly sinter, pellets and natural lump ore. Sinter is a kind of artificial lump ore. , the production process mainly uses a belt sintering machine. The working environment of the sintering machine has the characteristics of high temperature and high dust. Due to the continuity of sintering production, the wheels of the platform running in the high temperature and high dust environment for a long time will fall off and stop. The sintering machine caused an interruption in production. In order to ensure the working efficiency of the sintering machine, in addition to regular oiling and lubrication of the wheels of the sintering machine, iron and steel enterprises generally rely on manual shaking of the wheels of the sintering machine to judge whether the bearings are shaking, and then judge the running status of the wheels of the sintering machine. Manually turning the wheel of the table brings a greater potential safety hazard.

Contents of the invention

The purpose of the utility model is to provide an easy-to-operate, safe and efficient sintering machine wheel fault judging device to replace the way of manual fault judgment by manually touching the wheel of the sintering machine.

The technical solution adopted by the utility model to solve the technical problem is: a wheel fault judgment device for sintering machine, including the outer layer card slot and the inner layer card slot, and the connection for connecting the outer layer card slot and the inner layer card slot parts; the outer layer card slot and the inner layer card slot are both arc-shaped, and the ends of the outer layer card slot and the inner layer card slot are connected and fixed by connecting pieces, the outer layer card slot is adapted to the outer edge of the trolley wheel, and the inner layer card slot The layer card slot is compatible with the inner edge of the platform wheel, the middle part of the outer layer card slot is connected with a connecting rod, and the end of the connecting rod is connected with a handle.

Further, the outer layer card slot and the inner layer card slot are located on different planes, the outer layer card slot is located on the same plane as the connecting rod and the handle, and the distance between the outer layer card slot and the inner layer card slot is the same as that between the outer edge of the trolley wheel and the The distance between the inner edges is the same.

Further, the outer layer card slot, the inner layer card slot, and the connecting piece are welded and connected, or can be integrally formed and designed.

The utility model has the following beneficial effects: the fault judging device of the utility model is stuck on the wheel of the platform through the double-layer card slot, and the handle can be quickly judged whether the wheel of the platform is loose, which replaces the way of manually contacting the wheel of the platform to judge the fault. It makes the operation process of workers safer and more efficient. The fault judging device of the utility model has been widely used in the sintering production of the company after being made, and is used to judge the running state of the wheels of the sintering machine, and the actual effect is good.

Description of drawings

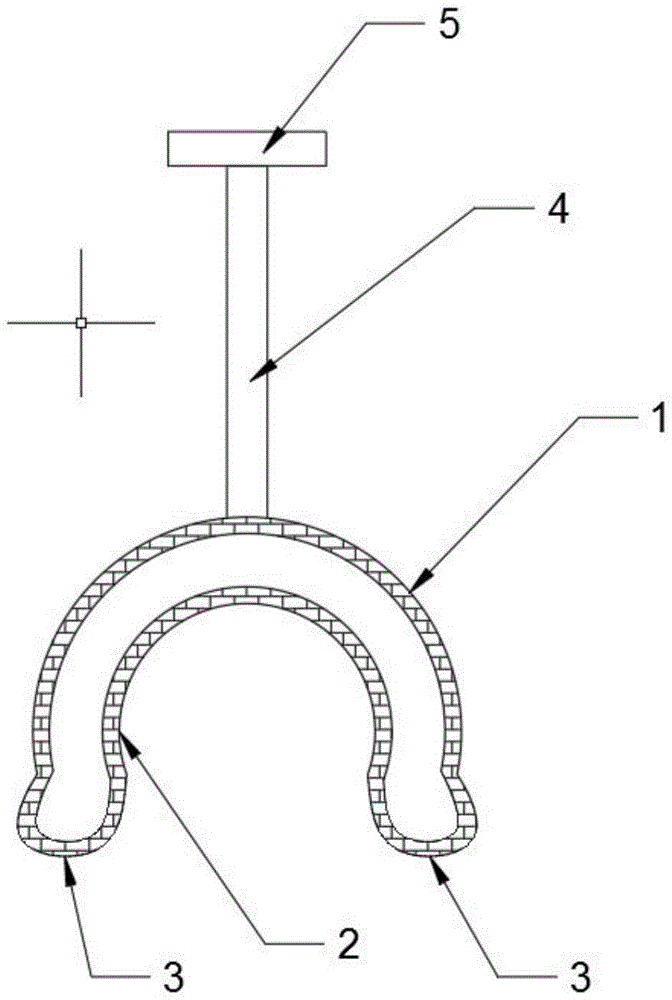

Fig. 1 is a structural schematic diagram of the wheel fault judgment device of the sintering machine table of the present invention.

Fig. 2 is an effect diagram of the utility model of the sintering machine wheel fault judging device.

In the figure, 1. Outer card slot, 2. Inner card slot, 3. Connector, 4. Connecting rod, 5. Handle, 6. Table wheel, 7. Outer edge, 8. Inner edge.

detailed description

Now in conjunction with accompanying drawing, the utility model is described in further detail.

As shown in Figures 1 and 2, a device for judging a wheel fault of a sintering machine includes an outer layer groove 1 and an inner layer groove 2, and a connecting piece 3 for connecting the outer layer groove 1 and the inner layer groove 2 The outer layer card slot 1 and the inner layer card slot 2 are arc-shaped, the outer layer card slot 1 and the inner layer card slot 2 are located on different planes, and the ends of the outer layer card slot 1 and the inner layer card slot 2 are connected by Part 3 is welded and fixed, the outer card groove 1 is adapted to the outer edge 7 of the platform wheel 6, the inner layer card groove 2 is adapted to the inner edge 8 of the platform wheel 6, and the middle part of the outer layer card groove 1 is connected with a connecting rod 4, The end of the connecting rod 4 is connected with a handle 5 , and the outer card slot 1 is located on the same plane as the connecting rod 4 and the handle 5 .

The outer layer card slot, the inner layer card slot, and the connecting parts are all made of steel bars. According to the size of the wheel of the sintering machine, the arc-shaped outer layer card slot and the inner layer card slot are made, and the gap between the outer layer card slot and the inner layer card slot is The spacing is the same as the distance between the outer edge and the inner edge of the trolley wheel, the outer card groove is concentric with the outer edge of the trolley wheel, and has the same arc, and the inner card groove is concentric with the inner edge of the trolley wheel, and the arc is consistent. The connecting rod is set to a length of 0.5m according to the convenience of use. When operators use this tool to judge the running condition of the trolley wheels, they place the rim of the trolley wheel in the middle of the card slot, the outer card slot is stuck on the outer edge of the trolley wheel, the inner card slot is stuck on the inner edge of the trolley wheel, and the You can quickly judge whether the wheel of the table is loose by operating the handle.

The above-mentioned embodiments are only descriptions of preferred implementations of the present utility model, and are not intended to limit the concept and scope of the present utility model. On the premise of not departing from the design concept of the present utility model, various modifications and improvements made by ordinary persons in the art to the technical solution of the present utility model shall fall within the protection scope of the present utility model.

The technologies, shapes and construction parts not described in detail in the utility model are all known technologies.

Claims (3)

1. A sintering machine wheel fault diagnosis device, characterized in that it comprises an outer layer draw-in slot and an inner layer draw-in slot, and a connector for connecting the outer layer draw-in slot and the inner layer draw-in slot; the outer layer draw-in slot Both the card slot and the inner card slot are arc-shaped, and the ends of the outer card slot and the inner card slot are connected and fixed by connecting pieces. According to the alignment, a connecting rod is connected to the middle part of the card slot of the outer layer, and a handle is connected to the end of the connecting rod. 2. The device for judging wheel faults of a sintering machine according to claim 1, wherein the outer card slot and the inner card slot are located on different planes, and the outer card slot is located on the same plane as the connecting rod and the handle. 3 . The device for judging wheel faults of a sintering machine according to claim 1 , wherein the outer layer clamping groove, the inner layer clamping groove, and the connecting piece are connected by welding. 4 .
