CN218206494U - A door and window sealing drainage structure - Google Patents

Abstract

The utility model provides a door and window sealing drainage structure. The technical solution connects the two lower rails through the drainage seal. The drainage seal is designed with an elastic sealing block, a drainage channel and a one-way valve. The elastic sealing block seals the bottom of the fan and the lower rail. The one-way valve can prevent outdoor wind and rain from entering. Indoors, drainage channels can drain water that has entered the indoor track elsewhere. The utility model better seals the direct seal between the door leaf and the track through the drainage seal, prevents moisture from entering the room through the design of the drainage channel and the one-way valve, greatly improves the sealing and drainage performance of the door, and through the planning and design of the drainage channel , simplifies the processing technology of the lower track, and improves the production efficiency.

Description

A door and window sealing drainage structure

technical field

The utility model relates to the technical field of building doors and windows, in particular to a door and window sealing drainage structure.

Background technique

The door and window project is an important part of the building decoration project, and it is the external performance of the decoration quality. Its type, specification and material have a direct impact on the decoration effect. For a sliding door, since the door leaf slides along the track, when the two door leaves are closed, the vertical joint of the two door leaves and the seal between the door leaf lap joint and the lower track are the weak links of the door. When the pressure is high, it is easy to leak wind and rain.

Contents of the invention

The utility model aims to provide a door and window sealing and drainage structure aiming at the technical defects of the prior art, so as to solve the technical problem that the sliding door leaf has poor sealing performance and is difficult to effectively drain water after it is normally closed.

In order to achieve the above technical purpose, the utility model adopts the following technical solutions:

A door and window sealing and drainage structure, including a fixed fan, a drainage seal, a fixed lower rail, an open lower rail, and splicing of the lower rail; the drainage sealing member includes a profile interface, a drainage channel, a one-way valve, and a rubber pad The two ends of the part have profile interfaces respectively, and there is a through drainage channel in the drainage sealing part, a one-way valve is set in the drainage channel, and a rubber pad is set on the top of the drainage sealing part; the drainage sealing part is located at the end of the fixed fan , the fixed lower rail and the opened lower rail are respectively docked with the profile interfaces on both sides of the drainage seal, and the outer sides of the fixed lower rail, the drainage seal, and the opened lower rail are fixedly connected with the lower rail.

As a preference, when the fixed fan is closed, the overlapping part of the fixed fan is tightly pressed against the rubber pad near the end of the track.

In the above technical solution, the door lower rail includes an open lower rail or a fixed lower rail connected by a waterproof seal, and a rubber pad, a one-way valve and a drainage channel are arranged on the waterproof seal. When the door is closed, the door leaf will move down, and the end of the door leaf lap near the track is tightly pressed together with the rubber pad to prevent water vapor from entering the room; the waterproof seal is equipped with a drainage channel and a one-way valve, when there is wind pressure outside When the wind pressure is lifted, the one-way valve is closed to prevent outdoor water vapor from entering the indoor track. When the wind pressure is relieved, the rainwater entering the indoor track from other places can be discharged outside through the one-way valve and the drainage channel. The lower rail is integrated by connecting the lower rail with the profiles of the end covers on both sides.

The utility model provides a door and window sealing drainage structure. The technical solution connects the two lower rails through the drainage seal. The drainage seal is designed with an elastic sealing block, a drainage channel and a one-way valve. The elastic sealing block seals the bottom of the fan and the lower rail. The one-way valve can prevent outdoor wind and rain from entering. Indoors, drainage channels can drain water that has entered the indoor track elsewhere. The utility model better seals the direct seal between the door leaf and the track through the drainage seal, prevents moisture from entering the room through the design of the drainage channel and the one-way valve, greatly improves the sealing and drainage performance of the door, and through the planning and design of the drainage channel , simplifies the processing technology of the lower track, and improves the production efficiency.

Description of drawings

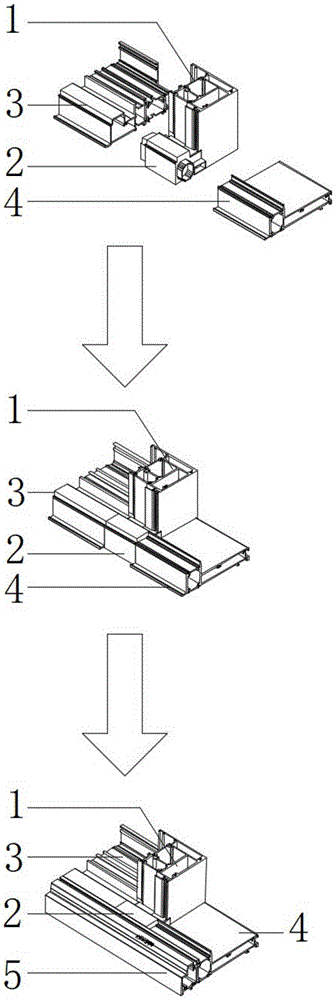

Fig. 1 is the assembly flowchart of the present utility model;

Fig. 2 is a perspective view of the drainage seal in the utility model;

Fig. 3 is another perspective view of the drainage seal in the utility model;

Fig. 4 is a top view of the drainage seal in the utility model;

Fig. 5 is the sectional view of B-B place among Fig. 4;

In the picture:

1. Fixed fan 2. Drain seal 3. Fixed lower rail 4. Opened lower rail

5. Lower rail assembly 21. Profile interface 22. Drainage channel 23. Check valve

24. Rubber pad.

detailed description

Specific embodiments of the present utility model will be described in detail below. In order to avoid too many unnecessary details, well-known structures or functions will not be described in detail in the following embodiments. Approximate language used in the following examples is for quantitative representations, indicating that certain variations in quantities are permissible without altering essential function. Unless otherwise defined, technical and scientific terms used in the following examples have the same meaning as commonly understood by those skilled in the art to which this utility model belongs.

Example 1

A door and window sealing and drainage structure, as shown in Figures 1 to 5, includes a fixed fan 1, a drainage seal 2, a fixed lower rail 3, an open lower rail 4, and lower rail splicing materials 5; the drainage seal 2 includes a profile interface 21, Drain channel 22, one-way valve 23, rubber pad 24, wherein, there are profile interface 21 respectively at both ends of drain seal 2, there is a through drain channel 22 in drain seal 2, and a single The valve 23 is provided with a rubber pad 24 on the top of the drain seal 2; the drain seal 2 is located at the end of the fixed fan 1, and the fixed lower rail 3 and the opened lower rail 4 are respectively connected to the profile interfaces 21 on both sides of the drain seal 2. For docking, the lower rail splicing material 5 is fixedly connected to the outside of the fixed lower rail 3, the drainage seal 2, and the opened lower rail 4.

Example 2

A sealing and drainage structure for doors and windows, as shown in Figures 1 to 5, including a fixed fan 1, a drainage seal 2, a fixed lower rail 3, an open lower rail 4, and lower rail splicing materials 5; the drainage seal 2 includes a profile interface 21, Drain channel 22, one-way valve 23, rubber pad 24, wherein, there are profile interfaces 21 at both ends of the drain seal 2 respectively, there is a through drain channel 22 in the drain seal 2, and a single The valve 23 is provided with a rubber pad 24 on the top of the drain seal 2; the drain seal 2 is located at the end of the fixed fan 1, and the fixed lower rail 3 and the opened lower rail 4 are respectively connected to the profile interfaces 21 on both sides of the drain seal 2. For docking, the lower rail splicing material 5 is fixedly connected to the outside of the fixed lower rail 3, the drainage seal 2, and the opened lower rail 4. Wherein, when the fixed fan 1 is closed, the overlapping part of the fixed fan 1 near the end of the track is pressed tightly with the rubber pad 24 .

The embodiments of the present utility model have been described in detail above, but the content described is only a preferred embodiment of the present utility model, and is not intended to limit the present utility model. All modifications, equivalent replacements and improvements made within the application scope of the present utility model shall be included in the protection scope of the present utility model.

Claims (2)

1. A door and window sealing drainage structure is characterized by comprising a fixed sash (1), a drainage sealing element (2), a fixed lower rail (3), an opened lower rail (4) and a lower rail splicing material (5); the drainage sealing element (2) comprises a section bar interface (21), a drainage channel (22), a one-way valve (23) and a rubber pad (24), wherein the section bar interface (21) is arranged at each of two ends of the drainage sealing element (2), the drainage channel (22) which is communicated with the drainage sealing element (2) is arranged in the drainage channel (22), the one-way valve (23) is arranged in the drainage channel (22), and the rubber pad (24) is arranged at the top end of the drainage sealing element (2); the drainage sealing element (2) is positioned at the end part of the fixed fan (1), the fixed lower rail (3) and the opening lower rail (4) are respectively butted with section bar interfaces (21) at two sides of the drainage sealing element (2), and the outer sides of the fixed lower rail (3), the drainage sealing element (2) and the opening lower rail (4) are fixedly connected with lower rail splicing materials (5).

2. The structure of claim 1, wherein when the fixed leaf (1) is closed, the end of the fixed leaf (1) near the rail is tightly pressed with the rubber pad (24).
