Abstract

The utility model relates to the technical field of glass edging machines, and discloses a novel toughened glass edging machine, which includes a bracket, the outer surface of the bracket is fixedly connected with a motor, the output end of the motor is fixedly connected with a rotating column, and the rotating column The outer surface of the driving wheel is fixedly connected with a driving wheel, the outer surface of the driving wheel is rotatably connected with a conveyor belt, the inner wall of the conveyor belt is rotatably connected with a driven wheel, the inner wall of the driven wheel is rotatably connected with a fixing piece, and the outer surface of the fixing piece The surface is fixedly connected with a support block, the outer surface of the support block is fixedly connected with a cylinder, and the outer surface of the cylinder is rotatably connected with a roller. The utility model has the following advantages and effects: when the rollers connected by the cylinder are rotated, when the glass is transported on the conveyor belt, the rollers also rotate. When there is large glass, the number of conveyor belts can be reduced, and the cost can be reduced. When there is small glass, it can also be passed Rollers play a certain supporting role.

Description

New tempered glass edging machine

technical field

The utility model relates to the technical field of glass edging machines, in particular to a novel tempered glass edging machine.

Background technique

Glass edging machine is one of the earliest and most widely used mechanical equipment in glass deep processing equipment. The main function is to smooth the glass and make some special shapes. The correct and reasonable use of the edging machine can not only ensure the normal production, but also prolong the life of the machine. The glass edging machine mainly realizes the grinding and polishing of glass through the grinding head motor and grinding wheel. Ordinary single-sided/double-sided edging machines can realize rough grinding, fine grinding and polishing at one time. Customers can choose different grinding wheels according to their processing requirements.

In the prior art, Chinese Patent Publication No. CN212071460U discloses a tempered glass edging machine, which includes an outer casing; a partition is fixedly connected inside the outer casing; the surface of the partition is provided with uniformly arranged through holes; A motor is fixedly connected to the lower surface of the middle part of the partition; the driving end of the motor is fixedly connected to a driving gear under the partition; a transmission rod is slidably connected to each of the through holes; the transmission rod passes through the partition set, and one end of the transmission rod under the partition is fixedly connected with a driven gear; the grinding head is pressed against the edge of the tempered glass, and the grinding head is squeezed, so that the transmission rod squeezes the floating rod, so that the floating rod and the fixed rod are up and down. Floating, so it is suitable for grinding tempered glass edges of different shapes, and has a wide range of applications. The spring makes the grinding head close to the surface of the tempered glass edge, which effectively improves the grinding efficiency.

However, when this utility model is actually used, the overall device needs to be improved in terms of glass feeding, the overall device has limited use for the size of the glass, and the applicability of the overall device needs to be strengthened, so a new tempered glass edger is needed.

Utility model content

The purpose of this utility model is to provide a new tempered glass edging machine, which has the effect of improving the convenience of glass feeding of the whole device and making the machine suitable for glass of different sizes.

The above-mentioned technical purpose of the utility model is achieved through the following technical solutions: the new tempered glass edging machine includes a bracket, the outer surface of the bracket is fixedly connected with a motor, and the output end of the motor is fixedly connected with a rotating column. The outer surface of the rotating column is fixedly connected with a driving wheel, the outer surface of the driving wheel is rotatably connected with a conveyor belt, the inner wall of the conveyor belt is rotatably connected with a driven wheel, and the inner wall of the driven wheel is rotatably connected with a fixing member, and the fixed The outer surface of the piece is fixedly connected with a support block, the outer surface of the support block is fixedly connected with a cylinder, the outer surface of the cylinder is rotatably connected with a roller, the outer surface of the fixed piece is fixedly connected with a connecting piece, and the outer surface of the support is fixedly connected with a connecting piece. The outer surface is fixedly connected with a blocking post.

By adopting the above technical scheme, the staff starts the motor on the bracket, the motor drives the driving wheel on the rotating column to rotate, the driving wheel drives the driven wheel on the inner wall of the conveyor belt to rotate, the rotation of the driving wheel and the driven wheel drives the conveyor belt to rotate, and the glass Placed on the conveyor belt for transmission to the machine, automatic transmission of glass, saving manpower, the bracket is connected with the connector, the conveyor belt is supported by the connection between the connector on the support block and the bracket, and the inside of the conveyor belt is provided with a support block, which passes through the support block. The cylinder rotates the connected roller. When the glass is transported on the conveyor belt, the roller also rotates. When there is large glass, the number of conveyor belts can be reduced and the cost can be reduced. When there is small glass, the roller can also play a certain supporting role. Outside the bracket The blocking column on the surface can prevent the glass from falling during the transmission process, improving safety.

The utility model is further set as: the outer surface of the bracket is fixedly connected with a support frame, the outer surface of the support frame is fixedly connected with a connecting column, and the outer surface of the connecting column is rotatably connected with a roller.

By adopting the above technical solution, the glass is transported into the machine through the rollers rotatably connected to the connecting column on the support frame, which increases the convenience of the device.

The utility model is further configured as follows: the outer surface of the connecting column is fixedly connected with a base, and the outer surface of the base is fixedly connected with a positioning column.

By adopting the above-mentioned technical solution, the staff puts one side of the glass close to the positioning column connected to the base on the connecting column to locate the position of the glass.

The utility model is further set as: the outer surface of the support frame is fixedly connected with the edging machine itself, the outer surface of the edging machine is fixedly connected with the first cylinder, and the output end of the first cylinder is fixed A first telescopic rod is connected, a sliding block is fixedly connected to the top end of the first telescopic rod, and a sliding groove is slidably connected to the outer surface of the sliding block.

By adopting the above technical scheme, start the first cylinder on the edge grinding machine, the first cylinder drives the first telescopic rod to perform telescopic movement, the first telescopic rod drives the sliding block to slide on the chute, the adjustability of the lifting device .

The utility model is further set as: the bottom of the sliding block is fixedly connected with a control box, the inside of the control box is provided with a second cylinder, and the output end of the second cylinder is fixedly connected with a second telescopic rod, the The top end of the second telescopic rod is fixedly connected with a bottom plate.

By adopting the above technical solution, start the second air cylinder inside the control box, the second air cylinder drives the second telescopic rod to perform telescopic movement, and then the bottom plate at the bottom of the second telescopic rod moves up and down, so that the glass can be controlled during edging , to prevent movement and improve stability, the sliding of the sliding block drives the control box at the bottom of the sliding block to slide, and the position can be moved according to the size of the glass to improve the convenience of the device.

The utility model is further configured as follows: the outer surface of the bottom plate is fixedly connected with a support plate, and the outer surface of the support plate is rotatably connected with a wheel hub.

By adopting the above technical solution, the wheel hub is connected and supported by the support plate on the bottom plate, and the use of the wheel hub can not affect the transmission of glass and the convenience of the lifting device.

The beneficial effects of the utility model are:

1. In the present utility model, through the cooperative arrangement among brackets, motors, rotating columns, driving wheels, conveyor belts, driven wheels, fixing parts, support blocks, cylinders, rollers, connectors and blocking columns, the device can be used , the staff starts the motor on the bracket, the motor drives the driving wheel on the rotating column to rotate, the driving wheel drives the driven wheel on the inner wall of the conveyor belt to rotate, the rotation of the driving wheel and the driven wheel drives the conveyor belt to rotate, and the glass is placed on the conveyor belt to The machine carries out the transmission to realize the automatic transmission of glass, which saves manpower. The bracket is connected with the connector, and the conveyor belt is supported by the connection between the connector on the support block and the bracket. , when the glass is transported on the conveyor belt, the rollers also rotate. When there is large glass, the number of conveyor belts can be reduced and the cost can be reduced. When there is small glass, the roller can also play a certain supporting role. The blocking column on the outer surface of the bracket, It can prevent the glass from falling during transmission and improve safety.

2. The utility model, through the support frame, the connecting column, the roller, the base, the positioning column, the edging machine itself, the first cylinder, the first telescopic rod, the sliding block, the chute, the control box, the second cylinder, the first The cooperative arrangement between the two telescopic rods, the bottom plate, the support plate and the hub can make the glass be transmitted into the machine through the rollers connected by the connecting column on the support frame when the device is in use, which increases the convenience of the device and the staff Put one side of the glass close to the positioning column connected to the base on the connecting column to locate the position of the glass, start the first cylinder on the edging machine, the first cylinder drives the first telescopic rod to perform telescopic movement, the first telescopic The rod drives the sliding block to slide on the chute, the adjustability of the lifting device activates the second cylinder inside the control box, and the second cylinder drives the second telescopic rod to perform telescopic movement, and then the bottom plate at the bottom of the second telescopic rod moves up and down The movement can control the edge grinding of the glass to prevent movement and improve the stability. The sliding of the sliding block drives the control box at the bottom of the sliding block to slide, and the position can be moved according to the size of the glass to improve the convenience of the device. The wheel hub is connected and supported by the support plate on the bottom plate. The use of the wheel hub can not affect the transmission of glass and the convenience of the lifting device.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the accompanying drawings that need to be used in the description of the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only some implementations of the present invention. For example, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

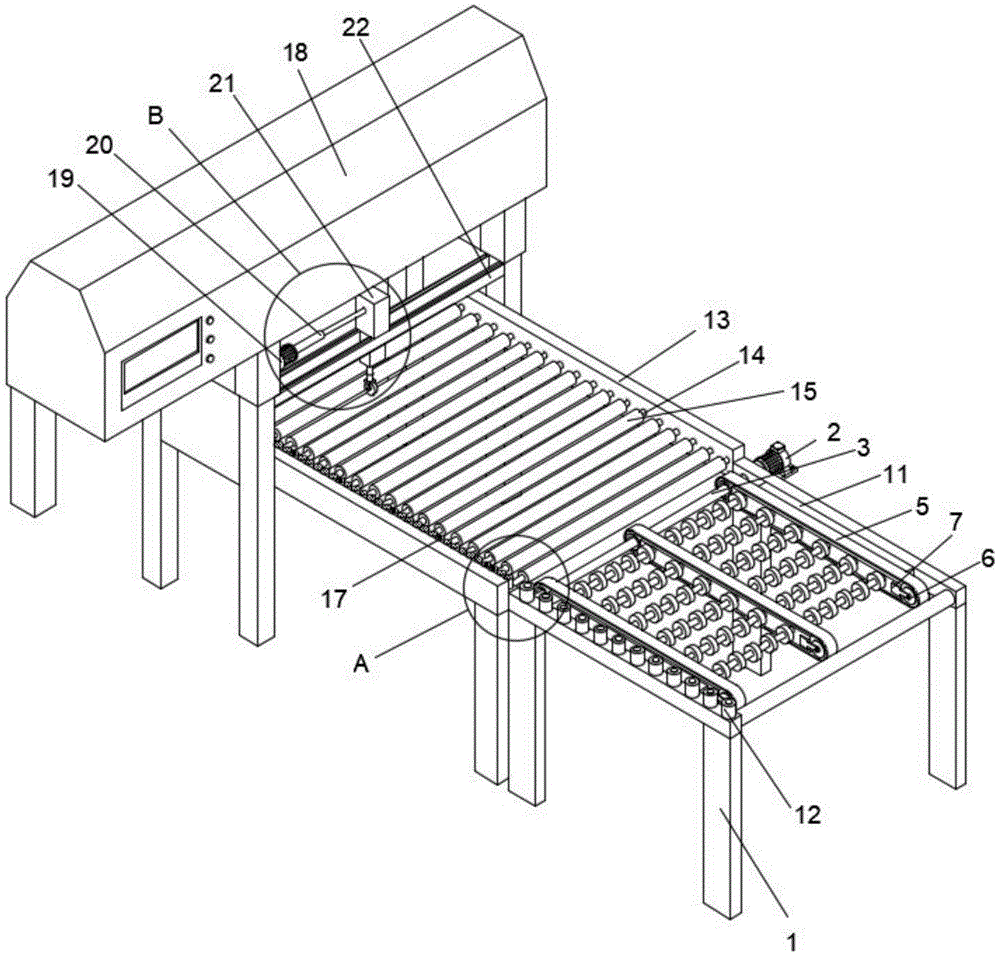

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a structural schematic diagram of the utility model conveyor belt;

Fig. 3 is a structural schematic diagram of the utility model support frame;

Fig. 4 is a structural schematic diagram of the positioning column of the present invention;

Fig. 5 is a schematic diagram of the structure of the wheel hub of the present invention.

In the figure, 1. bracket; 2. motor; 3. rotating column; 4. driving wheel; 5. conveyor belt; 6. driven wheel; Connector; 12, blocking column; 13, support frame; 14, connecting column; 15, roller; 16, base; 17, positioning column; 18, edging machine machine; 19, first cylinder; 20, first 21, sliding block; 22, chute; 23, control box; 24, the second cylinder; 25, the second telescopic rod; 26, base plate; 27, support plate; 28, wheel hub.

detailed description

The technical solutions of the present utility model will be clearly and completely described below in conjunction with specific embodiments. Apparently, the described embodiments are only some of the embodiments of the present invention, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Referring to Figure 1-5, the new tempered glass edging machine includes a bracket 1, the outer surface of the bracket 1 is fixedly connected with a motor 2, the output end of the motor 2 is fixedly connected with a rotating column 3, and the outer surface of the rotating column 3 is fixedly connected with an active Wheel 4, the outer surface of the driving wheel 4 is rotatably connected to a conveyor belt 5, the inner wall of the conveyor belt 5 is rotatably connected to a driven wheel 6, the inner wall of the driven wheel 6 is rotatably connected to a fixing member 7, and the outer surface of the fixing member 7 is fixedly connected to a support block 8 , the outer surface of the support block 8 is fixedly connected with a cylinder 9, the outer surface of the cylinder 9 is rotatably connected with a roller 10, the outer surface of the fixture 7 is fixedly connected with a connecting piece 11, the outer surface of the bracket 1 is fixedly connected with a blocking column 12, the bracket The outer surface of 1 is fixedly connected with a support frame 13, the outer surface of the support frame 13 is fixedly connected with a connecting column 14, the outer surface of the connecting column 14 is rotatably connected with a roller 15, and the outer surface of the connecting column 14 is fixedly connected with a base 16, the base The outer surface of 16 is fixedly connected with the positioning column 17, the outer surface of the support frame 13 is fixedly connected with the edging machine 18, the outer surface of the edging machine 18 is fixedly connected with the first cylinder 19, the output of the first cylinder 19 The end is fixedly connected with a first telescopic rod 20, the top of the first telescopic rod 20 is fixedly connected with a sliding block 21, the outer surface of the sliding block 21 is slidably connected with a chute 22, and the bottom of the sliding block 21 is fixedly connected with a control box 23. The inside of the box 23 is provided with a second cylinder 24, the output end of the second cylinder 24 is fixedly connected with a second telescopic rod 25, the top of the second telescopic rod 25 is fixedly connected with a bottom plate 26, and the outer surface of the bottom plate 26 is fixedly connected with a support plate 27. The outer surface of the support plate 27 is rotatably connected with the wheel hub 28. The staff starts the motor 2 on the support 1, and the motor 2 drives the driving wheel 4 on the rotating column 3 to rotate, and the driving wheel 4 drives the driven wheel 6 on the inner wall of the conveyor belt 5 to rotate. Rotation, the rotation of the driving wheel 4 and the driven wheel 6 drives the conveyor belt 5 to rotate, and the glass is placed on the conveyor belt 5 for transmission to the machine to realize automatic glass transmission and save manpower. The bracket 1 is connected with the connecting piece 11, and the conveyor belt 5 passes through The connecting piece 11 on the block 8 is connected to the bracket 1 for support, and the inside of the conveyor belt 5 is provided with a support block 8, and the roller 10 connected by the rotation of the cylinder 9 on the support block 8, when the glass is transported on the conveyor belt 5, the roller 10 also rotates , when there is large glass, the number of conveyor belts 5 can be reduced, and the cost can be reduced. When there is small glass, the roller 10 can also play a certain supporting role. The blocking column 12 on the outer surface of the support 1 can prevent the glass from falling during the transmission process. Falling, improving safety, the glass is transported into the machine through the roller 15 connected by the connecting column 14 on the supporting frame 13, which increases the convenience of the device. On the column 17, it is used to locate the position of the glass, start the first cylinder 19 on the machine 18 of the edging machine, the first cylinder 19 drives the first telescopic rod 20 to perform telescopic movement, and the first telescopic rod 20 drives the sliding block 21 to slide Sliding on the slot 22, the adjustability of the lifting device starts the second inside the control box 23 Cylinder 24, the second cylinder 24 drives the second telescopic rod 25 to perform telescopic movement, and then the bottom plate 26 at the bottom of the second telescopic rod 25 moves up and down, so that the glass can be controlled during edging to prevent movement and improve stability. The sliding of the sliding block 21 drives the control box 23 at the bottom of the sliding block 21 to slide. The position can be moved according to the size of the glass, and the convenience of the lifting device is improved. The hub 28 is connected and supported by the support plate 27 on the bottom plate 26. The use can not affect the transmission of the glass and improve the convenience of the device.

In the utility model, through the bracket 1, the motor 2, the rotating column 3, the driving wheel 4, the conveyor belt 5, the driven wheel 6, the fixing piece 7, the support block 8, the cylinder 9, the roller 10, the connecting piece 11 and the blocking column 12 The cooperating setting of this device can make the device in use, the staff starts the motor 2 on the bracket 1, the motor 2 drives the driving wheel 4 on the rotating column 3 to rotate, and the driving wheel 4 drives the driven wheel 6 on the inner wall of the conveyor belt 5 to rotate, The rotation of the driving wheel 4 and the driven wheel 6 drives the conveyor belt 5 to rotate, and the glass is placed on the conveyor belt 5 to be transported to the machine to realize automatic glass transmission and save manpower. The connecting piece 11 on the top is connected with the bracket 1 for support, and the inside of the conveyor belt 5 is provided with a support block 8, and the roller 10 connected by the rotation of the column 9 on the support block 8, when the glass is transported on the conveyor belt 5, the roller 10 also rotates. When there is large glass, the number of conveyor belts 5 can be reduced to reduce costs. When there is small glass, the rollers 10 can also play a certain supporting role. The blocking column 12 on the outer surface of the bracket 1 can prevent the glass from falling during transmission. Improve safety, through the support frame 13, the connecting column 14, the roller 15, the base 16, the positioning column 17, the edging machine itself 18, the first cylinder 19, the first telescopic rod 20, the sliding block 21, the chute 22, Coordination between the control box 23, the second cylinder 24, the second telescopic rod 25, the base plate 26, the support plate 27 and the wheel hub 28 can make the glass rotate through the connecting column 14 on the support frame 13 when the device is in use. The roller 15 is transported into the machine to increase the convenience of the device. The staff put one side of the glass close to the positioning column 17 connected to the base 16 on the connecting column 14 to locate the position of the glass and start the edging machine itself 18 The first cylinder 19 on the top, the first cylinder 19 drives the first telescopic rod 20 to perform telescopic movement, the first telescopic rod 20 drives the sliding block 21 to slide on the chute 22, and the adjustability of the lifting device starts the inside of the control box 23 The second cylinder 24, the second cylinder 24 drives the second telescopic rod 25 to perform telescopic movement, and then the bottom plate 26 at the bottom of the second telescopic rod 25 moves up and down, so that the glass can be controlled during edging to prevent movement and lift Stability, the sliding of the sliding block 21 drives the control box 23 at the bottom of the sliding block 21 to slide, the position can be moved according to the size of the glass, the convenience of the lifting device, the hub 28 is connected and supported by the support plate 27 on the bottom plate 26, The use of the hub 28 can not affect the transmission of the glass and enhance the convenience of the device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. Novel toughened glass edging machine, including support (1), its characterized in that: the utility model discloses a fixed surface of support (1) is connected with motor (2), the output fixedly connected with of motor (2) rotates post (3), the fixed surface of rotating post (3) is connected with action wheel (4), the fixed surface of action wheel (4) rotates and is connected with conveyer belt (5), the inner wall of conveyer belt (5) rotates and is connected with from driving wheel (6), the inner wall of driving wheel (6) rotates and is connected with mounting (7), the fixed surface of mounting (7) is connected with a piece (8), the fixed surface of a piece (8) is connected with cylinder (9), the surface of cylinder (9) rotates and is connected with gyro wheel (10), the fixed surface of mounting (7) is connected with connecting piece (11), the fixed surface of support (1) is connected with and blocks post (12).

2. The novel edge grinding machine for tempered glass as claimed in claim 1, wherein: the outer fixed surface of support (1) is connected with support frame (13), the outer fixed surface of support frame (13) is connected with spliced pole (14), the surface of spliced pole (14) is rotated and is connected with roller bearing (15).

3. The novel edge grinding machine for tempered glass as claimed in claim 2, wherein: the outer fixed surface of spliced pole (14) is connected with base (16), the outer fixed surface of base (16) is connected with reference column (17).

4. The novel edge grinding machine for tempered glass as claimed in claim 2, wherein: the utility model discloses a pneumatic grinding machine, including support frame (13), the outer fixed surface of support frame (13) is connected with edging machine local (18), the outer fixed surface of edging machine local (18) is connected with first cylinder (19), the first telescopic link (20) of output fixedly connected with of first cylinder (19), the top fixedly connected with sliding block (21) of first telescopic link (20), the outer sliding surface of sliding block (21) is connected with spout (22).

5. The novel edge grinding machine for tempered glass as claimed in claim 4, wherein: the bottom fixedly connected with control box (23) of sliding block (21), the inside of control box (23) is provided with second cylinder (24), the output fixedly connected with second telescopic link (25) of second cylinder (24), the top fixedly connected with bottom plate (26) of second telescopic link (25).

6. The novel edge grinding machine for tempered glass as claimed in claim 5, wherein: the outer surface of the bottom plate (26) is fixedly connected with a support plate (27), and the outer surface of the support plate (27) is rotatably connected with a hub (28).
