Abstract
The utility model discloses a digital printing device of anti-fake acting as go-between, including the unreeling roller that sets gradually, printing machine main part and wind-up roll, the printing machine main part includes the box and sets gradually the straining device in the box, levelling mechanism, digital printing mechanism, drying mechanism and cooling body, levelling mechanism includes the support and sets up the guide roll at the support both ends, be provided with Ping Zhengtai on the support between two guide rolls, the top of levelling bench is provided with the integer pressure subassembly, the integer pressure subassembly includes montant and spring, the top at the box is fixed to the upper end of montant, the lower extreme processing of montant is fluted, be provided with the telescopic link in the recess, the top at the recess is fixed to the upper end of telescopic link, the lower extreme is provided with the briquetting, be provided with the spring on the telescopic link. The utility model discloses can carry out leveling to the acting as go-between, printing quality is good, and work efficiency is high, has apparent economic value and social value.
Description
Technical Field
The utility model relates to a printing technology field, concretely relates to digital printing device of anti-fake acting as go-between.
Background
The anti-counterfeiting stay wire is widely applied to outer packaging of products in industries such as tobacco, medicine, audio-visual products, food packaging and the like, for example, in the tobacco industry, the existing stay wire for the cigarette case is the stay wire bonded on the outer packaging film of the cigarette case, and the stay wire plays a more important role in unsealing the packaging film and also has an anti-counterfeiting marking function. The digital printing is a novel printing technology for directly transmitting the image and text information to a digital printing machine through a network by utilizing a prepress system, namely, an electronic file is directly transmitted to the printing machine by a computer, the steps of color separation, makeup, plate making, trial run and the like are eliminated, the digitalized image and text information is directly recorded on a printing material, and the digital printing technology becomes a new trend of the digitalized development of the current printing technology. At present, when the digital printing device is used for printing the anti-counterfeiting stay wire, the anti-counterfeiting stay wire can have the phenomena of looseness, curling, wrinkles and the like in the conveying process, the leveling effect of the stay wire is influenced, the printing quality and the printing efficiency of the stay wire are further influenced, and the production progress of the anti-counterfeiting stay wire is reduced. Therefore, it is an objective need to develop an anti-counterfeiting printing device for the stay wire, which can smooth the stay wire, has good printing quality and high working efficiency.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a can carry out leveling to the acting as go-between, the printing is of high quality, the digital printing device of anti-fake acting as go-between that work efficiency is high.
The utility model aims at realizing like this, including the unreeling roller that sets gradually, printing machine main part and wind-up roll, the printing machine main part includes the box and sets gradually the straining device in the box, leveling mechanism, digital printing mechanism, drying mechanism and cooling body, leveling mechanism includes the support and sets up the guide roll at the support both ends, the bottom of box is arranged in to the support, be provided with Ping Zhengtai on the support between two guide rolls, leveling platform's top is provided with the integer subassembly, the integer subassembly includes montant and spring, the top at the box is fixed to the upper end of montant, the lower extreme processing recess of montant, be provided with the telescopic link in the recess, the top at the recess is fixed to the upper end of telescopic link, the lower extreme is provided with the briquetting, be provided with the spring on the telescopic link.
Furthermore, an arc-shaped anti-scraping plate is arranged at the end part of the pressing block facing the incoming material direction.
Furthermore, a flexible layer is arranged on the lower surface of the pressing block.
Furthermore, a partition board is arranged in the box body between the digital printing mechanism and the drying mechanism and between the drying mechanism and the cooling mechanism, and a through hole for the stay wire to pass through is processed on the partition board.
Furthermore, a camera is arranged at the top of the box body above the leveling mechanism.
Furthermore, a plurality of material guide rollers are arranged on the upper surface of the leveling platform at intervals.
Furthermore, a guide rail is arranged at the bottom of the box body below the leveling mechanism, the length direction of the guide rail is perpendicular to that of the box body, and the lower end of the support is connected with the guide rail in a sliding mode.
The utility model discloses during the operation, will treat the anti-fake package of acting as go-between of printing on unreeling the roller, start the driving motor on unreeling the roller, unreel the roller and emit at the rotation in-process and act as go-between, act as go-between afterwards in proper order through straining device, leveling mechanism, digital printing mechanism, drying mechanism and cooling body, obtain the good package of acting as go-between of printing on the wind-up roll. Wherein before the printing, use leveling mechanism to carry out leveling to acting as go-between, leveling's principle is: utilize the pretension principle of spring, the spring extension drives the telescopic link extension, can drive the briquetting and move down, will act as go-between and press on the flat bench, levelly and smoothly handle it at the removal in-process that acts as go-between, carry out the blank pressing to acting as go-between simultaneously, prevent to act as go-between and appear not hard up, the circumstances such as turn-up, fold at the removal in-process, avoid the appearance of printing defective work, improve the follow-up printing quality and the printing efficiency who acts as go-between. The utility model discloses can carry out leveling to the stay wire, printing quality is good, and work efficiency is high, has apparent economic value and social value.
Drawings

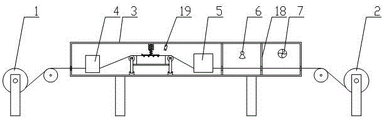

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic structural view of the leveling mechanism of the present invention;
in the figure: 1-unwinding roller, 2-winding roller, 3-box, 4-tensioning mechanism, 5-digital printing mechanism, 6-drying mechanism, 7-cooling mechanism, 8-bracket, 9-guide roller, 10-leveling table, 11-vertical rod, 12-spring, 13-telescopic rod, 14-pressing block, 15-guide rail, 16-arc-shaped anti-scraping plate, 17-flexible layer, 18-partition plate, 19-camera and 20-guide roller.
Detailed Description
The following description of the present invention is made with reference to the accompanying drawings, but the present invention is not limited thereto in any way, and any changes or improvements made based on the present invention all belong to the protection scope of the present invention.
As shown in figures 1-2, the utility model comprises an unwinding roller 1, a printing machine main body and a winding roller 2 which are arranged in sequence, the unwinding roller 1 and the winding roller 2 are the prior art, the unwinding roller 1 is used for unwinding the stay wire to be printed, the winding roller 2 is used for winding the stay wire after printing, a driving mechanism is usually arranged to drive the unwinding roller 1 and the winding roller 2 to rotate, the unwinding and the winding of the stay wire are realized in the rotating process, the printing machine main body comprises a box body 3 and a tensioning mechanism 4, a leveling mechanism, a digital printing mechanism 5, a drying mechanism 6 and a cooling mechanism 7 which are arranged in the box body 3 in sequence, all the parts for printing are arranged in the box body 3 in a centralized way, the printing operation is convenient, the influence of peripheral dust on the printing quality is prevented, the pollution of the peripheral environment caused by the exhaust gas generated in the printing process is also prevented, when in actual use, a special exhaust gas purification device can be arranged, the waste gas produced in the printing process is purified, the tensioning mechanism 4 is used for adjusting the tension in the stay wire, the leveling mechanism is used for leveling the stay wire in the transportation and moving processes, the problems of curling, loosening, wrinkling and the like of the stay wire are prevented, the printing quality is improved, the digital printing mechanism 5 is used for printing the stay wire, an operator outputs the digital information of pictures and texts or digital media or network digital files received from a network system to a computer, creativity, modification and arrangement are carried out on the computer to form digital information which is satisfied by a client, the digital information becomes corresponding monochrome pixel digital signals and is transmitted to a laser controller through RIP treatment, corresponding laser beams are emitted, pictures and texts which can absorb ink or milled powder are formed after a plateless printing cylinder made of photosensitive materials is subjected to light sensing, and then the pictures and texts are transferred to the stay wire, thereby reach digital printing's purpose, drying mechanism 6 is used for carrying out rapid draing to printing ink, prevent that printing ink diffusion from influencing printing quality, cooling mechanism 7 is used for printing ink and the quick cooling of acting as go-between, the rolling and subsequent processing work of being convenient for act as go-between, leveling mechanism includes support 8 and the guide roll 9 of setting at support 8 both ends, the bottom of box 3 is arranged in to support 8, be provided with leveling platform 10 on the support 8 between two guide roll 9, the top of leveling platform 10 is provided with the concoction subassembly, the concoction subassembly includes montant 11 and spring 12, the top at box 3 is fixed to the upper end of montant 11, the lower extreme processing recess of montant 11, be provided with telescopic link 13 in the recess, the top at the recess is fixed to the upper end of telescopic link 13, the lower extreme is provided with briquetting 14, be provided with spring 15 on the telescopic link 13.
The utility model discloses during the operation, the anti-fake package of acting as go-between that will treat the printing is on unreeling roller 1, starts the driving motor on unreeling roller 1, unreels roller 1 and emits and act as go-between rotating the in-process, acts as go-between afterwards and passes through straining device 4, levelling mechanism, digital printing mechanism 5, drying mechanism 6 and cooling body 7 in proper order, obtains the package of acting as go-between that is printed on wind-up roll 2. Wherein before the printing, use leveling mechanism to carry out leveling to acting as go-between, leveling's principle is: utilize spring 15's pretension principle, spring 15 extends and drives the extension of telescopic link 13, can drive briquetting 14 and move down, will act as go-between and press on levelling bench 10, levelly and smoothly handle it at the removal in-process of acting as go-between, carry out the blank pressing to acting as go-between simultaneously, prevent to act as go-between and appear not hard up, the circumstances such as turn-up, fold at the removal in-process, avoid the appearance of printing defective work, improve the subsequent printing quality and the printing efficiency of acting as go-between.
The arc-shaped scratch-resistant plate 16 is arranged at the end part of the pressing block 14 facing the incoming material direction, the device is arranged between the flat platform 10 and the pressing block 14 in the operation process, the stay wire is positioned between the flat platform 10 and the pressing block 14 and can be subjected to certain pressure between the flat platform and the pressing block, in the process, if the end part of the pressing block 14 is relatively sharp, the surface of the stay wire can be scratched, even the scrapping of the stay wire is caused, the arc-shaped scratch-resistant plate 16 is arranged for avoiding the situation, the end part of the pressing block 14 is in a smooth state, and the stay wire is prevented from being damaged.
Be provided with flexible layer 17 on the lower surface of briquetting 14, the lower surface of briquetting 14 can be direct with act as go-between contact, sets up flexible layer 17 for preventing briquetting 14 from causing unnecessary damage to the act as go-between, and then effectively protects to act as go-between not receive the damage of pressure piece 14 in the course of leveling.
Between digital printing mechanism 5 and drying mechanism 6, be provided with baffle 18 in the box 3 between drying mechanism 6 and the cooling body 7, processing has the through-hole that supplies the acting as go-between to pass on the baffle 18, drying mechanism 6's effect is to carrying out rapid draing to printing ink, all there is heating operation usually, otherwise, cooling body 7's effect is to carrying out rapid draing to the acting as go-between after the drying, subsequent rolling of being convenient for, all there is cooling operation usually, baffle 18 has been set up for making heating operation and cooling operation not influence each other, and the same is said, in order to prevent that the heat from being transmitted to digital printing mechanism 5 one side by drying mechanism 6 one side, baffle 18 has been set up to the normal printing operation of digital printing mechanism 5.
The top of the box body 3 above the leveling mechanism is provided with the camera 19, the camera 19 is an existing device, and the leveled stay wire can be monitored in real time, so that an operator can intuitively master the leveling condition of the stay wire.
The upper surface interval of levelling bench 10 is provided with a plurality of guide rollers 20, during the in-service use, can set up guide roller 20 and exceed levelling bench 1 ~ 3mm at the top for briquetting 14 can be with the stay wire pressure on guide roller 20, can carry out leveling to the stay wire on the one hand, and on the other hand also can be convenient for the transport and the removal of acting as go-between, prevents to act as go-between and is pressed and is dragged and then warp or break on levelling bench 10.
The bottom of the box body 3 below the leveling mechanism is provided with a guide rail 15, the length direction of the guide rail 15 is perpendicular to the length direction of the box body 3, the lower end of the support 8 is connected with the guide rail 15 in a sliding mode, the support 8 can slide on the guide rail 15 through the connecting structure, the support 8 can drive the guide roller 9 and the leveling platform 10 to move transversely together, then the pull wires are driven to move transversely together, the function of correcting deviation of the pull wires is achieved, the deviation of the pull wires is prevented, and the printing quality of the pull wires is ensured.
Claims (7)
1. The digital printing device of the anti-counterfeiting stay wire comprises an unwinding roller (1), a printing machine main body and a winding roller (2) which are sequentially arranged, and is characterized in that the printing machine main body comprises a box body (3), and a tensioning mechanism (4), a leveling mechanism, a digital printing mechanism (5), a drying mechanism (6) and a cooling mechanism (7) which are sequentially arranged in the box body (3), wherein the leveling mechanism comprises a support (8) and guide rollers (9) arranged at two ends of the support (8), the support (8) is arranged at the bottom of the box body (3), a leveling platform (10) is arranged on the support (8) between the two guide rollers (9), a leveling assembly is arranged above the leveling platform (10), the leveling assembly comprises a vertical rod (11) and a spring (12), the upper end of the vertical rod (11) is fixed at the top of the box body (3), a groove is machined at the lower end of the vertical rod (11), a telescopic rod (13) is arranged in the groove, the upper end of the telescopic rod (13) is fixed at the top of the groove, a pressing block (14) is arranged at the lower end of the telescopic rod (13), and the spring (12) is arranged on the telescopic rod (13).
2. The digital printing device of the anti-counterfeiting stay wire is characterized in that an arc-shaped anti-scraping plate (16) is arranged at the end part of the pressing block (14) facing to the feeding direction.
3. The digital printing device of the anti-counterfeiting stay wire is characterized in that a flexible layer (17) is arranged on the lower surface of the pressing block (14).
4. The digital printing device of the anti-counterfeiting stay wire according to claim 1, characterized in that a clapboard (18) is arranged in the box body (3) between the digital printing mechanism (5) and the drying mechanism (6) and between the drying mechanism (6) and the cooling mechanism (7), and the clapboard (18) is provided with a through hole for the stay wire to pass through.
5. The digital printing device of the anti-counterfeiting stay wire according to claim 1, wherein a camera (19) is arranged at the top of the box body (3) above the leveling mechanism.
6. The digital printing device of the anti-counterfeiting stay wire is characterized in that a plurality of material guide rollers (20) are arranged on the upper surface of the leveling platform (10) at intervals.
7. The digital printing device of the anti-counterfeiting stay wire according to claim 1, characterized in that a guide rail (15) is arranged at the bottom of the box body (3) below the leveling mechanism, the length direction of the guide rail (15) is vertical to the length direction of the box body (3), and the lower end of the bracket (8) is connected with the guide rail (15) in a sliding manner.
