Abstract

The utility model discloses a roll-cutting device for geocells, specifically relates to the technical field of geocells, and comprises a worktable, the worktable is provided with cutting grooves in the transverse direction, and the four corners of the upper surface of the worktable are A support column is fixedly installed at each place, a top plate is fixedly installed on the top of the support column, a cutting mechanism is arranged under the top plate, and extrusion mechanisms are arranged on the left and right sides of the top plate, and the extrusion mechanism includes a fixing frame. Two threaded rods are rotatably installed on the fixed frame, and each threaded rod is threaded with a moving rod, and a connecting rod is fixedly connected between the two moving rods. The utility model squeezes the geocell from four positions by arranging an extruding mechanism to ensure the stability of the geocell when cutting coils and improve the quality of coil cutting. The holding blocks on both sides are used to straighten the geocell from the left and right sides.

Description

A roll cutting device for geocells

technical field

The utility model relates to the technical field of geocells, more specifically, the utility model relates to a roll cutting device for geocells.

Background technique

Geocell is a three-dimensional mesh cell structure formed by high-strength welding of reinforced HDPE sheet material, generally welded by ultrasonic needle, with high tensile strength, anti-aging, acid and alkali resistance, high quality Lightweight and easy to transport and so on. The working principle of the geocell is to transmit the force to each connection through the cell sheet, and then transfer the force to the adjacent cell sheet from each connection, so that the geocell as a whole acts as a reinforced material to resist the external force. .

The cutting of the existing geocells is generally done manually, not only the work efficiency is low, but also it is difficult to ensure the same length of the geocells during manual cutting, which will affect the normal use of the geocells. Carried out research at the above-mentioned problem, invented this device.

Utility model content

In order to overcome the above-mentioned defects of the prior art, the utility model provides a roll-cutting device for geocells to solve the problem that the roll-cutting of the existing geocells is generally done manually, the work efficiency is low, and it is difficult to ensure the The length of the cell is consistent.

In order to achieve the above purpose, the utility model provides the following technical solutions: a roll cutting equipment for geocells, including a worktable, a cutting groove is opened transversely on the worktable, and the four corners of the upper surface of the worktable are A support column is fixedly installed at the top of the support column, and a top plate is fixedly installed on the top of the support column. A cutting mechanism is arranged below the top plate. The cutting mechanism includes two cylinders, and the piston rod ends of the two cylinders are fixedly connected with the same cutting knife. , the left and right sides of the top plate are provided with extruding mechanisms;

The extruding mechanism includes a fixed frame, the fixed frame is fixedly installed on the lower surface of the top plate, two threaded rods are mounted on the fixed frame, and each threaded rod is threadedly connected with a moving rod. A connecting rod is fixedly connected between the two moving rods, a first bevel gear is sleeved on one top of the two threaded rods, a biaxial motor is arranged on the top of the top plate, and the output end of the biaxial motor is sleeved Connected with the second bevel gear.

In a preferred embodiment, the left and right sides of the upper surface of the worktable are fixedly installed with connecting seats, and the threaded rod two is rotatably installed on the connected seat, and the clamping plate is threaded on the threaded rod two , a clamping block is fixedly installed on the inner surface of the clamping plate.

In a preferred embodiment, the two connecting seats are arranged symmetrically.

In a preferred embodiment, the lower surface of the clamping plate is attached to the upper surface of the worktable.

In a preferred embodiment, handwheels are fixedly installed on the outer sides of the two threaded rods 2 .

In a preferred embodiment, the cutting groove runs through the worktable, and the position of the cutting groove corresponds to the position of the cutting knife up and down.

In a preferred embodiment, the two pressing mechanisms are symmetrically arranged.

In a preferred embodiment, protective covers are provided on the left and right sides of the top of the top plate, and the two protective covers are respectively provided on the outer sides of the two biaxial motors.

In a preferred embodiment, the top of the shield is provided with cooling holes.

In a preferred embodiment, support legs are fixedly installed at four corners of the lower surface of the workbench.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model is provided with an extrusion mechanism. When in use, the geocell to be cut is placed on the worktable, and then two double-axis motors are started. Under the connection of the first bevel gear and the second bevel gear, , as soon as the four threaded rods rotate, the moving rod moves downward during the rotation of the threaded rods, thereby squeezing the geocell from four positions, ensuring the stability of the geocell during cutting and improving the cutting speed. volume quality;

2. The utility model is provided with connecting seat, threaded rod 2, clamping plate, clamping block and handwheel. When in use, the handwheels on both sides are turned, and the handwheel drives the threaded rod 2 to rotate. During the process of threaded rod rotation, Among them, the clamping plates connected by threads on the upper side move towards each other, and the clamping blocks on both sides will straighten the geocell from the left and right sides, so as to ensure the cutting quality of the geocell.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. For some embodiments described, those skilled in the art can also obtain other drawings according to these drawings.

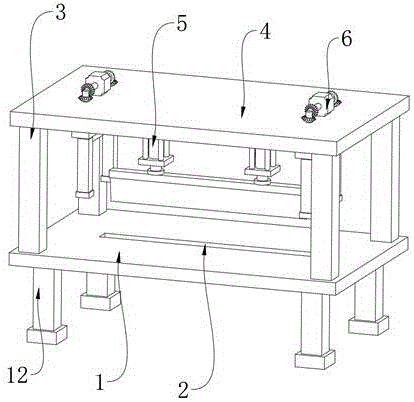

Fig. 1 is the structural representation of embodiment 1 of the present utility model;

Fig. 2 is a structural side view one of embodiment 1 of the present utility model;

Fig. 3 is the enlarged schematic diagram of A region in Fig. 2 of the present utility model;

Fig. 4 is the second structural side view of Embodiment 1 of the present utility model;

Fig. 5 is the structural representation of embodiment 2 of the present utility model;

Fig. 6 is a schematic structural view of Embodiment 3 of the present utility model.

Explanation of reference signs:

1. Working table; 2. Cutting groove; 3. Support column; 4. Top plate; 5. Cutting mechanism; 501. Cylinder; 502. Cutting knife; 6. Extrusion mechanism; 603, moving bar; 604, connecting rod; 605, the first bevel gear; 606, biaxial motor; 1. Clamping block; 11. Hand wheel; 12. Support leg; 13. Protective cover.

detailed description

The implementation of the present utility model is illustrated by specific specific examples below. Those who are familiar with this technology can easily understand other advantages and effects of the present utility model from the contents disclosed in this description. Obviously, the described embodiments are the embodiment of the present utility model. Some, but not all, embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

Referring to accompanying drawings 1-4, a kind of roll-cutting equipment for geocell in this embodiment includes a worktable 1, and support legs 12 are fixedly installed at the four corners of the lower surface of the workbench 1, and the support legs 12 Support the workbench 1 to ensure the stability of the workbench 1, the four corners of the upper surface of the workbench 1 are fixedly installed with support columns 3, the top of the support column 3 is fixedly installed with a top plate 4, the support column 3 supports the top plate 4.

The bottom of the top plate 4 is provided with a cutting mechanism 5, the cutting mechanism 5 includes two cylinders 501, and the two cylinders 501 are symmetrically arranged. The end of the piston rod is fixedly connected with the same cutting knife 502, and a cutting groove 2 is opened transversely on the worktable 1, and the cutting groove 2 runs through the workbench 1, and the position of the cutting groove 2 is up and down with the position of the cutting knife 502. Correspondingly, to avoid cutting depth not in place, affecting the cutting quality, start two cylinders 501 during use, the piston rod of the cylinder 501 stretches out and drives the cutting knife 502 to move down, thereby cutting the geocell, improving the cutting volume. efficiency.

Both left and right sides of the top plate 4 are provided with extruding mechanisms 6, and the two extruding mechanisms 6 are arranged symmetrically. On the surface, two threaded rods 602 are rotatably installed on the fixed frame 601, and the upper side of the threaded rods 602 is rotatably connected with the top plate 4, and each threaded rod 602 is threadedly connected with a moving rod 603. The connecting rods 604 are fixedly connected between the moving rods 603, and the positioning of the moving rods 603 is realized by setting the connecting rods 604. The first bevel gears 605 are sleeved on the tops of the two threaded rods 602 , the top of the top plate 4 is provided with a biaxial motor 606, the output end of the biaxial motor 606 is sleeved with a second bevel gear 607, and the two second bevel gears 607 mesh with the two first bevel gears 605 respectively.

When the extrusion mechanism 6 is in use, the staff places the geocell to be cut on the worktable 1, and then starts two biaxial motors 606, and the output end of the biaxial motors 606 drives the second bevel gear 607 to rotate , because the second bevel gear 607 is meshed with the first bevel gear 605, the first bevel gear 605 will also rotate, thereby driving the threaded rod one 602 to rotate, and during the rotation of the threaded rod one 602, the moving rod 603 will move down, extruding the geocell from four locations,

Guarantee the stability of the geocell during cutting and improve the quality of cutting.

Example 2

Referring to accompanying drawing 5, a kind of cutting roll equipment for geocell of this embodiment, this embodiment is basically the same structure as Embodiment 1, the difference is that, in this embodiment, the left and right sides of the top plate 4 are both A protective cover 13 is provided, and two protective covers 13 are arranged on the outsides of the two biaxial motors 606 respectively, and the protective cover 13 realizes the protection of the biaxial motor 606, the first bevel gear 605 and the second bevel gear 607, so The top of the protective cover 13 is provided with heat dissipation holes, and the biaxial motor 606 will generate heat when in use, and the heat dissipation holes are provided to facilitate the dissipation of heat.

Example 3

Referring to accompanying drawing 6, a kind of roll cutting equipment for geocell of this embodiment, the structure of this embodiment is basically the same as that of Embodiment 1, the difference is that in this embodiment, the left and right sides of the upper surface of the worktable 1 Both sides are fixedly installed with connecting seat 7, and two described connecting seats 7 are left and right symmetrically arranged, and described connecting seat 7 is rotated and installed threaded rod 2 8, and described threaded rod 2 8 is threadedly connected with clamping plate 9 , the lower surface of the clamping plate 9 is attached to the upper surface of the worktable 1, thereby realizing the limit of the clamping plate 9 and ensuring that the clamping plate 9 can be moved during the rotation of the threaded rod 2 8 , the inner surface of the clamping plate 9 is fixedly equipped with a clamping block 10, and there are two clamping blocks 10 provided on each clamping plate 9, and the two clamping blocks 10 are arranged symmetrically front and back, and the two threads Handwheels 11 are fixedly installed on the outer sides of rod two 8. After the staff places the geocell to be cut on the worktable 1, the staff turns the handwheels 11 on both sides, and the handwheels 11 drive the threaded rod two. 8 rotates, and during the rotation process of the threaded rod 2 8, the clamping plate 9 threaded on it moves toward each other, and the clamping blocks 10 on both sides straighten the geocell from the left and right sides, so as to ensure the geotechnical The cutting quality of the cell.

Finally: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the utility model shall include Within the protection scope of the present utility model.

Claims (10)

1. A roll-cutting device for geocells, comprising a worktable (1), on which a cutting groove (2) is transversely opened, characterized in that: the workbench ( 1) Support columns (3) are fixedly installed at the four corners of the upper surface, a top plate (4) is fixedly installed on the top of the support column (3), and a cutting mechanism (5) is arranged under the top plate (4). The mechanism (5) includes two cylinders (501), the piston rod ends of the two cylinders (501) are fixedly connected with the same cutting knife (502), and the left and right sides of the top plate (4) are provided with extruding mechanisms (6 ); The extruding mechanism (6) includes a fixed frame (601), the fixed frame (601) is fixedly installed on the lower surface of the top plate (4), and two threaded rods one (602) are rotatably installed on the fixed frame (601). ), and each threaded rod one (602) is threaded with a moving rod (603), and a connecting rod (604) is fixedly connected between the two moving rods (603), and the two threaded rods The first bevel gear (605) is sleeved on the top of one (602), the top of the top plate (4) is provided with a biaxial motor (606), and the output end of the biaxial motor (606) is sleeved with a second cone gears (607). 2. A roll-cutting device for geocells according to claim 1, characterized in that: the left and right sides of the upper surface of the worktable (1) are fixedly installed with connecting seats (7), so A threaded rod two (8) is installed on the connecting seat (7) for rotation, and a clamping plate (9) is threaded on the threaded rod two (8), and a clamping plate (9) is fixedly installed on the inner surface of the clamping plate (9). Hold block (10). 3. A roll-cutting device for geocells according to claim 2, characterized in that: the two connecting seats (7) are arranged symmetrically. 4. A roll-cutting device for geocells according to claim 2, characterized in that: the lower surface of the clamping plate (9) is attached to the upper surface of the worktable (1). 5. A roll cutting device for geocells according to claim 2, characterized in that: handwheels (11) are fixedly installed on the outer sides of the two threaded rods two (8). 6. The roll cutting equipment for geocells according to claim 1, characterized in that: the cutting groove (2) runs through the worktable (1), and the position of the cutting groove (2) is consistent with the cutting The position of knife (502) corresponds up and down. 7. A roll-cutting device for geocells according to claim 1, characterized in that: the two extruding mechanisms (6) are symmetrically arranged left and right. 8. The roll cutting equipment for geocells according to claim 1, characterized in that: protective covers (13) are provided on the left and right sides of the top of the top plate (4), and the two protective covers (13) are arranged on the outer sides of the two biaxial motors (606) respectively. 9. The roll cutting equipment for geocells according to claim 8, characterized in that: the top of the protective cover (13) is provided with cooling holes. 10. The roll cutting equipment for geocells according to claim 1, characterized in that: the four corners of the lower surface of the worktable (1) are fixedly installed with supporting legs (12).
