A gastric juice drainage collection device with pH detection function

technical field

The utility model relates to the technical field of gastric juice drainage devices, in particular to a gastric juice drainage collection device with a pH detection function.

Background technique

In clinical nursing, the indwelling gastric tube is usually used to insert the gastric tube into the stomach through the nose or mouth, and indwell the gastric tube for the patient. After confirming that the gastric tube is in the stomach, the gastric tube is connected with a disposable negative pressure drainage bag to drain the The purpose of decompression of the stomach and intestines is to flow out the liquid and gas accumulated in the gastrointestinal tract. In the indwelling gastric tube operation, it is necessary to confirm whether the gastric tube is placed in the stomach. The pH test paper is often used to test the liquid extracted from the gastric tube through the feeding device, and the test result is compared with the color paper. If it is acidic, it proves that the gastric tube is in the stomach. In the stomach, the fluid drawn out is gastric juice. There are following problems in the above operation:

1. In the clinical indwelling gastric tube operation, to check whether the gastric tube is placed in the stomach, it is necessary to use a feeding device to withdraw gastric juice to measure pH, which is inconvenient to operate and increases the nursing workload.

2. Commonly used pH test paper can only use the degree of color development to determine the pH value, which is easily affected by the external environment and subjective factors, resulting in inaccurate results.

3. The drainage end interface of the commonly used disposable negative pressure drainage device is not firmly connected with the gastric tube, and the drainage bag is easily separated from the gastric tube under the action of external force, resulting in pollution and increased nursing workload.

4. The currently commonly used gastrointestinal decompression device is used to collect gastric juice samples, which is inconvenient to operate and easily polluted, resulting in inaccurate test results and seriously affecting the judgment of the disease.

5. Commonly used disposable negative pressure drainage bags have a limited capacity. When there is a large amount of gas or liquid generated in the gastrointestinal tract, the drainage bag is easily filled, resulting in a decrease in negative pressure. At this time, it is necessary to extract the drainage fluid or replace the drainage bag according to the situation. It is easy to cause pollution, reduce curative effect, increase nursing workload and increase medical costs.

Utility model content

The technical problem to be solved by the utility model is to provide a gastric juice drainage collection device with a pH detection function which can facilitate the detection of the pH of the liquid extracted from the gastric tube and has accurate detection results.

In order to achieve the above object, the utility model provides a gastric juice drainage collection device with pH detection function, including a liquid collection bottle, a negative pressure connecting tube, a drainage tube and a pH detector, the top of the liquid collection bottle is provided with a negative pressure The negative pressure interface is connected to one end of the negative pressure connecting tube, the other end of the negative pressure connecting tube is connected to the negative pressure generating device, and the liquid receiving port is connected to one end of the drainage tube The other end of the drainage tube is connected to the liquid outlet end of the gastric tube, and the probe of the pH detector extends into the drainage tube from the side of the drainage tube.

As a preferred solution of the present utility model, the side of the drainage tube is provided with an installation tube communicating with the drainage tube, and the probe of the pH detector is installed in the installation tube.

As a preferred solution of the present utility model, the port where the negative pressure interface is connected to the negative pressure connecting pipe is provided with a waterproof and breathable membrane.

As a preferred solution of the present utility model, the end of the drainage tube away from the liquid collection bottle is provided with an external thread, the gastric tube is provided with an internal thread that matches the external thread, and the drainage tube and the gastric tube A wing handle is provided on the side of the connected end.

As a preferred solution of the present invention, the negative pressure connecting pipe is provided with a negative pressure regulating valve.

As a preferred solution of the present invention, a sampling port is provided on the side of the drainage tube, and a sampling valve is provided at the sampling port.

As a preferred solution of the present invention, a liquid discharge port is provided at the bottom of the side wall of the liquid collection bottle, and a liquid discharge valve is provided at the liquid discharge port.

As a preferred solution of the present utility model, the liquid collection bottle is provided with a liquid limit line and a scale line for marking capacity.

The embodiment of the utility model is a gastric juice negative pressure drainage device with pH detection function. Negative pressure is formed, so that the gastric juice can be transported to the liquid collection bottle through the gastric tube and the drainage tube in turn, which is easy to operate; the gastric juice is in a closed environment during this process, so it will not affect the surrounding environment; the gastric juice will pass through the drainage tube. It is in contact with the probe of the pH detector to realize the detection of the pH of the gastric juice, which is convenient and has high detection accuracy.

Description of drawings

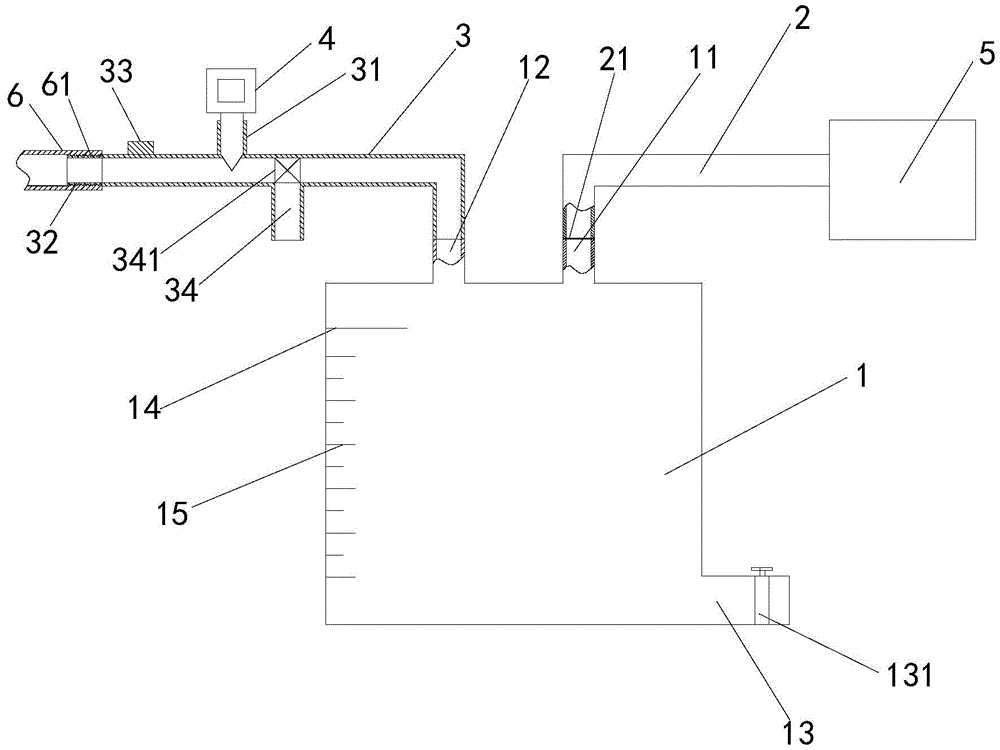

Fig. 1 is a schematic structural view of a gastric juice drainage collection device provided by the present invention with a pH detection function;

In the figure, 1. Liquid collection bottle; 11. Negative pressure interface; 12. Liquid connection port; 13. Liquid discharge port; 131. Liquid discharge valve; 14. Liquid limit line; 15. Graduation line; 2. Negative pressure connecting pipe 21. Waterproof and breathable membrane; 22. Negative pressure regulating valve; 3. Drainage tube; 31. Installation tube; 32. External thread; 33. Wing handle; 34. Sampling port; 341. Sampling valve; 4. pH detector; 5. Negative pressure generating device; 6. Gastric tube; 61. Internal thread.

detailed description

Below in conjunction with accompanying drawing and embodiment, the specific embodiment of the utility model is described in further detail. The following examples are used to illustrate the utility model, but not to limit the scope of the utility model.

In describing the present invention, it should be understood that the present invention uses the terms "central", "longitudinal", "transverse", "upper", "lower", "front", "rear", "left", The orientation or positional relationship indicated by "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc. is based on the orientation or positional relationship shown in the drawings, and is for convenience only The present invention is described and simplified descriptions do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operate in a specific orientation, and thus should not be construed as limiting the present invention. In addition, the terms "first", "second", and "third" are used for descriptive purposes only, and should not be construed as indicating or implying relative importance.

As shown in Figure 1, a kind of gastric juice drainage collection device with pH detection function of the preferred embodiment of the present utility model comprises liquid collection bottle 1, negative pressure connecting pipe 2, drainage tube 3 and pH detector 4, and liquid collection bottle 1 The top of the top is provided with a negative pressure port 11 and a liquid port 12, the negative pressure port 11 is connected to one end of the negative pressure connecting pipe 2, the other end of the negative pressure connecting pipe 2 is connected to the negative pressure generating device 5, and the liquid port 12 is connected to the drainage One end of the tube 3 is connected, the other end of the drainage tube 3 is connected to the liquid outlet of the gastric tube 6 , and the probe of the pH detector 4 extends into the drainage tube 3 from the side of the drainage tube 3 .

The working principle of this embodiment is: first connect the end of the drainage tube 3 far away from the liquid collection bottle 1 to the stomach tube 6, connect the end of the negative pressure connecting tube 2 far away from the liquid collection bottle 1 to the negative pressure generating device 5, and then connect the stomach The tube 6 extends into the human body, and then the negative pressure generating device 5 is opened to generate negative pressure in the liquid collection bottle 1. Under the action of the air pressure, the gastric tube 6 draws out the gastric juice, and then transports it to the liquid collection bottle 1 through the drainage tube 3 , the liquid is always in a closed environment and will not affect the surrounding environment. During the process of the liquid passing through the drainage tube 3, the probe of the pH detector 4 contacts the liquid to realize the pH detection of the liquid by the pH detector 4. It is convenient and the detection result is accurate, so as to determine whether the gastric tube 6 has been stretched into the stomach.

Exemplarily, the side of the drainage tube 3 is provided with an installation tube 31 communicating with the drainage tube 3, and the probe of the pH detector 4 is installed in the installation tube 31, and the probe of the pH detector 4 is detachable from the installation tube 31, which is convenient for pH The probe of the detector 4 is easy to disassemble and easy to use, so that it can be understood that when the probe of the pH detector 4 is installed in the installation pipe 31, the problem of airtightness needs to be considered. Generally, the probe of the pH detector 4 cooperates with the installation pipe 31 Play the role of anti-leakage, in addition can also be provided with a sealing sleeve to increase the sealing.

Exemplarily, the port where the negative pressure interface 11 is connected to the negative pressure connecting pipe 2 is provided with a waterproof gas-permeable film 21, which allows gas to pass through but does not allow liquid to pass through, thereby preventing leakage and effectively preventing various Factors such as inclination and too full gastric juice cause gastric juice to enter the negative pressure generating device 5, which avoids the possible risk of environmental pollution and nosocomial infection.

Exemplarily, the end of the drainage tube 3 away from the liquid collection bottle 1 is provided with an external thread 32, the gastric tube 6 is provided with an internal thread 61 that matches the external thread 32, and the end of the drainage tube 3 connected to the gastric tube 6 is provided with a wing The handle 33 makes the connection between the gastric tube 6 and the drainage tube 3 stable, easy to install, increases the stability, avoids detachment of the tube, and reduces gastric juice pollution. When connected with the stomach tube 6, the wing handle 33 can be held in hand so as to exert force.

Exemplarily, the negative pressure connecting pipe 2 is provided with a negative pressure regulating valve 22, which is used to adjust the air pressure in the liquid collection bottle 1, thereby adjusting the drainage speed of the liquid.

Exemplarily, the side of the drainage tube 3 is provided with a sampling port 34, and the sampling port 34 is provided with a sampling valve 341, which is convenient for clinical nurses to take samples. In this embodiment, the sampling valve 341 is a two-position three-way valve, so that When the liquid is discharged from the sampling port 34, the liquid cannot flow into the liquid collection bottle 1, so as to ensure the efficiency of sampling.

Exemplarily, a liquid discharge port 13 is provided at the bottom of the side wall of the liquid collection bottle 1 , and a liquid discharge valve 131 is provided at the liquid discharge port 13 to facilitate the discharge of the liquid in the liquid collection bottle 1 .

Exemplarily, the liquid collection bottle 1 is provided with a liquid limit line 14 and a scale line 15 for marking the capacity. The liquid collection bottle 1 is made of a transparent hard material, such as glass, so that the liquid in the bottle can be directly observed and is not easily deformed. , the scale line 15 is convenient for observing the drainage volume, and the liquid limit line 14 can intuitively know whether the drainage volume exceeds the maximum capacity of the liquid collection bottle 1 .

The above is only the preferred embodiment of the utility model, it should be pointed out that for those of ordinary skill in the art, without departing from the technical principle of the utility model, some improvements and replacements can also be made. And replacement should also be regarded as the protection scope of the present utility model.

Claims (8)

1. A gastric juice drainage collection device with pH detection function, characterized in that: it comprises a liquid collection bottle, a negative pressure connecting tube, a drainage tube and a pH detector, and the top of the liquid collection bottle is provided with a negative pressure interface and a liquid contact The negative pressure interface is connected to one end of the negative pressure connecting pipe, the other end of the negative pressure connecting pipe is connected to the negative pressure generating device, the liquid receiving port is connected to one end of the drainage tube, the The other end of the drainage tube is connected to the liquid outlet of the stomach tube, and the probe of the pH detector extends into the drainage tube from the side of the drainage tube. 2. The gastric juice drainage collection device with pH detection function according to claim 1, characterized in that: the side of the drainage tube is provided with an installation tube communicating with the drainage tube, and the probe of the pH detector is installed in the mounting tube. 3. The gastric juice drainage and collection device with pH detection function according to claim 1, characterized in that: the port where the negative pressure interface is connected to the negative pressure connecting tube is provided with a waterproof and breathable membrane. 4. The gastric juice drainage collection device with pH detection function according to claim 1, characterized in that: the end of the drainage tube away from the liquid collection bottle is provided with an external thread, and the gastric tube is provided with a An internal thread that is threaded, and a wing handle is provided on the side of one end of the drainage tube connected to the gastric tube. 5. The device for drainage and collection of gastric juice with pH detection function according to claim 1, characterized in that: the negative pressure connecting pipe is provided with a negative pressure regulating valve. 6 . The device for drainage and collection of gastric juice with pH detection function according to claim 1 , wherein a sampling port is provided on the side of the drainage tube, and a sampling valve is provided at the sampling port. 7 . 7. The device for drainage and collection of gastric juice with pH detection function according to claim 1, characterized in that: the bottom of the side wall of the liquid collection bottle is provided with a discharge port, and the discharge port is provided with a discharge valve. 8 . The gastric juice drainage collection device with pH detection function according to claim 1 , characterized in that: the liquid collection bottle is provided with a liquid limit line and a scale line for marking capacity. 9 .
