A New Type of Comprehensive Hospital Bed for Rehabilitation Treatment

technical field

The utility model relates to the field of medical equipment, in particular to a novel comprehensive hospital bed for rehabilitation treatment.

Background technique

When patients are hospitalized, they need to use the hospital bed. Currently, it can be used for the patient to lie flat, or the front board of the hospital bed can be rotated and lifted to raise the patient's upper body, but it cannot be converted into a seat structure for the patient to sit on. The function is relatively simple, and the patient is using it. Decubital ulcers are prone to occur when the bed is changed, and it is inconvenient to operate when changing the dressing on the back, which increases the workload and difficulty of nursing. Some patients need lower limb suspension. The existing hospital bed does not have a special suspension structure, which cannot meet people's needs.

Utility model content

The technical problem to be solved by the utility model is to overcome the defects of the above-mentioned technologies, and provide a new type of rehabilitation comprehensive hospital bed.

In order to solve the above-mentioned technical problems, the technical solution provided by the utility model is a new type of comprehensive rehabilitation treatment bed: including a bottom bed frame, adjustable supporting legs arranged at four corners above the bottom bed frame, and an upper bed arranged above the adjustable supporting legs. Frame, a bed board assembly arranged on the upper bed frame; the adjustable support leg adopts a hydraulic cylinder, the lower end of the adjustable support leg is fixedly connected with the bottom bed frame, and the upper end of the adjustable support leg is fixedly connected with the upper bed frame, The bed board assembly includes bed board one, bed board two, bed board three, and bed board four arranged in sequence, one end of the bed board one is rotatably connected to one end of the bed board two, the other end of the bed board two is connected to one end of the bed board three, the The other end of the bed board three is rotatably connected to one end of the bed board four, and the bed board two is fixedly connected to the upper bed frame. Between the bed board one and the bed board two, between the bed board two and the bed board three, and between the bed board three and the bed board four A drive mechanism is provided; the drive mechanism includes a connecting rod 1, a connecting rod 2, and a telescopic rod. A suspension frame is arranged above the tail end of the upper bed frame.

Further, the bottom four corners of the bottom bed frame are provided with universal rollers with braking function.

Further, a headboard baffle is provided above the head end of the upper bed frame.

Further, side guardrails are provided on both sides of the upper bed frame.

Further, the telescopic rod adopts a hydraulic cylinder.

Compared with the prior art, the utility model has the advantages that: the bed panel assembly of the utility model adopts a foldable structure, which can be used as a normal bed panel when unfolded for the patient to lie down and rest, and can be used as a seat when folded, which is beneficial for the patient to get up and prevents the user from getting up. Keeping a posture for a long time produces decubitus, which is conducive to changing the dressing on the back. At the same time, it can also enable the patient to perform rehabilitation exercises in a standing state. There is a suspension frame, which can be used for the suspension of the patient's lower limbs. The legs of the bed can be raised and lowered, which is convenient for medical staff to work. Driven by hydraulic pressure, it works stably, has strong bearing capacity, is simple and convenient to operate, and has a reasonable structure and can be manufactured.

Description of drawings

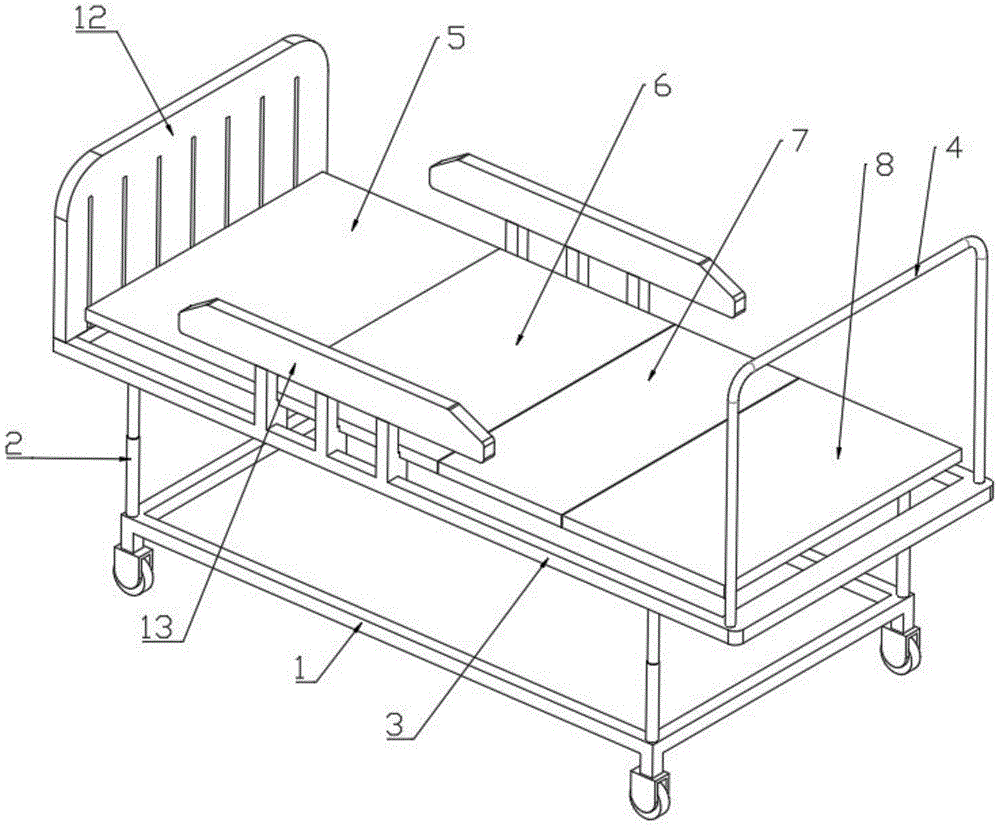

Fig. 1 is a reference to Fig. 1 for the use state of a novel comprehensive rehabilitation bed of the present invention.

Fig. 2 is a reference to Fig. 2 for the use status of a new type of comprehensive rehabilitation bed of the present invention.

Fig. 3 is a reference to Fig. 3 for the use state of a new type of comprehensive rehabilitation bed in the utility model.

Fig. 4 is a partial structural schematic diagram of a new type of comprehensive rehabilitation treatment bed of the utility model.

As shown in the picture: 1. Bottom bed frame, 2. Adjustable support legs, 3. Upper bed frame, 4. Suspension frame, 5. Bed board one, 6. Bed board two, 7. Bed board three, 8. Bed board four, 9, connecting rod one, 10, connecting rod two, 11, telescopic rod, 12, bedside baffle, 13, side guardrail.

detailed description

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model more clear, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the utility model. Obviously, the described The embodiments are some embodiments of the present utility model, but not all embodiments. The components of the embodiments of the invention generally described and illustrated in the figures herein may be arranged and designed in a variety of different configurations.

In the description of the embodiment of the present utility model, it should be noted that if the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" appear The orientation or positional relationship indicated by , "outside", etc. is based on the orientation or positional relationship shown in the drawings, or the orientation or positional relationship that is usually placed when the product of this utility model is used, and is only for the convenience of describing the utility model and simplifying the Describes, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as limiting the present invention. In addition, the terms "first", "second", "third", etc. are only used for distinguishing descriptions, and should not be construed as indicating or implying relative importance.

In addition, the appearance of the terms "horizontal", "vertical", "overhanging" etc. does not mean that the parts are absolutely horizontal or overhanging, but may be slightly inclined. For example, "horizontal" only means that its direction is more horizontal than "vertical", and it does not mean that the structure must be completely horizontal, but can be slightly inclined.

In the description of the embodiments of the present utility model, "multiple" means at least 2.

In the description of the embodiment of the present utility model, it should also be noted that, unless otherwise specified and limited, the terms "setting", "installation", "connection" and "connection" should be understood in a broad sense, for example, It can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

In combination with accompanying drawings 1-4, a new type of rehabilitation comprehensive hospital bed comprises a bottom bed frame 1, adjustable support legs 2 arranged at the four corners above the bottom bed frame 1, an upper bed frame 3 arranged above the adjustable support legs 2, The bed board assembly provided on the upper bed frame 3; the adjustable support leg 2 adopts a hydraulic cylinder, the lower end of the adjustable support leg 2 is fixedly connected with the bottom bed frame 1, and the upper end of the adjustable support leg 2 is connected with the upper bed frame 3. Fixedly connected, the bed board assembly includes bed board one 5, bed board two 6, bed board three 7, and bed board four 8 arranged in sequence, one end of the bed board one 5 is rotationally connected with one end of the bed board two 6, and the other bed board two 6 One end is connected with one end of bed board three 7, the other end of said bed board three 7 is rotationally connected with one end of bed board four 8, said bed board two 6 is fixedly connected with upper bed frame 3, said bed board one 5 and bed board two 6 1. Between bed board two 6 and bed board three 7, between bed board three 7 and bed board four 8, a drive mechanism is provided; One end of 9 is rotationally connected with connecting rod two 10 one ends, and one end of said telescopic rod 11 is rotationally connected with connecting rod one 9; said upper bed frame 3 is provided with a suspension frame 4 above the tail end of the bed.

The bottom four corners of the bottom bed frame 1 are provided with universal rollers with a braking function.

A headboard baffle 12 is provided above the head end of the upper bed frame 3 .

Side guardrails 13 are arranged above the two sides of the upper bed frame 3 .

The telescopic rod 11 adopts a hydraulic cylinder.

When the utility model is actually implemented, by adjusting the extension length of the adjustable support leg 2, the overall height of the bed board assembly can be adjusted, so as to meet the requirements of different patients and nurses, and the distance between adjacent bed boards can be adjusted through the driving mechanism. The included angle: when the first board 5, the second board 6, the third board 7, and the fourth board 8 are horizontal, it can be used as the bed board of an ordinary hospital bed for the patient to lie flat; when the first board 5 is relatively rotated and lifted, the second board 6 and the third board 7 1. When the bed board four 8 is at the level, it can lift the upper body of the patient, so that the patient can change the lying posture and improve the comfort; Rotate 80-90 degrees upward relative to the bed board 37. At this time, it can be used as a seat with pedals for the patient to sit on, preventing bed sores from lying down for a long time, and it is also convenient to change the dressing on the back, reducing the workload and difficulty of nursing. When the patient needs to hang the lower limbs, the straps can be hung on the suspension frame 4. When the patient needs to stand for training, he can also stand up and support the suspension frame 4 with both hands.

Among them, for the working process of the driving mechanism adjustment, the working process of the bed board 2 6 and the bed board 3 7 is explained, and the rest of the working principles are the same, and will not be repeated: for the work of the bed board 2 6 and the bed board 3 7, the end of the connecting rod 9 is connected to the The second bed board 6 is connected in rotation, the connecting rod two 10 is connected to the bed board three 7 in rotation, and the telescopic rod 11 is connected to the bed board two 6 in rotation. Thereby drive bed board three 7 to rotate relatively bed board two 6, realize angle adjustment.

The bed board assembly of the utility model adopts a foldable structure, which can be used as a normal bed board for patients to lie down and rest when unfolded, and can be used as a seat when folded, which is beneficial for the patient to get up, prevents the user from maintaining a posture for a long time to produce bedsores, and is conducive to changing the dressing on the back. At the same time, it can also enable patients to perform rehabilitation exercises in a standing state. There is a suspension frame, which can be used for the suspension of the patient's lower limbs. Simple and convenient, reasonable in structure and capable of manufacture.

The utility model and its implementation have been described above. This description is not restrictive. What is shown in the drawings is only one implementation of the utility model, and the actual structure is not limited thereto. All in all, if a person of ordinary skill in the art is inspired by it, without departing from the purpose of the utility model, without creatively designing a structural method and embodiment similar to the technical solution, it shall be protected by the utility model scope.
