Abstract

The utility model relates to a drying rack for diode production, which includes a box body. A fixing plate is fixed inside the box body. The left and right sides of the upper surface of the fixing plate are provided with not less than two circulation ports. The bottom wall of the inner cavity of the box is provided with a drying mechanism for evenly drying the diodes, and the lower surface of the box is provided with a collection mechanism for collecting water stains on the outside of the diodes, and the drying mechanism includes The motor is fixed on the bottom wall of the inner cavity of the box, and the fan is fixed on the upper surface of the box. The drying rack for diode production, the drying mechanism can evenly dry the diodes. After the motor rotates, the diodes placed on the upper surface of the placement plate are driven to rotate inside the box, and then the first air outlet and the second air outlet are paired. The upper surface and the lower surface of the diode are dried, thereby improving the drying effect of the diode and greatly increasing the practicability of the drying rack.

Description

A drying rack for diode production

technical field

The utility model relates to the technical field of drying racks, in particular to a drying rack for diode production.

Background technique

Diode, among electronic components, is a device with two electrodes that only allows current to flow in a single direction. Many applications use its rectification function. In order to enhance the safety and quality of diodes and improve stability, in the process of producing diodes In the process, it is often necessary to dry the diodes.

For example, in the Chinese patent CN 216384838 U, a drying device for the production of electronic diodes is disclosed, which includes a heat collecting box and a disassembly mechanism. A hot air blower is fixedly installed, and the output end of the hot air blower is fixedly connected with an air outlet pipe, which is used for a drying device for electronic diode production. Used in conjunction with the telescopic spring, the filter can be quickly disassembled, helping the staff to quickly pick and place the electronic diode, improving the speed of the staff to pick and place the electronic diode, improving the efficiency of the staff to pick and place the electronic diode, and improving the anticipation of the electronic diode. The drying speed is convenient for the staff to clean the drying box and the filter screen in time and improve the cleanliness inside the drying box. However, when the drying device in this patent is working, although the rotation of the fan blades can be used to make The hot gas is more evenly distributed, but a drying box is installed in the heat gathering box. Although the gas can be distributed more evenly before entering the drying box, when the gas enters the drying box for drying, there is no Setting the fan blade structure cannot guarantee that the hot air will dry the diode evenly in the drying box.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a drying rack for diode production, which has the advantages of good drying effect and solves the problem of uneven drying of the diodes.

In order to achieve the above purpose, the utility model provides the following technical solutions: a drying rack for diode production, including a box body, a fixing plate is fixed inside the box body, and the left and right sides of the upper surface of the fixing plate are provided with quantity There are not less than two circulation ports, the bottom wall of the inner cavity of the box is provided with a drying mechanism for drying the diodes evenly, and the lower surface of the box is provided with a water stain on the outside of the diodes. collection agencies;

The drying mechanism includes a motor fixed on the bottom wall of the inner cavity of the box, a rotating rod is fixed on the outside of the output shaft of the motor, and no less than two placing trays are fixed on the outside of the rotating rod. A fan is fixed on the upper surface of the fan, the air outlet end of the fan is fixed with a first connecting pipe, the left end of the first connecting pipe is connected with a heating box, and the left end of the heating box is connected with a second connecting pipe. First fixing rods are fixed on the left and right sides of the top wall of the inner cavity, and the air outlet assembly is fixed at the bottom ends of the two first fixing rods.

Further, the air outlet assembly includes a first air duct fixed at the bottom ends of the two first fixing rods, the lower surface of the first air duct communicates with not less than two first air outlet heads, and the second connection The right side of the pipe is connected with a first fixed pipe, the right side of the first fixed pipe penetrates and extends to the inside of the box to communicate with the left end of the first air pipe, and the left and right sides of the upper surface of the fixed plate are fixed with The second fixing rod, the top ends of the two second fixing rods are fixed with a second air pipe, and the upper surface of the second air pipe is connected with a number of not less than two second outlet heads, and the second connecting pipe The bottom end of the second fixed pipe communicates with the second fixed pipe, and the right end of the second fixed pipe penetrates and extends to the inside of the box body and communicates with the left side of the second air pipe.

Further, no less than two heating wires are fixed inside the heating box, and the number of not less than two heating wires is evenly distributed inside the heating box.

Further, the two first fixing rods are symmetrically distributed on the left and right sides of the longitudinal central axis of the box body, and a box door is movably installed on the front of the box body.

Further, the number of the placing trays is not less than two evenly distributed on the outside of the rotating rod, and the motor is located on the longitudinal central axis of the box.

Further, the collection mechanism includes a water tank fixed on the lower surface of the box body, and the left and right sides of the lower surface of the fixing plate are connected with collecting buckets on the outer sides of no less than two circulation ports, and the two collecting buckets The bottom ends are connected with collecting pipes, and the opposite ends of the two collecting pipes are connected with the left and right sides of the water tank, and the lower surface of the water tank is connected with a water outlet device.

Further, the water outlet device includes a first water outlet pipe, the outside of the first water outlet pipe communicates with a valve, and the inside of the valve communicates with a second water outlet pipe.

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

1. The drying rack for diode production, the drying mechanism can dry the diodes evenly. After the motor rotates, the diodes placed on the upper surface of the placement plate are driven to rotate inside the box, and then pass through the first outlet and the second. The air outlet dries the upper surface and the lower surface of the diode, thereby improving the drying effect of the diode and greatly increasing the practicability of the drying rack.

2. The drying rack for diode production, the collection mechanism can collect the water stains on the outside of the diode. The water stains on the outside of the diode pass through the fixed opening on the upper surface of the placement plate, and then flow to the upper surface of the fixed plate, and then pass through the circulation opening. And the collection bucket, the water stains are collected in the inside of the water tank, which can effectively prevent the accumulation of water inside the tank from affecting the drying of the diodes, thus greatly increasing the practicability of the drying rack.

Description of drawings

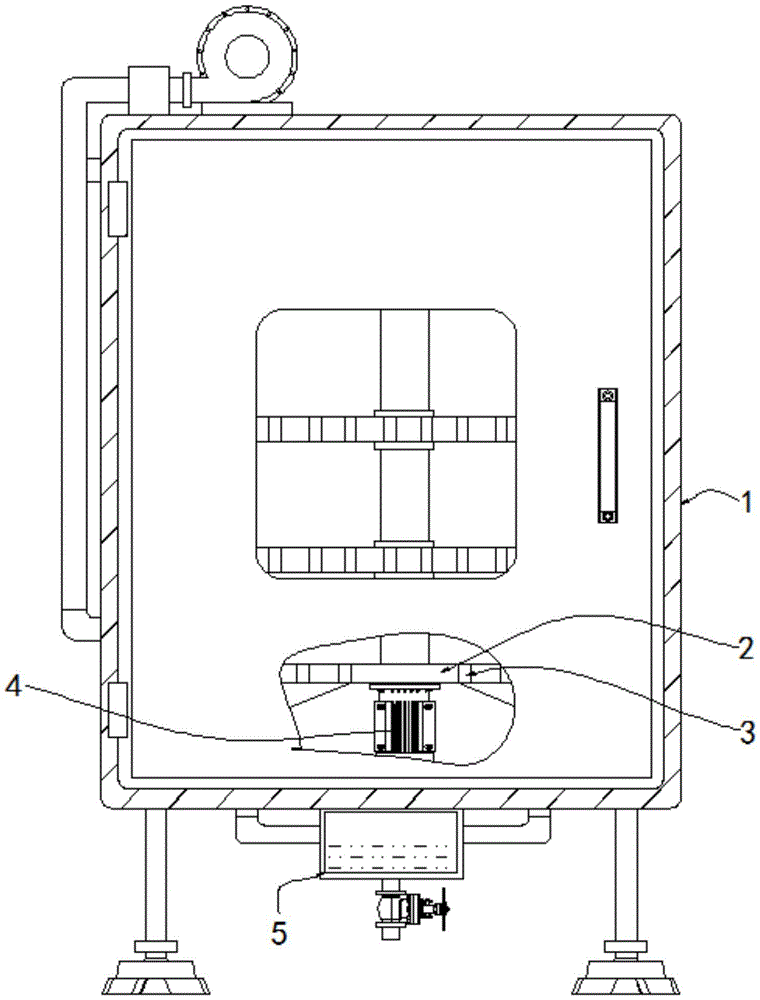

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the schematic diagram of drying mechanism of the utility model;

Fig. 3 is a schematic diagram of the collecting mechanism of the utility model.

In the figure: 1 box body, 2 fixed plate, 3 flow port, 4 drying mechanism, 401 motor, 402 rotating rod, 403 placing plate, 404 fan, 405 first connecting pipe, 406 heating box, 407 second connecting pipe, 408 the first fixed rod, 409 the first air pipe, 410 the first air outlet, 411 the first fixed pipe, 412 the second fixed rod, 413 the second air pipe, 414 the second air outlet, 415 the second fixed pipe, 5 the collection mechanism, 501 water tank, 502 collecting bucket, 503 collecting pipe, 504 water outlet device.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1, a kind of drying rack for diode production in the present embodiment, comprises box body 1, and the inside of box body 1 is fixed with fixed plate 2, and the left and right sides of fixed plate 2 upper surface are provided with the number not less than Two circulation ports 3, the bottom wall of the inner cavity of the box body 1 is provided with a drying mechanism 4 for uniformly drying the diodes, and the lower surface of the box body 1 is provided with a collection mechanism for collecting water stains on the outside of the diodes 5.

Please refer to Fig. 2, in order to increase the drying effect of the diode, the drying mechanism 4 in the present embodiment includes a motor 401 fixed on the bottom wall of the inner cavity of the casing 1, and a rotating rod 402 is fixed on the outside of the output shaft of the motor 401, and the motor 401 Rotation drives the diode on the upper surface of the placing tray 403 to rotate inside the casing 1, and then when rotating, it can be dried evenly. The outer side of the rotating rod 402 is fixed with no less than two placing trays 403. 403 is a placement frame, which prevents the diode from falling from the inside of the placement tray 403. A fan 404 is fixed on the upper surface of the box body 1. The air outlet end of the fan 404 is fixed with a first connecting pipe 405. The left end of the first connecting pipe 405 is connected to There is a heating box 406, the left end of the heating box 406 is connected with a second connecting pipe 407, and a heating wire is fixed inside the heating box 406, which can heat the wind blown by the fan 404, and then dry the diode inside the box body 1 First fixing rods 408 are fixed on the left and right sides of the top wall of the inner cavity of the box body 1, and the bottom ends of the two first fixing rods 408 are fixed to the air outlet assembly.

In this example, the air outlet assembly includes a first air duct 409 fixed on the bottom ends of two first fixing rods 408. The lower surface of the first air duct 409 communicates with not less than two first air outlet heads 410, and the second The right side of the connecting pipe 407 communicates with the first fixed pipe 411. The right side of the first fixed pipe 411 penetrates and extends to the inside of the box body 1 and communicates with the left end of the first air pipe 409. The hot air flow inside the first fixed pipe 411 to the inside of the first air duct 409, and then blow to the upper surface of the placement tray 403 from the first air outlet 410 connected to the lower surface of the first air duct 409, and the left and right sides of the upper surface of the fixing plate 2 are fixed. There are second fixed rods 412, and the top ends of the two second fixed rods 412 are fixed with second air pipes 413. The upper surface of the second air pipes 413 is connected with a number of not less than two second outlet heads 414. The second connecting pipes The bottom end of 407 is communicated with the second fixed pipe 415, the hot air inside the second fixed pipe 415 flows to the inside of the second air outlet head 414 through the second air pipe 413, and the hot air inside the second air outlet head 414 is blown to the lower surface of the placement tray 403 , the right end of the second fixed pipe 415 runs through and extends to the inside of the box body 1 and communicates with the left side of the second air pipe 413, the hot air circulates inside the box body 1, and there are many places on the upper surface of the placement tray 403 There are two fixed openings, which have flowability. The hot air passes through the inside of the fixed opening, and then blows to the lower surface and surrounding areas of the diodes to evenly dry the diodes. There are no less than two heating elements fixed inside the heating box 406. wire, the number of heating wires not less than two is evenly distributed inside the heating box 406, and the two first fixing rods 408 are symmetrically distributed on the left and right sides of the longitudinal central axis of the box body 1, and the front of the box body 1 is movable. For the box door, no less than two placing trays 403 are evenly distributed on the outside of the rotating rod 402, and the motor 401 is located on the longitudinal central axis of the box body 1.

It should be noted that the water inside the two collecting buckets 502 flows into the inside of the water tank 501 through the two collecting pipes 503, and when the water inside the water tank 501 reaches a certain amount, the water outlet device 504 connected to the lower surface of the water tank 501 is opened, and the The accumulated water inside the water tank 501 is discharged, thereby increasing the practicability of the drying rack.

Please refer to Fig. 3, in order to include the water tank 501 fixed on the lower surface of the box body 1 by the collection mechanism 5 in the present embodiment, the left and right sides of the lower surface of the fixed plate 2 and the outer sides of the number of not less than two circulation ports 3 are located. Connected with the collection bucket 502, the water stains attached to the outside of the diode flow to the upper surface of the fixed plate 2 through the fixed opening on the upper surface of the placement plate 403, and then flow to the two collectors through the circulation opening 3 opened on the upper surface of the fixed plate 2. Inside the bucket 502, the bottom ends of the two collecting buckets 502 are connected with a collecting pipe 503, and the opposite ends of the two collecting pipes 503 are connected with the left and right sides of the water tank 501, and the lower surface of the water tank 501 is connected with a water outlet device 504.

In this example, the water outlet device 504 includes a first water outlet pipe, the outside of the first water outlet pipe communicates with a valve, and the inside of the valve communicates with a second water outlet pipe.

It should be noted that the water inside the two collecting buckets 502 flows into the inside of the water tank 501 through the two collecting pipes 503, and when the water inside the water tank 501 reaches a certain amount, the water outlet device 504 connected to the lower surface of the water tank 501 is opened, and the The accumulated water inside the water tank 501 is discharged, thereby increasing the practicability of the drying rack.

The working principle of the above-mentioned embodiment is:

(1) When the drying rack is working, open the box door, place the diodes on the upper surface of no less than two placement trays 403, then close the box door, start the fan 404 at this time, and the fan 404 will blow The wind that comes out passes through the first connecting pipe 405, and is transported to the inside of the heating box 406 for heating, and then the wind heated inside the heating box 406 is transported to the inside of the first fixed pipe 411 and the second fixed pipe 415 through the second connecting pipe 407, and then The hot air inside the first fixed pipe 411 flows into the inside of the first air pipe 409, and then blows to the upper surface of the placement tray 403 from the first air outlet 410 connected to the lower surface of the first air pipe 409, and then the second The hot air inside the second fixed pipe 415 flows to the inside of the second air outlet 414 through the second air pipe 413, and the hot air inside the second air outlet 414 is blown to the lower surface of the placement tray 403. At this time, the motor 401 is started, and the output shaft of the motor 401 rotates to drive The rotating rod 402 rotates, and then drives the placement disk 403 fixed on the outside of the rotating rod 402 and the number is not less than two to rotate inside the casing 1, and then drives the diode placed on the upper surface of the placing disk 403 to rotate, and the diode is placed on the upper surface of the disk 403 to rotate. When the inside of the cabinet 1 is rotating, the first air outlet 410 and the second air outlet 414 evenly dry the diodes, thereby increasing the drying effect of the diodes, avoiding uneven drying of the diodes, and greatly increasing the practicality of the drying rack. sex.

(2) When the diode is being dried, the water stain attached to the outside of the diode flows to the upper surface of the fixed plate 2 through the fixed opening on the upper surface of the placement plate 403, and then passes through the circulation port 3 provided on the upper surface of the fixed plate 2, Flow to the inside of the two collection buckets 502, and then the water inside the two collection buckets 502 flows to the inside of the water tank 501 through the two collection pipes 503, when the water inside the water tank 501 reaches a certain amount, open the lower surface of the water tank 501 to communicate The water outlet device 504 discharges the accumulated water inside the water tank 501, thereby increasing the practicability of the drying rack.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A drying rack for diode production, comprising a casing (1), characterized in that: the inside of the casing (1) is fixed with a fixed plate (2), and the left and right sides of the upper surface of the fixed plate (2) There are not less than two circulation ports (3) on both sides, and the bottom wall of the inner cavity of the box (1) is provided with a drying mechanism (4) for evenly drying the diodes. The lower surface of (1) is provided with a collection mechanism (5) for collecting water stains on the outside of the diode; The drying mechanism (4) includes a motor (401) fixed on the bottom wall of the inner cavity of the casing (1), and a rotating rod (402) is fixed on the outside of the output shaft of the motor (401), and the rotating rod (402) ) is fixed with no less than two placement trays (403), the upper surface of the box (1) is fixed with a fan (404), and the outlet end of the fan (404) is fixed with a first connection pipe (405), the left end of the first connecting pipe (405) communicates with a heating box (406), the left end of the heating box (406) communicates with a second connecting pipe (407), and the box body (1) First fixing rods (408) are fixed on the left and right sides of the top wall of the inner cavity, and the bottom ends of the two first fixing rods (408) are fixed to the air outlet assembly. 2. A drying rack for diode production according to claim 1, characterized in that: said air outlet assembly includes a first air duct (409) fixed at the bottom ends of two first fixing rods (408), so that The lower surface of the first air pipe (409) communicates with not less than two first outlet heads (410), and the right side of the second connecting pipe (407) communicates with a first fixed pipe (411), so The right side of the first fixing pipe (411) penetrates and extends to the inside of the box (1) and communicates with the left end of the first air pipe (409), and the left and right sides of the upper surface of the fixing plate (2) are fixed with The second fixed rod (412), the top of the two second fixed rods (412) is fixed with the second air pipe (413), and the upper surface of the second air pipe (413) is connected with a number of not less than two A second outlet head (414), the bottom end of the second connecting pipe (407) communicates with a second fixing pipe (415), and the right end of the second fixing pipe (415) penetrates and extends to the box body (1 ) and communicate with the left side of the second air duct (413). 3. A drying rack for diode production according to claim 1, characterized in that: the inside of the heating box (406) is fixed with not less than two heating wires, and the number is not less than two The heating wires are evenly distributed inside the heating box (406). 4. A drying rack for diode production according to claim 1, characterized in that: the two first fixing rods (408) are symmetrically distributed on the left and right sides of the longitudinal central axis of the box body (1), A box door is installed on the front side of the box body (1). 5. A drying rack for diode production according to claim 1, characterized in that: no less than two said placing trays (403) are evenly distributed on the outside of the rotating rod (402), and said motor (401) is located on the longitudinal central axis of the box body (1). 6. A drying rack for diode production according to claim 1, characterized in that: the collection mechanism (5) includes a water tank (501) fixed on the lower surface of the box body (1), and the fixed plate ( 2) There are collecting buckets (502) connected to the left and right sides of the lower surface and on the outer sides of not less than two circulation ports (3), and the bottom ends of the two collecting buckets (502) are connected to collecting pipes (503 ), the opposite ends of the two collecting pipes (503) communicate with the left and right sides of the water tank (501), and the lower surface of the water tank (501) communicates with a water outlet device (504). 7. A drying rack for diode production according to claim 6, characterized in that: the water outlet device (504) includes a first water outlet pipe, and a valve is connected to the outside of the first water outlet pipe, and the valve There is a second water outlet pipe in the internal communication.
