CN218139248U - Degradable tableware production rim charge crushing apparatus - Google Patents

Abstract

The utility model discloses a degradable tableware production rim charge crushing apparatus belongs to degradable tableware recovery plant technical field, including smashing the case and setting up the feed inlet in smashing the case top, the internally mounted who smashes the case has broken wheel component, and the below of broken wheel component is provided with the screen cloth, and the below of screen cloth is provided with and connects the hopper, connects the below of hopper to be provided with and grinds the component, and one side of smashing the case is provided with the motor, and the output of motor is connected on broken wheel component. The utility model discloses a feed inlet of smashing the case top drops into the rim charge, then drives broken round component through the motor and carries out preliminary breakage, and the rim charge of broken completion moves through the screen cloth sieve and drops in connecing the hopper, then drops through connecing the hopper direction and grind on grinding the component, grinds the back with the rim charge, makes the rim charge can be kibbling more thoroughly, ensures the recycle after the rim charge is smashed.

Description

Degradable tableware production rim charge crushing apparatus

Technical Field

The utility model relates to a crushing apparatus especially relates to a degradable tableware production rim charge crushing apparatus, belongs to degradable tableware recovery plant technical field.

Background

The degradable tableware is tableware which can cause appearance to mildew to change to internal quality under the action of natural environment microorganisms and enzymes to finally form carbon dioxide and water, can generate more recyclable leftover materials during production and can be recycled after the leftover materials are crushed again.

The existing crushing equipment has poor crushing effect, and the condition of incomplete crushing is easy to occur, so that hard blocks which are not completely crushed can be generated when the produced tableware is recovered, and the product quality is influenced.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main objective is in order to solve and can not screen out tiny feed particle, the inconvenient dismantlement of pipeline, problem that the percent opening is low, and provides a degradable tableware production rim charge crushing apparatus.

The purpose of the utility model can be achieved by adopting the following technical scheme:

the utility model provides a degradable tableware production rim charge crushing apparatus, is in including smashing the case and setting smash the feed inlet of case top, the internally mounted of smashing the case has broken wheel component, the below of broken wheel component is provided with the screen cloth, the below of screen cloth is provided with connects the hopper, the below that connects the hopper is provided with grinds the component, one side of smashing the case is provided with the motor, the output of motor is connected on the broken wheel component.

Preferably, the crushing wheel member is composed of two crushing wheel shafts with one ends connected through gear engagement.

Preferably, one end of the screen is rotatably connected with the inner wall of the crushing box through a rotating shaft, a first discharge port is formed in the crushing box, and a cam shaft is arranged below the other end of the screen.

Preferably, a belt pulley is mounted at one end of the cam shaft, and the cam shaft is rotatably connected with the crushing wheel member through a belt.

Preferably, a collecting box is arranged below the cam shaft.

Preferably, the grinding member includes a first grinding plate and a second grinding plate disposed below the first grinding plate, and an electric push rod is mounted above the first grinding plate.

Preferably, electric putter's output is installed on first lapping plate, electric putter's the other end is installed smash on the inner wall of case, first lapping plate with smash incasement wall sliding connection.

Preferably, the second grinding plate is fixedly connected with the inner wall of the crushing box.

Preferably, a second discharge port is formed in the bottom of the crushing box, a collecting vehicle is arranged below the second discharge port, and a pushing handle is mounted on the collecting vehicle.

Preferably, an operation panel is installed at one end of the crushing box, and a support is arranged below the crushing box.

The utility model has the advantages of: according to the utility model discloses a degradable tableware production rim charge crushing apparatus drops into the rim charge through the feed inlet of smashing the case top, then drives broken round component through the motor and carries out preliminary breakage, and the rim charge of broken completion moves through the screen cloth sieve and drops in connecing the hopper, then drops through connecing the hopper direction and grind on grinding the component, grinds the back with the rim charge, makes the rim charge can be kibbling more thoroughly, ensures the recycle after the rim charge is smashed.

Drawings

Fig. 1 is a schematic overall structure diagram according to a preferred embodiment of the present invention;

fig. 2 is a side view of the overall structure in accordance with a preferred embodiment of the present invention;

FIG. 3 is a perspective view of the internal structure of the grinding box according to a preferred embodiment of the present invention;

FIG. 4 is a schematic structural view of a breaker wheel assembly in accordance with a preferred embodiment of the present invention;

FIG. 5 is a schematic diagram of a screen construction according to a preferred embodiment of the present invention;

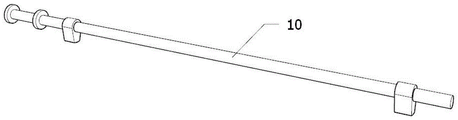

fig. 6 is a schematic view of a camshaft according to a preferred embodiment of the present invention;

fig. 7 is a schematic view of a receiving hopper according to a preferred embodiment of the present invention;

fig. 8 is a schematic view of a grinding member according to a preferred embodiment of the present invention.

In the figure: 1. a crushing box; 2. an operation panel; 3. a feed inlet; 4. a support; 5. a collection box; 6. a collection vehicle; 7. a pushing handle; 8. a motor; 9. screening a screen; 10. a camshaft; 11. a breaker wheel member; 12. a receiving hopper; 13. a grinding member; 14. a first polishing plate; 15. a second polishing plate; 16. an electric push rod.

Detailed Description

In order to make the technical solutions of the present invention clearer and clearer for those skilled in the art, the present invention is further described in detail below with reference to the following examples and drawings, but the embodiments of the present invention are not limited thereto.

As shown in fig. 1-8, the apparatus for pulverizing offcut in the production of degradable tableware provided by this embodiment comprises a pulverizing box 1 and a feed inlet 3 disposed above the pulverizing box 1, a pulverizing wheel member 11 is installed inside the pulverizing box 1, a screen 9 is disposed below the pulverizing wheel member 11, a receiving hopper 12 is disposed below the screen 9, a grinding member 13 is disposed below the receiving hopper 12, a motor 8 is disposed on one side of the pulverizing box 1, an output end of the motor 8 is connected to the pulverizing wheel member 11, the offcut is fed through the feed inlet 3 above the pulverizing box 1, then the pulverizing wheel member 11 is driven by the motor 8 to perform primary crushing, the crushed offcut falls into the receiving hopper 12 through the screen 9, and then falls onto the grinding member 13 through the receiving hopper 12 to grind, after the offcut is ground, the offcut can be pulverized more thoroughly, and reuse of the pulverized offcut is ensured.

In this embodiment, as shown in fig. 1, fig. 3 and fig. 8, the grinding member 13 includes a first grinding plate 14 and a second grinding plate 15 disposed below the first grinding plate 14, an electric push rod 16 is mounted above the first grinding plate 14, an output end of the electric push rod 16 is mounted on the first grinding plate 14, another end of the electric push rod 16 is mounted on an inner wall of the crushing box 1, the first grinding plate 14 is slidably connected with an inner wall of the crushing box 1, the second grinding plate 15 is fixedly connected with the inner wall of the crushing box 1, the electric push rod 16 drives the first grinding plate 14 to move, the grinding material is ground by matching with the second grinding plate 15, a second discharge hole is opened at the bottom of the crushing box 1, a collecting cart 6 is disposed below the second discharge hole, a pushing handle 7 is mounted on the collecting cart 6, an operation panel 2 is mounted at one end of the crushing box 1, a support 4 is disposed below the crushing box 1, and the ground edge material is discharged through the second discharge hole and collected by the collecting cart 6.

In this embodiment, as shown in fig. 2, fig. 4 and fig. 5, the crushing wheel member 11 is composed of two crushing wheel shafts with one ends connected by gear engagement, one end of the screen mesh 9 is rotatably connected with the inner wall of the crushing box 1 through a rotating shaft, a first discharge port is formed in the crushing box 1, a cam shaft 10 is arranged below the other end of the screen mesh 9, a belt pulley is installed at one end of the cam shaft 10, the cam shaft 10 is rotatably connected with the crushing wheel member 11 through a belt, a collecting box 5 is arranged below the cam shaft 10, the motor 8 drives the crushing wheel member 11 to rotate, then the cam shaft 10 is driven to rotate through the crushing wheel member 11, and then the cam shaft 10 can drive the screen mesh 9 to screen, so that the filtered rim charge on the screen mesh 9 can be discharged through the first discharge port and collected through the collecting box 5, and the subsequent processing is facilitated.

In this embodiment, as shown in fig. 1 to 8, the operation process of the edge-trim crushing apparatus for producing degradable tableware provided in this embodiment is as follows:

step 1: the method comprises the following steps of (1) putting leftover materials through a feeding hole (3) above a crushing box (1), then driving a crushing wheel component (11) through a motor (8) to carry out primary crushing, and screening the crushed leftover materials through a screen (9) to fall into a material receiving hopper (12);

step 2: meanwhile, the cam shaft 10 rotates to drive the screen mesh 9 to continuously screen, so that the rim charge which does not pass through the screen mesh 9 is discharged from the first discharge hole and enters the collection box 5, the rim charge which passes through the screen mesh 9 is guided by the material receiving hopper 12 to fall onto the grinding component 13 for grinding, and the electric push rod 16 is utilized to drive the first grinding plate 14 to be matched with the second grinding plate 15 for continuous grinding;

and step 3: grind the back with the rim charge, discharge from the second discharge gate, make more thorough that the rim charge can be kibbling, guarantee the recycle after the rim charge is kibbling.

In conclusion, in this embodiment, according to the degradable tableware production rim charge crushing apparatus of this embodiment, throw in rim charge through the feed inlet 3 of smashing 1 top of case, then drive crushing wheel component 11 through motor 8 and carry out preliminary breakage, the rim charge that the breakage was accomplished passes through screen cloth 9 and sieves and move and drop in receiving hopper 12, the rim charge that does not pass through screen cloth 9 is discharged from first discharge gate and gets into collection box 5, make broken incomplete rim charge separately collect, then drop through receiving hopper 12 direction and grind on grinding component 13, grind the back with the rim charge, utilize electric putter 16 to drive first lapping plate 14 and cooperate the continuous grinding of second lapping plate 15, make the rim charge can be smashed more thoroughly, ensure the reuse after the rim charge is smashed.

The above description is only a further embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, and any person skilled in the art can replace or change the technical solution and the concept of the present invention within the scope of the present invention.

Claims (10)

1. The utility model provides a degradable tableware production rim charge crushing apparatus, its characterized in that is in including smashing case (1) and setting feed inlet (3) of smashing case (1) top, the internally mounted of smashing case (1) has broken wheel component (11), the below of broken wheel component (11) is provided with screen cloth (9), the below of screen cloth (9) is provided with connects hopper (12), the below that connects hopper (12) is provided with grinds component (13), one side of smashing case (1) is provided with motor (8), the output of motor (8) is connected on broken wheel component (11).

2. The apparatus for pulverizing offal in the production of degradable tableware according to claim 1, wherein said crushing wheel member (11) is constituted by two crushing wheel shafts connected at one end by gear engagement.

3. The degradable tableware production rim charge crushing device according to claim 1, wherein one end of the screen (9) is rotatably connected with the inner wall of the crushing box (1) through a rotating shaft, a first discharge hole is formed in the crushing box (1), and a cam shaft (10) is arranged below the other end of the screen (9).

4. The apparatus for pulverizing offal in degradable tableware production according to claim 3, wherein a pulley is mounted at one end of said cam shaft (10), said cam shaft (10) being rotatably connected to said breaker wheel member (11) by a belt.

5. The apparatus for pulverizing offal in degradable tableware production according to claim 4, characterized in that a collecting box (5) is provided below said cam shaft (10).

6. The apparatus for pulverizing the trimmings in the production of degradable tableware according to claim 1, characterized in that the grinding means (13) comprises a first grinding plate (14) and a second grinding plate (15) disposed below the first grinding plate (14), and an electric push rod (16) is installed above the first grinding plate (14).

7. The apparatus for crushing the leftovers in the production of degradable tableware according to claim 6, wherein the output end of the electric push rod (16) is installed on the first grinding plate (14), the other end of the electric push rod (16) is installed on the inner wall of the crushing box (1), and the first grinding plate (14) is connected with the inner wall of the crushing box (1) in a sliding manner.

8. The apparatus for pulverizing offal in the production of degradable tableware according to claim 7, characterized in that said second grinding plate (15) is fixedly connected to the inner wall of said pulverizing box (1).

9. The degradable tableware production rim charge crushing device according to claim 1, wherein a second discharge port is formed in the bottom of the crushing box (1), a collecting vehicle (6) is arranged below the second discharge port, and a pushing handle (7) is installed on the collecting vehicle (6).

10. The apparatus for crushing the leftover bits and pieces in the production of degradable tableware according to claim 1, wherein an operation panel (2) is installed at one end of the crushing box (1), and a bracket (4) is arranged below the crushing box (1).
