Abstract

The utility model discloses a plate cutting device for convenient loading and unloading, which comprises a transmission frame, the inner wall of the transmission frame is rotatably connected with a set of conveying rollers, and the inside of the transmission frame is fixedly connected with a U-shaped frame along the vertical direction. The upper part of the inner side of the U-shaped frame is provided with a cutting assembly, the lower part of the inner side of the U-shaped frame is provided with a clamping assembly, and the two ends of the transmission frame are respectively hinged with a feeding assembly and a discharging assembly. The utility model has made improvements to the prior art. , the feeding component and the discharging component can conveniently carry out the upper and lower plates, do not need to manually carry the plate, and can improve the efficiency of the upper plate and the lower plate, by setting the cutting component for cutting the plate, and the clamping component for cutting The front plate is fixed, and the cutting efficiency is high.

Description

A plate cutting device for convenient loading and unloading

technical field

The utility model relates to the technical field of plate production, in particular to a plate cutting device which is convenient for loading and unloading.

Background technique

Plates are made into flat rectangular building material plates of standard size. They are used in the construction industry as components of walls, ceilings or floors. They also refer to forged, rolled or cast metal plates, which are divided into thin plates and medium plates. , thick plate, extra thick plate, usually made into a flat rectangular building material plate of standard size.

When processing wood-plastic panels, it is necessary to use a cutting device to cut and process them. During the cutting operation, it is necessary to manually place the wood-plastic panels on the cutting table one by one. After the cutting operation is completed, manually remove the wood-plastic panels from the cutting table. Up and down, due to the high height of the cutting table, it is time-consuming and labor-intensive when lifting the wood-plastic board and moving it away from the cutting table, which is not conducive to improving work efficiency.

Utility model content

Aiming at the deficiencies of the prior art, the purpose of this utility model is to provide a plate cutting device that is convenient for loading and unloading, so as to solve the problems raised in the above-mentioned background technology.

In order to realize and solve the problems proposed in the above-mentioned background technology, the concrete technical scheme that the utility model adopts is as follows:

A plate cutting device that is convenient for loading and unloading, including a transmission frame, the inner wall of the transmission frame is rotatably connected with a set of conveying rollers, and the inside of the transmission frame is fixedly connected with a U-shaped frame along the vertical direction. It is characterized in that the U-shaped A cutting assembly is provided on the inner upper part of the frame, a clamping assembly is provided on the inner lower part of the U-shaped frame, and a feeding assembly and a discharging assembly are respectively hinged at both ends of the transmission frame;

The structure of the feeding assembly and the discharging assembly is the same, and both include a feeding frame hinged to the end of the conveying frame. Support plates are fixedly installed on both sides of the bottom of the conveying frame, and the support plate is close to the side wall of the feeding frame. A first air cylinder is hinged, and the movable end of the first air cylinder is hinged with the bottom of the feeding frame.

Further, the feeding frame includes a connecting portion, a transition portion, and a bearing portion, the connecting portion is hinged to the end of the conveying frame, the end of the connecting portion away from the conveying frame is fixedly connected to a transition portion, and the transition portion is far away from the connecting portion One end of the feed frame is fixedly connected with a bearing part, and a set of feed rollers is rotatably connected inside the feed frame.

Further, the cutting assembly includes a first motor installed on the top of the outer wall of the U-shaped frame, the output end of the first motor is fixedly connected to the first lead screw, and the first lead screw passes through the first nut seat and In threaded connection with it, a mounting block is fixedly mounted on the bottom of the first nut seat, a second cylinder is fixedly mounted on the bottom of the mounting block, and a cutting saw is fixedly connected to the bottom of the second cylinder.

Further, the clamping assembly includes a second motor installed on the bottom of the outer wall of the U-shaped frame, the output end of the second motor is fixedly connected to the second lead screw, and the second lead screw is rotated to The opposite ball screw is formed, and the outer sides of the ball screw with two sections of thread in opposite directions pass through the second nut seat and are threaded with it, and the two side walls of the second nut seat are fixedly connected with horizontal rods. A splint is fixedly connected to the top of the end of the horizontal bar away from the second nut seat.

Further, the conveying roller set includes a plurality of conveying rollers, the U-shape is erected on the outside of one of the conveying rollers, and the outer wall of the U-shaped frame is fixedly connected to the inner wall of the conveying frame, and the splint is located between the two conveying rollers in the gap between.

Further, sliders are fixedly connected to the top of the first nut seat and the bottom of the second nut seat, sliding rods are provided above the first nut seat and below the second nut seat, and The sliding rod is fixedly connected to the inner wall of the U-shaped frame, and the slider is slidably connected to the outer wall of the sliding rod.

Compared with the prior art, the utility model provides a plate cutting device that is convenient for loading and unloading, and has the following beneficial effects:

(1), the utility model has made improvements to the prior art. By setting the feeding rack, when the board is on the board, the first cylinder drives the feeding rack to rotate until the bearing part contacts the ground. At this time, the bearing part can be attached to the ground. Put the plate to be loaded on the supporting part, and then the first cylinder drives the feeding frame to rotate and rise. During the process of rotating and rising the feeding frame, the plate to be loaded can slide on the top of the feeding roller group and slide from the carrying part to the The transition part, and continue to slide to the connecting part. When the connecting part is horizontal, the plate slides to the conveying frame to complete the feeding, and the lower plate operation can be carried out in the same way, so that the feeding component and the discharging component can be conveniently loaded. With the lower plate, there is no need to manually carry the plate, and the efficiency of the upper plate and the lower plate can be improved.

(2) In the utility model, the cutting assembly is used to cut the plate, and the clamping assembly is used to fix the plate before cutting, so the cutting efficiency is high.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only the present invention. For some embodiments of the present invention, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

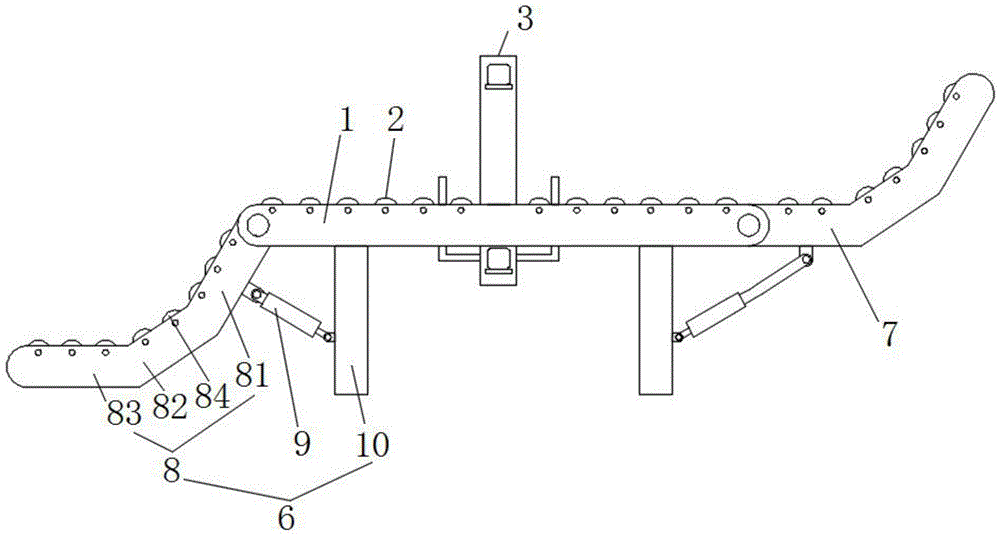

Fig. 1 is a front structural schematic diagram of a plate cutting device convenient for loading and unloading according to an embodiment of the utility model;

Fig. 2 is a side view structure diagram of a U-shaped frame of a plate cutting device for convenient loading and unloading according to an embodiment of the present invention;

Fig. 3 is a top view structure of a conveying frame of a plate cutting device for convenient loading and unloading according to an embodiment of the utility model.

In the picture:

1. Transmission frame;

2. Conveyor roller set;

3. U-shaped frame;

4. Cutting assembly; 41. The first motor; 42. The first lead screw; 43. The first nut seat; 44. The mounting block; 45. The second cylinder; 46. The cutting saw;

5. Clamping assembly; 51. The second motor; 52. The second screw; 53. The second nut seat; 54. The horizontal rod; 55. The splint;

6. Feed components;

7. Discharge components;

8. Feeding frame; 81. Connecting part; 82. Transition part; 83. Carrying part;

9. The first cylinder;

10. Support plate;

detailed description

In order to further illustrate the various embodiments, the utility model provides accompanying drawings, which are a part of the disclosure content of the utility model, which are mainly used to illustrate the embodiments, and can cooperate with the relevant descriptions in the manual to explain the operating principles of the embodiments. With reference to these contents, those skilled in the art should be able to understand other possible implementations and advantages of the present invention. The components in the figures are not drawn to scale, and similar component symbols are generally used to represent similar components.

According to the embodiment of the utility model, a plate cutting device that is convenient for loading and unloading is provided.

The utility model is now further described in conjunction with the accompanying drawings and specific embodiments. As shown in FIGS. The inner wall is rotatably connected with a set of conveying rollers 2, and the inside of the transmission frame 1 is fixedly connected with a U-shaped frame 3 along the vertical direction. There is a clamping assembly 5, and the two ends of the transmission frame 1 are respectively hinged with a feeding assembly 6 and a discharging assembly 7;

The feed assembly 6 has the same structure as the discharge assembly 7, and both include a feed frame 8 hinged to the end of the transmission frame 1, and support plates 10 are fixedly installed on both sides of the bottom of the transmission frame 1, and the support plate 10 A first cylinder 9 is hinged near the side wall of the feeding frame 8 , and the movable end of the first cylinder 9 is hinged to the bottom of the feeding frame 8 .

Through the above technical scheme, the feeding assembly 6 and the discharging assembly 7 are used for the feeding and discharging of the board, and the conveying roller group 2 is used for conveying the board on the conveying frame 1, and the conveying roller group 2 can be manually driven without power When the plate advances to the cutting position, a powered conveying roller set can also be selected, that is, sprockets or gears are installed on the roller shafts of each conveying roller, and each gear can be used to mesh with each other, and then the motor drives one of the driving gears to rotate to make the conveying The roller group 2 has power transmission, and a transmission chain can also be installed on the outside of the sprocket wheel, and then the motor drives one of the driving sprocket wheels to rotate, so that the conveying roller group 2 has power transmission. The power transmission of the conveying roller group has been established in the prior art. It is fully disclosed, and its structure will not be described in detail here. The cutting assembly 4 is used for cutting the plate, and the clamping assembly 5 is used for fixing the plate before cutting.

The feeding rack 8 includes a connecting portion 81, a transition portion 82, and a bearing portion 83. The connecting portion 81 is hinged to the end of the transmission frame 1, and the end of the connecting portion 81 away from the transmission frame 1 is fixedly connected with a transition portion 82. The end of the transition portion 82 away from the connecting portion 81 is fixedly connected with a bearing portion 83 , and the feeding frame 8 is rotatably connected with a feeding roller set 84 .

Through the above-mentioned technical scheme, adopting the feeding frame 8 of this structure can conveniently carry out the upper plate and the lower plate. 83 can be bonded to the ground, and the plate to be loaded is placed on the bearing part 83, and then the first cylinder 9 drives the feeding frame 8 to rotate and rise. During the process of the feeding frame 8 rotating and rising, the plate to be loaded can be reloaded. The top of the feeding roller group 84 slides, slides from the bearing part 83 to the transition part 82, and continues to slide to the connecting part 81. When the connecting part 81 is horizontal, the plate slides to the conveying frame 1, and the feeding is completed. In the same way, the plate can be lowered Operation.

The cutting assembly 4 includes a first motor 41 installed on the top of the outer wall of the U-shaped frame 3, the output end of the first motor 41 is fixedly connected to the first lead screw 42, and the first lead screw 42 passes through the first The nut seat 43 is threadedly connected with it, the bottom of the first nut seat 43 is fixedly equipped with a mounting block 44, the bottom of the mounting block 44 is fixedly mounted with a second cylinder 45, and the bottom of the second cylinder 45 is fixedly connected with a cutting saw 46 , the cutting saw 46 is located between the two conveyor rollers.

The clamping assembly 5 includes a second motor 51 mounted on the bottom of the outer wall of the U-shaped frame 3, the output end of the second motor 51 is fixedly connected to a second lead screw 52, and the second lead screw 52 is composed of two sections. The ball screws with opposite screw threads are formed, and the outer sides of the two ball screw screws with opposite screw threads pass through the second nut seat 53 and are threadedly connected with it, and the two side walls of the second nut seat 53 are fixedly connected with A horizontal rod 54 , a splint 55 is fixedly connected to the top of one end of the horizontal rod 54 away from the second nut seat 53 .

Through the above technical solution, the plate slides onto the conveying frame 1 to complete feeding, and then transports the plate to the cutting position, which is located between the inner side of the U-shaped frame 3 and the splint 55, so that the second motor 51 drives the second lead screw 52 to rotate , so that the two second nut seats 53 are close to each other and the two sides of the plate are clamped and fixed by the clamping plate 55, then the second cylinder 45 drives the cutting saw 46 to move down to contact the plate, and the cutting saw 46 is turned on to rotate, cutting The saw is often driven by a motor, and the cutting saw 46 can be directly purchased as a finished product for installation. The power structure of the cutting saw 46 will not be described in detail here. When cutting, the first motor 41 drives the first lead screw 42 to rotate, so that the first nut seat 43 is advanced, and then cutting saw 46 is advanced to cut.

The conveying roller set includes a plurality of conveying rollers, the U-shaped frame 3 is arranged on the outside of one of the conveying rollers, and the outer wall of the U-shaped frame 3 is fixedly connected with the inner wall of the conveying frame 1, and the splint 55 is located between two In the gap between the conveying rollers, the top of the first nut seat 43 and the bottom of the second nut seat 53 are fixedly connected with sliders, and the top of the first nut seat 43 is connected with the second nut seat 53. The bottom of 53 is provided with a sliding rod, and the sliding rod is fixedly connected with the inner wall of the U-shaped frame, and the slider is slidably connected with the outer wall of the sliding rod.

In order to facilitate the understanding of the above-mentioned technical solution of the utility model, the working principle or operation mode of the utility model in the actual process will be described in detail below.

Working principle: First, when loading the board, the first cylinder 9 drives the feeding frame 8 to rotate until the bearing part 83 touches the ground. At this time, the bearing part 83 can be attached to the ground, and the board to be loaded is placed on the bearing part 83 , then the first cylinder 9 drives the feed frame 8 to rotate and rise. During the process of the feed frame 8 rotating and rising, the loaded plate can slide on the top of the feed roller group 84, slide from the bearing part 83 to the transition part 82, and continue Slide to the connection part 81, when the connection part 81 is horizontal, the plate slides onto the conveying frame 1, completes feeding, and then the plate is transported to the cutting position, that is, between the inner side of the U-shaped frame 3 and the splint 55, so that the second motor 51 drives the second lead screw 52 to rotate, so that the two second nut seats 53 are close to each other and the two sides of the plate are clamped and fixed by the splint 55, and then the second cylinder 45 drives the cutting saw 46 to move down to contact the plate and open The cutting saw 46 makes it rotate, and the cutting saw is often driven by a motor. The cutting saw 46 can be directly purchased as a finished product for installation. The power structure of the cutting saw 46 will not be described in detail here. When cutting, the first motor 41 drives the first lead screw 42 Rotate, so that the first nut seat 43 advances, and then the cutting saw 46 advances to cut. After the cutting is completed, the board is transported to the discharge assembly 7 for board removal.

In this utility model, unless otherwise clearly specified and limited, terms such as "installation", "setting", "connection", "fixation" and "rotation" should be understood in a broad sense, for example, it may be a fixed connection, It can also be a detachable connection, or integrated; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction of two components Unless otherwise clearly defined, those skilled in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. within the spirit and principles of the present utility model shall include Within the protection scope of the present utility model.

Claims (6)

1. A plate cutting device for convenient loading and unloading, comprising a transmission frame (1), the inner wall of the transmission frame (1) is rotatably connected with a conveyor roller group (2), and the interior of the transmission frame (1) is fixed along the vertical direction A U-shaped frame (3) is connected, and it is characterized in that a cutting assembly (4) is provided on the inner upper part of the U-shaped frame (3), and a clamping assembly (5) is provided on the inner lower part of the U-shaped frame (3), The two ends of the conveying frame (1) are respectively hinged with a feed assembly (6) and a discharge assembly (7); The feed assembly (6) has the same structure as the discharge assembly (7), and both include a feed frame (8) hinged to the end of the transmission frame (1), and both sides of the bottom of the transmission frame (1) are fixedly installed Support plate (10) is arranged, and described support plate (10) is hinged with first air cylinder (9) near the side wall of feeding frame (8), and the movable end of described first air cylinder (9) is connected with described feeding frame ( 8) Bottom hinge. 2. A kind of plate cutting device convenient for loading and unloading according to claim 1, characterized in that, the feeding rack (8) comprises a connecting portion (81), a transition portion (82), and a bearing portion (83), the The connecting part (81) is hinged with the end of the transmission frame (1), and the end of the connecting part (81) away from the transmission frame (1) is fixedly connected with a transition part (82), and the transition part (82) is far away from the connecting part One end of (81) is fixedly connected with a bearing portion (83), and the inside of the feeding frame (8) is rotatably connected with a feeding roller group (84). 3. A plate cutting device for convenient loading and unloading according to claim 1, characterized in that, the cutting assembly (4) includes a first motor (41) mounted on the top of the outer wall of the U-shaped frame (3) , the output end of the first motor (41) is fixedly connected to the first lead screw (42), and the first lead screw (42) passes through the first nut seat (43) and is threaded therewith, and the first nut A mounting block (44) is fixedly mounted on the bottom of the seat (43), and a second cylinder (45) is fixedly mounted on the bottom of the mounting block (44), and a cutting saw (46) is fixedly connected to the bottom of the second cylinder (45). 4. A plate cutting device for convenient loading and unloading according to claim 3, characterized in that, the clamping assembly (5) includes a second motor (51) mounted on the bottom of the outer wall of the U-shaped frame (3) ), the output end of the second motor (51) is fixedly connected to the second lead screw (52), and the second lead screw (52) is composed of two sections of ball screws with opposite screw threads, and the two sections of thread turns To the outside of the opposite ball screw, both pass through the second nut seat (53) and be threaded with it, and the two side walls of the second nut seat (53) are fixedly connected with horizontal rods (54), and the horizontal rods ( 54) A splint (55) is fixedly connected to the top of one end away from the second nut seat (53). 5. A kind of plate cutting device convenient for loading and unloading according to claim 4, characterized in that, the set of conveying rollers comprises a plurality of conveying rollers, and the U-shaped frame (3) is arranged on the outside of one of the conveying rollers, And the outer wall of the U-shaped frame (3) is fixedly connected with the inner wall of the conveying frame (1), and the splint (55) is located in the gap between the two conveying rollers. 6. A kind of plate cutting device for convenient loading and unloading according to claim 4, characterized in that, the top of the first nut seat (43) is fixedly connected with the bottom of the second nut seat (53) Slider, the top of described first nut seat (43) and the bottom of described second nut seat (53) all are provided with slide bar, and slide bar is fixedly connected with U-shaped frame inner wall, and slide block is slidably connected with slide bar outer wall.
