A broken material recovery device in aquatic product processing

technical field

The utility model relates to the technical field of aquatic product processing, in particular to a broken material recycling device in aquatic product processing.

Background technique

Aquatic products are the general term for aquatic animal and plant products and their processed products produced by marine and freshwater fisheries, and aquatic products will produce a large amount of debris during the processing process. These debris need to be crushed so that the staff can recycle them, but now Some scrap recycling devices cannot perform multi-stage crushing on scraps, and the crushing effect is not good, which cannot meet people's needs and reduces the practicability of scrap recycling devices.

Utility model content

The purpose of this utility model is to provide a scrap recovery device in aquatic product processing to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a scrap recycling device in aquatic product processing, comprising a first crushing box, a second crushing box, a filter box and a feeding pipe, the first crushing box The discharge port is connected to the feed port of the second crushing box, the discharge port of the second crushing box is connected to the feed port of the filter box, and the inside of the first crushing box is provided with a first crushing wheel and a second crushing wheel. wheels, the first crushing wheel and the second crushing wheel traverse the first crushing box and are rotatably connected to both sides of the first crushing box, one side of the first crushing box is provided with the first crushing wheel and the second crushing wheel corresponding to A drive motor and a second drive motor, the drive shafts of the first drive motor and the second drive motor pass through the first crushing box and are connected with the first crushing wheel and the second crushing wheel, the first crushing box is provided with a first inlet There is a crushing rod inside the second crushing box, and a plurality of crushing knives are evenly arranged on the crushing rod. The crushing rod traverses the second crushing box and is connected to both ends of the second crushing box. There is a crushing motor on one side, the drive shaft of the crushing motor passes through the second crushing box and connects with the crushing rod, a screen is installed in the filter box, the screen is inclined, and the bottom of the filter box is provided with a second discharge mouth, and the feed pipe is connected to the first crushing box and the filter box through a support rod.

Preferably, a vibration motor is arranged on the screen.

Preferably, a second material inlet is provided on one side of the first material inlet.

Preferably, one end of the filter box is provided with a first discharge opening at the lowest end of the screen.

Preferably, the feed port of the feed pipe communicates with the first discharge port, and the discharge port of the feed pipe connects with the second feed port through the feed pipe.

Preferably, a driving rod is arranged in the feeding pipe, and the two ends of the driving rod are connected to the two ends of the feeding pipe respectively, and a feeding motor is arranged at one end of the feeding pipe, and the driving shaft of the feeding motor passes through the feeding pipe and connects with the driving rod. To connect, the driving rod is provided with an auger piece.

Compared with the prior art, the beneficial effect of the utility model is: the utility model puts the material from the first feeding port, and then is initially crushed by the first crushing wheel and the second crushing wheel, and the primary crushing The material enters the second crushing box and is crushed by the crushing rod for the second time. Finally, the crushed material will fall on the screen for screening, and the thoroughly crushed material will be discharged from the second discharge port without being crushed. The complete material block will enter the feeding pipe from the first discharge port, and then the material block will be transported to the second material inlet by the auger for re-crushing. The utility model will carry out multi-stage crushing of the material, increasing the crushing effect Improve the practicability of the utility model.

Description of drawings

Fig. 1 is a schematic diagram of the front structure of the utility model;

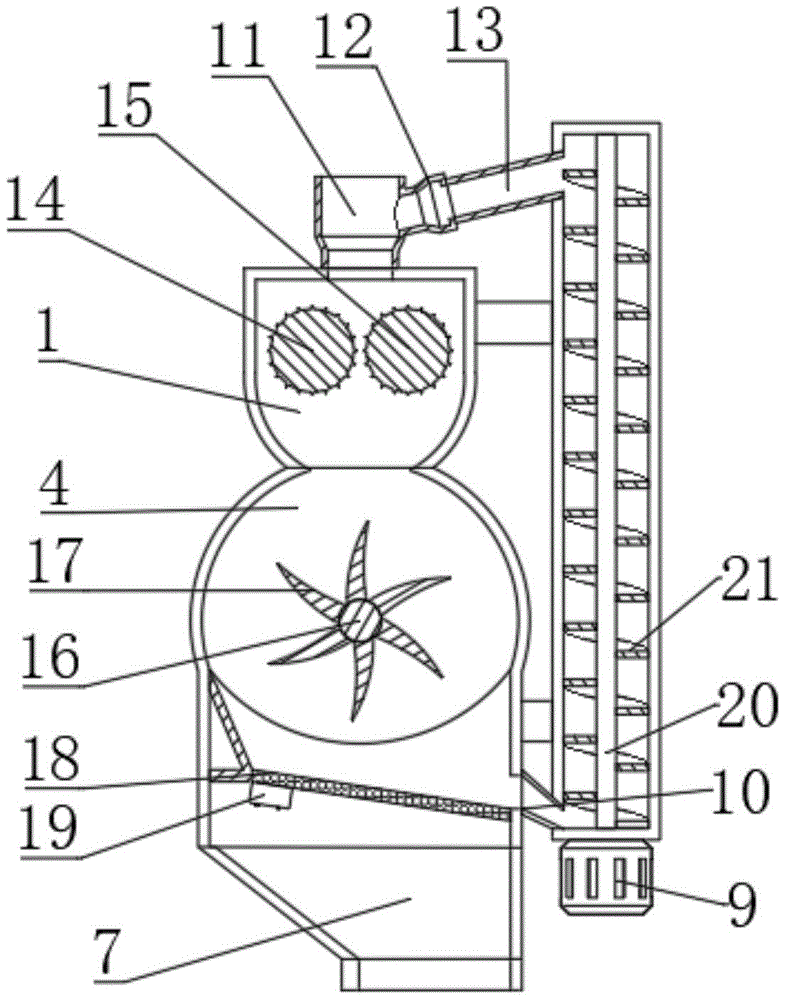

Fig. 2 is a schematic diagram of the internal structure of the utility model.

In the figure: 1. The first crushing box; 2. The first drive motor; 3. The second drive motor; 4. The second crushing box; 5. The crushing motor; 6. The filter box; 7. The second discharge port; 8 , feeding pipe; 9, feeding motor; 10, the first discharge port; 11, the first feeding port; 12, the second feeding port; 13, feeding pipe; 14, the first crushing wheel; 15, the second Crushing wheel; 16, crushing rod; 17, crushing knife; 18, screen; 19, vibration motor; 20, driving rod; 21, auger piece.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the orientation or positional relationship indicated by the terms "vertical", "upper", "lower" and "horizontal" are based on the orientation or positional relationship shown in the accompanying drawings, only It is for the convenience of describing the utility model and simplifying the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the utility model.

In the description of the present utility model, it should also be noted that, unless otherwise specified and limited, the terms "setting", "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection , can also be detachably connected, or integrally connected; can be mechanically connected, can also be electrically connected; can be directly connected, can also be indirectly connected through an intermediary, and can be internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

Please refer to Fig. 1-2, the utility model provides a technical solution: a broken material recovery device in aquatic product processing, including a first crushing box 1, a second crushing box 4, a filter box 6 and a feeding pipe 8, The discharge port of the first crushing case 1 is connected to the feed port of the second crushing case 4, the discharge port of the second crushing case 4 is connected to the feed port of the filter case 6, and the first crushing case 1 is provided with a first crushing wheel 14 and a second crushing wheel 15, the first crushing wheel 14 and the second crushing wheel 15 traverse the first crushing box 1 and are connected to both sides of the first crushing box 1 in rotation, the first crushing One side of case 1 is provided with first drive motor 2 and second drive motor 3 corresponding to first crushing wheel 14 and second crushing wheel 15, and the drive shafts of first drive motor 2 and second drive motor 3 pass through the first The crushing box 1 is also connected with the first crushing wheel 14 and the second crushing wheel 15. The first crushing box 1 is provided with a first feeding port 11, and the inside of the second crushing box 4 is provided with a crushing rod 16. A plurality of crushing knives 17 are provided, and the crushing rod 16 traverses in the second crushing box 4 and is rotatably connected to the two ends of the second crushing box 4. One side of the second crushing box 4 is provided with a crushing motor 5. The drive shaft passes through the second crushing box 4 and is connected with the crushing rod 16. A screen 18 is installed in the filter box 6, and the screen 18 is inclined. The bottom of the filter box 6 is provided with a second discharge port 7. The feed pipe 8 is connected to the first crushing box 1 and the filter box 6 through a support rod.

Further, the screen 18 is provided with a vibration motor 19, and the vibration motor 19 drives the screen 18 to vibrate to increase the screening efficiency.

Further, a second material inlet 12 is provided on one side of the first material inlet 11, and the second material inlet 12 is used for conveying uncrushed material blocks.

Further, one end of the filter box 6 is provided with a first discharge port 10 at the lowest end of the screen 18 .

Further, the feed port of the feed pipe 8 communicates with the first discharge port 10 , and the discharge port of the feed pipe 8 is connected to the second feed port 12 through a feed pipe 13 .

Further, a driving rod 20 is arranged inside the feeding pipe 8, and the two ends of the driving rod 20 are respectively connected to the two ends of the feeding pipe 8 in rotation, and one end of the feeding pipe 8 is provided with a feeding motor 9, and the driving shaft of the feeding motor 9 passes through Through the feeding pipe 8 and connected with the driving rod 20, the driving rod 20 is provided with an auger piece 21.

Working principle: When working, start the first drive motor 2 and the second drive motor 3 first, so that the first drive motor 2 and the second drive motor 3 drive the first crushing wheel 14 and the second crushing wheel 15 to rotate with each other, and then start the crushing motor 5. Make the crushing motor 5 drive the crushing rod 16 to rotate, so that the crushing knife 17 on the crushing rod 16 rotates, and then put the material from the first feeding port 11, so that the material enters the first crushing box 1 and falls on the first crushing box 1. Between the crushing wheel 14 and the second crushing wheel 15, at this time, the material will be squeezed by the first crushing wheel 14 and the second crushing wheel 15 for preliminary crushing, and the crushed material will enter the second crushing box 4, and then Secondary crushing is carried out by the crushing knife 17 in the second crushing box 4, the material after the secondary crushing enters the filter box 6 and falls on the screen cloth 18, then starts the vibration motor 19, so that the vibration motor 19 drives the screen cloth 18 to vibrate, Sieve out the crushed material, and the screened material will be discharged from the second discharge port 7, and the uncrushed material block will enter the delivery pipe 8 from the first discharge port 10 due to gravity, and then start Feed motor 9 makes feed motor 9 drive drive rod 20 to rotate, and auger sheet 21 on the drive rod 20 rotates, and at this moment, auger sheet 21 will deliver material piece in the feed pipe 13, and then material piece just can from The feed pipe 13 enters the second material inlet 12, then enters the first material inlet 11 from the second material inlet 12, and reenters the first crushing box 1 for crushing again.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.
