CN218106393U - Stomach tube for neonate - Google Patents

Abstract

The utility model relates to the field of medical devices and discloses a gastric tube for newborns, which includes a body and a net bag. The first end of the body is open, the second end is closed, and at least eight holes are opened near the second end of the body. It is arranged at intervals along the front and back of the pipe wall, and the outside of the hole is covered with net pockets, and grids arranged at intervals are arranged on the net pockets, and the aperture diameter of the mesh is smaller than that of the holes. The beneficial effects of the utility model are: the injection speed of the milk liquid and the efficiency of sucking the contents of the stomach are greatly increased, the problem of excessive local pressure is alleviated during the negative pressure suction of the gastric tube, and the gastric mucosa of the newborn is protected. Better and faster drainage of liquid and gas in the stomach, reducing the occurrence of gastrointestinal bleeding.

Description

newborn stomach tube

technical field

The utility model relates to the field of medical instruments, in particular to a neonatal stomach tube.

Background technique

Gastric tube is a medical device that helps patients who cannot swallow to deliver necessary water and food under special circumstances. Neonatal gastric tube nasal feeding is mainly used for premature infants with poor sucking and swallowing ability, and newborns who cannot eat due to various diseases. Infants, newborns who need ventilator-assisted breathing need a gastric tube for gastrointestinal decompression in addition to providing enteral nutrition, and some newborns with digestive tract abnormalities also need a long-term indwelling gastric tube for gastrointestinal decompression .

The head of the gastric tube in the prior art is closed, and three holes are provided on the side wall of the gastric tube to provide enteral nutrition and carry out gastrointestinal decompression. The effect of withdrawing gastric contents during pressure is not good, and when withdrawing gastric contents intermittently or continuously, the local pressure is high due to the small opening of the gastric tube, which is likely to cause gastric mucosal damage and even gastric bleeding, which seriously affects The health of newborns. Therefore, need badly a kind of novel neonatal stomach tube, to solve the above problems.

Utility model content

The purpose of this application is to provide a gastric tube for newborns, which can quickly suck the contents of the stomach, has a good decompression effect, and can prevent the gastric mucosa from being damaged by excessive local negative pressure.

The purpose of this application is achieved through the following technical solutions:

A gastric tube for newborns, comprising: a body and a net bag, the first end of the body is open, the first end of the body is used to connect a syringe or a negative pressure suction device, the second end of the body is closed, the The body is provided with at least eight holes near the second end of the body, and the holes are arranged at intervals along the tube wall of the body. The net bag cover is arranged at the second end of the body, and the net bag cover For all the holes, the mesh bag is provided with grids arranged at intervals, and the apertures of the grids are smaller than the apertures of the holes.

In some embodiments of the present application, the number of the holes is 8-10.

In some embodiments of the present application, the distance between the second end of the body and the farthest hole is 4cm-5cm.

In some embodiments of the present application, the pore diameter of the grid is half of the pore diameter of the hole.

In some embodiments of the present application, the first end of the body is provided with a cover, and the cover covers the opening of the first end of the body.

In some embodiments of the present application, the body is made of polyurethane material or silicone material.

In some embodiments of the present application, the net bag is made of plastic material.

In some embodiments of the present application, a scale is provided at the middle position of the body.

The newborn gastric tube of the present application injects the milk required by the newborn or sucks out the stomach contents through the opening of the first end of the main body, and at least eight holes are set at the second end of the main body, which greatly increases the milk injection speed and suction. The efficiency of sucking the contents of the stomach, and the mesh bag with a mesh cover on the hole can relieve the problem of excessive local pressure during negative pressure suction of the gastric tube without causing milk blockage. Protect the gastric mucosa of newborns, drain the liquid and gas in the stomach better and faster, and reduce the occurrence of gastrointestinal bleeding.

Description of drawings

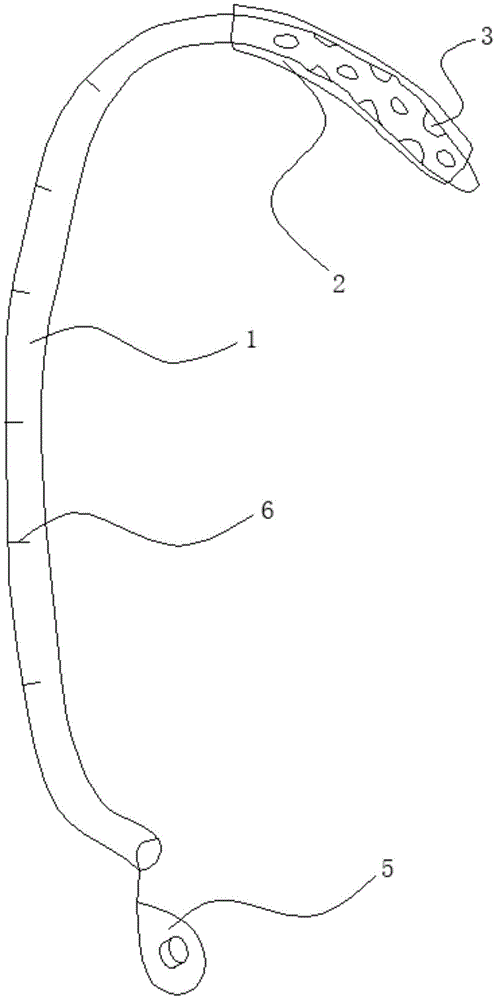

Fig. 1 is the structural representation of the neonatal gastric tube of the present application;

Fig. 2 is the structural representation of the net bag of the present application.

In the figure, 1. body; 2. net bag; 3. hole; 4. grid; 5. cover; 6. scale.

detailed description

Below in conjunction with accompanying drawing and embodiment, the specific embodiment of the utility model is described in further detail. The following examples are used to illustrate the utility model, but not to limit the scope of the utility model.

In the description of the present application, it should be understood that the terms "upper", "lower", "left", "right", "front", "rear", etc. used in the present application indicate orientation or positional relationship based on the drawings The orientation or positional relationship shown is only for the convenience of describing the present utility model and simplifying the description, and does not indicate or imply that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be construed as a reference to the present invention. Utility model restrictions. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

As shown in Figures 1 and 2, the embodiment of the present application proposes a neonatal gastric tube, including: a body 1 and a net bag 2, the first end of the body 1 is open, and the first end of the body 1 is used to connect a syringe Or a negative pressure suction device, the second end of the body 1 is closed, and the body 1 is provided with at least eight holes 3 near the second end of the body 1, and the holes 3 are along the tube wall of the body 1 The front and back are arranged at intervals, the net pocket 2 is covered on the second end of the body 1, and the net pocket 2 is covered on all the holes 3, and the net pocket 2 is provided with grids 4 arranged at intervals. The aperture of the grid 4 is smaller than the aperture of the hole 3 .

Based on the above technical solution, the milk required by the newborn is injected through the opening of the first end of the main body 1 or the stomach contents are sucked out, and at least eight holes 3 are arranged at the second end of the main body 1, which greatly increases the milk injection speed and pumping. The efficiency when sucking the contents of the stomach, and the net bag 2 with the grid 4 is set on the hole 3, so that the local pressure can be relieved when the gastric tube is sucked under negative pressure without causing milk blockage Protect the gastric mucosa of newborns, drain the liquid and gas in the stomach better and faster, and reduce the occurrence of gastrointestinal bleeding.

In some embodiments of the present application, as shown in FIG. 1 , the number of holes 3 is 8-10. The number of holes 3 is preferably 8. This number of holes 3 ensures the efficiency of injection and suction while avoiding the problem of too many openings at the front end of the gastric tube and inconvenient processing.

Specifically, as shown in FIG. 1 , the distance between the second end of the body 1 and the furthest hole 3 is 4cm˜5cm. The distance of 4 cm to 5 cm can ensure that 8 to 10 holes 3 can be evenly spaced on the outer wall of the main body 1 to improve the use effect of the gastric tube.

In some embodiments of the present application, as shown in FIGS. 1 and 2 , the aperture diameter of the grid 4 is half of the aperture diameter of the hole 3 . Such apertures of the mesh 4 prevent the newborn's food from being blocked by the net bag 2 , which ensures food delivery and content suction while preventing local pressure from being too high.

In some embodiments of the present application, as shown in FIG. 1 , a cover 5 is provided at the first end of the body 1 , and the cover 5 covers the opening of the first end of the body 1 . The cover 5 can be closed on the first end of the body 1. Open the cover 5 when a syringe or a vacuum suction device needs to be connected, and then connect the syringe or negative pressure suction device. When no nasal feeding is needed, the cover 5 can be tightly closed to prevent foreign matter from entering .

In some embodiments of the present application, the body 1 is made of polyurethane material or silicone material. Both polyurethane and silicone have good ductility, easy molding, non-toxic and tasteless, moderate strength, and are excellent material choices for gastric tubes.

In some embodiments of the present application, the net bag 2 is made of plastic material. Plastic is easy to obtain, easy to form, and low in cost, and can be used as the material of the net bag 2 to make.

In some embodiments of the present application, as shown in FIG. 1 , a scale 6 is provided at the middle position of the body 1 . The scale 6 can help the medical staff to clearly know the insertion depth of the gastric tube, which is convenient for the medical staff to operate.

To sum up, the newborn gastric tube of the present application injects the milk required by the newborn or sucks out the stomach contents through the opening of the first end of the main body 1. The injection speed of the liquid and the efficiency of sucking the contents of the stomach. At the same time, the mesh bag 2 with the grid 4 is set on the hole 3. Under the premise that the milk will not be blocked, it can play a role in the negative pressure suction of the gastric tube. It can alleviate the problem of excessive local pressure, protect the gastric mucosa of newborns, drain the liquid and gas in the stomach better and faster, and reduce the occurrence of gastrointestinal bleeding.

The above are only the preferred embodiments of the present application. It should be pointed out that for those of ordinary skill in the art, some improvements and substitutions can be made without departing from the technical principles of the present application. These improvements and substitutions should also be It is regarded as the scope of protection of this application.

Claims (8)

1. A gastric tube for neonates, comprising: the suction net comprises a body and a net bag, wherein the first end of the body is opened, the first end of the body is used for being connected with an injector or a negative pressure suction device, the second end of the body is closed, the body is close to the second end position of the body, at least eight holes are formed in the second end position of the body, the holes are formed in the front and the back of the pipe wall of the body at intervals, the net bag cover is arranged at the second end of the body, the net bag cover is covered on the holes in a whole mode, grids formed at intervals are formed in the net bag, and the aperture of the grids is smaller than that of the holes.

2. The neonatal gastric tube of claim 1, wherein the number of said holes is 8 to 10.

3. The neonatal gastric tube of claim 2, wherein a distance between the second end of the body and the most distal hole is 4cm to 5cm.

4. The neonatal gastric tube of claim 1, wherein an aperture of the mesh is half an aperture of the hole.

5. The neonatal gastric tube of claim 1, wherein the first end of the body is provided with a cap that covers the first end opening of the body.

6. The neonatal gastric tube of claim 1, wherein the body is a polyurethane material or a silicone material.

7. The neonatal gastric tube of claim 1, wherein said mesh is of a plastic material.

8. The neonatal gastric tube of claim 1, wherein an intermediate position of the body is provided with a scale.
