Abstract

The utility model is applicable to the technical field of water cups, and provides a water cup with a large-capacity tea chamber, comprising: a cup body; a cup cover assembly matched with the mouth of the cup body; a filter screen placed in the cup body , the upper surface of the filter screen, the inner wall of the cup body and the inner wall of the cup cover assembly form a tea compartment, the lower surface of the filter screen, the inner wall of the cup body and the bottom of the cup body form a tea separation bin; the water absorption component, the The water absorbing component passes through the through hole in the middle of the filter screen and is connected with the filter screen, one end of the water absorbing component is located in the tea-water separation chamber, and the other end of the water absorbing component is located in the cup cover component. In the utility model, the filter screen is placed in the cup body, and the tea chamber is formed by the upper surface of the filter screen, the inner wall of the cup body and the inner wall of the cup cover assembly, and the tea-water separation is formed by the lower surface of the filter screen, the inner wall of the cup body and the bottom of the cup body. The space of the tea compartment is obviously increased, and the tea compartment will not be taken out with the cover when the filter is opened.

Description

A water cup with a large-capacity tea compartment

technical field

The utility model belongs to the technical field of water cups, in particular to a water cup with a large-capacity tea chamber.

Background technique

As a container for drinking water, water cups have different types according to people's needs. When people need to make drinks such as tea leaves or fruit tea, they generally choose water cups with tea compartments, and put tea leaves, fruits, etc. in the tea compartments. However, in the prior art water cups with a tea compartment, the tea compartment is basically fixed on the cup cover, the volume of the tea compartment is relatively small, and each time the cover is opened, the tea compartment containing the fruit must be unscrewed together to open the cover. The rear tea room is dripping and the cup lid is inconvenient to place.

Utility model content

The purpose of the embodiments of the present utility model is to provide a water cup with a large-capacity tea compartment, aiming to solve the problems in the above-mentioned background technology.

The embodiment of the utility model is achieved in this way, a water cup with a large-capacity tea chamber, comprising:

Cup body;

a cup cover assembly matched with the mouth of the cup body;

The filter screen is placed in the cup body, the upper surface of the filter screen, the inner wall of the cup body and the inner wall of the cup cover assembly form a tea compartment, and the lower surface of the filter screen, the inner wall of the cup body and the bottom of the cup body form a Tea separation warehouse;

A water-absorbing assembly, the water-absorbing assembly runs through the through hole in the middle of the filter screen and is connected to the filter screen, one end of the water-absorbing assembly is located in the tea-water separation chamber, and the other end of the water-absorbing assembly is located in the cup cover assembly.

Preferably, the water-absorbing components include:

A suction pipe, the suction pipe passes through the middle through hole of the filter screen and is connected with the filter screen;

Elastic tail pipe, the elastic tail pipe is fitted on the bottom end of the straw with interference, and the straw elastically presses against the tea-water separation chamber;

The suction nozzle is interference-fitted on the top of the straw, and the suction nozzle is pressed against the cup cover assembly.

Preferably, the inside of the cup body is provided with a stepped end surface, and the bottom end of the filter screen is pressed against the stepped end surface.

Preferably, the lid assembly includes:

A plastic cover, the plastic cover matches the mouth of the cup body, a nozzle channel is opened on the plastic cover, and one end of the water absorbing component protrudes through the nozzle channel;

flip cover, the flip cover is hingedly engaged with the plastic cover;

A sealing plug is arranged on the flip cover, and the sealing plug matches with the nozzle channel.

Preferably, the water cup further includes a flat washer sealing ring, and the flat washer sealing ring is placed between the plastic cover and the cup body.

The embodiment of the utility model provides a water cup with a large-capacity tea compartment. The tea compartment in the prior art is basically set and fixed on the cup cover. The tea compartment of the fruit is unscrewed together. After opening the lid, the tea compartment drips and the cup cover is inconvenient to place. The traditional tea compartment is improved into a filter, and the filter is placed in the cup. Then the upper surface of the filter, the cup The inner wall of the body and the inner wall of the cup cover assembly form a tea compartment, and the lower surface of the filter, the inner wall of the cup body and the bottom of the cup form a tea separation compartment, which realizes the separation of tea and water, and the space of the tea compartment is significantly increased, and the filter screen Connected with the water absorbing component, the tea chamber will not be taken out with the lid when the lid is opened, and one end of the water absorbing component is located in the tea-water separation chamber, so that tea dregs will not be sucked during drinking, and the water diverting component will not be blocked and difficult to clean.

Description of drawings

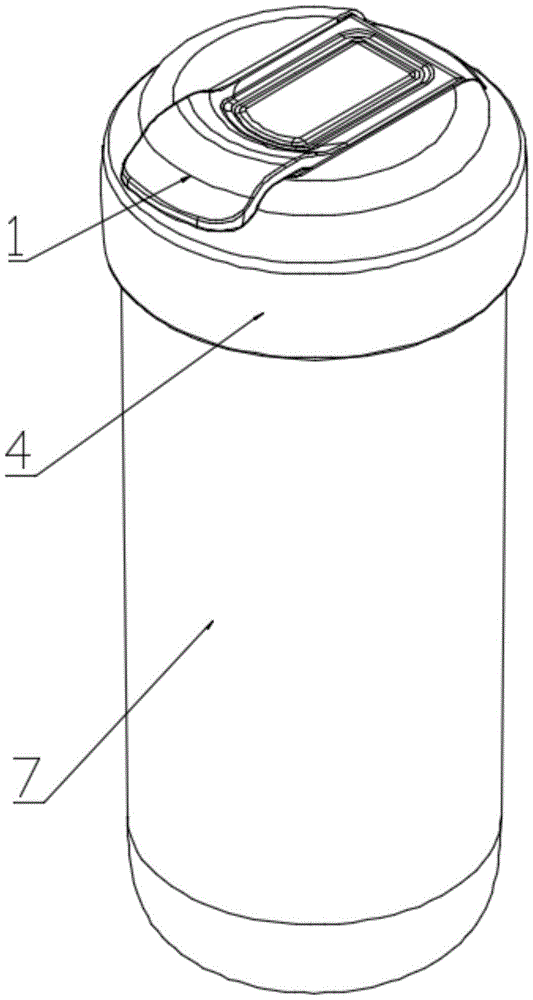

Fig. 1 is a schematic structural view of a water cup with a large-capacity tea compartment provided by an embodiment of the present invention;

Fig. 2 is a schematic structural view of a water cup with a large-capacity tea compartment when the cover is opened according to the embodiment of the present invention;

Fig. 3 is a top view of a water cup with a large-capacity tea compartment provided by the embodiment of the present invention;

Fig. 4 is an exploded view of a water cup with a large-capacity tea compartment provided by the embodiment of the present invention;

Fig. 5 is an exploded view of a drinking water assembly in a water cup with a large-capacity tea compartment provided by an embodiment of the present invention;

Fig. 6 is a front sectional view of a water cup with a large-capacity tea compartment provided by an embodiment of the present invention;

Fig. 7 is a front sectional view of a water cup with a large-capacity tea compartment when the cover is opened according to the embodiment of the present invention.

In the attached drawings: 1- flip cover; 2- sealing plug; 3- flat gasket sealing ring; 4- plastic cover; 5- suction nozzle; 6- straw; 7- cup body; 10 - nozzle channel.

detailed description

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

The specific implementation of the utility model is described in detail below in conjunction with specific embodiments.

As shown in Figures 1 to 4, a structural diagram of a water cup with a large-capacity tea compartment provided by an embodiment of the present invention includes:

Cup body 7;

The cup cover assembly is matched with the mouth of the cup body 7;

Filter screen 8 is placed in the cup body 7, the upper surface of the filter screen 8, the inner wall of the cup body 7 and the inner wall of the cup cover assembly form a tea compartment, the lower surface of the filter screen 8, the inner wall of the cup body 7 The inner wall and the bottom of the cup body 7 form a tea separation chamber;

A water absorbing assembly, the water absorbing assembly runs through the through hole in the middle of the filter screen 8 and is connected to the filter screen 8, one end of the water absorbing assembly is located in the tea-water separation bin, and the other end of the water absorbing assembly is located in the cup cover assembly .

In one embodiment of the present utility model, the water cup with a large-capacity tea chamber is fixed on the cup cover according to the tea chamber in the prior art. Unscrew the tea compartment with fruit together, and the tea compartment drips after opening the lid and the cup cover is inconvenient to place. The traditional tea compartment is improved into a filter 8, and the filter 8 is placed in the cup body 7, and the filter can be used The upper surface of the 8, the inner wall of the cup body 7 and the inner wall of the cup cover assembly form a tea chamber, and the lower surface of the filter screen 8, the inner wall of the cup body 7 and the bottom of the cup body 7 form a tea separation chamber, which realizes the separation of tea and water, and the tea The space of the bin is obviously enlarged, and the filter screen 8 is connected with the water-absorbing component. When the lid is opened, the tea bin will not be brought out together with the lid. One end of the water-absorbing component is located in the tea-water separation bin, and the tea dregs will not be sucked when drinking. The water diversion components will not be clogged and difficult to clean.

As shown in Figures 5 to 7, as a preferred embodiment of the present utility model, the water absorbing assembly includes:

Suction pipe 6, described suction pipe 6 passes through the middle through hole of filter screen 8 and is connected with described filter screen 8;

Elastic tailpipe 9, said elastic tailpipe 9 is fitted over the bottom end of straw 6 with interference, and said straw 6 elastically presses against the tea separation chamber;

The suction nozzle 5 is fitted on the top end of the suction pipe 6 with an interference fit, and the suction nozzle 5 presses against the cup cover assembly.

Put the straw 6 through the filter 8, install the elastic tail pipe 9 at the bottom of the straw 6, install the suction nozzle 5 at the top of the straw 6, place the water absorbing assembly together with the filter 8 in the cup body 7, the elastic tail pipe 9 is located in the tea-water separation In the bin, the suction nozzle 5 is located in the cup lid assembly. When the cup lid assembly is closed, pressure is applied to the suction nozzle 5, which then drives the elastic tailpipe 9 to bend and deform in the tea separation bin. When the cup lid assembly is opened, the suction nozzle 5 The received pressure disappears, and the suction pipe 6 moves up under the elastic force of the elastic tail pipe 9, and then drives the suction nozzle 5 to eject from the cup cover assembly, which is convenient for people to drink water.

As shown in FIG. 6 to FIG. 7 , as another preferred embodiment of the present invention, a stepped end surface is provided inside the cup body 7 , and the bottom end of the filter screen 8 presses against the stepped end surface.

There is a stepped end surface inside the cup body 7, and the filter screen 8 cooperates with the stepped end surface. When the cup cover assembly is closed, the suction nozzle 5 exerts pressure on the filter screen 8, thereby restricting the upward movement of the filter screen 8, and driving the filter screen 8 to be fixed on the cup body. 7, even if the cup body 7 is filled with water, the filter screen 8 will not float up when the bowl cover assembly is closed.

As shown in Figure 2, as a preferred embodiment of the present invention, the cup cover assembly includes:

A plastic cover 4, the plastic cover 4 matches the mouth of the cup body 7, a nozzle channel 10 is opened on the plastic cover 4, and one end of the water-absorbing component protrudes through the nozzle channel 10;

flip cover 1, the flip cover 1 is hingedly engaged with the plastic cover 4;

The sealing plug 2 is arranged on the flip cover 1 , and the sealing plug 2 cooperates with the nozzle channel 10 .

The suction nozzle 5 passes through the suction nozzle passage 10. When the flip cover 1 is closed, the sealing plug 2 presses against the suction nozzle passage 10, driving the suction nozzle 5 to move down to keep the seal. When the flip cover 1 is opened, the suction nozzle 5 moves from the suction nozzle protruding from the channel 10.

As shown in FIG. 6 to FIG. 7 , as a preferred embodiment of the present invention, the water cup further includes a flat gasket sealing ring 3 , and the flat gasket sealing ring 3 is placed between the plastic cover 4 and the cup body 7 .

In order to improve the sealing effect and avoid water leakage, a flat washer sealing ring 3 is also provided to prevent water from leaking from between the cup body 7 and the plastic cover 4 .

The installation and use of the water cup are as follows:

The elastic tailpipe 9 is set on the bottom end of the suction pipe 6, and the top of the suction pipe 6 passes through the middle through hole of the filter screen 8 and stretches out, and the suction nozzle 5 is set on the top of the suction pipe 6;

Unscrew the plastic cover 4, and put the assembled suction nozzle-suction pipe-filter screen-tail tube assembly together in the cup body 7 until the lower end surface of the filter screen 8 touches the inner step end surface of the cup body 7;

Put the tea leaves or fruit slices into the tea bin body composed of the upper inner wall of the cup body 7 - the upper surface of the filter screen 8 - the inner wall of the cup cover, and pour water into the cup body;

Close the flip cover 1, the flip cover 1 flips over and engages with the plastic cover 4, the sealing plug 2 on the flip cover 1 presses down against the upper end surface of the suction nozzle 5, and then drives the suction tube 6 to move down, and the suction tube 6 is pressed down so that the elastic tail pipe 9 is further bent and deformed, In this state, the lower end surface of the suction nozzle 5 restricts the upward movement of the filter screen 8, and then the filter screen 8 is fixed in the cup body 7;

During the process of making tea, the tea soup enters the tea separation compartment at the bottom of the cup body 7 through the filter holes of the filter screen 8, while the tea fruit pieces are left in the tea compartment;

Open the flip cover 1, remove the pressure on the suction nozzle 5, and the suction tube 6 moves upward under the elastic force of the elastic tail pipe 9, thereby driving the suction nozzle 5 to eject from the suction nozzle channel 10 of the plastic cover 4.

The drinking water channel of the drinking water component is opened, and then the filtered tea in the tea separation chamber can be drunk through the suction nozzle 5, and the elastic tail pipe 9 directly leads into the tea separation chamber at the bottom of the cup body 7, so that the tea dregs will not be sucked, and the straw is avoided Problems of clogging and difficult cleaning;

When the cover needs to be opened halfway, the plastic cover 4 can be unscrewed, and the tea room will not be taken out together with the plastic cover 4 .

After drinking tea, you only need to unscrew the plastic cover 4, and take out the suction nozzle-straw-filter-screen-tailpipe assembly together by holding the top of the filter screen 8, and then take out the tea and fruit together and dump them. Rinse.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in this utility model. within the scope of protection of utility models.

Claims (5)

1. A drinking cup with a large capacity tea storehouse is characterized by comprising:

a cup body (7);

the cup cover component is matched with the cup mouth of the cup body (7);

the filter screen (8) is arranged in the cup body (7), the upper surface of the filter screen (8), the inner wall of the cup body (7) and the inner wall of the cup cover component form a tea bin, and the lower surface of the filter screen (8), the inner wall of the cup body (7) and the bottom of the cup body (7) form a tea-water separation bin;

the water absorbing assembly penetrates through the through hole in the middle of the filter screen (8) and is connected with the filter screen (8), one end of the water absorbing assembly is located in the tea-water separation bin, and the other end of the water absorbing assembly is located in the cup cover assembly.

2. The water cup with the large-capacity tea bin as claimed in claim 1, wherein the water sucking assembly comprises:

the suction pipe (6) penetrates through a through hole in the middle of the filter screen (8) and is connected with the filter screen (8);

the elastic tail pipe (9), the elastic tail pipe (9) is sleeved at the bottom end of the suction pipe (6) in an interference manner, and the suction pipe (6) is elastically pressed in the tea-water separation bin;

the suction nozzle (5), the interference suit of suction nozzle (5) is on the top of straw (6), suction nozzle (5) support and press in the bonnet subassembly.

3. The water cup with the large-capacity tea bin is characterized in that a step end face is arranged inside the cup body (7), and the bottom end of the filter screen (8) is pressed against the step end face.

4. The water cup with the large-capacity tea bin as claimed in claim 1, wherein the cup cover assembly comprises:

the plastic cover (4), the plastic cover (4) is matched with the cup mouth of the cup body (7), a suction nozzle channel (10) is formed in the plastic cover (4), and one end of the water absorption assembly extends out through the suction nozzle channel (10);

the flip cover (1), the flip cover (1) is hinged and clamped with the plastic cover (4);

and the sealing plug (2) is arranged on the flip cover (1), and the sealing plug (2) is matched with the suction nozzle channel (10).

5. The water cup with the large-capacity tea bin is characterized by further comprising a flat gasket sealing ring (3), wherein the flat gasket sealing ring (3) is arranged between the plastic cover (4) and the cup body (7).
