CN218072997U - Take filtering capability's ventilation mechanism for chicken coop environment - Google Patents
Take filtering capability's ventilation mechanism for chicken coop environment Download PDFInfo
- Publication number
- CN218072997U CN218072997U CN202221872740.0U CN202221872740U CN218072997U CN 218072997 U CN218072997 U CN 218072997U CN 202221872740 U CN202221872740 U CN 202221872740U CN 218072997 U CN218072997 U CN 218072997U
- Authority
- CN
- China
- Prior art keywords
- frame
- wall
- air
- chicken coop
- ventilation
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000009423 ventilation Methods 0.000 title claims abstract description 88
- 241000287828 Gallus gallus Species 0.000 title claims abstract description 64
- 238000001914 filtration Methods 0.000 title claims abstract description 18
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 75
- 239000000428 dust Substances 0.000 claims abstract description 26
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 claims abstract description 19
- 238000000746 purification Methods 0.000 claims abstract description 12
- 229910052799 carbon Inorganic materials 0.000 claims abstract description 9
- KFSLWBXXFJQRDL-UHFFFAOYSA-N Peracetic acid Chemical compound CC(=O)OO KFSLWBXXFJQRDL-UHFFFAOYSA-N 0.000 claims description 40
- 239000003814 drug Substances 0.000 claims description 18
- 238000005507 spraying Methods 0.000 claims description 12
- 238000004659 sterilization and disinfection Methods 0.000 claims description 12
- 239000000645 desinfectant Substances 0.000 claims description 11
- 230000002421 anti-septic effect Effects 0.000 claims description 9
- 239000007921 spray Substances 0.000 claims description 7
- 239000007788 liquid Substances 0.000 claims description 6
- -1 polytetrafluoroethylene Polymers 0.000 claims description 5
- 229920001343 polytetrafluoroethylene Polymers 0.000 claims description 5
- 239000004810 polytetrafluoroethylene Substances 0.000 claims description 5
- 238000007789 sealing Methods 0.000 claims description 5
- 230000000249 desinfective effect Effects 0.000 claims description 2
- 241000894006 Bacteria Species 0.000 abstract description 8
- 230000000149 penetrating effect Effects 0.000 abstract description 3
- 230000007613 environmental effect Effects 0.000 abstract description 2
- 238000009395 breeding Methods 0.000 description 7
- 230000001488 breeding effect Effects 0.000 description 7
- 239000007789 gas Substances 0.000 description 5
- QGZKDVFQNNGYKY-UHFFFAOYSA-N Ammonia Chemical compound N QGZKDVFQNNGYKY-UHFFFAOYSA-N 0.000 description 4
- 230000032683 aging Effects 0.000 description 4
- 239000000463 material Substances 0.000 description 4
- 238000010586 diagram Methods 0.000 description 3
- 230000000694 effects Effects 0.000 description 3
- 244000144972 livestock Species 0.000 description 3
- 238000000889 atomisation Methods 0.000 description 1
- 244000052616 bacterial pathogen Species 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000007664 blowing Methods 0.000 description 1
- 230000007797 corrosion Effects 0.000 description 1
- 238000005260 corrosion Methods 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 230000007774 longterm Effects 0.000 description 1
- 238000005461 lubrication Methods 0.000 description 1
- 239000002184 metal Substances 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000012856 packing Methods 0.000 description 1
- 230000000737 periodic effect Effects 0.000 description 1
- 230000001954 sterilising effect Effects 0.000 description 1
- 239000002912 waste gas Substances 0.000 description 1
Images
Landscapes
- Housing For Livestock And Birds (AREA)
Abstract
The utility model discloses a take filtering capability's ventilation mechanism for chicken coop environment belongs to chicken coop environmental processing technology field, including chicken coop, sealed door plant, breed frame, wind-guiding frame, slide rail, ventilation frame A and ventilation frame B, the articulated sealed door plant that is provided with of chicken coop outer wall rear side one end, chicken coop outer wall one end embedding is provided with ventilation frame A, and chicken coop outer wall other end embedding is provided with ventilation frame B, and chicken coop inner wall one end is close to ventilation frame A outside fixed mounting and has the wind-guiding frame. The utility model discloses atomized water falls into and collects in the water collector, carry out the dust fall to the dust in the air and handle the back, when air after a large amount of dust falls is through airstrainer, will contact a large amount of active carbon surfaces, at this moment a large amount of active carbon can adsorb the purification treatment back with part harmful gas in the air, a large amount of air blows in the chicken coop through the wind-guiding frame, and derive the external world in the ventilation frame B from the chicken coop other end, make the inside air of chicken coop penetrating, prevent to pile up a large amount of foul gas and breed the bacterium.
Description
Technical Field
The utility model belongs to the technical field of the chicken coop environmental processing, specifically be a take filtering capability's ventilation mechanism for chicken coop environment.
Background
Generally, an internal environment of a chicken house is required to completely meet the environment for chicken growth, ventilation is performed for a long time, and a large amount of dirty air inside the chicken house is treated.
According to the retrieval discovery, a ventilation mechanism with a peculiar smell treatment mechanism for livestock breeding is disclosed in patent No. CN202220166711.6, and the ventilation mechanism with the peculiar smell treatment mechanism for the livestock breeding is provided with a ventilation pipe, a treatment box, an arc-shaped cover, a support rod, a metal cover, a flow guide pipe and a guide pipe, when a fan is started and air in a chicken house is conveyed to the outer side of the chicken house, the air containing ammonia gas in the chicken house enters the guide pipe through the ventilation pipe and is discharged and attached to the inner side of the arc-shaped cover, so that the ammonia gas in the air can be further ensured to be fully contacted with water in the treatment box, the ammonia gas is dissolved in the water, the purpose of eliminating the ammonia gas is achieved, and peculiar smell near the chicken house is weakened; wherein, the deficiency points are as follows:
this livestock-raising is with ventilation mechanism who has peculiar smell processing mechanism uses at the staff, when carrying out ventilation treatment to the air in the chicken coop, because only single send into the outside air around the chicken coop, and handle dirty air around the chicken coop, and be not provided with the device that can carry out the penetrating processing of air to the chicken coop, make dirty air all can accumulate all the time in the chicken coop, lead to producing the bacterium and when causing the influence to the surrounding environment quality, this livestock-raising is with ventilation mechanism who has peculiar smell processing mechanism because not carry out regular disinfection treatment to the inside air of chicken coop, make only single pass through the dirty air around handling the chicken coop reach sterile mesh, can not be fine carry out even effectual disinfection treatment to chicken coop large tracts of land air.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems that the air permeation effect of the peculiar smell treatment mechanism for livestock breeding is poor and the regular disinfection treatment is not carried out on the air in the henhouse, the ventilation mechanism with the filtering function for the henhouse environment is provided.
The utility model adopts the technical scheme as follows: the utility model provides a take filtering capability's ventilation mechanism for chicken coop environment, includes chicken coop, sealed door plant, breeds frame, air guide frame, slide rail, ventilation frame A and ventilation frame B, the articulated sealed door plant that is provided with of chicken coop outer wall rear side one end, chicken coop outer wall one end embedding is provided with ventilation frame A, chicken coop outer wall other end embedding is provided with ventilation frame B, chicken coop inner wall one end is close to ventilation frame A outside fixed mounting and has the air guide frame, the embedding is provided with the slide rail in the middle of the chicken coop inner wall top, ventilation frame A and ventilation frame B inboard are provided with can ventilate the inside whole air of chicken coop and carry out dust fall purification treatment's ventilation purification mechanism to the air that blows in the chicken coop, slide rail outside bottom is provided with the regulation and disinfection mechanism that can carry out regular disinfection to the inside air of chicken coop and handle and prevent to produce the germ.
Wherein, ventilation purification mechanism comprises dust screen A, spout, support frame A, electronic gyro wheel A, water tank, water pump A, atomizer A, water collector, filter frame, airstrainer, active carbon, air supply frame, air supply fan and dust screen B, there is dust screen A ventilation frame A outer wall one end through bolted connection, there is dust screen B ventilation frame B outer wall one end through bolted connection, ventilation frame A and ventilation frame B inboard top opposite face all slide and be provided with the air supply frame, and the air supply frame respectively with ventilate between frame A and the ventilation frame B through bolted connection, both ends are all rotated and are provided with the air supply fan about the air supply frame inner wall, it is provided with filter frame to slide in the middle of ventilation frame A and the ventilation frame B inboard top, and filter frame respectively with ventilate between frame A and the ventilation frame B through bolted connection, fixed mounting has airstrainer in the middle of the filter frame outer wall, the inside packing of airstrainer is provided with the active carbon, ventilation frame A inner wall top one end fixed mounting has the spout, the spout is the annular form setting, the spout outside bottom is provided with support frame A, the water tank A rotates the left and all through the bearing and is provided with the gyro wheel A and is provided with the water pump A and the atomizer A, and the water tank, the water tank A is provided with the front side by side the fixed gyro wheel A, the water tank, the atomizer A, the water tank, the water pump A is provided with the atomizer A, the atomizer A.
The air guide frame comprises an air guide frame inner wall and an air guide frame outer wall, wherein an air guide plate is fixedly mounted in the middle of the other end of the air guide frame inner wall, the front side and the rear side of one end of the air guide plate outer wall are both arc-shaped, air guide grooves are formed in the front end and the rear end of the other end of the air guide frame outer wall and are embedded into the front end and the rear end of the air guide frame outer wall respectively, the air guide grooves are a plurality of and are arranged in parallel in a relatively inclined mode at equal intervals, air outlets are formed in the front end and the rear end of the air guide frame outer wall in an embedded mode, and opposite faces of the air outlet inner wall are all arc-shaped.
Wherein, adjust disinfection mechanism by support frame B, electric telescopic handle, spout medicine frame, fan, peracetic acid antiseptic solution water tank, water pump B, atomizer B and electronic gyro wheel B and constitute, slide rail outside bottom is provided with support frame B, the left and right sides at support frame B outer wall top both ends all is provided with electronic gyro wheel B through the bearing rotation, and electronic gyro wheel B agrees with to slide and set up in the slide rail inboard, support frame B outer wall bottom one end is rotated through the pivot and is provided with and spouts the medicine frame, it all rotates and is provided with the fan to spout the front and back both sides at medicine frame outer wall both ends, it is provided with electric telescopic handle through the pivot rotation between medicine frame outer wall top other end and the support frame B outer wall bottom one end to spout, it is provided with atomizer B to spout the middle embedding in medicine frame outer wall bottom, atomizer B has a plurality of, and is the equidistance and sets up side by side, support frame B outer wall other end fixed mounting has the peracetic acid antiseptic solution water tank, peracetic acid antiseptic solution water tank outer wall front end embedding is provided with water pump B, and passes through water guide hose connection between peracetic acid antiseptic solution water tank, water pump B and the atomizer B.
And the air guide frame, the air guide groove and the inner wall of the air outlet are all made of PVC.
And the air guide frame, the air guide groove and the inner wall of the air outlet are all made of polytetrafluoroethylene.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the ventilation mechanism with the filtering function for the henhouse environment is provided with the air supply fan, so that a worker can open the air supply fan on the inner sides of the ventilation frame A and the ventilation frame B, the air supply fan on the inner side of the ventilation frame A blows outside cold air into the ventilation frame A through the dust screen A, atomized water is sprayed out through the atomizing spray head A to reduce dust, and waste gas is adsorbed and purified through a large amount of activated carbon in the air filter screen, and then the cold air is led out of the ventilation frame B on the other end of the henhouse to the outside, so that the air in the henhouse is permeable, a large amount of accumulated dirty gas is prevented from breeding bacteria, the ventilation effect on the air in the henhouse is improved, and the dirty gas cannot be accumulated in the henhouse for a long time,
2. this take filtering capability's ventilation mechanism for chicken coop environment is through being provided with atomizer B, can make staff control electric telescopic handle through the pivot shrink or stretch out and spout the medicine frame and rotate through the pivot and change appointed angle, enlarge atomizer B blowout atomizing peroxyacetic acid antiseptic solution's scope, open supporting servo motor of electric gyro wheel B again and drive electric gyro wheel B and control the removal constantly in the slide rail inboard, when making electric gyro wheel B drive support frame B and control the processing constantly, carry out the air circumstance disinfection of periodic large tracts of land in the chicken coop and handle, avoid breeding the bacterium and produce the influence to chicken coop internal environment, the improvement carries out the effect of effective disinfection degerming processing to chicken coop internal air.
Drawings

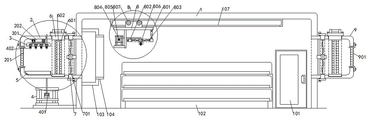

FIG. 1 is a schematic sketch of a front three-dimensional structure of a chicken house of the present invention;
FIG. 2 is a schematic diagram of a front sectional structure of a chicken house in the present invention;
fig. 3 is a schematic diagram of an enlarged structure at a in fig. 2 according to the present invention;
fig. 4 is a schematic diagram of an enlarged structure at B in fig. 2 according to the present invention;
fig. 5 is a schematic sketch of a sectional structure of a plane of depression of the middle wind guide frame of the present invention.
The labels in the figure are: 1. a chicken house; 101. a sealing door panel; 102. a culture rack; 103. an air guide frame; 104. a wind guide groove; 105. an air outlet; 106. an air deflector; 107. a slide rail; 2. a ventilation frame A; 201. a dust screen A; 202. a chute; 3. a support frame A; 301. an electric roller A; 4. a water tank; 401. a water pump A; 402. an atomizing nozzle A; 5. a water pan; 6. a filter frame; 601. an air filter screen; 602. activated carbon; 7. an air supply frame; 701. an air supply fan; 8. a support frame B; 801. an electric telescopic rod; 802. spraying a medicine rack; 803. a fan; 804. a peroxyacetic acid disinfectant liquid tank; 805. a water pump B; 806. an atomizing nozzle B; 807. an electric roller B; 9. a ventilation frame B; 901. and a dust screen B.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model discloses in:
referring to fig. 1-5, a ventilation mechanism with a filtering function for a henhouse environment comprises a henhouse 1, a sealing door plate 101, a cultivation frame 102, an air guide frame 103, a slide rail 107, a ventilation frame A2 and a ventilation frame B9, wherein the sealing door plate 101 is hinged to one end of the rear side of the outer wall of the henhouse 1, the ventilation frame A2 is embedded into one end of the outer wall of the henhouse 1, the ventilation frame B9 is embedded into the other end of the outer wall of the henhouse 1, the air guide frame 103 is fixedly installed at one end of the inner wall of the henhouse 1 close to the outer side of the ventilation frame A2, the slide rail 107 is embedded into the middle of the top of the inner wall of the henhouse 1, a ventilation and purification mechanism capable of ventilating the whole air inside the henhouse and purifying the air blown into the henhouse is arranged inside the ventilation and purification mechanism, and purification mechanism capable of regularly sterilizing the air inside the henhouse to prevent germs from being generated is arranged at the bottom of the outer side of the slide rail 107.
Referring to fig. 1, 2, 3 and 5, further, the ventilation and purification mechanism is composed of a dust screen a201, a chute 202, a support frame A3, an electric roller a301, a water tank 4, a water pump a401, an atomizing nozzle a402, a water pan 5, a filter frame 6, an air filter screen 601, activated carbon 602, an air supply frame 7, an air supply fan 701 and a dust screen B901;
one end of the outer wall of a ventilation frame A2 is connected with a dustproof net A201 through a bolt, one end of the outer wall of a ventilation frame B9 is connected with a dustproof net B901 through a bolt, the opposite surfaces of the tops of the insides of the ventilation frame A2 and the ventilation frame B9 are provided with an air supply frame 7 in a sliding way, the air supply frame 7 is respectively connected with the ventilation frame A2 and the ventilation frame B9 through a bolt, the upper end and the lower end of the inner wall of the air supply frame 7 are provided with an air supply fan 701 in a rotating way, the middle of the tops of the insides of the ventilation frame A2 and the ventilation frame B9 is provided with a filter frame 6 in a sliding way, the filter frame 6 is respectively connected with the ventilation frame A2 and the ventilation frame B9 through a bolt, an air filter screen 601 is fixedly arranged in the middle of the outer wall of the filter frame 6, activated carbon 602 is filled in the air filter screen 601, one end of the top of the inner wall of the ventilation frame A2 is fixedly provided with a chute 202, the chute 202 is arranged in a ring shape, a support frame A3 is arranged at the bottom of the outside of the chute, the support frame A3, the left side and right side of the two ends of the top of the outer wall of the support frame A3 are provided with electric rollers A301 through a bearing in a rotating way, the electric roller A301 is arranged inside the chute 202 in a sliding manner, the bottom of the outer wall of the support frame A3 is embedded with a plurality of atomizing nozzles A402 which are arranged in parallel at equal intervals, one end of the outer wall of the henhouse 1 is fixedly provided with a water tank 4, the front end of the outer wall of the water tank 4 is embedded with a water pump A401, the water tank 4, the water pump A401 and the atomizing nozzles A402 are connected through water guide hoses, one end of the inner wall of the ventilation frame A2 is provided with a water receiving disc 5, when a worker needs to ventilate the air inside the henhouse 1, the worker opens the ventilation frame A2 and the ventilation frame B9 to blow the outside cold air into the ventilation frame A2 through the dustproof net A201, the worker opens the water pump A401 to spray a large amount of atomized water from the atomizing nozzles A402 through the water guide hoses, the staff opens the supporting servo motor of electric roller A301 and drives electric roller A301 and constantly remove at the inboard anticlockwise round of clockwise round of spout 202, drive a plurality of atomizer A402 and rotate, dust to carrying in the air that blows in adsorbs through a large amount of atomized water, and fall into and collect in water collector 5, dust to in the air carries out the dust fall and handles the back, air after a large amount of dust falls is when airstrainer 601, will contact a large amount of active carbon 602 surface, at this moment, a large amount of active carbon 602 can adsorb purification treatment with part harmful gas in the air after, a large amount of air blows in chicken coop 1 through wind-guiding frame 103, and lead out the external world in the frame B9 from the 1 other end ventilation of chicken coop, make 1 inside air in chicken coop penetrating, prevent to pile up a large amount of foul gas and breed the bacterium.
Referring to fig. 2, 3 and 5, further, an air guide plate 106 is fixedly installed in the middle of the other end of the inner wall of the air guide frame 103, the front side and the rear side of one end of the outer wall of the air guide plate 106 are both arc-shaped, air guide grooves 104 are embedded into the front end and the rear end of the other end of the outer wall of the air guide frame 103, and are arranged in parallel in a relatively inclined manner at equal intervals, air outlets 105 are embedded into the front end and the rear end of the outer wall of the air guide frame 103, opposite surfaces of the inner wall of the air outlets 105 are both arc-shaped, when a large amount of air is blown into the air guide frame 103, the air guide plate 106 is contacted with the surface of the air guide plate 106, and when the air is blown out into the henhouse 1 from the air outlets 105 at the front end and the rear end of the air guide frame 103 through the front end and rear end arc-shaped, part of the air is blown out from the air guide grooves 104 in the inclined manner, and the air inside the henhouse 1 is uniformly ventilated in a large range.
Referring to fig. 2 and 4, further, the adjusting and disinfecting mechanism is composed of a supporting frame B8, an electric telescopic rod 801, a medicine spraying frame 802, a fan 803, a peracetic acid disinfectant liquid tank 804, a water pump B805, an atomizing nozzle B806 and an electric roller B807;
a support frame B8 is arranged at the bottom of the outer side of the slide rail 107, electric rollers B807 are rotatably arranged at the left side and the right side of the two ends of the outer wall of the support frame B8 through bearings, the electric roller B807 is arranged at the inner side of the slide rail 107 in a matching and sliding manner, one end of the bottom of the outer wall of the support frame B8 is rotatably provided with a medicine spraying frame 802 through a rotating shaft, the front side and the rear side of the two ends of the outer wall of the medicine spraying frame 802 are both rotatably provided with fans 803, an electric telescopic rod 801 is rotatably arranged between the other end of the top of the outer wall of the medicine spraying frame 802 and one end of the bottom of the outer wall of the support frame B8 through a rotating shaft, the middle of the bottom of the outer wall of the medicine spraying frame 802 is embedded with a plurality of atomizing nozzles B806, and are arranged in parallel at equal intervals, the other end of the outer wall of the supporting frame B8 is fixedly provided with a peroxyacetic acid disinfectant liquid tank 804, the front end of the outer wall of the peroxyacetic acid disinfectant liquid tank 804 is embedded with a water pump B805, and the peroxyacetic acid disinfectant liquid tank 804, the water pump B805 and the atomizing nozzle B806 are connected through a water guide hose, when the air in the henhouse 1 is ventilated through the air supply fan 701, a worker opens the water pump B805 to spray a large amount of atomized peroxyacetic acid disinfectant into the henhouse 1 from the plurality of atomizing nozzles B806 through the water guide hose by using the peroxyacetic acid disinfectant in the peroxyacetic acid disinfectant water tank 804, controls the electric telescopic rod 801 to contract or extend out of the medicine spraying rack 802 through the rotating shaft to change the angle to a specified angle through the rotation of the rotating shaft, and then expands the range of the atomized peroxyacetic acid disinfectant sprayed from the atomizing nozzles B806, at this time, when the worker opens the servo motor matched with the electric roller B807 to drive the electric roller B807 to move left and right continuously inside the slide rail 107, so that the electric roller B807 drives the support frame B8 to move left and right continuously, carry out the air circumstance disinfection of regular large tracts of land in to chicken coop 1 and handle, avoid breeding the bacterium and produce the influence to chicken coop internal environment.
Referring to fig. 1 to 4, further, the electric roller a301 and the electric roller B807 are electrically connected to the battery through a matching servo motor and a control panel, and the water pump a401, the blowing fan 7, the electric telescopic rod 801, the fan 803 and the water pump B805 are electrically connected to the battery through the control panel.
Referring to fig. 2, 3 and 5, further, the inner walls of the air guide frame 103, the air guide groove 104 and the air outlet 105 are made of PVC, and because the PVC has the characteristics of high and low temperature resistance and aging resistance, when the inner walls of the air guide frame 103, the air guide groove 104 and the air outlet 105 contact cold air for a long time, the inner walls of the air guide frame 103, the air guide groove 104 and the air outlet 105 do not deteriorate due to the increase of the aging rate.
As shown in fig. 2, 3, and 5, the utility model discloses outside the embodiment with air guide frame 103, air guide groove 104 and air outlet 105 inner wall material are PVC, there is still another embodiment, air guide frame 103, air guide groove 104 and air outlet 105 inner wall material are polytetrafluoroethylene, because of the polytetrafluoroethylene material has resistant high and low temperature, incombustible, corrosion-resistant, ageing-resistant characteristic, can make air guide frame 103, air guide groove 104 and air outlet 105 inner wall when long-term contact cold air, can not make air guide frame 103, air guide groove 104 and air outlet 105 inner wall ageing rate accelerate and cause the damage simultaneously, have high lubrication, the polytetrafluoroethylene material air guide frame 103 of non-adhesion characteristic, air guide groove 104 and air outlet 105 inner wall, can avoid the dust in the air to adhere to air guide frame 103, air guide groove 104 and air outlet 105 inner wall, and be difficult to clear up.
The working principle is as follows: firstly, when a worker needs to ventilate the air in the henhouse 1, the worker opens the ventilating frame A2 and the ventilating frame B9 inner side air supply fan 701, so that the ventilating frame A2 inner side air supply fan 701 blows the outside cold air into the ventilating frame A2 through the dustproof net A201, the worker opens the water pump A401 to spray a large amount of atomized water from the atomizing nozzle A402 through the water guide hose, simultaneously, the worker opens the servo motor matched with the electric roller A301 to drive the electric roller A301 to move clockwise and anticlockwise for one circle in the chute 202, the plurality of atomizing nozzles A402 are driven to rotate, dust carried in the blown air is adsorbed through the large amount of atomized water and falls into the water receiving tray 5 to be collected, after dust in the air is subjected to dust falling treatment, when the air subjected to the large amount of dust falling passes through the air filter screen 601, the air is contacted with the surface of a large amount of active carbon 602, at this time, a large amount of activated carbon 602 can adsorb and purify part of harmful gases in the air, then, a large amount of air is blown into the air guide frame 103, contacts the surface of the air guide plate 106, and is blown out into the henhouse 1 through the front and rear end arcs towards the air outlets 105 at the front and rear ends in the air guide frame 103, at the same time, part of air is blown out from the plurality of inclined air guide grooves 104, and is guided out to the outside from the ventilation frame B9 at the other end of the henhouse 1, so that the air inside the henhouse 1 is permeable, and a large amount of dirty air is prevented from being accumulated to breed bacteria, finally, when the air inside the henhouse 1 is subjected to air exchange treatment through the air supply fan 701, a worker opens the water pump B805 to spray a large amount of atomized peroxyacetic acid disinfectant into the henhouse 1 from the plurality of atomization nozzles B806 through the water guide hoses, and controls the electric telescopic rod 801 to shrink through the rotary shaft or stretch out of the medicine spray frame 802 to change to a specified angle through the rotary shaft rotation, will enlarge the scope of atomizer B806 blowout atomizing peroxyacetic acid antiseptic solution, at this moment the staff opens the supporting servo motor of electric gyro wheel B807 again and drives electric gyro wheel B807 and constantly remove about the slide rail 107 inboard, when making electric gyro wheel B807 drive support frame B8 constantly remove the processing, carry out the air circumstance disinfection of regular large tracts of land in to chicken coop 1 and handle, avoid breeding the bacterium and produce the influence to chicken coop internal environment.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (9)
1. The utility model provides a take filtering capability's ventilation mechanism for chicken coop environment, includes chicken coop (1), sealing door board (101), breeds frame (102), air guide frame (103), slide rail (107), ventilates a (2) and ventilates a B (9), the articulated sealing door board (101) that is provided with of chicken coop (1) outer wall rear side one end, chicken coop (1) outer wall one end embedding is provided with ventilates a (2), chicken coop (1) outer wall other end embedding is provided with ventilates a B (9), chicken coop (1) inner wall one end is close to ventilates a (2) outside fixed mounting and has air guide frame (103), embedding is provided with slide rail (107) in the middle of chicken coop (1) inner wall top, its characterized in that: ventilation frame A (2) and ventilation frame B (9) inboard are provided with can ventilate and carry out dust fall purification treatment's ventilation purification mechanism to the inside whole air of chicken coop and to the air that blows in the chicken coop, slide rail (107) outside bottom is provided with the regulation disinfection mechanism that can carry out regular disinfection to the inside air of chicken coop and handle and prevent to produce the germ.
2. The ventilating mechanism with filtering function for henhouse environment as claimed in claim 1, wherein: the ventilation and purification mechanism is composed of a dustproof net A (201), a sliding groove (202), a support frame A (3), an electric roller A (301), a water tank (4), a water pump A (401), an atomizing nozzle A (402), a water receiving tray (5), a filter frame (6), an air filter screen (601), active carbon (602), an air supply frame (7), an air supply fan (701) and a dustproof net B (901);
the air supply frame is characterized in that one end of the outer wall of the ventilation frame A (2) is connected with a dust screen A (201) through a bolt, one end of the outer wall of the ventilation frame B (9) is connected with a dust screen B (901) through a bolt, opposite surfaces of the inner top of the ventilation frame A (2) and the inner side of the ventilation frame B (9) are respectively provided with an air supply frame (7) in a sliding mode, the air supply frame (7) is respectively connected with the ventilation frame A (2) and the ventilation frame B (9) through a bolt, the upper end and the lower end of the inner wall of the air supply frame (7) are respectively provided with an air supply fan (701) in a rotating mode, the middle of the inner top of the ventilation frame A (2) and the inner side of the ventilation frame B (9) is provided with a filter frame (6) in a sliding mode, the middle of the outer wall of the filter frame (6) is fixedly provided with an air filter screen (601), the inner side of the air filter screen (601) is internally filled with an active carbon (602), one end of the top of the inner wall of the ventilation frame A (2) is provided with a sliding groove (202) respectively, the outer wall of the sliding frame A (202) is provided with a support frame A (202), the bottom of the outer side of the outer wall of the support frame A (202), the outer wall of the support frame A (3), the support frame A) is provided with a sliding roller (3), the left side and the right side and the outer wall of the left side and the right side and the outer side of the right side of the outer wall of the support frame B (3) are respectively provided with an atomizing roller (301) in the sliding roller (3) and the sliding roller (301) in the sliding side roller (301) in the inner side of the sliding roller (402), chicken coop (1) outer wall bottom one end fixed mounting has water tank (4), the embedding of water tank (4) outer wall front end is provided with water pump A (401), and connects through the water guide hose between water tank (4), water pump A (401) and atomizer A (402), it is provided with water collector (5) to ventilate frame A (2) inner wall bottom one end.
3. The ventilating mechanism with filtering function for henhouse environment as claimed in claim 1, wherein: the air guide frame is characterized in that an air guide plate (106) is fixedly mounted in the middle of the other end of the inner wall of the air guide frame (103), the front side and the rear side of one end of the outer wall of the air guide plate (106) are both arc-shaped, air guide grooves (104) are embedded into the front end and the rear end of the other end of the outer wall of the air guide frame (103), air outlets (105) are embedded into the front end and the rear end of the outer wall of the air guide frame (103), and opposite surfaces of the inner wall of each air outlet (105) are arc-shaped.
4. The ventilating mechanism with filtering function for henhouse environment as claimed in claim 1, wherein: the adjusting and disinfecting mechanism consists of a support frame B (8), an electric telescopic rod (801), a spraying frame (802), a fan (803), a peroxyacetic acid disinfectant liquid tank (804), a water pump B (805), an atomizing nozzle B (806) and an electric roller B (807);
slide rail (107) outside bottom is provided with support frame B (8), the left and right sides at support frame B (8) outer wall top both ends all is provided with electronic gyro wheel B (807) through the bearing rotation, and electronic gyro wheel B (807) agree with the slip and set up at slide rail (107) inboardly, support frame B (8) outer wall bottom one end is rotated through the pivot and is provided with medicine spraying frame (802), both sides are all rotated around medicine spraying frame (802) outer wall both ends and are provided with fan (803), it is provided with electric telescopic handle (801) to rotate through the pivot between medicine spraying frame (802) outer wall top other end and support frame B (8) outer wall bottom one end, the embedding is provided with atomizer B (806) in the middle of medicine spraying frame (802) outer wall bottom, support frame B (8) outer wall other end fixed mounting has peracetic acid antiseptic solution water tank (804), peracetic acid antiseptic solution water tank (804) outer wall front end embedding is provided with water pump B (805), and connects through the water guide hose between peracetic acid antiseptic solution water tank (804), water pump B (805) and atomizer B (806).
5. A ventilating mechanism with filtering function for henhouse environment as claimed in claim 2, wherein: the spout (202) are the setting of annular form, atomizer A (402) have a plurality of, and are the equidistance and set up side by side.
6. A ventilating mechanism with filtering function for henhouse environment as claimed in claim 3, wherein: the air guide grooves (104) are arranged in parallel in a relatively inclined manner at equal intervals.
7. A ventilating mechanism with filtering function for henhouse environment as claimed in claim 4, wherein: the atomizing spray heads B (806) are arranged in parallel at equal intervals.
8. The ventilating mechanism with filtering function for henhouse environment as claimed in claim 1, wherein: the inner walls of the air guide frame (103), the air guide groove (104) and the air outlet (105) are all made of PVC.
9. The ventilating mechanism with filtering function for henhouse environment as claimed in claim 1, wherein: the inner walls of the air guide frame (103), the air guide groove (104) and the air outlet (105) are all made of polytetrafluoroethylene.
