CN218071081U

CN218071081U - Communication terminal charging device

Info

Publication number: CN218071081U
Application number: CN202222135774.8U
Authority: CN
Inventors: 郭龙发
Original assignee: Hourly Education Technology Fujian Co ltd
Current assignee: Hourly Education Technology Fujian Co ltd
Priority date: 2022-08-15
Filing date: 2022-08-15
Publication date: 2022-12-16
Anticipated expiration: 2032-08-15

Abstract

The utility model discloses a communication terminal charging device, the end that charges including charging device body and charging device body top, but install cooling type centre gripping fixed establishment on the charging device body, but cooling type centre gripping fixed establishment includes that magnetism inhales and fixes two installation poles at charging device body front side and rear side, and the top of charging device body is equipped with hollow structure's first splint and second splint, and first splint and second clamp cooperate for carry out the centre gripping to communication terminal. The utility model discloses be convenient for bump the risk that causes the communication terminal displacement to take off the branch because of the mistake in can effectual reduction use with the communication terminal clamping at the top of the end that charges when charging, and be convenient for blow the air conditioning cooling to communication terminal when the in-process temperature that charges is higher, can effectual reduction be in high temperature because of communication terminal and influence the stability of charging, improve the stability of charging.

Description

Communication terminal charging device

Technical Field

The utility model relates to a communication terminal battery charging outfit technical field especially relates to a communication terminal charging device.

Background

Communication terminals are direct tools enjoying different information applications, and undertake various tasks such as providing a good user interface for users, completing required business functions and accessing a communication network, and the like, at present, most communication terminals are added with a wireless charging function, the wireless charging process needs the communication terminals to be matched with a wireless charging device for use, and the existing communication terminal charging device is used and directly placed at a charging end of the charging device for charging.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a communication terminal charging device.

In order to realize the purpose, the utility model adopts the following technical scheme:

a charging device for a communication terminal comprises a charging device body and a charging end arranged at the top of the charging device body, wherein the charging end is the charging principle of the communication terminal and is the prior art, which is not illustrated, a temperature-reducing clamping and fixing mechanism is arranged on the charging device body, the temperature-reducing clamping and fixing mechanism comprises two mounting rods fixed at the front side and the rear side of the charging device body in a magnetic suction manner, a first clamping plate and a second clamping plate which are of a hollow structure are arranged above the charging device body, the first clamping plate and the second clamping plate are matched with each other and used for clamping the communication terminal, the second clamping plate is arranged above the charging end, one side of the two mounting rods which are close to each other is provided with a first groove, an elastic air-cooling guide assembly is fixedly connected between the inner walls at the two sides of the first groove, the front side and the rear side of the second clamping plate are fixedly connected with one side of the two elastic guide assemblies which are close to each other, the elastic guide mechanism plays a role of guiding driving, the front side and the rear side of the first clamping plate are fixedly connected with one side of the two mounting rods which are close to each other, a temperature sensor is embedded in the left side of the charging end, a temperature sensor is arranged in the left side of the mounting groove, a cooling water-blowing water-cooling assembly, a left side-blowing water-cooling baffle is arranged in the mounting groove and a left-side-cooling water-blowing water-cooling baffle plate, a left-blowing baffle plate, and a left-side cooling baffle plate, a left-side cooling baffle plate which is arranged in the mounting groove, the air blowing assembly is matched with the air blowing hole to achieve the air blowing and cooling effects.

Preferably, the elastic guide assembly comprises a guide rod fixedly connected between the inner walls of the two sides of the first groove, a moving block is slidably sleeved on the guide rod, the front side and the rear side of the second clamping plate are respectively fixedly connected with one side of the two moving blocks close to each other, the moving block is matched with the guide rod to play a guiding effect on the second clamping plate, a spring is fixedly connected between the right side of the moving block and the inner wall of the right side of the corresponding first groove, and the spring is movably sleeved on the corresponding guide rod.

Preferably, the subassembly of blowing includes the radiator fan of fixed connection between second groove front side inner wall and rear side inner wall, radiator fan is used for extracting outside gas, radiator fan's left side is bleed end and fixedly connected with dust screen, the dust screen is used for filtering the dust impurity in the gas of extraction and shelters from, the left side fixed connection of the installation pole of dust screen and rear side, fixedly connected with U-shaped heat pipe on the front side inner wall of mounting groove, the left side front end of U-shaped heat pipe is established to the block structure, communicate and be fixed with the connecting pipe between the front side of U-shaped heat pipe and the rear side of first splint, the left side rear end of U-shaped heat pipe extends to the second inslot and fixedly connected with air-collecting cover, air-collecting cover communicates with radiator fan's right side air-out end, radiator fan's top is fixed and electrically connected with the controller, controller and temperature sensor electric connection, temperature sensor and controller electric connection's mode, can be when communication terminal temperature is higher, in time control radiator fan opens.

Preferably, the right side fixedly connected with two anti-skidding rubber blocks of first splint, the bonding is fixed with anti-skidding rubber on the left side of second splint, and wherein the phenomenon that the clamping in-process skidded can effectual reduction by the setting of anti-skidding rubber block and anti-skidding rubber, and the anti-skidding rubber cover is established on temperature sensor.

Preferably, the front side and the rear side of the first clamping plate are respectively fixedly connected with connecting blocks between the sides, close to the two mounting rods, and the connecting blocks positioned on the rear side are fixedly sleeved on the connecting pipes.

Preferably, the inner wall of the rear side of the first clamping plate is provided with a vent hole communicated with the front end of the connecting pipe.

Preferably, the rear side of baffle inlays and is equipped with the water service pipe that is linked together with the mounting groove inside, and threaded sleeve is equipped with the blanking cover on the water service pipe, and water service pipe and blanking cover cooperate for change the cooling water in the mounting groove, the top fixedly connected with ejector pad of second splint.

Preferably, the right side electric connection of charging device body has charging plug, and the accessible charging plug is to the power supply that charges of charging device body.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the first clamping plate, the anti-skid rubber block, the second clamping plate, the anti-skid rubber sheet and the elastic guide assembly are matched, so that the communication terminal can be quickly clamped and fixed at the top of the charging end during charging, the risk of displacement separation of the communication terminal caused by mistaken collision in the use process can be effectively reduced, and the charging stability is improved;

2. through the matching of the temperature sensor, the blowing mechanism, the mounting groove, the first clamping plate and the blowing hole, the cooling air can be blown to the communication terminal automatically to reduce the temperature when the temperature of the communication terminal is higher, and the influence on the charging stability caused by the high temperature of the communication terminal can be effectively reduced;

the utility model discloses be convenient for bump the risk that causes the communication terminal displacement to take off the branch because of the mistake in can effectual reduction use with the communication terminal clamping at the top of the end that charges when charging, and be convenient for blow the air conditioning cooling to communication terminal when the in-process temperature that charges is higher, can effectual reduction be in high temperature because of communication terminal and influence the stability of charging, improve the stability of charging.

Drawings

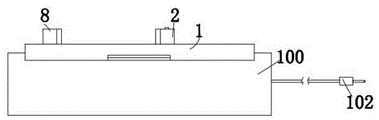

Fig. 1 is a schematic structural diagram of a communication terminal charging device according to the present invention;

fig. 2 is a schematic structural diagram of the communication terminal charging device according to the present invention when the temperature-lowering clamping mechanism is not installed;

fig. 3 is a schematic top view of the communication terminal charging device according to the present invention;

FIG. 4 is a schematic cross-sectional view of FIG. 3;

fig. 5 is an enlarged structural view of a portion a in fig. 4.

In the figure: 100. a charging device body; 101. a charging terminal; 102. a charging plug; 1. mounting a rod; 2. a second splint; 3. a first groove; 4. a moving block; 5. a guide bar; 6. a spring; 7. a temperature sensor; 8. a first splint; 9. a gas blowing hole; 10. connecting blocks; 11. a connecting pipe; 12. mounting grooves; 13. a U-shaped heat conduction pipe; 14. a second groove; 15. a heat radiation fan; 16. a controller; 17. a wind-collecting cover.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, a communication terminal charging device includes a charging device body 100 and a charging terminal 101 at the top of the charging device body 100, wherein the charging terminal 101 is a charging principle of a communication terminal in the prior art, which is not described herein, a charging plug 102 is electrically connected to the right side of the charging device body 100, and power can be supplied to the charging device body 100 through the charging plug 102, a temperature-lowering clamping and fixing mechanism is installed on the charging device body 100, and includes two mounting rods 1 magnetically fixed to the front side and the rear side of the charging device body 100, wherein the front side and the rear side of the charging device body 100 are both fixedly connected with first magnets, a groove is formed in the bottom of each mounting rod 1, and the front side and the rear side of each mounting rod 1 are both provided with an opening, a second magnet attracted to the corresponding first magnet is fixedly connected to the inner wall at the top of the groove, the mounting rods 1 realize a magnetic attraction fixing mode through the first magnets and the corresponding second magnets, and can be quickly taken down the mounting rods 1 after being used, so as to realize the separation of the charging device body 100 from the temperature-lowering clamping and fixing mechanism, and improve the flexibility of the charging device;

a first clamping plate 8 and a second clamping plate 2 which are of a hollow structure are arranged above the charging device body 100, the second clamping plate 2 is positioned above the charging end 101, a push block is fixedly connected to the top of the second clamping plate 2, the second clamping plate 2 is driven to move through the push block, two anti-slip rubber blocks are fixedly connected to the right side of the first clamping plate 8, anti-slip rubber sheets are fixedly bonded to the left side of the second clamping plate 2, the anti-slip rubber blocks and the anti-slip rubber sheets are arranged, the phenomenon of slipping in the clamping process can be effectively reduced, a first groove 3 is formed in each of two adjacent sides of the two mounting rods 1, an elastic guide assembly is fixedly connected between the inner walls of the two sides of the first groove 3, a movable block 4 is slidably sleeved on the guide rods 5, guide holes which are slidably sleeved on the outer sides of the corresponding guide rods 5 are formed in the right side of the second clamping plate 2, the front side and the rear side of the second clamping plate 2 are respectively fixedly connected with one adjacent side of the two elastic guide rods 4, a movable block 5 is fixedly connected between the inner walls of the two sides of the first groove 3, a movable block 4 is sleeved on the guide rods 5, a movable block 4, a spring block 6 is connected with the corresponding guide rod 6, and a spring is connected to the right side of the movable block 2;

the front side and the rear side of the first clamping plate 8 are respectively fixedly connected with one side of the two mounting rods 1 which are close to each other, wherein the front side and the rear side of the first clamping plate 8 are respectively fixedly connected with a connecting block 10 between one sides of the two mounting rods 1 which are close to each other, the connection of the first clamping plate 8 and the two mounting rods 1 is realized through the connecting block 10, the left side of the second clamping plate 2 is embedded with a temperature sensor 7, the temperature sensor 7 is used for detecting the temperature of a communication terminal, an anti-skid rubber sleeve is arranged on the temperature sensor 7, wherein the left side of the second clamping plate 2 is provided with an embedded groove with an opening at the top, the left side of the anti-skid rubber is provided with an embedded hole with an opening at the top, the inner wall of the embedded groove and the inner wall of the embedded hole are both fixedly connected with the outer side of the temperature sensor 7, the rear side of the mounting rod 1 positioned at the rear side is provided with a mounting groove 12, and a baffle is fixedly mounted in the mounting groove 12, the baffle is used for shielding the inside of the mounting groove 12, cooling water is filled in the mounting groove 12, a water pipe communicated with the inside of the mounting groove 12 is embedded at the rear side of the baffle, a plugging cover is sleeved on the water pipe in a threaded manner, external threads are arranged on the outer side of the water pipe, internal threads are arranged on the inner side of the plugging cover and are meshed with the internal threads, when the cooling water in the mounting groove 12 is replaced, the plugging cover can be rotated to be separated from the water pipe, the cooling water is replaced through the water pipe, an air blowing component communicated with the rear end of the first clamping plate 8 and electrically connected with the temperature sensor 7 is fixedly connected to the inner wall of the front side of the mounting groove 12, a second groove 14 is formed in the left side of the mounting rod 1 positioned at the rear side, the left side of the air blowing component extends into the second groove 14, wherein the air blowing component comprises a cooling fan 15 fixedly connected between the inner wall of the front side and the inner wall of the second groove 14, the left side of the heat dissipation fan 15 is an air exhaust end and is fixedly connected with a dust screen, the dust screen is fixedly connected with the left side of the rear mounting rod 1, the dust screen is used for filtering and shielding dust impurities in extracted gas, the inner wall of the front side of the mounting groove 12 is fixedly connected with a U-shaped heat conduction pipe 13, the front end of the left side of the U-shaped heat conduction pipe 13 is of a blocking structure, the U-shaped heat conduction pipe 13 is used for heat transfer, the gas introduced into the U-shaped heat conduction pipe 13 can be transferred to cooling water in the mounting groove 12 for cooling, the front side of the U-shaped heat conduction pipe 13 is communicated with the rear side of the first clamping plate 8 and is fixedly provided with a connecting pipe 11, an air vent fixedly communicated with the front end of the connecting pipe 11 is formed in the inner wall of the rear side of the first clamping plate 8, the connecting pipe 11 is communicated with the inside of the first clamping plate 8 through the air vent, and a connecting block 10 positioned at the rear side is fixedly sleeved on the connecting pipe 11, wherein the rear side of the connecting block 10 at the rear side is provided with a mounting hole for fixedly mounting a connecting pipe 11, the rear end at the left side of the U-shaped heat conducting pipe 13 extends into the second groove 14 and is fixedly connected with a wind collecting cover 17, the wind collecting cover 17 is communicated with the right side air outlet end of the heat radiating fan 15, the top of the heat radiating fan 15 is fixedly and electrically connected with a controller 16, the controller 16 is electrically connected with a temperature sensor 7, the inner wall at the right side of the first clamping plate 8 is provided with a plurality of air blowing holes 9, and the communication terminal is blown through the air blowing holes 9 for cooling, the utility model is convenient for clamping the communication terminal at the top of the charging end 101 during charging, thereby effectively reducing the risk of displacement separation of the communication terminal caused by error collision during use, being convenient for blowing cold air to cool the communication terminal when the temperature is higher during charging, and effectively reducing the influence on the charging stability caused by the high temperature of the communication terminal, the charging stability is improved.

The working principle is as follows: when the communication terminal needs to be charged by using the charging end 101, the push block is pushed rightwards to drive the second clamping plate 2 to move rightwards, the second clamping plate 2 drives the two moving blocks 4 to respectively slide rightwards on the corresponding guide rods 5, the moving blocks 4 move rightwards and compress the corresponding springs 6 simultaneously, when the second clamping plate 2 moves rightwards to a proper position, the communication terminal needing to be charged is placed on the charging end 101 to be charged, the left side of the communication terminal is tightly contacted with the right sides of the two anti-skid rubber blocks, then the thrust on the push blocks is released, the elastic force of the springs 6 in a compressed state drives the corresponding moving blocks 4 to move leftwards, the two moving blocks 4 simultaneously drive the second clamping plate 2 to move leftwards, the second clamping plate 2 drives the anti-skid rubber sheet to clamp and fix the communication terminal leftwards, at the moment, under the elastic force of the springs 6, a leftward tightening force can be always given to the moving blocks 4, so that the second clamping plate 2 drives the anti-skid rubber sheet to be always in tight contact with the right side of the communication terminal, the clamping and fixing of the communication terminal are realized, and the communication terminal is clamped and fixed in a mode of effectively reducing the displacement and improving the mistaken charging stability caused by the displacement in the charging and using process;

the temperature of the communication terminal when the cooling fan 15 is turned on and off can be preset through the controller 16, in the charging process, the temperature sensor 7 detects the temperature of the communication terminal and transmits the detected temperature to the controller 16, when the temperature is detected to be higher than a preset temperature range value, the controller 16 controls the cooling fan 15 to be turned on, the cooling fan 15 extracts external gas, the extracted gas enters the U-shaped heat conduction pipe 13 through the air collecting cover 17, cooling water in the installation groove 12 cools the gas in the U-shaped heat conduction pipe 13, the cooled gas enters the first clamping plate 8 through the connecting pipe 11, the cooling gas in the first clamping plate 8 is discharged to the outside through the plurality of gas blowing holes 9 to blow the communication terminal, the communication terminal can be effectively cooled through a cold air blowing mode, and the phenomenon that the charging stability is influenced due to the fact that the communication terminal is at a high temperature can be effectively reduced;

after charging, the pushing block is pushed to the right again, so that the second clamping plate 2 drives the anti-skid rubber sheet to move to the right again to be separated from the communication terminal, the fixation of the communication terminal is released, and the communication terminal can be moved out from the charging end 101.

In the description of the present application, it should be further noted that, unless otherwise explicitly stated or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may include, for example, a fixed connection, a detachable connection, an integral connection, a mechanical connection, an electrical connection, a direct connection, a connection through an intermediate medium, and a connection between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art according to specific situations.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A communication terminal charging device comprises a charging device body (100) and a charging end (101) arranged at the top of the charging device body (100), and is characterized in that a temperature-lowering clamping and fixing mechanism is arranged on the charging device body (100), the temperature-lowering clamping and fixing mechanism comprises two mounting rods (1) which are magnetically attracted and fixed at the front side and the rear side of the charging device body (100), a first clamping plate (8) and a second clamping plate (2) which are of a hollow structure are arranged above the charging device body (100), the second clamping plate (2) is arranged above the charging end (101), a first groove (3) is formed in one side, which is close to each other, of the two mounting rods (1), an elastic guide component is fixedly connected between the inner walls of the two sides of the first groove (3), the front side and the rear side of the second clamping plate (2) are fixedly connected with one side, which is close to each other, of the two elastic guide components, the front side and the rear side of the first clamping plate (8) are fixedly connected with one side, a sensor (7) is arranged on the left side of the second clamping plate (2), a sensor (7) is arranged on the side of the inner wall, a fixing baffle (12) which is connected with a water-blowing sensor (12), and a sensor (12) are arranged in the inner wall of the mounting groove (12) and communicated with the mounting groove (12), a second groove (14) is formed in the left side of the mounting rod (1) located on the rear side, the left side of the air blowing assembly extends into the second groove (14), and a plurality of air blowing holes (9) are formed in the inner wall of the right side of the first clamping plate (8).

2. The communication terminal charging device according to claim 1, wherein the elastic guide assembly comprises a guide rod (5) fixedly connected between the inner walls of the two sides of the first groove (3), a moving block (4) is slidably sleeved on the guide rod (5), the front side and the rear side of the second clamping plate (2) are fixedly connected with one side of the two moving blocks (4) close to each other, a spring (6) is fixedly connected between the right side of the moving block (4) and the corresponding inner wall of the right side of the first groove (3), and the spring (6) is movably sleeved on the corresponding guide rod (5).

3. The communication terminal charging device according to claim 1, wherein the blowing assembly comprises a heat dissipation fan (15) fixedly connected between a front inner wall and a rear inner wall of the second groove (14), a suction end is arranged on the left side of the heat dissipation fan (15) and is fixedly connected with a dust screen, the dust screen is fixedly connected with the left side of the mounting rod (1) on the rear side, a U-shaped heat conduction pipe (13) is fixedly connected to the front inner wall of the mounting groove (12), the front end of the left side of the U-shaped heat conduction pipe (13) is arranged to be of a blocking structure, a connecting pipe (11) is communicated and fixedly connected between the front side of the U-shaped heat conduction pipe (13) and the rear side of the first clamping plate (8), the rear end of the left side of the U-shaped heat conduction pipe (13) extends into the second groove (14) and is fixedly connected with a wind collection cover (17), the wind collection cover (17) is communicated with the right air outlet end of the heat dissipation fan (15), the top of the heat dissipation fan (15) is fixedly and is electrically connected with a controller (16), and the controller (16) is electrically connected with the temperature sensor (7).

4. The communication terminal charging device according to claim 1, wherein two anti-skid rubber blocks are fixedly connected to the right side of the first clamping plate (8), an anti-skid rubber sheet is fixedly bonded to the left side of the second clamping plate (2), and the anti-skid rubber sheet is sleeved on the temperature sensor (7).

5. A communication terminal charging device according to claim 3, characterized in that a connecting block (10) is fixedly connected between the front side and the rear side of the first clamping plate (8) and the side of the two mounting rods (1) close to each other, respectively, and the connecting block (10) at the rear side is fixedly sleeved on the connecting pipe (11).

6. A communication terminal charging device according to claim 3, characterized in that the inner wall of the rear side of the first clamping plate (8) is provided with a vent hole communicated with the front end of the connecting pipe (11).

7. The communication terminal charging device according to claim 1, wherein a water pipe communicated with the inside of the mounting groove (12) is embedded at the rear side of the baffle, a plug cover is screwed on the water pipe, and a pushing block is fixedly connected to the top of the second clamping plate (2).

8. The communication terminal charging device according to claim 1, wherein a charging plug (102) is electrically connected to a right side of the charging device body (100).
