Abstract
The utility model discloses a flip formula locking bowl cover and coffee cup, including the lid, be equipped with drinking water mouth and flip on the lid, the characteristics are that be equipped with on the lid can be with the shutoff piece of its bottom opening shutoff, the shutoff piece can be followed the axial direction of lid and removed, be equipped with the connecting rod on the shutoff piece, the connecting rod passes be connected with flip after the lid, flip can drive the shutoff piece removes, flip is equipped with first pivot and second pivot, flip is connected with the lid rotation through first pivot, flip is connected with the connecting rod rotation through the second pivot, the axis of first pivot and the axis of second pivot parallel arrangement and both do not coincide, when flip rotates, the position that the second pivot was located can change along with flip's rotation; through the structure of first pivot and second pivot disalignment, can drive the shutoff piece when realizing flip and rotating and reciprocate to reach the effect that does not need the spring alright let the shutoff piece reset, bowl cover inner structure is simpler, and the dismouting is more convenient, is convenient for wash.
Description
Technical Field
The utility model relates to a coffee cup especially relates to a piece formula locking bowl cover turns over of coffee cup.
Background
The coffee cup is used for drinking coffee, and the existing coffee cups are similar to vacuum cups in style and comprise a cup body and a cup cover, wherein a drinking water port is generally formed in the cup cover, a flip cover used for blocking the drinking water port is arranged, and the flip cover is clamped on the cup cover in a buckling connection mode.
A cup cover with the publication number of CN208065000U comprises a cup cover, a gland and a sealing cover, wherein a drinking port is formed in the cup cover, the middle part of the gland is connected to the cup cover in a shaft mode, the sealing cover is arranged at the lower end of the cup cover and is in sealing fit with the cup cover, and the cup cover is characterized in that a sliding limiting assembly in vertical sliding fit with the cup cover is arranged in the cup cover, the sliding limiting assembly penetrates through the cup cover and is fixedly connected with the sealing cover, a limiting bulge is arranged at the lower end of the gland, and a limiting table matched with the limiting bulge is arranged at the upper end of the sliding limiting assembly.
In the cup cover described by the structure, the sealing cover and the cover body are reset in a spring mode, so that the structure in the cup cover is very complex, the production cost is high, and the cup cover is inconvenient to disassemble and assemble.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that a piece formula locking bowl cover is turned over to easy dismounting is provided, does not need the spring can realize reseing of shutoff piece, further provides a coffee cup that has above-mentioned piece formula locking bowl cover that turns over.
The utility model provides a technical scheme that above-mentioned technical problem adopted does: piece formula locking bowl cover turns over, including the lid, be equipped with on the lid drinking water mouth and be used for coveing the flip of drinking water mouth, its characterized in that: the cover body is provided with a plugging piece capable of plugging an opening at the bottom of the cover body, the plugging piece can move along the axial direction of the cover body, the plugging piece is provided with a connecting rod, the connecting rod penetrates through the cover body and then is connected with a turning cover, and the turning cover can drive the plugging piece to move;
the turning cover is provided with a first rotating shaft and a second rotating shaft, the turning cover is rotationally connected with the cover body through the first rotating shaft, the turning cover is rotationally connected with the connecting rod through the second rotating shaft, the axis of the first rotating shaft and the axis of the second rotating shaft are arranged in parallel and do not coincide with each other, and when the turning cover rotates, the position of the second rotating shaft can be changed along with the rotation of the turning cover;
in the first state, the drinking port is covered by the flip cover, the bottom opening of the cover body is blocked by the blocking piece, and the cup cover is in a closed state;
and in the second state, the turning cover is rotated to open the drinking port, the turning cover drives the plugging piece to move so that the plugging piece is separated from the bottom opening of the cover body, and the cup cover is in an open state.
The utility model discloses a further preferred scheme does: when the cup cover is in a closed state, the height position of the first rotating shaft is lower than that of the second rotating shaft.
The utility model discloses a further preferred scheme does: when the cup cover is in an open state, the height position of the first rotating shaft is higher than that of the second rotating shaft.
The utility model discloses a further preferred scheme does: the side wall of the cover body is provided with a first clamping groove, the turning cover is provided with a first bulge matched with the first clamping groove in a clamping mode, and when the cup cover is in a closed state, the first bulge is clamped in the first clamping groove.
The utility model discloses a further preferred scheme does: the lid has been seted up the second draw-in groove on, flip is last to be equipped with second draw-in groove joint complex second arch, when the bowl cover is in the open mode, second arch card is in the second draw-in groove.
The utility model discloses a further preferred scheme does: the top of lid has seted up the assembly groove, flip rotates to be connected in the assembly groove.
The utility model discloses a further preferred scheme does: the plugging piece is provided with a thread groove, and the connecting rod is inserted into the thread groove and is in threaded connection with the thread groove.
The utility model discloses a further preferred scheme does: and the bottom of the plugging piece is provided with a shifting button for rotating the plugging piece.
The utility model discloses a further preferred scheme does: and a sealing sleeve is sleeved on the outer ring of the plugging piece.
The utility model discloses another theme, coffee cup, including above-mentioned flip formula locking bowl cover.
Compared with the prior art, the utility model has the advantages that be equipped with first pivot and second pivot on flip, flip rotates with the lid through first pivot to be connected, and flip passes through the second pivot to be connected with the connecting rod rotation, and the axis of first pivot and the axis parallel arrangement of second pivot and both do not coincide, and when flip rotated, the position that second pivot department can change along with flip's rotation, through the structure of first pivot with second pivot disalignment, can drive the shutoff piece and reciprocate when realizing flip rotation to reach and do not need the spring alright let the effect that the shutoff piece resets, bowl cover inner structure is simpler, and the dismouting is more convenient, is convenient for wash.
Drawings
The present invention will be described in further detail below with reference to the drawings and preferred embodiments, but those skilled in the art will appreciate that the drawings are only drawn for the purpose of illustrating the preferred embodiments and therefore should not be taken as limiting the scope of the present invention. Furthermore, unless specifically stated otherwise, the drawings are merely schematic representations based on conceptual representations of elements or structures depicted and may contain exaggerated displays and are not necessarily drawn to scale.
Fig. 1 is a schematic structural view of an entire coffee cup according to a preferred embodiment of the present invention;
fig. 2 is an exploded view of a preferred embodiment of the present invention;
FIG. 3 is a schematic view of the lid in a closed state according to the preferred embodiment of the present invention;
FIG. 4 is a cross-sectional view of FIG. 3;
FIG. 5 is a schematic view of the preferred embodiment of the present invention with the lid in an open state;
FIG. 6 is a cross-sectional view of FIG. 5;

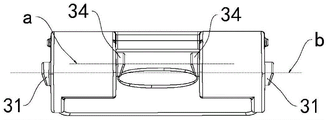

fig. 7 is a first schematic diagram of a flip cover in the preferred embodiment of the present invention;
fig. 8 is a schematic diagram two of the flip cover in the preferred embodiment of the present invention;
fig. 9 is a schematic view of a cover body in a preferred embodiment of the present invention;
FIG. 10 is a schematic view of a connecting rod in a preferred embodiment of the present invention;
fig. 11 is a schematic view of a blocking member according to a preferred embodiment of the present invention.
In the figure: 1. a cup body; 2. a cover body; 21. assembling a groove; 211. a shaft hole; 212. a second card slot; 22. a drinking port; 23. A water drinking portion; 231. a first card slot; 3. a cover is turned; 31. a first rotating shaft; 32. a first protrusion; 33. a second protrusion; 34. A second rotating shaft; 4. a blocking member; 41. a threaded hole; 42. a toggle button is pushed; 43. sealing sleeves; 5. a connecting rod; 51. connecting grooves; a. an axis of the first shaft; b. the axis of the second rotating shaft.
Detailed Description
Hereinafter, preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings. Those skilled in the art will appreciate that the description is illustrative only, and is not to be construed as limiting the scope of the invention.
It should be noted that: like reference numerals refer to like items in the following figures, and thus, once an item is defined in one figure, it may not be further defined and explained in subsequent figures.
The coffee cup comprises a cup body 1 and a cup cover, wherein the cup cover is used for sealing a top opening of the cup body 1, and the cup cover is connected to the cup body 1 in a threaded connection mode.
Turning over piece formula locking bowl cover, including lid 2, the bottom opening of lid 2 has seted up assembly groove 21 on the top surface of lid 2, has seted up drinking water mouth 22 in the assembly groove 21, and drinking water mouth 22 communicates with the bottom opening of lid 2, makes the water in the cup 1 drink water from drinking water mouth 22 through the bottom opening.
A drinking water portion 23 is provided at the front end (on the side of the drinking spout 22) of the mounting groove 21, and water flowing out of the drinking spout 22 flows into the mouth of a drinker through the drinking water portion 23.
Be equipped with the flip 3 that is used for coveing drinking water mouth 22 on the lid 2, flip 3 rotates to be connected on lid 2, and is further, has seted up shaft hole 211 on the lateral wall of assembly groove 21, and flip 3's the outside is equipped with first pivot 31, and first pivot 31 is inserted and is established in shaft hole 211, makes flip 3 rotate to be connected in assembly groove 21.
Be equipped with first arch 32 on flip 3, seted up first draw-in groove 231 on the outer wall of drinking water portion 23, when flip 3 covers drinking water mouth 22, first arch 32 card is in first draw-in groove 231.
Be equipped with second arch 33 on flip 3's the lateral wall, seted up second draw-in groove 212 on the inner wall of assembly groove 21, rotate flip 3 and open flip 3 the back, can block second arch 33 card in second draw-in groove 212, can restrict flip 3 and rotate, prevent that flip 3 gyration influences drinking water when drinking water.
The cover body 2 is provided with a plugging piece 4, the plugging piece 4 can move along the axial direction of the cover body 2, the plugging piece 4 is provided with a connecting rod 5, and the connecting rod 5 penetrates through the cover body 2 from the bottom of the cover body 2 and then is connected with the turnover cover 3.
Further, the plugging member 4 is provided with a thread groove 41, and the bottom end of the connecting rod 5 is inserted into and screwed with the thread groove 41.
The bottom of shutoff piece 4 is equipped with dials button 42, dials button 42 can be more convenient rotation shutoff piece 4, and connecting rod 5 inserts the back from the top of lid 1, rotates shutoff piece 4 through dialling button 42 and can realize that shutoff piece 4 is connected with connecting rod 5, and the dismouting is very convenient, is convenient for wash.
The sealing sleeve 43 is sleeved on the outer ring of the plugging piece 4, and the sealing sleeve 43 can increase the sealing performance between the plugging piece 4 and the cover body 2, so that water in the cup body 1 cannot flow out.
The flip 3 is provided with a second rotating shaft 34, the top of the connecting rod 5 is provided with a connecting groove 51 penetrating through the connecting rod 5, and the second rotating shaft 34 is inserted into the connecting groove 51 to rotatably connect the flip 3 and the connecting rod 5.
The axis a of the first rotating shaft 31 is parallel to the axis b of the second rotating shaft 34, and the axis a of the first rotating shaft 31 is not coincident with the axis b of the second rotating shaft 34, so that the flip 3 can drive the blocking piece 4 to move up and down through the connecting rod when the flip 3 rotates.
In the first state, the drinking opening 22 is covered by the flip 3, the bottom opening of the cover body 2 is blocked by the blocking piece 4, and at the moment, the cup cover is in the closed state.
When the cup cover is in a closed state, the height position of the first rotating shaft 31 is lower than that of the second rotating shaft 34,
in the second state, the turning cover 3 is rotated to open the drinking water port 22, the turning cover 3 drives the blocking piece 4 to move to separate the blocking piece 4 from the bottom opening of the cover body 2, and at the moment, the cup cover is in an open state.
When the cup cover is in an open state, the height position of the first rotating shaft 31 is higher than the height position of the second rotating shaft 34, after the flip 3 rotates, the position of the second rotating shaft 34 changes, the position of the second rotating shaft 34 descends, the descending position of the second rotating shaft 34 can drive the connecting rod 5 to move downwards, and the connecting rod 5 drives the blocking piece 4 to move downwards, so that the blocking piece 4 is separated from the bottom opening of the cover body 2.
When the cup cover is closed, the drinking water port 22 is covered by the flip cover 3, the bottom opening of the cover body 2 is blocked by the blocking piece 4, the first protrusion 32 is clamped in the first clamping groove 231, and at the moment, the height position of the first rotating shaft 31 is lower than that of the second rotating shaft 34.
When the cup cover needs to be opened for drinking water, the turning cover 3 is rotated, the drinking water port 22 is opened, the turning cover 3 is rotated, the position of the second rotating shaft 34 is changed, the blocking piece 4 is driven to move until the turning cover 3 rotates to the position of the second clamping groove 212, the second protrusion 33 is clamped into the second clamping groove 212, the height position of the second rotating shaft 34 is lower than the height position of the first rotating shaft 31, the position of the second rotating shaft 34 descends, the position of the blocking piece 4 also descends, the blocking piece 4 is separated from the bottom opening of the cover body 2, water in the cup body 1 can flow out from the bottom opening of the cover body 2, and drinking water can be carried out.
When the cover is closed, the flip cover 3 is rotated, the position of the second rotating shaft 34 is changed while the flip cover 3 is rotated, the position of the second rotating shaft 34 is changed, and the blocking piece 4 is driven to move until the first protrusion 32 is clamped into the first clamping groove 231, the drinking water port 22 is covered by the flip cover 3, the height position of the second rotating shaft 34 is higher than the height position of the first rotating shaft 31, the position of the second rotating shaft 34 is raised, the position of the blocking piece 4 is also raised, and the bottom opening of the cover body 2 is closed after the blocking piece 4 is raised, so that the cover closing is completed.
In the description of the present invention, it should be noted that the terms "upper", "lower", "front", "back", "inner", "outer", etc. indicate the position or positional relationship based on the position or positional relationship shown in the drawings, or the position or positional relationship that the products of the present invention are usually placed when used, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the device or element to which the term refers must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
The above is right the utility model provides a turn over piece formula locking bowl cover and coffee cup and introduced in detail, it is right to have used specific individual example in this paper the utility model discloses a principle and implementation mode have been explained, and the explanation of above embodiment only is used for helping understanding the utility model discloses and core thought. It should be noted that, for those skilled in the art, without departing from the principle of the present invention, the present invention can be further modified and modified, and such modifications and modifications also fall within the scope of the appended claims.
Claims (10)
1. Piece formula locking bowl cover turns over, including the lid, be equipped with the drinking water mouth on the lid and be used for coveing the flip of drinking water mouth, its characterized in that: the cover body is provided with a plugging piece capable of plugging an opening at the bottom of the cover body, the plugging piece can move along the axial direction of the cover body, the plugging piece is provided with a connecting rod, the connecting rod penetrates through the cover body and then is connected with the turning cover, and the turning cover can drive the plugging piece to move;
the turning cover is provided with a first rotating shaft and a second rotating shaft, the turning cover is rotationally connected with the cover body through the first rotating shaft, the turning cover is rotationally connected with the connecting rod through the second rotating shaft, the axis of the first rotating shaft and the axis of the second rotating shaft are arranged in parallel and do not coincide with each other, and when the turning cover rotates, the position of the second rotating shaft can be changed along with the rotation of the turning cover;
in the first state, the drinking port is covered by the flip cover, the bottom opening of the cover body is blocked by the blocking piece, and the cup cover is in a closed state;
and in the second state, the flip cover is rotated to open the drinking water port, the flip cover drives the plugging piece to move to separate the plugging piece from the bottom opening of the cover body, and the cup cover is in an open state.
2. The flip-chip locking cup cover of claim 1, wherein: when the cup cover is in a closed state, the height position of the first rotating shaft is lower than that of the second rotating shaft.
3. The flip-chip locking cup cover of claim 1, wherein: when the cup cover is in an open state, the height position of the first rotating shaft is higher than that of the second rotating shaft.
4. The flip-chip locking cup cover of claim 1, wherein: the side wall of the cover body is provided with a first clamping groove, the turning cover is provided with a first bulge matched with the first clamping groove in a clamping mode, and when the cup cover is in a closed state, the first bulge is clamped in the first clamping groove.
5. The flip-chip locking cup cover of claim 1, wherein: the lid has been seted up the second draw-in groove on, flip is last to be equipped with second draw-in groove joint complex second arch, when the bowl cover is in the open mode, second arch card is in the second draw-in groove.
6. The flip-chip locking cup cover of claim 1, wherein: the top of lid has seted up the assembly groove, flip rotates to be connected in the assembly groove.
7. The flip-chip locking cup cover of claim 1, wherein: the plugging piece is provided with a thread groove, and the connecting rod is inserted into the thread groove and is in threaded connection with the thread groove.
8. The flip-chip locking cup cover as claimed in claim 1 or 7, wherein: and the bottom of the plugging piece is provided with a shifting button for rotating the plugging piece.
9. The flip-chip locking cup cover of claim 1, wherein: and a sealing sleeve is sleeved on the outer ring of the plugging piece.
10. Coffee cup, characterized in that it comprises a flip-chip locking cap according to any one of claims 1-9.
