Abstract

The utility model relates to the technical field of new displays, and discloses a novel display device. The surface of the display frame is fixedly connected with a first hinge, and the surface of the first hinge is fixedly connected with a clamping plate. When the staff places the poster, they control the clamping plate to move downward at the same time, and complete the fixing process of the clamping plate to the poster through the connection between the first Velcro and the second Velcro. At the same time, through the third groove, when moving When it reaches the support rod, the connection between the display rack and the placement box is completed. At this time, the staff can place leaflets and the like through the placement box. When the connecting rod moves into the first groove, the first While the fixed rod and the second fixed rod are connected with the display rack, it is ensured that the installation process is more convenient and smooth, and at the same time, the device saves a certain amount of space during the placement process. By setting the second groove, the working Personnel can place items to be displayed through the second groove.

Description

A new display device

technical field

The utility model relates to the technical field of new displays, in particular to a new display device.

Background technique

Usually, when publicizing, posting posters has become one of the means of publicity for various companies. In the process of posting posters, display racks are usually used for support. However, in common installations, display racks are prone to movement and are not convenient Positioning, so it is easy to be blown down by the wind when placed. At the same time, in the existing technology, the function of the display stand is relatively single. It can only be used to post posters, which wastes a certain amount of use space to a certain extent. At the same time, it is also necessary to facilitate the placing process of the device. Therefore, a new type of display device is needed to solve the above problems.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a new type of display device, which solves the problem that in the above-mentioned background, posting posters has become one of the publicity means of each enterprise when publicity is usually carried out. In the process of posting posters, usually Display racks are used for support, but in common devices, the display racks tend to move and are not easy to locate, so they are easy to be blown down by the wind when placed. At the same time, in the existing technology, the function of the display rack is relatively single , it can only be used to post posters to a certain extent, which wastes a certain amount of use space. While the design conveys the visual effect, it is also necessary to facilitate the placement process of the device.

(2) Technical solution

In order to achieve the above purpose, the utility model is realized through the following technical solutions: a new type of display device, including a display stand, the surface of the display stand is fixedly connected with a first hinge, and the surface of the first hinge is fixedly connected with a The clamping plate, the back of the display rack is provided with a first groove, the inner wall of the first groove is provided with a connecting rod, the surface of the connecting rod is fixedly connected with a first fixing rod, and the surface of the display rack A support rod is fixedly connected, and a placement box is arranged on the surface of the support rod.

Optionally, a first velcro is fixedly connected to the surface of the clamping plate, and a second velcro is fixedly connected to the right side of the display stand.

Optionally, the inner wall of the display rack is provided with a second groove.

Optionally, the inner wall of the placement box is provided with a third groove.

Optionally, one end of the first fixing rod is fixedly connected with a second fixing rod.

Optionally, a connecting rope is fixedly connected to the right side of the display stand, and a suction cylinder is fixedly connected to one end of the connecting rope.

(3) Beneficial effects

The utility model provides a novel display device, which has the following beneficial effects: a display stand, a first groove, a second groove, a connecting rod, and a first fixing rod are provided. The second fixed rod, the support rod, the hinge, the clamping plate, the clamping plate, the third groove and the placement box, when the staff places the poster, they can place the poster on the display stand, and at the same time control the clamping plate to move downward Move, through the connection between the first Velcro and the second Velcro to complete the fixing process of the clamping plate to the poster, and at the same time through the third groove, when moving into the support rod, complete the connection between the display rack and the placement box At this time, the staff can place the leaflets by placing the box, when the connecting rod moves into the first groove, while realizing the connection between the first fixing rod and the second fixing rod and the display rack , can support the display rack to ensure more convenient and smooth installation, and at the same time save a certain amount of space during the placement of the device. By setting the second groove, the staff can pass through the second groove Place the items that need to be displayed, and use the space of the device reasonably to a certain extent.

Description of drawings

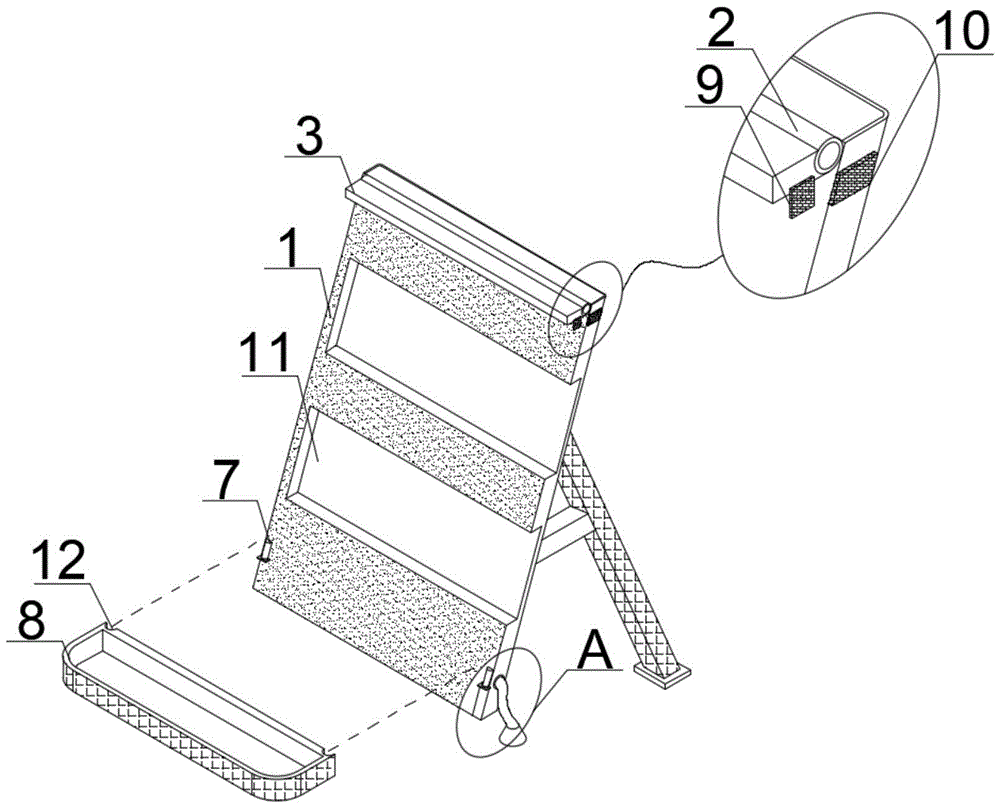

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a structural schematic diagram of the display stand of the present invention;

Fig. 3 is a schematic diagram of an enlarged structure at A of the utility model.

In the figure: 1. Display rack; 2. First hinge; 3. Clamping plate; 4. First groove; 5. Connecting rod; 6. First fixing rod; 7. Support rod; 8. Placement box; 9. The first Velcro; 10. The second Velcro; 11. The second groove; 12. The third groove; 13. The second fixing rod; 14. The connecting rope; 15. The suction cylinder.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

Please refer to Figures 1 to 3, the utility model provides a technical solution: a new type of display device, including a display stand 1, the surface of the display stand 1 is fixedly connected with a first hinge 2, and the clamping is realized by setting the hinge During the moving process of the plate 3, the surface of the first hinge 2 is fixedly connected with the clamping plate 3. By setting the clamping plate 3, the poster can be clamped. The back of the display stand 1 is provided with a first groove 4. The inner wall of a groove 4 is provided with a connecting rod 5. By setting the connecting rod 5, when the connecting rod 5 moves into the first groove 4, the support of the first fixing rod 6 and the second fixing rod 13 to the display board is completed. In the process, the surface of the connecting rod 5 is fixedly connected with the first fixed rod 6, the surface of the display stand 1 is fixedly connected with the support rod 7, and the surface of the support rod 7 is provided with a placement box 8. By setting the placement box 8, the staff can place the The box 8 places leaflets and other items, the surface of the clamping plate 3 is fixedly connected with a first Velcro 9, the right side of the display stand 1 is fixedly connected with a second Velcro 10, and the inner wall of the display stand 1 is provided with a second groove 11. By setting the second groove 11, the staff can also place the items to be displayed in the second groove 11, and make reasonable use of the use space of the device. The inner wall of the storage box 8 is provided with a third groove 12. One end of a fixed rod 6 is fixedly connected with a second fixed rod 13, the right side of the display stand 1 is fixedly connected with a connecting rope 14, and one end of the connecting rope 14 is fixedly connected with a suction tube 15. By setting the suction tube 15, the device can be Positioning role.

In the utility model, the working steps of the device are as follows: when using the device, the staff can move to the inner wall of the third groove 12 through the connecting rod 5, and when the movement is completed, the first fixed rod 6 and the second fixed rod The rod 13 supports the display board. At this time, the poster that needs to be placed can be placed on the display board. At the same time, the clamping plate 3 moves downward. Finally, the clamping process to the poster is completed, and when the third groove 12 in the placement box 8 moves into the support rod 7, the placement and support process to the placement box 8 is realized, and the setting of the above structure can effectively To solve the problems mentioned in the background technology, posting posters has become one of the publicity means of various enterprises. In the process of posting posters, display racks are usually used for support, but in common devices, display The rack is easy to move and is not convenient for positioning, so it is easy to be blown down by the wind when placed. At the same time, in the existing technology, the function of the display rack is relatively single, and it can only be used to post posters, which wastes a certain amount of use to a certain extent. Space, while the design conveys the visual perception, it also needs to facilitate the placement process of this device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A novel display device comprises a display rack (1), and is characterized in that: the novel display rack is characterized in that a first hinge (2) is fixedly connected to the surface of the display rack (1), a clamping plate (3) is fixedly connected to the surface of the first hinge (2), a first groove (4) is formed in the back face of the display rack (1), a connecting rod (5) is arranged on the inner wall of the first groove (4), a first fixing rod (6) is fixedly connected to the surface of the connecting rod (5), a supporting rod (7) is fixedly connected to the surface of the display rack (1), and a placing box (8) is arranged on the surface of the supporting rod (7).

2. The novel display device as claimed in claim 1, wherein: the surface fixed connection of grip block (3) is connected with first magic subsides (9), the right side fixed connection of show shelf (1) has second magic subsides (10).

3. The novel display device as claimed in claim 1, wherein: the inner wall of the display rack (1) is provided with a second groove (11).

4. The novel display device as claimed in claim 1, wherein: the inner wall of the placing box (8) is provided with a third groove (12).

5. The novel display device as claimed in claim 1, wherein: one end of the first fixing rod (6) is fixedly connected with a second fixing rod (13).

6. The novel display device as claimed in claim 1, wherein: the right side fixedly connected with of show shelf (1) connects rope (14), the one end fixedly connected with suction tube (15) of connecting rope (14).
