Abstract

The utility model relates to the technical field of ceramic living utensils, in particular to a ceramic handicraft with a storage table on the top, comprising a ceramic bucket body, a storage cavity is provided on the end surface of the ceramic bucket body, and the end surface of the ceramic bucket body is connected with the The port of the storage cavity corresponds to a storage platform connected by a hinge. The utility model designs a ceramic handicraft with a storage table on the top, and operates the control switch in the ceramic handicraft to start the ultraviolet disinfection lamp, so that when people place the object on the placed When inside the cavity, the ultraviolet disinfection lamp uses the ultraviolet light generated by itself to sterilize and disinfect the objects placed in the cavity, so that it can sterilize and disinfect the objects or items placed in the ceramic handicraft, effectively solving the problem caused by the storage table. The placed objects come from different people, so the bacteria produced on the surface of the objects are easy to cross-infect and affect people's health.

Description

Ceramic artwork with object placing table at top

Technical Field

The utility model relates to a ceramic life apparatus technical field specifically is a top is equipped with ceramic artwork who puts thing platform.

Background

Ceramic crafts has the composition and intersperses daily necessities of life range, thereby a top of derivation department is equipped with the ceramic crafts who puts the thing platform, and then improve the use value of ceramic crafts, but present top is equipped with the ceramic crafts who puts the thing platform when using, can not disinfect the disinfection to the article or the article of placing at ceramic crafts, owing to put the different personages in article source that the thing platform placed, thereby the bacterium of the surface production of article, cross infection carries out easily, there is the problem that influences people's health.

To sum up, the utility model discloses a design a top is equipped with the ceramic crafts who puts the thing platform and solves the problem that exists.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a top is equipped with the ceramic artwork of putting the thing platform to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above purpose, the utility model provides a following technical scheme:

the utility model provides a top is equipped with ceramic crafts who puts thing platform, includes ceramic barrel body, has seted up on ceramic barrel body's the terminal surface and has accomodate the cavity, there is the thing platen through hinged joint on ceramic barrel body's the terminal surface and correspond with the port of accomodating the cavity, on ceramic barrel body's the lateral wall and the terminal surface that is close to ceramic barrel body has seted up and has placed the notch, the bottom of placing the notch inner chamber has seted up and has placed the cavity, the top of placing the cavity and be located the top of placing the notch inner chamber and embed the lamps and lanterns mount pad, the internally mounted of lamps and lanterns mount pad has the ultraviolet ray disinfection lamp, control switch is installed to one side of ultraviolet ray disinfection lamp.

As the utility model discloses preferred scheme, the bottom of ceramic staving is handled through the antiskid, concave type handle has been seted up on the terminal surface of putting the thing platen.

As the utility model discloses preferred scheme, the port of accomodating the cavity is clearance fit with the outer wall cooperation mode of putting the thing platen, there is two the door through hinged joint on the ceramic barrel body, wherein all is provided with the eyelet on every door in two the door.

As the utility model discloses preferred scheme, the inside of eyelet bonds and has emulation beverage bottle, be provided with dismantled and assembled transparent protection casing on the lamps and lanterns mount pad.

As the utility model discloses preferred scheme, the ultraviolet ray disinfection lamp joint is in the inside of lamps and lanterns mount pad to it is dismantled and assembled, the positive and negative both ends of ultraviolet ray disinfection lamp contact with the inside positive pole and the negative pole of lamps and lanterns mount pad respectively.

As the preferred scheme of the utility model, the connected mode of ultraviolet ray disinfection lamp and lamps and lanterns mount pad is electric connection, the lamps and lanterns mount pad passes through wire electric connection on control switch.

As the utility model discloses preferred scheme, control switch has power plug through wire electric connection, it is provided with the support column to place between the top of cavity inner chamber and the bottom.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, be equipped with the ceramic artwork of putting the thing platform through designing a top, control switch in the operation ceramic artwork starts the ultraviolet ray disinfection lamp, thereby place the article when placing the inside of cavity when people, the ultraviolet ray disinfection lamp utilizes the ultraviolet ray that self produced, the disinfection of disinfecting to placing the article of placing the cavity, thereby can disinfect the disinfection to article or the article of placing at the ceramic artwork, the effectual solution is owing to put the different personages in article source that the thing platform was placed, thereby the bacterium of the surface production of article, cross infection carries out easily, influence the problem that people are healthy.

Drawings

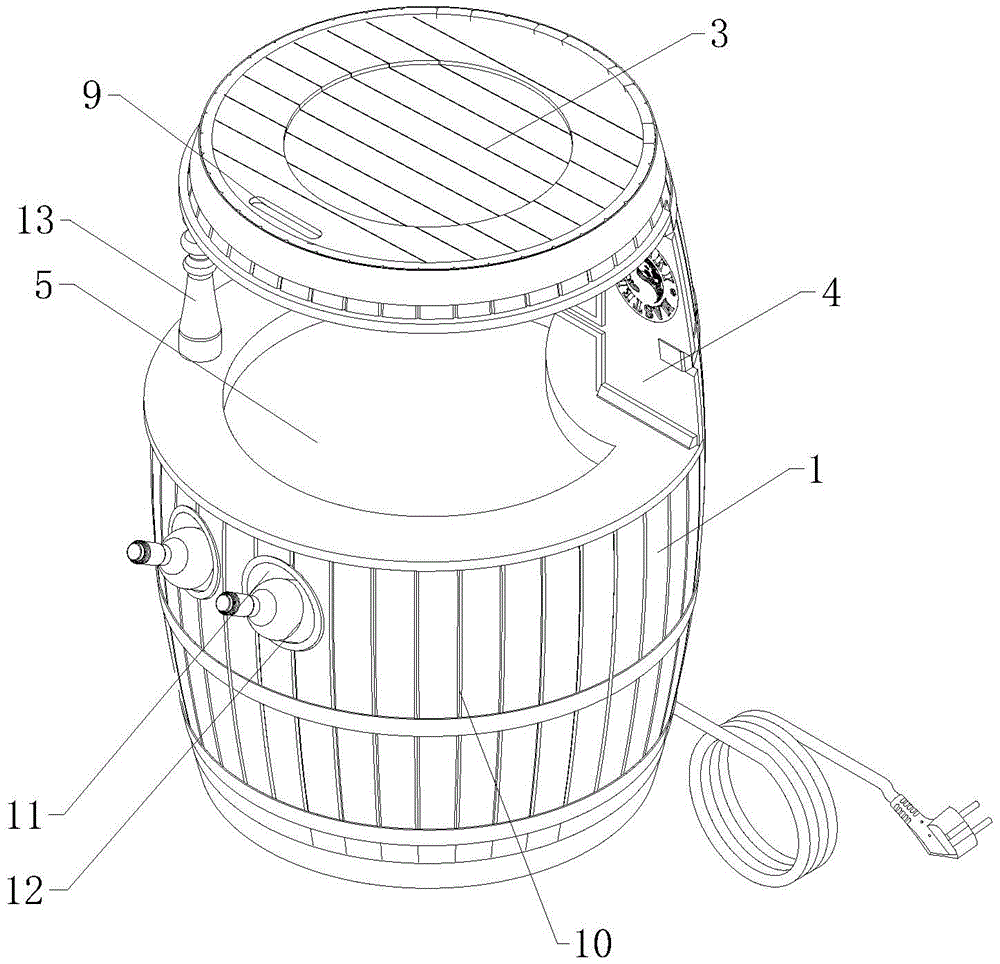

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the opening structure of the storage platen of the present invention;

FIG. 3 is a schematic bottom view of the structure of FIG. 1 according to the present invention;

fig. 4 is a schematic view of the connection structure of the lamp mounting base and the ultraviolet disinfection lamp of the present invention.

In the figure: 1. a ceramic barrel body; 2. a receiving cavity; 3. a storage bedplate; 4. placing the notch; 5. placing a cavity; 6. a lamp mounting base; 7. an ultraviolet disinfection lamp; 8. a control switch; 9. a concave handle; 10. double doors; 11. an eyelet; 12. simulating a wine bottle; 13. and (4) a support column.

Detailed Description

The technical solution in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention based on the embodiments of the present invention.

In order to facilitate understanding of the invention, the invention will be described more fully hereinafter with reference to the accompanying drawings, in which several embodiments of the invention are shown, but which can be embodied in many different forms and are not limited to the embodiments described herein, but rather are provided for the purpose of making the disclosure more thorough and complete.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present, and when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, as the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the terms used herein in the specification of the present invention are for the purpose of describing particular embodiments only and are not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.

In an embodiment, please refer to fig. 1-4, the present invention provides a technical solution:

the utility model provides a top is equipped with ceramic crafts who puts thing platform, including ceramic barrel body 1, seted up on ceramic barrel body 1's the terminal surface and accomodate cavity 2, on ceramic barrel body 1's the terminal surface and correspond through hinged joint with the port of accomodating cavity 2 and put thing platen 3, on ceramic barrel body 1's the lateral wall and be close to ceramic barrel body 1's terminal surface and seted up and place notch 4, the bottom of placing notch 4 inner chamber has been seted up and has been placed cavity 5, the top of placing cavity 5 and be located to place notch 4 inner chamber's top is embedded to have lamps and lanterns mount pad 6, the internally mounted of lamps and lanterns mount pad 6 has ultraviolet disinfection lamp 7, control switch 8 is installed to one side of ultraviolet disinfection lamp 7.

As the utility model discloses further preferred scheme, the bottom of ceramic barrel body 1 is through anti-skidding processing, can increase the frictional force with the contact surface, has seted up concave type handle 9 on putting the terminal surface of thing platen 3, and the port of receiving cavity 2 and the outer wall cooperation mode of putting thing platen 3 are clearance fit, utilize concave type handle 9 to open putting thing platen 3, like fig. 1 and fig. 2.

As the utility model discloses further preferred scheme receives and has two door 10 through hinged joint on the ceramic barrel body 1, wherein all is provided with eyelet 11 on every door in two door 10, and the inside of eyelet 11 bonds and has emulation beverage bottle 12, utilizes emulation beverage bottle 12 to open two door 10, with the article storage in the inside of ceramic barrel body 1, is provided with dismantled and assembled transparent protection casing on the lamps and lanterns mount pad 6, can protect ultraviolet ray disinfection lamp 7.

As the utility model discloses preferred scheme, 7 joints of ultraviolet disinfection lamp are in the inside of lamps and lanterns mount pad 6, and it is dismantled and assembled, the positive and negative both ends of ultraviolet disinfection lamp 7 contact with the inside positive pole and the negative pole of lamps and lanterns mount pad 6 respectively, the connected mode of ultraviolet disinfection lamp 7 and lamps and lanterns mount pad 6 is electric connection, lamps and lanterns mount pad 6 passes through wire electric connection on control switch 8, control switch 8 passes through wire electric connection and has power plug, to the equipment circular telegram, the circular telegram is accomplished the back, operation control switch 8 starts ultraviolet disinfection lamp 7, thereby when people place the inside of placing cavity 5 with the article, ultraviolet ray disinfection lamp 7 utilizes the ultraviolet ray of self production, the disinfection of disinfecting is being placed placing the article of cavity 5, be provided with support column 13 between the top and the bottom of placing cavity 5 inner chamber, play the effect of support.

The utility model discloses work flow: when the top of using this scheme design is equipped with the ceramic handicraft of putting the thing platform, contact with the inside positive pole and the negative pole of lamps and lanterns mount pad 6 respectively at the positive and negative both ends of external line sterilamp 7, the connected mode of ultraviolet ray sterilamp 7 and lamps and lanterns mount pad 6 is electric connection, lamps and lanterns mount pad 6 passes through wire electric connection on control switch 8, control switch 8 has power plug's condition through wire electric connection under, to equipment circular telegram, after the circular telegram is accomplished, operation control switch 8 starts ultraviolet ray sterilamp 7, thereby when people place the inside of placing cavity 5 with the article, ultraviolet ray sterilamp 7 utilizes the ultraviolet ray of self production, to place the article after placing the thing platen 3, this process is equipped with the ceramic handicraft of putting the thing platform through the design top, start ultraviolet ray sterilamp 7 through operation control switch 8, thereby when people place the article in the inside of placing cavity 5, ultraviolet ray sterilamp 7 utilizes the thing of self production, place the thing of placing the cavity 5 and place the thing of thing platform and disinfect to disinfect the effectual thing because the ultraviolet ray influences the thing of the disinfection easily, thereby people's thing can carry out the disinfection in the cross infection of the thing source of the pottery handicraft.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. A ceramic handicraft with a storage platform on the top, comprising a ceramic barrel body (1), characterized in that: a storage cavity (2) is provided on the end surface of the ceramic barrel body (1), a storage platform (3) is connected to the end surface of the ceramic barrel body (1) and corresponding to the port of the storage cavity (2) through a hinge, a placement slot (4) is provided on the side wall of the ceramic barrel body (1) and close to the end surface of the ceramic barrel body (1), a placement cavity (5) is provided at the bottom of the inner cavity of the placement slot (4), a lamp mounting seat (6) is embedded above the placement cavity (5) and at the top of the inner cavity of the placement slot (4), an ultraviolet disinfection lamp (7) is installed inside the lamp mounting seat (6), and a control switch (8) is installed on one side of the ultraviolet disinfection lamp (7). 2. A ceramic handicraft with a storage platform on the top according to claim 1, characterized in that the bottom of the ceramic barrel (1) is anti-slip treated, and a concave handle (9) is provided on the end surface of the storage platform (3). 3. A ceramic handicraft with a storage platform on the top according to claim 1, characterized in that: the port of the storage cavity (2) and the outer wall of the storage platform (3) are fitted in a clearance fit, and the ceramic barrel body (1) is connected to a double door (10) by a hinge, wherein each door of the double door (10) is provided with an eyelet (11). 4. A ceramic handicraft with a storage platform on the top according to claim 3, characterized in that a simulated wine bottle (12) is bonded inside the eyelet (11), and a detachable transparent protective cover is provided on the lamp mounting seat (6). 5. A ceramic handicraft with a storage platform on the top according to claim 1, characterized in that: the ultraviolet disinfection lamp (7) is clamped inside the lamp mounting base (6) and is detachable, and the positive and negative ends of the ultraviolet disinfection lamp (7) are respectively in contact with the positive pole and negative pole inside the lamp mounting base (6). 6. A ceramic handicraft with a storage platform on the top according to claim 5, characterized in that the ultraviolet disinfection lamp (7) is connected to the lamp mounting base (6) in an electrical manner, and the lamp mounting base (6) is electrically connected to the control switch (8) through a wire. 7. A ceramic handicraft with a storage platform on the top according to claim 3, characterized in that: the control switch (8) is electrically connected to a power plug through a wire, and a support column (13) is provided between the top and bottom of the inner cavity of the placement cavity (5).
