Abstract

The utility model discloses a wire slotting device for indoor decoration, which comprises a base, a dust suction mechanism is fixedly connected to the left side of the upper end of the base, and a driving mechanism is fixedly connected to the right side of the upper end of the base. The inner upper end of the second mounting plate is connected with a slotting mechanism by bolts, the front and rear sides of the middle part of the right end of the driving block are fixedly connected with the first mounting plate, and the inner top, front and rear ends of the gantry are fixedly connected with a limit rod. The wiring slotting device for interior decoration described in the utility model realizes the automatic slotting of the wall and the ground through the driving mechanism, the second mounting plate and the slotting mechanism, avoiding the need for manually holding the slotting mechanism Grooving, and by setting a dust suction mechanism connected to the dust collection tank on the upper end of the base, the dust during slotting can be automatically sucked away, avoiding the need for manual cleaning in the later stage, and reducing the difficulty and strength of construction.

Description

A wire slotting device for interior decoration

technical field

The utility model relates to the technical field of decoration appliances, in particular to a wire routing slotting device for interior decoration.

Background technique

In the interior decoration technology, it is necessary to slot the wall and the ground before installing the cable pipes and water pipes. The traditional general slotting method is to lay out the layout manually, and then cut out two lines by cutting equipment, and divide the two lines into two lines. The middle cement floor is chiseled to a predetermined depth so as to facilitate the laying of electric wires or water pipes. Now most of them generally use special slotting machines for slotting. The guide assembly can facilitate the operator to provide support when opening the curved groove, thereby reducing the difficulty of construction and improving the efficiency and accuracy of opening the curved groove; when the grooved disc is stuck, the movable cover can be opened for cleaning, which improves the efficiency of the operation. The maintenance efficiency of the device; the nozzle inside the water guide joint can cool down the slotted plate, and at the same time, dust reduction treatment is carried out during the construction process to ensure the cleanliness of the construction environment. However, this patent still requires a manual hand-held slotting device for slotting. And although it can spray water to reduce dust, it still needs to be cleaned later, which increases the difficulty and intensity of construction.

Utility model content

The main purpose of the utility model is to provide a wire routing slotting device for indoor decoration, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

A wire routing and slotting device for indoor decoration, comprising a base, a dust suction mechanism is fixedly connected to the left side of the upper end of the base, a driving mechanism is fixedly connected to the right side of the upper end of the base, and the middle part of the upper end of the base is open A second mounting plate is fixedly connected, and the inner upper end of the second mounting plate is connected with a slotting mechanism through bolts. The driving mechanism includes a second motor fixedly connected to the middle right part of the upper end of the base. The driving end of the lower end runs through the middle right part of the base and is fixedly connected with a first driving bevel gear, the first driving bevel gear is meshed with a first driven bevel gear, and the middle part of the first driven bevel gear is fixedly connected with a rotating bevel gear. rod, the right end of the rotating rod is fixedly connected with a second driving bevel gear, the second driving bevel gear is engaged with a second driven bevel gear, and the middle part of the second driven bevel gear is fixedly connected with a threaded rod, The upper end of the threaded rod runs through the right middle part of the base and is threadedly connected with a drive block, the front and rear sides of the right end middle part of the drive block are fixedly connected with the first mounting plate, and both ends of the drive block are slidably connected to the gantry The front and rear sides of the gantry frame are fixedly connected with stop rods at the front and rear ends of the inner top.

Preferably, the outer circumference of the middle part of the rotating rod is rotatably connected to the limit seat, the upper end of the limit seat is fixedly connected to the middle right part of the lower end of the base, and the four corners of the lower end of the base are fixedly connected with universal wheels.

Preferably, the outer periphery of the middle part of the limiting rod is slidably connected in the front and rear openings of the middle part of the drive block, and the lower end of the limiting rod is fixedly connected to the front and rear sides of the middle part on the upper right side of the base.

Preferably, the upper end of the threaded rod is rotatably connected to the middle of the upper end of the gantry, and the lower end of the gantry is fixedly connected to the right front and rear ends of the base.

Preferably, the slotting mechanism includes a slotting machine body arranged in the opening of the middle part of the base, the outer periphery of the upper end of the slotting blade of the slotting machine body is provided with a dust collection groove, and the upper end, left and right ends of the slotting machine body are A cylinder is fixedly connected, and the upper end of the cylinder is fixedly connected to the middle part of the lower end of the fixed plate on the left and right sides.

Preferably, the dust collection mechanism includes a dust storage bin fixedly connected to the left side of the upper end of the base, a vacuum cleaner is fixedly connected to the middle part of the inner top wall of the dust storage bin, and a dust suction chamber is fixedly connected to the outer periphery of the dust inlet at the right end of the dust collector. The right end opening of the dust suction pipe is provided with a connecting pipe, the end of the connecting pipe far away from the dust suction pipe is fixedly connected to the upper opening of the dust collection tank, and the inner and lower parts of the ash storage bin are slidingly connected with a storage gray box.

Compared with the prior art, the utility model has the following beneficial effects:

1. When it is necessary to slot the wall, install the slotting machine body to the right end of the first mounting plate through the fixing plate, start the slotting machine body, and start the cylinder at the same time to drive the slotting blade of the slotting machine body to the wall slotting on the surface, and start the second motor, which drives the first driven bevel gear to rotate, and drives the second driven bevel gear to rotate through the rotating rod and the first driving bevel gear, and then drives the driving block to rotate on the gantry through the threaded rod. The inside of the frame rises and slots upwards. When the ground needs to be slotted, install the slotting machine body to the inner upper part of the second mounting plate through the fixing plate, start the slotting machine body, and start the cylinder at the same time to drive the slotting machine body The advanced slotting blade slots the wall, and moves the base through the universal wheel, and then continuously slots the ground. Through the driving mechanism, the second mounting plate and the slotting mechanism, the automatic slotting of the wall and the ground is realized. Avoid the need for manually hand-held slotting mechanism for slotting.

2. When using the slotting mechanism for slotting, start the vacuum cleaner on the top wall of the ash storage bin, and suck the dust generated during slotting to the bottom wall of the ash storage bin through the dust suction pipe, connecting pipe and dust collection tank. In the ash storage box, a dust suction mechanism connected to the dust collection tank is installed on the upper end of the base to realize the automatic suction of the dust during slotting, avoiding the need for manual cleaning in the later stage, and reducing the difficulty and intensity of construction.

Description of drawings

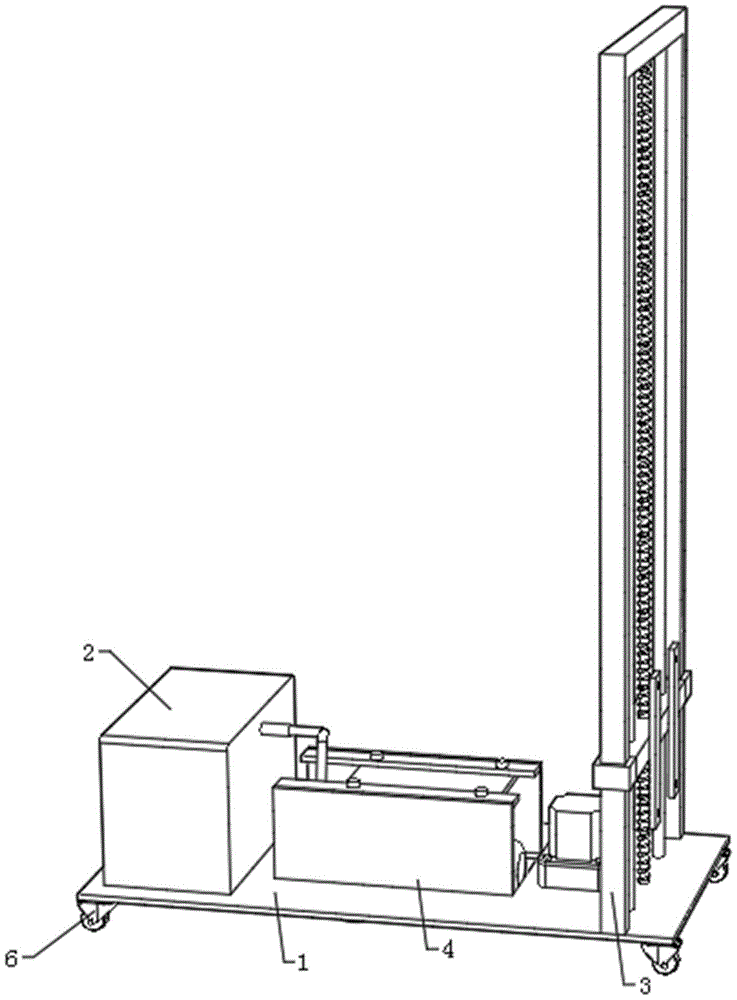

Fig. 1 is a three-dimensional schematic diagram of a wiring slotting device for interior decoration of the present invention;

Fig. 2 is a three-dimensional schematic diagram of a wiring slotting device for interior decoration of the present invention;

Fig. 3 is a perspective schematic diagram of a front section of a cable slotting device for interior decoration of the present invention;

FIG. 4 is an enlarged schematic diagram of point A in FIG. 2 .

In the figure: 1, base; 2, dust suction mechanism; 201, ash storage bin; 202, vacuum cleaner; 203, dust suction pipe; 204, connecting pipe; 205, ash storage box; 3, drive mechanism; 301, second motor ; 302, the first driving bevel gear; 303, the first driven bevel gear; 304, the rotating rod; 305, the second driving bevel gear; 306, the second driven bevel gear; 307, the threaded rod; 308, the driving block; 309, the first mounting plate; 3010, the gantry frame; 3011, the limit rod; 4, the second mounting plate; 5, the slotting mechanism; 501, the slotting machine body; 502, the dust collection tank; 503, the cylinder; Fixed plate; 6, universal wheel; 7, limit seat.

detailed description

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

As shown in Figure 1-4, a cable routing and slotting device for indoor decoration, including a base 1, the upper left side of the base 1 is fixedly connected with a dust suction mechanism 2, and the upper right side of the base 1 is fixedly connected with a driving mechanism 3. The upper middle opening of the base 1 is fixedly connected with a second mounting plate 4, and the inner upper end of the second mounting plate 4 is connected with a slotting mechanism 5 through bolts. Two motors 301, the drive end of the lower end of the second motor 301 runs through the middle right part of the base 1 and is fixedly connected with the first driving bevel gear 302, the first driving bevel gear 302 is meshed with the first driven bevel gear 303, the first driven bevel gear 303 is meshed with the first driven bevel gear The middle part of the moving bevel gear 303 is fixedly connected with a rotating rod 304, and the right end of the rotating rod 304 is fixedly connected with a second driving bevel gear 305, and the second driving bevel gear 305 is engaged with a second driven bevel gear 306, and the second driven bevel gear 306 is engaged with the second driven bevel gear. The middle part of the gear 306 is fixedly connected with a threaded rod 307, the upper end of the threaded rod 307 runs through the right middle part of the base 1 and is screwed with a drive block 308, and the front and rear sides of the right end middle part of the drive block 308 are fixedly connected with a first mounting plate 309. Both ends of the block 308 are slidably connected to the front and rear sides of the gantry 3010, and the front and rear ends of the inner top of the gantry 3010 are fixedly connected to the limit rod 3011.

In this embodiment, the outer circumference of the middle part of the rotating rod 304 is rotatably connected to the limit seat 7, and the upper end of the limit seat 7 is fixedly connected to the middle right part of the lower end of the base 1, and the four corners of the lower end of the base 1 are fixedly connected to the universal wheels 6. The outer circumference of the middle part of the stop rod 3011 is slidingly connected in the front and rear side openings of the middle part of the driving block 308, the lower end of the stop rod 3011 is fixedly connected to the front and rear sides of the upper right middle part of the upper end of the base 1, and the upper end of the threaded rod 307 is rotatably connected to the gantry 3010. In the middle of the upper end, the lower end of the gantry frame 3010 is fixedly connected to the right front and rear ends of the base 1 .

Specifically, when the wall needs to be slotted, the slotting machine body 501 is installed to the right end of the first mounting plate 309 through the fixing plate 504, the slotting machine body 501 is started, and the cylinder 503 is started at the same time to drive the slotting machine body The slotting blade of 501 slots the wall surface, and starts the second motor 301, drives the first driven bevel gear 303 to rotate through the first driving bevel gear 302, and drives the first driven bevel gear 303 through the rotating rod 304 and the second driving bevel gear 305 The second driven bevel gear 306 rotates, and then rotates the threaded rod 307 to drive the driving block 308 to rise inside the gantry frame 3010, and slots upwards. When the ground needs to be slotted, the slotting machine body 501 is installed to the The inner upper part of the second installation plate 4 starts the slotting machine body 501, and starts the cylinder 503 at the same time, drives the slotting blade of the slotting machine body 501 to groove the wall, and moves the base 1 by the universal wheel 6, and then The ground is continuously slotted, and through the driving mechanism 3, the second mounting plate 4 and the slotting mechanism 5, the automatic slotting of the wall and the ground is realized, avoiding the need for manually holding the slotting mechanism 5 for slotting.

In this embodiment, the slotting mechanism 5 includes a slotting machine body 501 arranged in the opening of the middle part of the base 1. The outer circumference of the upper end of the slotting blade of the slotting machine body 501 is provided with a dust collecting groove 502. The upper end of the slotting machine body 501 The left and right ends are fixedly connected with a cylinder 503, and the upper end of the cylinder 503 is fixedly connected to the middle part of the lower end of the fixed plate 504. The middle part of the top wall is fixedly connected with a vacuum cleaner 202, and the outer periphery of the dust inlet at the right end of the vacuum cleaner 202 is fixedly connected with a dust suction pipe 203, and the opening of the right end of the dust suction pipe 203 is provided with a connecting pipe 204, and the connecting pipe 204 is far away from the end of the dust suction pipe 203 It is fixedly connected in the upper opening of the dust collection tank 502 , and the ash storage box 205 is slidably connected to the inner lower part of the ash storage bin 201 .

Specifically, when using the slotting mechanism 5 for slotting, start the vacuum cleaner 202 on the inner top wall of the ash storage bin 201, and suck the dust generated during slotting to the In the ash storage box 205 of the inner bottom wall of the ash storage bin 201, the dust suction mechanism 2 connected with the dust collection tank 502 is provided on the upper end of the base 1, so that the dust during slotting can be automatically sucked away, avoiding the need for cleaning in the later stage. Manual cleaning reduces the difficulty and strength of construction.

working principle:

When the wall needs to be slotted, the slotting machine body 501 is installed to the right end of the first mounting plate 309 through the fixing plate 504, the slotting machine body 501 is started, and the cylinder 503 is started at the same time to drive the opening of the slotting machine body 501 The groove blade grooves the wall surface, and starts the second motor 301, drives the first driven bevel gear 303 to rotate through the first driving bevel gear 302, and drives the second driven bevel gear 303 through the rotating rod 304 and the second driving bevel gear 305 The bevel gear 306 rotates, and then drives the drive block 308 to rise inside the gantry 3010 through the rotation of the threaded rod 307, and slots upward. On the inner upper part of the board 4, start the slotting machine body 501, and start the cylinder 503 at the same time, drive the slotting blade of the slotting machine body 501 to slot the wall, and move the base 1 through the universal wheel 6, and then continue to ground the ground. Grooving, through the driving mechanism 3, the second mounting plate 4 and the grooving mechanism 5, the automatic grooving of the wall and ground is realized, avoiding the need to manually hold the grooving mechanism 5 for grooving, and when using the grooving mechanism 5 for grooving At the same time, start the vacuum cleaner 202 on the inner top wall of the ash storage bin 201, and suck the dust generated during slotting to the ash storage box 205 on the inner bottom wall of the ash storage bin 201 through the dust suction pipe 203, the connecting pipe 204 and the dust collection groove 502. Inside, by setting the dust suction mechanism 2 connected with the dust collection tank 502 on the upper end of the base 1, the dust during slotting can be automatically sucked away, avoiding the need for manual cleaning in the later stage, and reducing the difficulty and strength of construction.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A wiring slotting device for indoor decoration, comprising a base (1), characterized in that: the left side of the upper end of the base (1) is fixedly connected with a dust suction mechanism (2), and the base (1) ) is fixedly connected with a drive mechanism (3) on the right side of the upper end, the upper middle opening of the base (1) is fixedly connected with a second mounting plate (4), and the inner upper end of the second mounting plate (4) is connected by bolts There is a slotting mechanism (5), the driving mechanism (3) includes a second motor (301) fixedly connected to the middle right part of the upper end of the base (1), and the driving end of the lower end of the second motor (301) runs through the base The middle right part of (1) is fixedly connected with the first driving bevel gear (302), and the first driving bevel gear (302) is meshed with the first driven bevel gear (303), and the first driven bevel gear (303) is The middle part of the gear (303) is fixedly connected with a rotating rod (304), and the right end of the rotating rod (304) is fixedly connected with a second driving bevel gear (305), and the second driving bevel gear (305) is meshed and connected with a second Two driven bevel gears (306), the middle part of the second driven bevel gear (306) is fixedly connected with a threaded rod (307), the upper end of the threaded rod (307) runs through the right middle part of the base (1) and A drive block (308) is screwed, and the front and rear sides of the right end of the drive block (308) are fixedly connected with a first mounting plate (309), and both ends of the drive block (308) are slidably connected to the gantry ( 3010), the front and rear ends of the inner top of the gantry (3010) are fixedly connected to the limit rods (3011). 2. A wire routing and slotting device for interior decoration according to claim 1, characterized in that: the outer periphery of the middle part of the rotating rod (304) is rotatably connected to a limit seat (7), and the limit seat The upper end of (7) is fixedly connected to the middle right part of the lower end of the base (1), and the four corners of the lower end of the base (1) are fixedly connected with universal wheels (6). 3. A cable slotting device for interior decoration according to claim 1, characterized in that: the outer periphery of the middle part of the limit rod (3011) is slidably connected to the front and rear side openings of the middle part of the driving block (308) Inside, the lower end of the limit rod (3011) is fixedly connected to the front and rear sides of the upper right middle part of the upper end of the base (1). 4. A wiring slotting device for interior decoration according to claim 1, characterized in that: the upper end of the threaded rod (307) is rotatably connected to the middle part of the upper end of the gantry (3010), and the gantry The lower end of the frame (3010) is fixedly connected to the front and rear ends of the right side of the base (1). 5. A wire slotting device for interior decoration according to claim 1, characterized in that: the slotting mechanism (5) comprises a slotting machine body ( 501), the outer periphery of the upper end of the slotting blade of the slotting machine body (501) is provided with a dust collecting groove (502), and the upper left and right ends of the slotting machine body (501) are fixedly connected with cylinders (503), so The upper ends of the cylinders (503) are all fixedly connected to the lower left, right, and middle parts of the fixed plate (504). 6. A cable slotting device for interior decoration according to claim 1, characterized in that: the dust suction mechanism (2) includes a dust storage bin ( 201), a vacuum cleaner (202) is fixedly connected to the middle part of the inner top wall of the dust storage bin (201), and a dust suction pipe (203) is fixedly connected to the outer periphery of the dust inlet at the right end of the vacuum cleaner (202). The right end opening of the pipe (203) is provided with a connecting pipe (204), and the end of the connecting pipe (204) away from the dust suction pipe (203) is fixedly connected to the upper opening of the dust collecting tank (502). The inner lower part of the ash bin (201) is slidably connected with an ash storage box (205).
