Abstract

The utility model discloses a tool rack for power network infrastructure construction with a lifting function, which comprises a base plate and a bearing plate, a buffer mechanism is installed between the base plate and the bearing plate; A threaded rod is threaded, a fixed frame is installed on the upper end of the threaded rod, a guiding mechanism is set between the fixed frame and the bearing plate, a mounting plate is installed for rotation in the fixed frame, and a movable rod is installed on one side of the fixed frame. A deck matching the mounting plate is installed on one end of the movable rod, a handle is installed on the other end of the movable rod, and a first spring is arranged between the mounting plate and the fixed frame. The utility model is provided with a threaded cylinder, a threaded rod, and a guide mechanism, and rotates the threaded cylinder to make the threaded rod drive the fixed frame to move, and then adjusts the height of the mounting plate, so that the tool rack can be used in different power grid infrastructure construction sites. It is also convenient for workers with different heights to use.

Description

A tool rack for grid infrastructure construction with lifting function

technical field

The utility model relates to the field of tool racks, in particular to a tool rack for grid infrastructure construction with a lifting function.

Background technique

The power grid is a whole composed of substations of various voltages and transmission and distribution lines in the power system. It includes three units: transformation, transmission, and distribution. The task of the power grid is to transmit and distribute electric energy and change the voltage. The tool rack is composed of a hanging board, a back-hanging parts box, various hooks and a base, etc., and is used to place tools such as needle-nose pliers, wrenches, screwdrivers, screwdrivers, and connectors. , screws and other accessories.

But existing tool holder has following weak point in use:

First, there is a lack of a height adjustment mechanism, and the height of the tool rack cannot be adjusted according to the site conditions and the height of the staff, which is not conducive to use;

Second, there is a lack of a shock absorbing mechanism. When the mobile tool rack encounters a bumpy road section, the tools on the tool rack will fall due to vibration.

Utility model content

The purpose of the utility model is to provide a tool rack for power grid infrastructure construction with a lifting function, so as to solve at least one of the above technical problems.

The utility model is to solve the above-mentioned technical problem, adopts following technical scheme to realize:

A tool rack for power grid infrastructure construction with a lifting function, comprising a base plate and a bearing plate, a buffer mechanism is installed between the base plate and the bearing plate; a threaded cylinder is installed on the top surface of the bearing plate, and the threaded cylinder The internal thread is connected with a threaded rod, the upper end of the threaded rod is installed with a fixed frame, a guiding mechanism is arranged between the fixed frame and the bearing plate, a mounting plate is installed in the fixed frame, and one side of the fixed frame A movable rod is provided through the top, and the movable rod is slidably connected with the fixed frame. One end of the movable rod is installed with a card seat matching the mounting plate, and the other end of the movable rod is equipped with a handle. The mounting plate and the A first spring is arranged between the fixed frames, and the first spring is sheathed on the movable rod.

Preferably, multiple hooks, multiple fixing rings and multiple storage boxes are installed on the front and back of the installation board.

Preferably, two rotating rods are fixed on the side of the threaded cylinder.

Preferably, a rotating shaft is fixed on both the top surface and the bottom surface of the mounting plate, and the other end of the rotating shaft is rotatably connected to the inner wall of the fixed frame.

Preferably, the guide mechanism includes two square tubes, both of which are fixed on the top surface of the bearing plate, and a square column is slidably connected to the inside of the square tube, and the upper ends of the two square columns are fixed to the The bottom surface of the frame is fixedly connected, and a ventilation pipe is installed through one side of the two square cylinders.

Preferably, a plurality of moving wheels are installed on the bottom surface of the bottom plate.

Preferably, the buffer mechanism includes a plurality of dampers and a plurality of second springs, the two ends of the plurality of dampers are respectively fixedly connected to the bearing plate and the bottom plate, the second springs are sleeved on the dampers, and Both ends of the second spring are fixedly connected to the bearing plate and the bottom plate respectively.

Preferably, a telescopic sleeve is installed on the top surface of the bottom plate, and the upper end of the telescopic sleeve is fixedly connected with the bottom surface of the bearing plate.

The beneficial effects of the utility model are:

1. The utility model is provided with a threaded cylinder, a threaded rod, and a guide mechanism. By rotating the threaded cylinder, the threaded rod drives the fixed frame to move, and then adjusts the height of the mounting plate, so that the tool rack can be used in different power grid infrastructure constructions. It can be used in the field, and it is also convenient for staff of different heights to use.

2. The utility model enables the mounting plate to rotate in the fixed frame by setting the rotating shaft, thereby facilitating the use of tools on the other side of the mounting plate; by setting the movable rod, the clamp, the first spring, and the handle, it is convenient to limit the mounting plate. position to prevent the mounting plate from rotating by itself.

3. By setting the buffer mechanism in the utility model, when the moving device encounters a bumpy road section, the damping produced by the damper and the rebound force of the second spring can provide buffering and shock absorption for the bearing plate, so as to provide support for the fixed frame and the mounting plate. Provides shock absorption so that tools placed on the mounting plate do not fall due to vibration.

Description of drawings

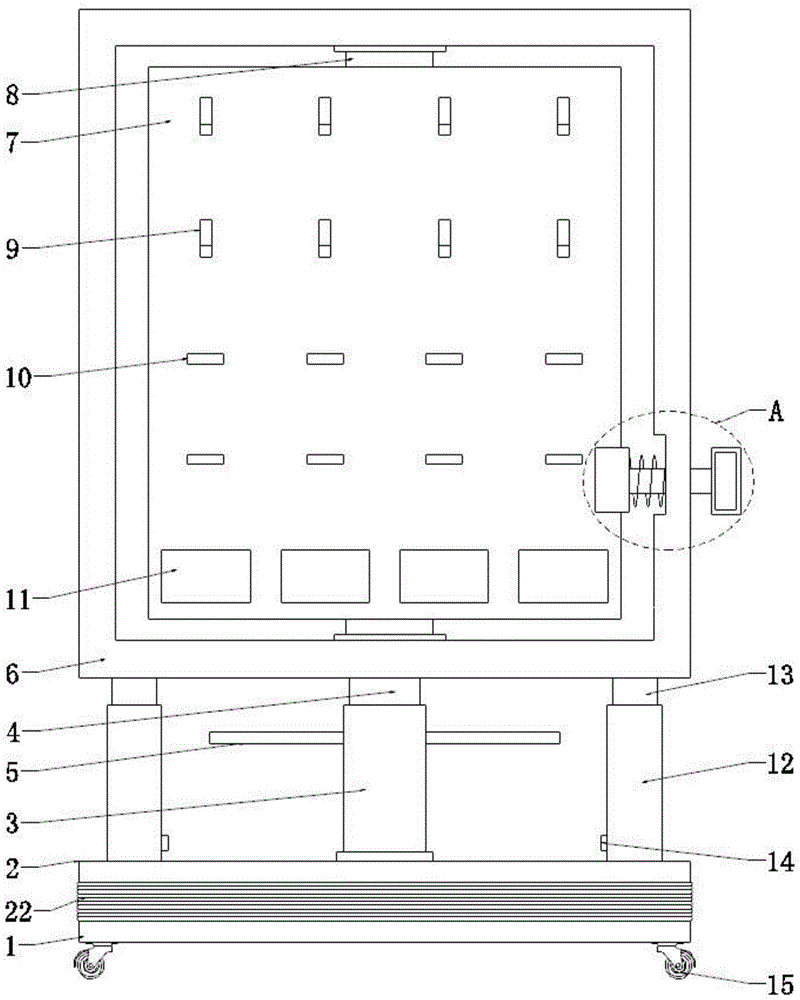

Fig. 1 is the front view of the utility model;

Fig. 2 is the enlarged schematic diagram of part A of Fig. 1 of the utility model;

Fig. 3 is the top view of the utility model deck;

Fig. 4 is a schematic diagram of the internal structure of the utility model telescopic sleeve;

Reference signs: 1, bottom plate; 2, bearing plate; 3, threaded cylinder; 4, threaded rod; 5, rotating rod; 6, fixed frame; 7, mounting plate; 8, rotating shaft; 9, hook; 10, fixed ring ; 11, storage box; 12, square tube; 13, square column; 14, ventilation pipe; 15, moving wheel; 16, movable rod; 17, deck; 18, first spring; 19, handle; 20, damper ; 21, the second spring; 22, the telescopic sleeve.

detailed description

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments and accompanying drawings, but the following embodiments are only preferred embodiments of the utility model , not all. Based on the examples in the implementation manners, other examples obtained by those skilled in the art without making creative efforts all belong to the protection scope of the present utility model.

Describe the specific embodiment of the utility model below in conjunction with accompanying drawing.

Example 1

As shown in Figure 1-3, a tool rack for grid infrastructure construction with a lifting function, including a bottom plate 1 and a supporting plate 2, a buffer mechanism is installed between the bottom plate 1 and the supporting plate 2; the top surface of the supporting plate 2 rotates A threaded barrel 3 is installed, the threaded barrel 3 is internally threaded with a threaded rod 4, the upper end of the threaded rod 4 is installed with a fixed frame 6, a guiding mechanism is arranged between the fixed frame 6 and the bearing plate 2, and a mounting device is installed in the fixed frame 6 for rotation. plate 7, one side of the fixed frame 6 is penetrated with a movable rod 16, and the movable rod 16 is slidably connected with the fixed frame 6; A handle 19 is installed at one end, and a first spring 18 is arranged between the mounting plate 7 and the fixed frame 6 , and the first spring 18 is sheathed on the movable rod 16 .

In this embodiment, specifically, a plurality of hooks 9, a plurality of fixing rings 10 and a plurality of storage boxes 11 are installed on the front and back of the mounting plate 7; by setting the hook 9, some tools can be hung on the hook 9 ; By setting the fixing ring 10, some tools can be inserted on the fixing ring 10; by setting the storage box 11, some tools, screws, and connectors can be placed in the storage box 11.

In this embodiment, specifically, two rotating rods 5 are fixed on the side of the threaded cylinder 3; by arranging the two rotating rods 5, it is convenient to rotate the threaded cylinder 3 in a labor-saving manner.

In this embodiment, specifically, the top surface and the bottom surface of the mounting plate 7 are fixed with a rotating shaft 8, and the other end of the rotating shaft 8 is rotatably connected with the inner wall of the fixed frame 6; Rotate in frame 6.

In this embodiment, specifically, the guide mechanism includes two square tubes 12, both of which are fixed on the top surface of the bearing plate 2, and a square column 13 is slidably connected to the inside of the square tube 12, and the two square columns 13 The upper ends of the upper ends are all fixedly connected with the bottom surface of the fixed frame 6, and a vent pipe 14 is installed through one side of the two square tubes 12; by setting the guide mechanism, when the threaded tube 3 rotates, the threaded rod 4 and the fixed frame 6 can only Move up and down without following the rotation of the threaded cylinder 3; by setting the vent pipe 14, the circulation of air inside and outside the square cylinder 12 is facilitated, so that the square column 13 is convenient to slide in the square cylinder 12.

In this embodiment, specifically, a plurality of moving wheels 15 are installed on the bottom surface of the bottom plate 1; by setting the moving wheels 15, the device is easy to move and the flexibility of the device is increased.

Working principle: When it is necessary to adjust the height of the mounting plate 7, by turning the two rotating rods 5, the threaded cylinder 3 is driven to rotate, and then the threaded rod 4 and the fixed frame 6 are moved, and then the height of the mounting plate 7 is adjusted. making it easier for staff to use;

When it is necessary to use the tools on the other side of the mounting plate 7, pull the handle 19 to the right to drive the movable bar 16 and the deck 17 to move to the right, so that the deck 17 is separated from the mounting plate 7, and then the mounting plate 7 is rotated 180 Make the other side of the mounting plate 7 face forward, and then loosen the handle 19, affected by the rebound force of the first spring 18, the first spring 18 will push the card seat 17 to move to the left, and then make the card seat 17 and the mounting plate 7, so that the mounting plate 7 cannot be rotated.

Example 2

As shown in Figure 1 and Figure 4, under the condition that other parts are all the same as in Embodiment 1, the difference between this embodiment and Embodiment 1 is that the buffer mechanism includes a plurality of dampers 20 and a plurality of second springs 21. Both ends of a damper 20 are fixedly connected to the bearing plate 2 and the base plate 1 respectively, the second spring 21 is sheathed on the damper 20, and both ends of the second spring 21 are fixedly connected to the bearing plate 2 and the base plate 1 respectively.

In this embodiment, specifically, a telescopic sleeve 22 is installed on the top surface of the bottom plate 1, and the upper end of the telescopic sleeve 22 is fixedly connected to the bottom surface of the bearing plate 2; normal use.

Working principle: when the device encounters a bumpy road section, the bearing plate 2 will move downward, thereby compressing the damper 20 and the second spring 21, and affected by the rebound force of the second spring 21, the second spring 21 will move upward Push the bearing plate 2, when the second spring 21 expands and contracts, the damper 20 will also expand and contract, and the resulting damping, the damping produced by the damper 20 and the rebound force of the second spring 21 can provide cushioning and shock absorption for the bearing plate 2 , so as to provide shock absorption for the threaded barrel 3, the threaded rod 4, the fixed frame 6, and the mounting plate 7, thereby preventing the tools placed on the mounting plate 7 from falling due to vibration.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (8)

1. The utility model provides a take raising and lowering functions's instrument frame for electric wire netting capital construction, includes bottom plate (1) and carrier plate (2), its characterized in that: a buffer mechanism is arranged between the bottom plate (1) and the bearing plate (2); rotate on the top surface of carrier plate (2) and install a screw thread section of thick bamboo (3), screw thread section of thick bamboo (3) female connection has threaded rod (4), fixed frame (6) are installed to the upper end of threaded rod (4), be provided with guiding mechanism between fixed frame (6) and carrier plate (2), mounting panel (7) are installed to fixed frame (6) internal rotation, it is provided with movable rod (16) to run through on one side of fixed frame (6), movable rod (16) and fixed frame (6) sliding connection, one of movable rod (16) is served and is installed cassette (17) that match with mounting panel (7), handle (19) are installed to the other end of movable rod (16), be provided with first spring (18) between mounting panel (7) and fixed frame (6), first spring (18) cover is established on movable rod (16).

2. The tool rack with the lifting function for power grid infrastructure construction of claim 1, wherein: all install a plurality of couples (9), a plurality of solid fixed ring (10) and a plurality of thing box (11) of putting on the front and the back of mounting panel (7).

3. The tool rack with the lifting function for power grid infrastructure construction as claimed in claim 2, wherein: two rotating rods (5) are fixedly arranged on the side surface of the threaded cylinder (3).

4. The tool rack with the lifting function for power grid infrastructure construction as claimed in claim 3, wherein: the top surface and the bottom surface of mounting panel (7) all have set firmly pivot (8), the other end of pivot (8) is connected with the inner wall rotation of fixed frame (6).

5. The tool rack with the lifting function for power grid infrastructure construction of claim 4, wherein: guiding mechanism includes two square section of thick bamboo (12), and two square section of thick bamboo (12) all set firmly on the top surface of carrier plate (2), sliding connection has square post (13) in square section of thick bamboo (12), two the upper end of square post (13) all with the bottom surface fixed connection of fixed frame (6), two all run through on one side of square section of thick bamboo (12) and install breather pipe (14).

6. The tool rack with the lifting function for power grid infrastructure construction as claimed in claim 1, wherein: a plurality of moving wheels (15) are mounted on the bottom surface of the bottom plate (1).

7. The tool rack with the lifting function for power grid infrastructure construction of claim 6, wherein: buffer gear includes a plurality of dampers (20) and a plurality of second spring (21), and is a plurality of the both ends of damper (20) respectively with carrier plate (2), bottom plate (1) fixed connection, second spring (21) cover is established on damper (20), just the both ends of second spring (21) respectively with carrier plate (2), bottom plate (1) fixed connection.

8. The tool rack with the lifting function for power grid infrastructure construction of claim 7, wherein: install flexible cover (22) on the top surface of bottom plate (1), the upper end of flexible cover (22) and the bottom surface fixed connection of carrier plate (2).
