Abstract

The utility model relates to the technical field of electrical engineering, in particular to a welding device for electrical engineering. Both ends are connected with a second piston rod. The utility model overcomes the deficiencies of the prior art. By setting the second cylinder, the second piston rod, the motor, the drive shaft, the third cylinder and the third piston rod, the workpiece is placed on the movable plate, and then the third cylinder is started. The third cylinder pushes the third piston rod to elongate, the third piston rod drives the movable plate to move upwards, starts the second cylinder, and the second cylinder pushes the second piston rod to elongate, so that the fixture can clamp and fix the workpiece, and then The movable plate is lowered so that the motor can be started after the welding of the current front of the workpiece is completed, so that the motor drives the clamp to turn over 180° through the drive shaft to turn over the welded workpiece without re-clamping the workpiece.

Description

A welding device for electrical engineering

technical field

The utility model relates to the technical field of electrical engineering, in particular to a welding device for electrical engineering.

Background technique

Electrical engineering is the core and key discipline in the field of modern science and technology. The traditional definition of electrical engineering is the sum of related disciplines used to create electrical and electronic systems. This definition was originally very broad, but with the rapid development of science and technology, the current The concept of electrical engineering has gone far beyond the scope of the above definition. The development prospects of electrical engineering are also very promising. The field of electrical systems is a promising and challenging field. Welding devices are needed in the application of electrical engineering. Electrical equipment, etc. are welded.

However, in the actual use of the existing welding device for electrical engineering, due to the need to weld both the front and back sides during the welding process, it is necessary for personnel to re-clamp and turn over the workpiece after the welding of the front side is completed. processing, the efficiency is very low, and the labor intensity of personnel is increased; at the same time, in the actual use of the existing electrical engineering welding device, when the workpiece to be welded is heavy, the friction between the workpiece and the workbench is relatively large. , It is not convenient for personnel to move and adjust.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a welding device for electrical engineering, aiming to solve the problems of low re-clamping efficiency and inconvenient adjustment of workpieces in the prior art.

In order to solve the above technical problems, the utility model provides the following technical solutions:

A welding device for electrical engineering, comprising a device main body, uprights are fixed on both sides of the top of the device main body, a second cylinder is installed on one side of the upright, and the output ends of the second cylinders are connected with a first Two piston rods, one end of the second piston rod is equipped with a motor, the output end of the motor is equipped with a clamp through the drive shaft, the top of the device main body is fixed with a workbench, and the inside of the device main body is equipped with The third cylinder, the output end of the third cylinder is connected with a third piston rod, the top end of the third piston rod is equipped with a movable plate, and a plurality of universal balls are installed on the surface of the movable plate;

The universal balls are arranged equidistantly, and the clamps are located above the workbench.

Preferably, the level of the universal ball is lower than that of the workbench, and the movable plate is located inside the workbench.

Preferably, a first air cylinder is installed on one side of the column, the output ends of the first air cylinders are connected with first piston rods, and electric slide rails are installed at the bottom ends of the first piston rods.

Preferably, a mounting bracket is connected to the inside of the electric slide rail, and a welding torch is installed at the bottom end of the mounting bracket, and the welding torch is located directly above the movable plate.

Preferably, a controller is installed on one side of the column, and the controller is electrically connected to the first cylinder, the second cylinder, the third cylinder, the motor, the welding torch and the electric slide rail respectively.

Preferably, support rods are installed around the bottom of the main body of the device, and the area of the movable plate is smaller than that of the workbench.

The embodiment of the utility model provides a welding device for electrical engineering, which has the following beneficial effects: the motor can be started after the welding of the current front of the workpiece is completed, so that the motor drives the clamp to turn over 180° through the drive shaft to perform welding on the workpiece. Flip over, no need to re-clamp the workpiece, which improves the efficiency. At the same time, by starting the third cylinder, the third cylinder pushes the third piston rod to elongate, and the third piston rod drives the movable plate to move upward, so that the universal ball The horizontal height is higher than the horizontal height of the workbench, and then the personnel can move the workpiece, so that the workpiece can slide under the action of the universal ball, so as to facilitate the adjustment of the welding workpiece and reduce the labor intensity of the staff.

1. By setting the second cylinder, the second piston rod, the motor, the drive shaft, the third cylinder and the third piston rod, when welding the electrical engineering workpiece, it can be placed on the movable plate and then start the third cylinder, The third cylinder pushes the third piston rod to elongate, the third piston rod drives the movable plate to move upwards, and then the second cylinder can be activated, and the second cylinder pushes the second piston rod to elongate, so that the clamp can clamp and fix the workpiece. Then the movable plate is lowered, so that the motor can be started after the welding of the current front of the workpiece is completed, so that the motor can drive the clamp to turn over 180° through the drive shaft, so as to turn over the welding workpiece without re-clamping the workpiece, improving efficiency.

2. By setting the third cylinder, the third piston rod, the movable plate and the universal ball, during the welding process of the electrical engineering workpiece, the third cylinder can be activated, and the third cylinder can push the third piston rod to elongate, and the third The piston rod drives the movable plate to move upwards so that the level of the universal ball is higher than the level of the workbench, and then the personnel can move the workpiece so that the workpiece can slide under the action of the universal ball to facilitate welding The workpiece is adjusted, which reduces the labor intensity of the staff.

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the embodiments of the utility model, and do not constitute a limitation to the utility model. In the attached picture:

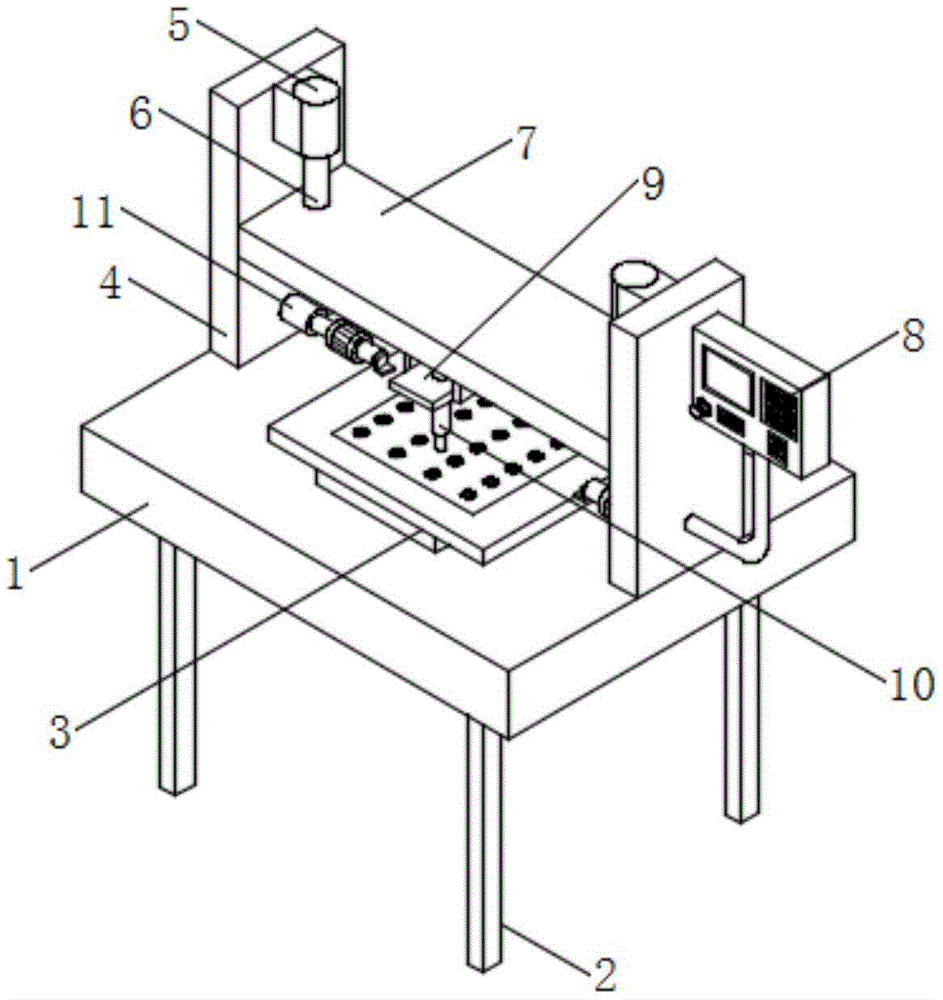

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is a schematic diagram of the clamp connection structure of the present invention;

Fig. 3 is a schematic diagram of the universal ball connection structure of the present invention.

In the figure: 1. Device main body; 2. Support rod; 3. Workbench; 4. Column; 5. First cylinder; 6. First piston rod; 7. Electric slide rail; 8. Controller; 9. Mounting frame ; 10, welding torch; 11, the second cylinder; 12, the second piston rod; 13, motor; 14, drive shaft; 15, fixture; 16, the third cylinder; 17, the third piston rod; 18, universal ball; 19. Movable board.

detailed description

The preferred embodiments of the present utility model are described below in conjunction with the accompanying drawings. It should be understood that the preferred embodiments described here are only used to illustrate and explain the present utility model, and are not intended to limit the present utility model.

Embodiment: as shown in Fig. 1-3, a kind of welding device for electrical engineering, comprises device main body 1, both sides of the top of device main body 1 are fixed with column 4, and the side of column 4 is equipped with second cylinder 11, The output end of the second cylinder 11 is connected with the second piston rod 12, and one end of the second piston rod 12 is equipped with a motor 13, and the output end of the motor 13 is equipped with a clamp 15 through the drive shaft 14. After the second cylinder 11 starts It can push the second piston rod 12 to extend, and the second piston rod 12 drives the fixture 15 to move, so that the fixture 15 clamps and fixes the electrical engineering workpiece. There is a third cylinder 16, the output end of the third cylinder 16 is connected with a third piston rod 17, the top of the third piston rod 17 is equipped with a movable plate 19, and a plurality of universal balls 18 are installed on the surface of the movable plate 19, the universal The balls 18 are equidistantly distributed, and the clamps 15 are located above the workbench 3, so that the third cylinder 16 can drive the third piston rod 17 to move up and down after the third cylinder 16 is started, and the third piston rod 17 drives the movable plate 19 to move up and down.

Specifically, referring to Fig. 1 and Fig. 3, the level height of universal ball 18 is lower than the level height of workbench 3, and movable plate 19 is positioned at the inboard of workbench 3, so that movable plate 19 can move in the inboard of workbench 3 , and when the level of the universal ball 18 is higher than the level of the workbench 3, the workpiece can slide under the action of the universal ball 18, which is convenient for adjustment and reduces the labor intensity of the staff.

Specifically, please refer to Fig. 1, the first cylinder 5 is installed on one side of the column 4, the output end of the first cylinder 5 is connected with the first piston rod 6, and the bottom end of the first piston rod 6 is equipped with an electric slide Rail 7, the first cylinder 5 can drive the first piston rod 6 to expand and contract after starting, and the first piston rod 6 drives the electric slide rail 7 to move up and down so as to adjust the height of the welding torch 10.

Specifically, referring to Fig. 1, the interior of the electric slide rail 7 is connected with a mounting frame 9, and the bottom end of the mounting frame 9 is equipped with a welding torch 10, and the welding torch 10 is located directly above the movable plate 19. After the electric slide rail 7 is started, it can be installed The frame 9 drives the welding torch 10 to move horizontally, so that the welding torch 10 performs welding processing on the workpiece.

Specifically, referring to Fig. 1-3, a controller 8 is installed on one side of the column 4, and the controller 8 is respectively connected with the first cylinder 5, the second cylinder 11, the third cylinder 16, the motor 13, the welding torch 10 and the electric slide rail 7 are electrically connected so that the staff can open or close the first cylinder 5, the second cylinder 11, the third cylinder 16, the motor 13, the welding gun 10 and the electric slide rail 7 through the controller 8, so as to weld the workpiece.

Concrete, please refer to Fig. 1 and Fig. 3, support bar 2 is all installed around the bottom of device main body 1, improves the stability of device main body 1, and the area of movable plate 19 is less than the area of workbench 3, so that movable plate 19 can Drive the workpiece up.

Working principle: First, when welding electrical engineering workpieces, it can be placed on the movable plate 19, and then the third cylinder 16 is activated, the third cylinder 16 pushes the third piston rod 17 to elongate, and the third piston rod 17 drives the movement The plate 19 moves upwards so that the level of the universal ball 18 is higher than the level of the workbench 3, and then the personnel can move the workpiece so that the workpiece can slide under the action of the universal ball 18, thereby facilitating welding The workpiece is adjusted to reduce the labor intensity of the staff, and then the second cylinder 11 can be started, and the second cylinder 11 pushes the second piston rod 12 to extend, so that the clamp 15 can clamp and fix the workpiece, and then the movable plate 19 is lowered, so that the motor 13 can be started after the current front of the workpiece is welded, so that the motor 13 drives the clamp 15 to turn over 180° through the drive shaft 14, thereby turning over the welded workpiece, without re-clamping the workpiece, improving efficiency.

Claims (6)

1. A welding device for electrical engineering, comprising a device main body (1), is characterized in that: both sides of the top of the device main body (1) are fixed with uprights (4), and one side of the uprights (4) is A second cylinder (11) is installed, the output end of the second cylinder (11) is connected with a second piston rod (12), and one end of the second piston rod (12) is equipped with a motor (13), The output end of the motor (13) is equipped with a clamp (15) through the drive shaft (14), the top of the device main body (1) is fixed with a workbench (3), and the inside of the device main body (1) is installed There is a third cylinder (16), the output end of the third cylinder (16) is connected with a third piston rod (17), the top of the third piston rod (17) is equipped with a movable plate (19), the A plurality of universal balls (18) are installed on the surface of the movable plate (19); The universal balls (18) are arranged equidistantly, and the clamps (15) are located above the workbench (3). 2. The electrical engineering welding device according to claim 1, characterized in that: the level of the universal ball (18) is lower than the level of the workbench (3), and the movable plate (19) is located The inner side of the platform (3). 3. The welding device for electrical engineering according to claim 1, characterized in that: a first cylinder (5) is installed on one side of the column (4), and the output ends of the first cylinder (5) are The first piston rod (6) is connected, and the bottom ends of the first piston rod (6) are all equipped with electric slide rails (7). 4. The welding device for electrical engineering according to claim 3, characterized in that: a mounting frame (9) is connected to the inside of the electric slide rail (7), and a welding gun is mounted on the bottom end of the mounting frame (9) (10), the welding torch (10) is located directly above the movable plate (19). 5. The welding device for electrical engineering according to claim 4, characterized in that: a controller (8) is installed on one side of the column (4), and the controller (8) is connected with the first cylinder (5) respectively. ), the second cylinder (11), the third cylinder (16), the motor (13), the welding torch (10) and the electric slide rail (7) are electrically connected. 6. The welding device for electrical engineering according to claim 1, characterized in that: support rods (2) are installed around the bottom of the device main body (1), and the area of the movable plate (19) is smaller than that of the workbench (3) the area.
