Abstract

The utility model discloses an external wall thermal insulation board which is easy to install, which comprises a thermal insulation board body, the lower end surface of the thermal insulation board body is closely fitted with a connecting plate, and the left and right sides of the upper end surface of the connecting plate are respectively fixedly connected with two A first fixed plate and two second fixed plates, the upper end surfaces of the two first fixed plates are fixedly connected with the first positioning plate, and the upper end surfaces of the two second fixed plates are fixedly connected with the second positioning plate The upper end surface of the connecting plate is provided with a plurality of first installation holes, so that the structure improves the stability of the connection between the insulation board body and the outer wall, and avoids the problem that the insulation board body is easy to fall off when used for a long time. And it improves the convenience of installing and docking multiple insulation board bodies on the outer wall, and solves the existing problem that the insulation board body is easily damaged and the thermal insulation performance is reduced due to the fixing of the insulation board body and the outer wall by screws.

Description

An easy-to-install external wall insulation board

technical field

The utility model relates to the field of building materials, in particular to an external wall insulation board which is easy to install.

Background technique

With the development of our country's economy, building technology has also made great progress, and people's buildings are paying more and more attention to energy saving and heat preservation. The heat preservation materials in the prior art are mainly foam heat preservation boards or rock wool heat preservation boards, which are placed outside the brick body. First, coat the bonding mortar, then hang foam insulation board or rock wool insulation board on the outside of the bonding mortar, and then hang glass fiber anti-cracking net on the outside of the insulation board to prevent the insulation board from falling off piece by piece. The exterior is coated with plastering mortar and putty layer for finishing decoration.

However, when installing insulation boards outside the exterior wall at present, multiple insulation boards are installed with the exterior wall by means of screws or pasting. The way of pasting is easy to cause the problem of falling off the insulation boards with long-term use. The method of fixing by screws is easy. Damage to the insulation board results in a decrease in insulation performance.

Utility model content

The purpose of this utility model is to provide an external wall thermal insulation board that is easy to install, which solves the problem of installing multiple thermal insulation panels on the external wall through screws or pasting methods when installing thermal insulation boards outside the external wall. If the insulation board is used for a long time, it is easy to fall off, and the way of screw fixing is easy to cause damage to the insulation board, resulting in a decline in insulation performance.

In order to achieve the above purpose, the utility model provides the following technical solutions: an easy-to-install external wall insulation board, including a heat insulation board body, the lower end surface of the insulation board body is closely attached to a connecting plate, and the upper end surface of the connecting plate Two first fixed plates and two second fixed plates are respectively fixedly connected to the left and right sides, the upper end surfaces of the two first fixed plates are fixedly connected with the first positioning plate, and the upper ends of the two second fixed plates are The end face is fixedly connected with a second positioning plate;

A plurality of first installation holes are opened through the upper end surface of the connecting plate.

In order to further play the role of connecting and fixing between the two connecting plates conveniently, as a kind of easy-to-install external wall insulation board of the utility model, a butt groove is provided on the left side of the upper end surface of the first positioning plate A docking block matching the docking groove is fixedly connected to the right side of the second positioning plate, and a plurality of second installation holes are opened through the upper end surfaces of the docking block and the docking groove.

In order to conveniently hide the nail heads of multiple screws in the hidden groove, and avoid the nail heads of multiple screws from hindering the connection between the insulation board body and the connection board, it is preferred as an external wall insulation board for easy installation of the utility model. Yes, the upper end surface of the connecting plate is provided with two hidden grooves matching the plurality of first installation holes.

In order to improve the tightness of the connection after the two insulation board bodies are docked, it is preferred as a kind of easy-to-install exterior wall insulation board of the present invention, a docking slot is opened on the left side of the insulation board body. The right side is fixedly connected with a docking block matching the docking slot.

In order to make it easier for the two ends of the insulation board body to pass between the two first fixing boards and the two second fixing boards, as a kind of easy-to-install exterior wall insulation board of the present utility model, the two first fixing boards are preferably The width between the board and the two second fixing boards is the same as the width of the insulation board body.

Compared with the prior art, the beneficial effects of the utility model are as follows:

In the utility model, when installing the thermal insulation board body on the outer wall, first screw the connecting board into screws in a plurality of first installation holes, and then complete the connection between the connecting board and the outer wall. After installation, thread the left end of the thermal insulation board body in sequence Between the two second fixing plates and the two first fixing plates, the first positioning plate and the second positioning plate play a preliminary positioning role for the insulation board body, and the external positioning is completed through a plurality of connecting plates and a plurality of insulation board bodies in turn. The installation of multiple insulation board bodies outside the wall improves the stability of the connection between the insulation board body and the outer wall, avoids the problem that the insulation board body is prone to fall off with long-term use, and improves the installation and docking of the outer wall. The convenience of multiple thermal insulation board bodies solves the existing problem that the thermal insulation board body is easily damaged and the thermal insulation performance is reduced due to the fixing of the thermal insulation board body and the outer wall by screws.

Description of drawings

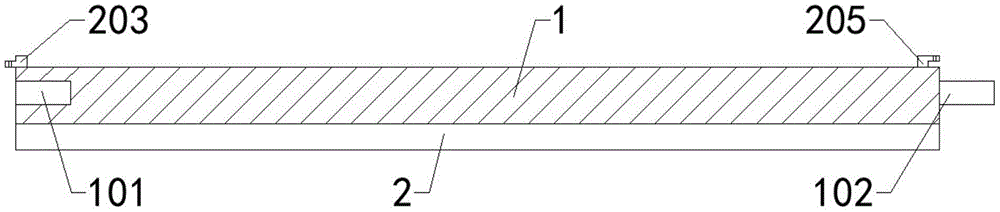

Fig. 1 is a kind of sectional drawing of the external wall insulation board that is convenient to install of the utility model;

Fig. 2 is the structural diagram of the connecting plate place of the present utility model;

Fig. 3 is the enlarged view of place A in Fig. 2 of the utility model;

Fig. 4 is an enlarged view of B in Fig. 2 of the present utility model.

In the figure: 1, insulation board body; 101, docking slot; 102, docking block; 2, connecting plate; 201, first mounting hole; 202, first fixing plate; 203, first positioning plate; 204, second Two fixing plates; 205, the second positioning plate; 206, the hidden groove; 207, the docking block; 208, the docking groove; 209, the second mounting hole.

detailed description

Please refer to Figures 1 to 4, an external wall insulation board that is easy to install, including a insulation board body 1, the lower end surface of the insulation board body 1 is closely attached to a connecting plate 2, and the left and right sides of the upper end surface of the connecting plate 2 are respectively fixed. Two first fixed plates 202 and two second fixed plates 204 are connected, the upper end surfaces of the two first fixed plates 202 are fixedly connected with the first positioning plate 203, and the upper end surfaces of the two second fixed plates 204 are fixedly connected with The second positioning plate 205;

A plurality of first installation holes 201 are opened through the upper end surface of the connecting plate 2 .

In this embodiment: when installing the insulation board body 1 on the exterior wall, first screw the connection board 2 into screws in a plurality of first installation holes 201, and then complete the connection between the connection board 2 and the exterior wall. After installation, the insulation board The left end of the body 1 passes through between the two second fixing plates 204 and the two first fixing plates 202 in turn, the first positioning plate 203 and the second positioning plate 205 play a preliminary positioning role for the insulation board body 1, and pass through multiple A connecting plate 2 and a plurality of insulation board bodies 1 complete the installation of a plurality of insulation board bodies 1 outside the exterior wall, so that the structure improves the stability of the insulation board body 1 after it is connected to the exterior wall, and avoids heat preservation with long-term use. The board body 1 is prone to falling off, and the convenience of installing and docking multiple insulation board bodies 1 on the outer wall is improved, and it solves the problem that the insulation board body 1 is easily damaged and reduced by fixing the insulation board body 1 and the outer wall with screws. The problem of thermal insulation.

As a technical optimization scheme of the present utility model, a docking groove 208 is provided on the left side of the upper end surface of the first positioning plate 203, and a docking block 207 matching the docking groove 208 is fixedly connected to the right side of the second positioning plate 205. A plurality of second installation holes 209 are formed through the upper end surfaces of the docking block 207 and the docking groove 208 .

In this embodiment: after the two connecting plates 2 are docked, after the docking block 207 is lapped into the docking groove 208 on the previous connecting plate 2, a plurality of second mounting holes 209 are aligned, and the aligned multiple second mounting holes 209 are aligned. Bolts are screwed into the holes 209, so as to facilitate the connection and fixation between the two connecting plates 2.

As a technical optimization solution of the present invention, two hidden grooves 206 matching the plurality of first mounting holes 201 are provided on the upper end surface of the connecting plate 2 .

In this embodiment: when screws are screwed into the multiple first installation holes 201, the nail heads of multiple screws are conveniently hidden in the hidden grooves 206 through two hidden grooves 206, so as to avoid the nail heads of multiple screws The connection between the insulation board body 1 and the connecting plate 2 is hindered.

As a technical optimization scheme of the present invention, a docking slot 101 is provided on the left side of the insulation board body 1 , and a docking block 102 matching the docking slot 101 is fixedly connected to the right side of the insulation board body 1 .

In this embodiment: when two insulation board bodies 1 are docked, the docking block 102 on the right side of the insulation board body 1 is inserted into the docking slot 101 on the left side of the previous insulation board body 1, thereby improving the height of the two insulation board bodies. 1 The tightness of the connection after docking.

As a technical optimization solution of the present invention, the width between the two first fixing plates 202 and the two second fixing plates 204 is the same as the width of the insulation board body 1 .

In this embodiment: the width between the two first fixing plates 202 and the two second fixing plates 204 is the same as the width of the insulation board body 1, thereby facilitating the two ends of the insulation board body 1 to pass through the two first Between the fixing plate 202 and the two second fixing plates 204 .

Working principle: When installing the insulation board body 1 on the external wall, first screw the connecting plate 2 into the first mounting holes 201 with screws, and then complete the connection between the connecting plate 2 and the external wall. After installation, the insulation board body 1 The left end of the left end passes through between the two second fixing plates 204 and the two first fixing plates 202 in turn, the first positioning plate 203 and the second positioning plate 205 play a preliminary positioning role for the insulation board body 1, and the two connecting plates 2 After docking, after the docking block 207 is overlapped in the docking groove 208 on the last connecting plate 2, a plurality of second mounting holes 209 are aligned, and bolts are screwed in the aligned multiple second mounting holes 209, and then the two Between two connecting plates 2 further play the role of connection and fixation, when two insulation board bodies 1 are docked, the docking block 102 on the right side of the insulation board body 1 is inserted into the docking slot 101 on the left side of the last insulation board body 1 , complete the installation of multiple thermal insulation board bodies 1 outside the exterior wall through multiple connecting plates 2 and multiple thermal insulation board bodies 1 in sequence.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model should be included in the utility model. within the scope of protection.

Claims (5)

1. An external wall insulation board that is easy to install, comprising a insulation board body (1), characterized in that: the lower end surface of the insulation board body (1) is closely attached to a connecting plate (2), and the connecting plate ( 2) Two first fixed plates (202) and two second fixed plates (204) are respectively fixedly connected to the left and right sides of the upper end surface, and the upper end surfaces of the two first fixed plates (202) are fixedly connected to the second fixed plate (204). A positioning plate (203), the upper end surfaces of the two second fixing plates (204) are fixedly connected with a second positioning plate (205); A plurality of first mounting holes (201) are opened through the upper end surface of the connecting plate (2). 2. An easy-to-install external wall thermal insulation board according to claim 1, characterized in that: a docking groove (208) is provided on the left side of the upper end surface of the first positioning board (203), and the second positioning board (203) The right side of the positioning plate (205) is fixedly connected with a docking block (207) that matches the docking groove (208). Second mounting hole (209). 3. The easy-to-install external wall thermal insulation board according to claim 1, characterized in that: the upper end surface of the connecting board (2) is provided with two holes matching the plurality of first installation holes (201). Hide groove (206). 4. An easy-to-install external wall insulation board according to claim 1, characterized in that: a docking slot (101) is provided on the left side of the insulation board body (1), and the insulation board body (1 ) is fixedly connected with a docking block (102) matched with the docking slot (101). 5. An easy-to-install external wall insulation board according to claim 1, characterized in that: the width between the two first fixing plates (202) and the two second fixing plates (204) is equal to The width of the insulation board body (1) is the same.
