CN217978615U - A solar street lamp with more convenient connection between lamp board and power line - Google Patents

Abstract

The utility model discloses a solar street lamp with a more convenient connection between a lamp board and a power line, which comprises a lamp body, the lamp body includes a connection part, an accessory installation part and an illumination part, and the side wall of the accessory installation groove is provided with a threading hole , the lighting part is provided with several light source grooves and wire grooves, the wire grooves are arranged in some of the light source grooves, the wire grooves and the threading holes are connected to each other, and the surface of the lighting part is provided with several lamps. board, several lenses, and several shielding parts, the lamp board is set in the light source groove, the shielding part is set on the surface of the wire groove, the two side edges of the shielding part are set in the light source groove, the The lens is arranged on the surface of the lamp board and one side of the shielding member, and the lens is connected with the lamp body to fix the shielding member on the surface of the wire groove.

Description

A solar street lamp with more convenient connection between lamp board and power line

technical field

The utility model relates to the field of lamps, in particular to a solar street lamp with more convenient connection between a lamp board and a power line.

Background technique

Street lamps are mainly produced by lamp boards to provide lighting for the environment in which they are used. The lamp boards need electric energy to work normally, so the lamp boards need to be connected to the power line to receive electric energy. The structure of the traditional street lamps is complicated. The connection to the power line is extremely inconvenient, and this is the main disadvantage of conventional technology.

Utility model content

The utility model solves the problem that the connection between the power line and the lamp panel is more convenient through the wire groove, and the sealing performance of the wire groove is better.

In order to achieve the above purpose, the utility model provides a solar street lamp with a more convenient connection between the lamp board and the power line, including a lamp body, and the lamp body includes a connecting part, an accessory mounting part and an illuminating part.

The side wall of the accessory installation part is provided with a threading hole,

The lighting part is provided with several light source grooves and wire grooves, and the wire grooves are arranged in some of the light source grooves,

The trunking and the threading hole communicate with each other,

The surface of the lighting part is provided with several lamp boards, several lenses and several shielding parts, the lamp boards are arranged in the light source groove, the lamp boards are connected with the lamp body,

The shielding member is arranged on the surface of the wire groove, the two side edges of the shielding member are arranged in the light source groove, the lens is arranged on the light board and the surface of one side of the shielding member, and the lens and The lamp body connection can fix the shielding member on the surface of the wire groove.

The technical effects and advantages of the utility model: the lamp body is used in cooperation with the shielding part through the wire groove, so that the lamp board of the lamp body is connected to the power cord more conveniently, and the wire groove is sealed Sex is better and more beautiful.

Description of drawings

Fig. 1 is a perspective view of the utility model.

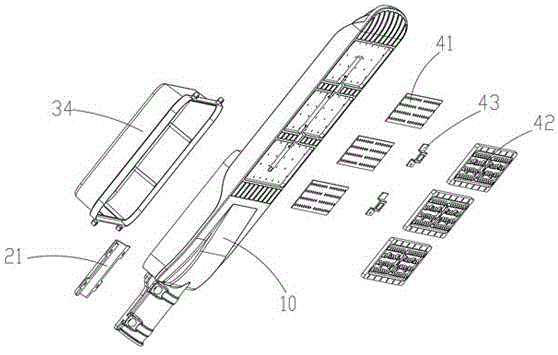

Fig. 2 is a schematic diagram of an exploded view of the utility model.

Fig. 3 is a structural schematic diagram of the connection part of the present invention.

Fig. 4 is a structural schematic diagram of the wiring groove and the light source groove of the lamp body of the present invention.

Fig. 5 is a schematic diagram of the connection between the blocking member and the trunking of the present invention.

Fig. 6 is a structural schematic diagram of the installation groove of the present invention.

Reference numerals: lamp body 10; connecting part 20; accessory mounting part 30; lighting part 40; fixing plate 21; arc-shaped groove 22; groove 23; side wall 31; mounting groove 32; ; Threading hole 35; Light source groove 50; Wire groove 60; Positioning groove 61;

detailed description

As shown in Figures 1 to 6, a solar street lamp with a more convenient connection between the lamp board and the power line includes a lamp body 10, the lamp body 10 includes a connecting part 20, an accessory mounting part 30 and an illuminating part 40, and the accessories are installed One end of the part 30 is provided with the connecting part 20 , and the other end of the accessory installation part 30 is provided with the lighting part 40 .

The upper end of the connecting part 20 is provided with a fixing piece 21, and the connecting part 20 is provided with an arc-shaped groove 22, and the two sides of the arc-shaped groove 22 are provided with some connecting holes, and the center of the fixing piece 21 A groove 23 is provided, and a plurality of second connection holes are arranged on both sides of the groove 23, and the second connection holes are fixedly connected with the connection holes by screws, and the arc-shaped concave of the connection part 20 The groove 22 and the groove 23 of the fixing piece 21 form an installation cavity. When installing, one end of the light pole is arranged in the installation cavity, and the screw passing through the second connection hole and the connection hole Tighten to complete the connection between the street light and the light pole.

The accessory installation part 30 is provided with a protruding side wall 31, and the side wall 31 surrounds and forms an installation groove 32. When in use, the accessories required by the street lamp can be installed in the installation groove 32, and the side wall 31 Several connecting columns 33 are arranged on the edge, and screw holes are arranged in the connecting columns 33 .

The top of the accessories installation part 30 is provided with a cover plate 34, and the edge of the cover plate 34 is provided with a number of installation holes, and the installation holes and the screw holes are connected by screws, so that the accessories of the street lamp can be sealed and installed on the Inside the installation groove 32 .

The accessory installation part 30 is provided with a threading hole 35 near the side wall 31 of the lighting part 40 .

The lighting part 40 is provided with a plurality of light source slots 50 and wire slots 60 , and the wire slots 60 are disposed in the plurality of light source slots 50 .

The wire groove 60 and the wire threading hole 35 communicate with each other, and the power cord in the installation groove 32 extends into the wire groove 60 through the wire threading hole 35 .

The trunking 60 is provided with several positioning slots 61 .

A number of screw holes are provided on the edge of the light source groove 50 .

The surface of the lighting part 40 is provided with a plurality of lamp boards 41, a plurality of lenses 42 and a plurality of shielding parts 43, the lamp boards 41 are arranged in the light source groove 50, and the lamp boards 41 are connected with the lamp body 10 by screws. .

The shielding member 43 is arranged in the positioning groove 61 of the wire groove 60, the two side edges of the shielding member 43 are arranged in the light source groove 50, and the lens 42 is arranged in the lamp board 41 and the On the surface of one side of the shielding member 43, a number of screw holes are provided on the edge of the lens 42, and the screw holes of the lens 42 are connected with the screw holes of the light source groove 50 by screws.

The lens 42 can fix the shield 43 on the surface of the wire groove 60 .

During specific implementation, the light source slot 50 is provided with the lamp board 41, the lamp board 41 is connected to the power line in the wire slot 60, and the lamp board 41 receives electric energy through the power line, so that all The light board 41 can generate lighting when it works, and the lighting passes through the lens 42 to irradiate outward, and the shielding member 43 can cover the wire groove 60, so that the power wires in the wire groove 60 will not be exposed to the outside. The outer side of the lamp body 10, and prevent rainwater, dust, mosquitoes and other objects from entering the interior of the lamp body 10, so that the sealing performance of the lamp body is better and the appearance is more beautiful.

To sum up, the utility model is a solar street lamp that is more convenient to connect the lamp board and the power line. It is more convenient to connect the light board 41 to the power line, and the wire groove 60 is better sealed and more beautiful.

Claims (8)

1. A solar street lamp with a more convenient connection between the lamp board and the power line, characterized in that: it includes a lamp body (10), and the lamp body (10) includes a connecting part (20), an accessory mounting part (30) and a lighting part (40), The side wall (31) of the accessory mounting part (30) is provided with a threading hole (35), The lighting part (40) is provided with several light source grooves (50) and wire grooves (60), and the wire grooves (60) are arranged in some of the light source grooves (50), The trunking (60) and the threading hole (35) communicate with each other, The surface of the lighting part (40) is provided with several lamp panels (41), several lenses (42) and several shielding parts (43), and the lamp panels (41) are arranged in the light source groove (50). The lamp board (41) is connected with the lamp body (10) The shielding member (43) is arranged on the surface of the wire groove (60), the two side edges of the shielding member (43) are arranged in the light source groove (50), and the lens (42) is arranged on the lamp The plate (41) and the surface on one side of the shield (43), the lens (42) connected to the lamp body (10) can fix the shield (43) to the wire groove (60) surface. 2. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 1, characterized in that: the wire groove (60) is provided with several positioning grooves (61), and the shielding member (43) is arranged on In the positioning groove (61) of the wire groove (60). 3. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 1, characterized in that: the upper end of the connecting part (20) is provided with a fixing piece (21), and the connecting part (20) is provided with Arcuate groove (22) is arranged, and the two side edges of described arc groove (22) are all provided with some connection holes, and described fixed piece (21) center is provided with groove (23), and described groove ( 23) A number of second connection holes are provided on the edges of both sides, and the second connection holes are fixedly connected to the connection holes by screws, and the arc-shaped groove (22) of the connection part (20) is connected to the The groove (23) of the fixing piece (21) forms an installation cavity. 4. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 1, characterized in that: the accessory mounting part (30) is provided with a protruding side wall (31), and the side wall (31) A mounting groove (32) is formed around, and a plurality of connecting posts (33) are arranged on the edge of the side wall (31). 5. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 4, characterized in that: a cover plate (34) is provided on the top of the accessory installation part (30), and the cover plate (34) passes through The screw is connected with the connecting column (33). 6. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 5, characterized in that: the connecting column (33) is provided with a screw hole. 7. The solar street lamp with more convenient connection between the lamp panel and the power line according to claim 1, characterized in that: the connection part (20) is provided at one end of the accessory installation part (30), and the accessory installation part ( 30) The other end is provided with the lighting part (40). 8. The solar street lamp with more convenient connection between the lamp board and the power line according to claim 1, characterized in that: the threading hole (35) is provided at the accessory installation part (30) close to the lighting part (40) In the side wall (31) of.
