Abstract

The utility model discloses a wooden door cover pre-installation positioning device, which comprises a box body, the bottom of the box inner cavity is fixedly connected with a mounting plate, the top of the mounting plate is fixedly connected with the top of the box inner cavity, the installation A biaxial motor is fixedly connected to the bottom of the surface of the board, a transmission rod is fixedly connected to both sides of the biaxial motor, and a driving gear is fixedly connected to the side of the transmission rod away from the biaxial motor. The utility model is equipped with a box body, a mounting plate, a double-axis motor, a transmission rod, a driving gear, a threaded rod, a driven gear, a threaded sleeve, a connecting rod, a support frame, a positioning platform, a first positioning block, an electric push rod, and a moving block. Cooperating with the second positioning block can effectively solve the problem that the traditional wooden door cover pre-installed positioning device cannot be adjusted according to the height of the operator during use. This device can easily adjust its height. Thereby, the pre-installation effect of the door cover is improved, and the production quality is guaranteed.

Description

A wooden door cover pre-installed positioning device

technical field

The utility model relates to the technical field of wooden door processing, in particular to a wooden door cover pre-installed positioning device.

Background technique

Door cover is a common decorative wood in the interior decoration industry. Its main function is to fix the door leaf and protect the corners and decorations. It is often used to protect the door leaf from scratches, corrosion, damage, and dirt during decoration and decoration; door cover production The process includes multiple processes, including: fine cutting, opening hardware holes, opening lead holes, tenoning, waterproofing, inspection, packaging, etc. At present, in the process of pre-assembly production of traditional wooden door covers, positioning devices need to be used to align them. It performs positioning to facilitate the subsequent pre-installation work. At present, the traditional pre-installation positioning device cannot be effectively adjusted according to the height of the staff during use, thereby reducing the convenience of operation.

Contents of the invention

The purpose of this utility model is to provide a wooden door cover pre-installed positioning device, which has the advantages of convenient adjustment of the use height, and solves the problem that the current traditional pre-installed positioning device cannot be effectively adjusted according to the use height of the staff during use. Adjustment, thereby reducing the problem of ease of operation.

In order to achieve the above object, the utility model provides the following technical solutions: a wooden door cover pre-installed positioning device, including a box body, the bottom of the box inner cavity is fixedly connected with a mounting plate, the top of the mounting plate and the box inner cavity The top of the mounting plate is fixedly connected, the bottom of the surface of the mounting plate is fixedly connected with a biaxial motor, both sides of the biaxial motor are fixedly connected with a transmission rod, and the side of the transmission rod away from the biaxial motor is fixedly connected with a driving gear , both sides of the bottom of the box inner cavity are movably connected with threaded rods through bearings, the bottom of the surface of the threaded rod is fixedly connected with a driven gear, the driven gear meshes with the driving gear, and the surface of the threaded rod is threaded A threaded sleeve is connected, the surface of the threaded sleeve is fixedly connected with a connecting rod, one side of the connecting rod penetrates the inner cavity of the box and extends to the outside of the box, and the top of one side of the connecting rod is fixedly connected with a support frame, the top of the support frame is fixedly connected with a positioning platform, the left side of the top of the positioning platform is fixedly connected with a first positioning block, the left side of the inner cavity of the positioning platform is fixedly connected with an electric push rod, and the electric push rod A moving block is fixedly connected to the right side of the bar, and a second positioning block is fixedly connected to the top of the moving block.

Preferably, both sides of the surface of the transmission rod are movably connected with connecting blocks through bearings, and the bottom of the connecting block is fixedly connected with the box body.

Preferably, a chute is provided at the bottom of the inner cavity of the positioning platform, a slider is fixedly connected to the bottom of the moving block, and the slider is slidably connected to the chute.

Preferably, anti-vibration pads are fixedly connected to both sides of the bottom of the positioning platform, and the anti-vibration pads are made of rubber.

Preferably, both the top and the bottom of the biaxial motor are fixedly connected with reinforcing plates, and both sides of the surface of the reinforcing plate are provided with fasteners.

Preferably, both sides of the box body are provided with long grooves, and the long grooves and the connecting rods are slidingly connected.

Preferably, the four corners of the bottom of the box are fixedly connected with supporting columns, and the bottom of the supporting columns is fixedly connected with a bottom pad.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model adopts a box body, a mounting plate, a double-axis motor, a transmission rod, a driving gear, a threaded rod, a driven gear, a threaded sleeve, a connecting rod, a support frame, a positioning platform, a first positioning block, an electric push rod, The combined use of the moving block and the second positioning block can effectively solve the problem that the traditional wooden door cover pre-installed positioning device cannot be adjusted according to the height of the operator during use. This device can easily adjust its height. Adjustment, thereby improving the pre-installation effect of the door cover and ensuring the production quality.

2. The utility model can support the transmission rod by setting the connecting block, ensuring the stability of the transmission rod during the rotation process. By setting the chute and the slider, the moving block can be limited to ensure the moving process of the moving block. The stability in the middle, by setting the anti-seismic pad, the positioning table can be anti-seismic, ensuring the stability of the positioning table, by setting the reinforcement plate, the double-axis motor can be reinforced, ensuring the stability of the equipment installation, by setting the long slot , the position of the connecting rod can be limited to ensure the stability of the connecting rod in the process of moving, and the device can be supported by setting a support column.

Description of drawings

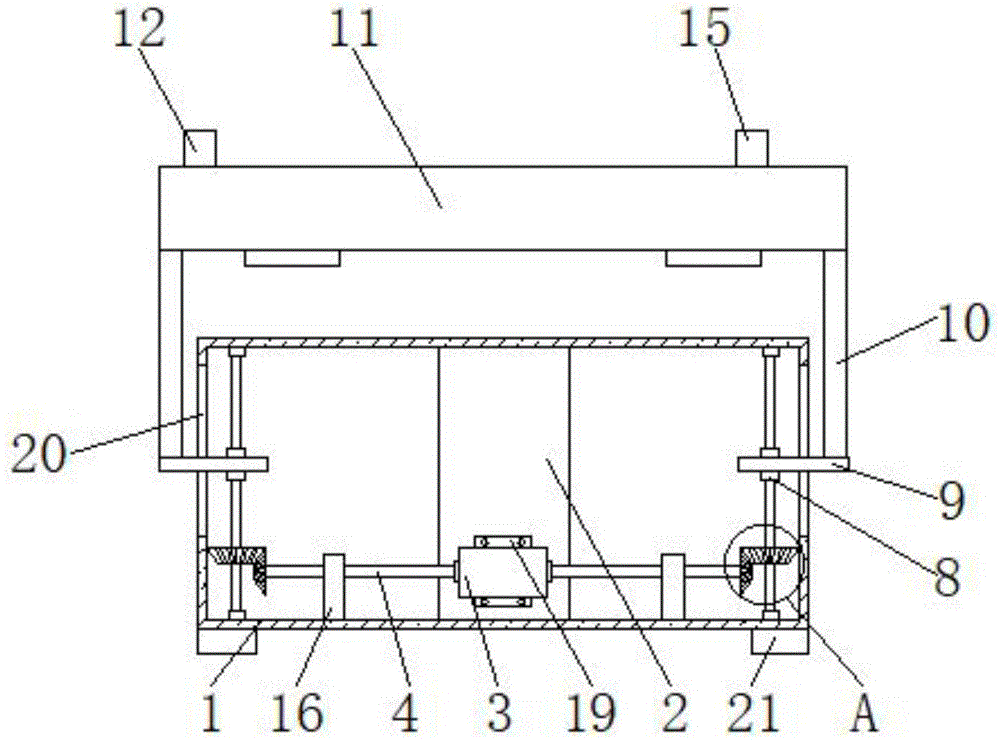

Fig. 1 is the structural representation of the utility model embodiment;

Fig. 2 is a schematic diagram of a partially enlarged structure at A in Fig. 1;

Fig. 3 is a schematic diagram of the internal structure of the positioning platform in the embodiment of the present invention.

In the figure: 1. Box body; 2. Mounting plate; 3. Double-axis motor; 4. Transmission rod; 5. Driving gear; 6. Threaded rod; 7. Driven gear; 8. Threaded sleeve; 9. Connecting rod; 10. Support frame; 11. Positioning platform; 12. First positioning block; 13. Electric push rod; 14. Moving block; 15. Second positioning block; 16. Connecting block; 17. Chute; 18. Slider; 19, reinforcing plate; 20, long groove; 21, support column.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figure 1-3, a wooden door cover pre-installed positioning device, including a box body 1, both sides of the box body 1 are provided with a long groove 20, the long groove 20 and the connecting rod 9 are slidingly connected, the box body 1 The four corners of the bottom are fixedly connected with support columns 21, the bottom of the support columns 21 is fixedly connected with a bottom pad, the bottom of the inner cavity of the box body 1 is fixedly connected with a mounting plate 2, and the top of the mounting plate 2 is connected with the top of the inner cavity of the box body 1 Fixedly connected, the bottom of the surface of the mounting plate 2 is fixedly connected with a biaxial motor 3, the top and bottom of the biaxial motor 3 are fixedly connected with a reinforcing plate 19, and both sides of the surface of the reinforcing plate 19 are provided with fasteners, the biaxial motor Both sides of 3 are fixedly connected with a transmission rod 4, and both sides of the surface of the transmission rod 4 are movably connected with a connecting block 16 through bearings, the bottom of the connecting block 16 is fixedly connected with the box body 1, and the transmission rod 4 is far away from the side of the biaxial motor 3. One side is fixedly connected with the driving gear 5, and both sides of the bottom of the inner cavity of the box body 1 are movably connected with the threaded rod 6 through bearings, and the bottom of the surface of the threaded rod 6 is fixedly connected with the driven gear 7, and the driven gear 7 and the driving gear 5 meshing, the surface of the threaded rod 6 is threadedly connected with a threaded sleeve 8, the surface of the threaded sleeve 8 is fixedly connected with a connecting rod 9, one side of the connecting rod 9 runs through the inner cavity of the box body 1 and extends to the outside of the box body 1, the connecting rod The top on one side of 9 is fixedly connected with a support frame 10, the top of the support frame 10 is fixedly connected with a positioning platform 11, the bottom of the positioning platform 11 inner cavity is provided with a chute 17, and the bottom of the moving block 14 is fixedly connected with a slide block 18, Be sliding connection between block 18 and chute 17, both sides of positioning platform 11 bottoms are all fixedly connected with antivibration pad, and the material of antivibration pad is rubber, and the left side of positioning platform 11 top is fixedly connected with first positioning block 12, and positioning The left side of the inner cavity of the platform 11 is fixedly connected with an electric push rod 13, the right side of the electric push rod 13 is fixedly connected with a moving block 14, and the top of the moving block 14 is fixedly connected with a second positioning block 15. By setting the connecting block 16, it is possible to The transmission rod 4 is supported to ensure the stability of the transmission rod 4 during the rotation process. By setting the chute 17 and the slider 18, the moving block 14 can be limited to ensure the stability of the moving block 14 during the movement process. By arranging the anti-seismic pad, the positioning platform 11 can be anti-seismic, ensuring the stability of the positioning platform 11, by arranging the reinforcing plate 19, the biaxial motor 3 can be reinforced, ensuring the stability of the equipment installation, by arranging the long groove 20 , can limit the position of the connecting rod 9, ensuring the stability of the connecting rod 9 in the moving process, by setting the support column 21, the device can be supported, through the box body 1, the mounting plate 2, the biaxial motor 3, the transmission Rod 4, driving gear 5, threaded rod 6, driven gear 7, threaded sleeve 8, connecting rod 9, support frame 10, positioning platform 11, first positioning block 12, electric push rod 13, moving block 14 and the second positioning The combined use of block 15 can effectively solve the problem that the traditional wooden door cover pre-installed positioning device cannot be adjusted according to the height of the operator during use. The pre-installation effect of the door cover ensures the production quality.

During use, by starting the biaxial motor 3, the biaxial motor 3 drives the transmission rod 4 to rotate, the transmission rod 4 drives the driving gear 5 to rotate, the driving gear 5 drives the driven gear 7 to rotate, and the driven gear 7 drives the threaded rod 6 to rotate, and the thread The rod 6 drives the threaded sleeve 8 to move, the threaded sleeve 8 drives the connecting rod 9 to move, the connecting rod 9 drives the support frame 10 to move, and the support frame 10 drives the positioning table 11 to move, so that the height can be adjusted according to the usage requirements. Push rod 13, electric push rod 13 drives moving block 14 to move, and moving block 14 drives the second positioning block 15 to move, cooperates first positioning block 12 to limit the door cover, thereby can conveniently carry out preinstallation operation to it.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a wooden door pocket pre-installation positioner, includes box (1), its characterized in that: the bottom fixedly connected with mounting panel (2) of box (1) inner chamber, the top of mounting panel (2) and the top fixed connection of box (1) inner chamber, the bottom fixedly connected with biax motor (3) on mounting panel (2) surface, the equal fixedly connected with transfer line (4) in both sides of biax motor (3), one side fixedly connected with driving gear (5) of biax motor (3) are kept away from in transfer line (4), the both sides of box (1) inner chamber bottom all have threaded rod (6) through bearing swing joint, the bottom fixedly connected with driven gear (7) on threaded rod (6) surface, driven gear (7) and driving gear (5) meshing, the surperficial threaded connection of threaded rod (6) has thread bush (8), the fixed surface of thread bush (8) is connected with connecting rod (9), one side of connecting rod (9) runs through the inner chamber of box (1) and extends to the outside of box (1), the top fixedly connected with support frame (10) of connecting rod (9) one side, the top fixedly connected with location platform (11) of support frame (10), the fixed connection of location platform (11) top is connected with a locating block (12), the electric positioning platform (13), a moving block (14) is fixedly connected to the right side of the electric push rod (13), and a second positioning block (15) is fixedly connected to the top of the moving block (14).

2. The wood door pocket preassembling and positioning device of claim 1, wherein: both sides on the surface of the transmission rod (4) are movably connected with connecting blocks (16) through bearings, and the bottoms of the connecting blocks (16) are fixedly connected with the box body (1).

3. The wood door pocket preassembling and positioning device of claim 1, wherein: the bottom of the inner cavity of the positioning table (11) is provided with a sliding groove (17), the bottom of the moving block (14) is fixedly connected with a sliding block (18), and the sliding block (18) is in sliding connection with the sliding groove (17).

4. The wood door pocket preassembling and positioning device according to claim 1, wherein: the two sides of the bottom of the positioning table (11) are fixedly connected with anti-seismic pads, and the anti-seismic pads are made of rubber.

5. The wood door pocket preassembling and positioning device of claim 1, wherein: the top and the bottom of the double-shaft motor (3) are fixedly connected with reinforcing plates (19), and fasteners are arranged on two sides of the surface of each reinforcing plate (19).

6. The wood door pocket preassembling and positioning device of claim 1, wherein: elongated slots (20) are formed in the two sides of the box body (1), and the elongated slots (20) are in sliding connection with the connecting rods (9).

7. The wood door pocket preassembling and positioning device of claim 1, wherein: the all fixedly connected with support column (21) in four corners of box (1) bottom, the bottom fixedly connected with heelpiece of support column (21).
