CN217960774U - A new multifunctional disinfection machine suitable for ambulance disinfection - Google Patents

Abstract

The utility model discloses a novel multi-functional disinfection machine suitable for killing ambulances, which comprises a casing in which an airflow passage as an independent space is separated by a partition, and the casing is provided with an air inlet and an air outlet corresponding to the airflow passage , the air inlet is provided with a primary effect filter, and the airflow channel from the air inlet to the air outlet is provided with a plasma generator, an ozone generator, and a fan in sequence, among which, the plasma generator and the ozone generator choose to work; The outer casing is also provided with: a power supply unit for supplying power to the plasma generator, ozone generator and fan, and a control device connected to the power supply unit; the surface of the casing is provided with an external power socket, a display screen and operation buttons, and the display The screen and operation buttons are respectively connected with the control device, and the power socket is connected with the power supply unit. The disinfection machine is installed on the ambulance, and the ozone generator can be used for disinfection when the vehicle is on standby, and the plasma generator can be used for disinfection when the vehicle is out of the vehicle.

Description

A new multifunctional disinfection machine suitable for ambulance disinfection

technical field

The utility model relates to a disinfection machine, in particular to a novel multifunctional disinfection machine suitable for disinfecting ambulances.

Background technique

Ambulance is an important carrier of pre-hospital first aid. During the implementation of emergency tasks, the patient's blood, excrement and secretions are likely to pollute the medical cabin environment of the ambulance. In addition, the medical cabin has small space, many people, and a long Factors such as being in a closed state for a long time will increase the risk of medical staff infection through the air, that is, while saving the lives of patients, medical staff also face the hidden danger of cross-infection diseases, and may even cause disease infection in the hospital. Therefore, as a In the special hospital infection control environment, it is necessary to pay attention to the disinfection in the vehicle during the pre-hospital transfer stage, especially the air purification and virus disinfection in the medical cabin.

Utility model content

Aiming at the problems existing in the prior art, the purpose of this utility model is to provide a novel multifunctional disinfection machine suitable for ambulance disinfection.

In order to achieve the above object, the technical scheme of the utility model is as follows:

A new type of multifunctional disinfection machine suitable for ambulance disinfection, including a casing, in which airflow passages as independent spaces are separated by partitions, and air inlets and outlets are arranged on the casing corresponding to the airflow passages, and the air inlets A preliminary filter screen is arranged at the place, and a plasma generator, an ozone generator, and a blower fan are sequentially arranged on the airflow channel from the air inlet to the air outlet, wherein the plasma generator and the ozone generator choose one to work; The casing outside the air flow channel is also provided with: a power supply unit for supplying power to the plasma generator, the ozone generator and the blower fan, and a control device connected to the power supply unit; the surface of the casing An external power socket, a display screen and operation buttons are provided, wherein the display screen and the operation buttons are respectively connected to the control device, and the power socket is connected to the power supply unit.

Further, the power supply unit includes a switching power supply directly supplying power to the plasma generator, the ozone generator, the control device and the blower and a battery as a backup power supply, and the power socket is connected to the switching power supply , the battery supplies power to the switching power supply when the sterilizer is not connected to an external power supply, and an inverter module is arranged between the battery and the switching power supply.

Further, the voltage of the battery is 48V, and a charging module for charging the battery is arranged in the casing.

Furthermore, the switching power supply can output nanosecond-level narrow pulse high-voltage pulses to drive the plasma generator to work, and can also output high-voltage AC pulses to drive the ozone generator to work.

Further, a TVOC (Total Volatile Organic Compounds, Total Volatile Organic Compounds) sensor array module and a PM2.5 sensor respectively connected to the display screen are arranged in the airflow channel.

Further, a temperature sensor and a humidity sensor respectively connected to the display screen are arranged in the casing.

Further, the display screen is also used for displaying the power of the battery, or a second display screen for displaying the power of the battery is arranged on the casing.

Further, a wireless transmission module connected to the control device and the display screen is arranged in the casing, and the environmental information of the sterilizer is remotely sent to the server and/or terminal through the wireless transmission module and received. Control information sent by the server and/or the terminal.

Further, the wireless transmission module is a 4G module or a 5G module.

After installing the disinfection machine of the utility model on the ambulance, when there is no one in the car, such as before leaving the car or after the task is over, the ozone generator can be used to completely disinfect the environment inside the car. Then you can use the plasma generator to disinfect the environment inside the car. When the ozone generator or plasma generator is working, the primary effect filter first filters the air entering the airflow channel of the sterilizer to remove larger particle pollutants in the air, and the filtered air flows through the ozone generator or plasma When the generator is used, the ozone ions or positive and negative ions are carried into the interior space of the ambulance to realize the elimination of germs floating in the space and attached to the surface of objects in the car, thus ensuring the health and safety of the environment inside the ambulance .

Description of drawings

Fig. 1 is the structural schematic diagram of the novel multifunctional disinfection machine applicable to ambulance disinfecting provided by the example of the utility model;

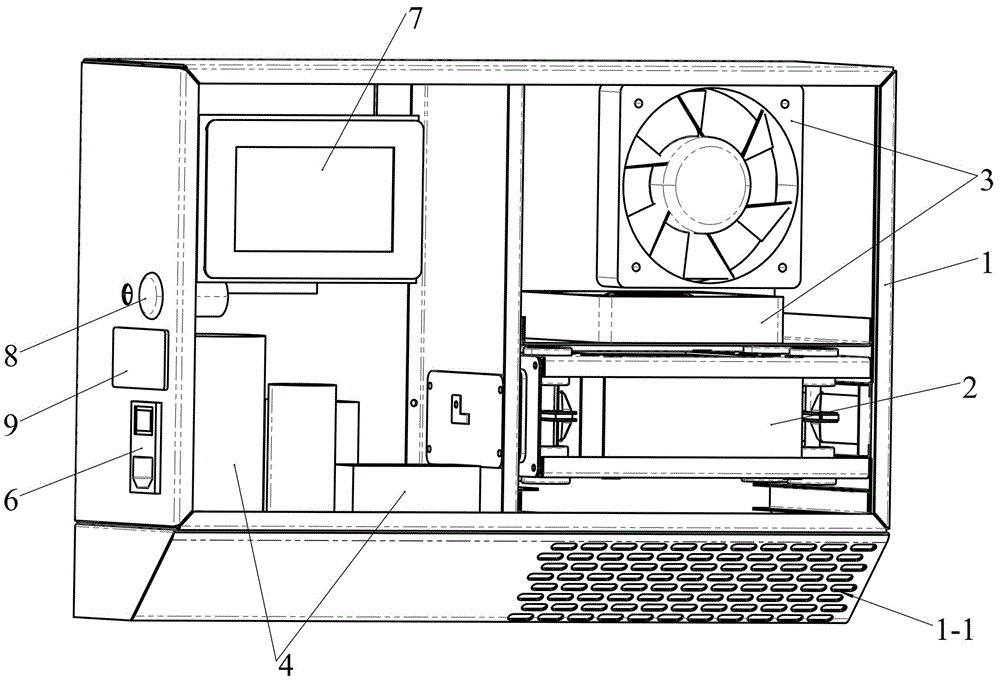

Fig. 2 is a schematic diagram of the internal structure of the utility model example disinfection machine;

Fig. 3 is the top view schematic diagram of the utility model example disinfection machine;

Fig. 4 is the cross-sectional structure schematic diagram of Fig. 3;

In the picture:

1—casing; 1-1—air inlet; 1-2—air outlet; 2—plasma generator and ozone generator; 3—fan; 4—switching power supply; 5—battery; 6—power socket; 7—display screen; 8—operation button; 9—second display screen.

detailed description

In order to enable those skilled in the art to better understand the solution of the utility model, the technical solution of the utility model is clearly and completely described below in conjunction with the accompanying drawings in the example of the utility model. Obviously, the described example is only the utility model. Some examples of new types, but not all examples. Based on the examples in the present utility model, all other implementations obtained by persons of ordinary skill in the art without creative efforts shall fall within the protection scope of the present utility model.

In the description of this embodiment, the terms "first" and "second" are only used to distinguish similar objects, and cannot be interpreted as a specific sequence or sequence. It should be understood that such usages can be interchanged under appropriate circumstances.

The example shown in Figure 1-4 provides a novel multi-functional disinfection machine suitable for disinfecting ambulances according to the utility model, including a casing 1, and an airflow passage as an independent space is separated by a partition in the casing 1 , the air inlet 1-1 and the air outlet 1-2 are set corresponding to the air flow channel on the casing, and the primary filter is set at the air inlet 1-1, and the air flow channel from the air inlet 1-1 to the air outlet 1-2 A plasma generator, an ozone generator, and a blower fan 3 are provided in sequence, and 2 in the figure is a plasma generator and an ozone generator, and the plasma generator and the ozone generator can be arranged side by side horizontally, wherein the plasma generator and the ozone generator can be selected to work The casing 1 outside the air flow channel is also provided with: a power supply unit for supplying power to the plasma generator, ozone generator and fan 3, and a control device connected to the power supply unit; the surface of the casing 1 is provided with an external power socket 6 , a display screen 7 and an operation button 8, wherein the display screen 7 and the operation button 8 are respectively connected to the control device, and the power socket 6 is connected to the power supply unit.

After the disinfection machine in this example is installed on the ambulance, when there is no one in the car, such as before leaving the car or after the task is over, the ozone generator can be used to fully disinfect the environment inside the car. Then you can use the plasma generator to disinfect the environment inside the car. When the ozone generator or plasma generator is working, the primary effect filter at the air inlet 1-1 first filters the air entering the airflow channel of the sterilizer to remove larger particle pollutants in the air, and the filtered air When flowing through the ozone generator or plasma generator, the ozone ions or positive and negative ions are carried into the interior space of the ambulance to realize the elimination of germs floating in the space and attached to the surface of objects in the car, thereby ensuring the ambulance The health and safety of the car environment.

It should be noted that, referring to Figure 1-2, under the action of the fan 3, the air enters the airflow channel from the air inlet 1-1 at the lower end of the casing 1 through the primary filter, and is sterilized by an ozone generator or a plasma generator. The final air is discharged into the medical cabin of the ambulance from the air outlet 1-2 on the upper end of the casing 1, thereby completing the circulation and disinfecting of the air in the medical cabin. The operation button 8 acts on the control device so as to achieve the purpose of switching the work of the plasma generator and the ozone generator. The display screen 7 can be used to display the working status of the plasma generator and the ozone generator, and the control device can be used to control the display content of the display screen 7 .

The disinfecting principle of the plasma generator: water molecules in the air pass through the plasma to generate a large number of free radicals such as OH, and the hydroxyl free radicals attach to the surface of bacteria, viruses and other microorganisms through oxidation-reduction reactions, and can react with double bonds on the cell walls of bacteria to destroy Bacterial cell membrane and enter its interior, acting on cell protein and lipopolysaccharide, causing cell lysis and death, and achieving sterilization; for viruses, hydroxyl radicals directly destroy their genetic material (RNA/DNA) by breaking their lipid envelope and capsid , so that it cannot be copied to achieve antivirus.

Purification principle of plasma generator: 1) Decomposition of organic gas: Under the catalysis of strong electric energy field and oxide, the molecules of harmful gas are rapidly dissociated, and its atoms are continuously ionized under the catalysis of electric energy field and oxide. Cause chemical bonds between atoms to break, and then recombine into new substances according to the characteristic relationship between atoms (for example, hydroxyl radicals can degrade formaldehyde into water molecules and carbon dioxide); 2) Particle removal: energy-carrying electrons in the plasma The contact with solid pollutants makes the solid pollutants charged, and they are combined into large particles in the process of collision with each other and deposited on the dust collecting part arranged at the lower end of the casing 1 .

Ozone disinfecting principle: Ozone acts on the cell membranes of bacteria and other microorganisms, causing damage to their cell membranes, metabolic disorders, and growth inhibition. When ozone breaks through the cell membrane and continues to permeate, the lipoprotein and lipopolysaccharide in the membrane are destroyed, the cell permeability is changed, and the body is killed. Ozone kills the virus because the oxidation directly destroys its genetic material (RNA/DNA), thereby killing the virus.

Plasma and ozone can both play a role in sterilization and disinfection, but the effect of ozone on the surface of objects in the ambulance medical cabin is more obvious. Therefore, when the ambulance is on standby, the ozone generator of this example disinfection machine can be used for disinfection. After 30 minutes of continuous disinfection by the ozone generator, the air and the surface of the object can be fully disinfected. In order to avoid the harm of ozone to medical staff, the ozone is basically completely attenuated after 30 minutes of shutdown. At this time, the medical cabin can be used.

The power supply unit of this example includes a switching power supply 4 and a battery 5 as a backup power supply directly to the plasma generator, ozone generator, control device and blower fan. Power supply for the switching power supply 4, and an inverter module is arranged between the battery 5 and the switching power supply 4, so that the 220V alternating current is provided by the battery 5 to supply power to the ozone generator. That is, the switching power supply 4 of this example can be powered by a battery 5 , or can be powered by an external power supply socket 6 , and the battery 5 can be a dry battery or a storage battery.

Preferably, the voltage of the battery 5 is 48V, and a charging module for charging the battery 5 is arranged in the housing 1 .

In this example, the switching power supply 4 can output nanosecond narrow pulse high-voltage pulses to drive the plasma generator to work, and can also output high-voltage AC pulses to drive the ozone generator to work.

In this example, a TVOC sensor array module and a PM2.5 sensor respectively connected to the display screen 7 are arranged in the airflow channel.

A temperature sensor and a humidity sensor respectively connected to the display screen 7 are arranged in the casing 1 of this example.

The above sensors display the measured TVOC, PM2.5, temperature and humidity parameters through the display screen 7 .

The display screen 7 can also be used to display the power level of the battery 5 , and in this example, a second display screen 9 for displaying the power level of the battery 5 is provided on the casing 1 .

In this example, a wireless transmission module connected to the control device and the display screen 7 is provided in the casing 1, and the environmental information of the disinfection machine is sent to a remote server and/or terminal through the wireless transmission module and received by the server and/or terminal. Control information sent by the terminal. Specifically, the environmental information includes the above-mentioned TVOC, PM2.5, temperature, and humidity parameters. The server or terminal personnel can grasp the environmental status of the ambulance medical cabin according to the environmental information, and send control information to control the plasma generator in the disinfection machine or The ozone generator is working.

Preferably, the wireless transmission module can be a 4G module or a 5G module.

Finally, it can be understood that the above embodiments are only exemplary embodiments adopted to illustrate the principles of the present invention, but the present invention is not limited thereto. For those skilled in the art, various modifications and improvements can be made without departing from the principle and essence of the present utility model, and these variations and improvements are also regarded as the protection scope of the present utility model.

Claims (9)

1. A novel multifunctional disinfection machine suitable for disinfecting ambulances is characterized in that it comprises a casing, and the casing utilizes a partition to separate an airflow passage as an independent space, and the casing is provided with an air inlet corresponding to the airflow passage and the air outlet, the air inlet is provided with a preliminary filter screen, and the airflow channel from the air inlet to the air outlet is successively provided with a plasma generator, an ozone generator, and a fan, wherein the plasma generator and the ozone generator Select one of the work; the casing outside the air flow passage is also provided with: a power supply unit for supplying power to the plasma generator, the ozone generator and the blower fan, and the power supply unit connected to the power supply unit Control device; the surface of the casing is provided with an external power socket, a display screen and operation buttons, wherein the display screen and the operation buttons are respectively connected to the control device, and the power socket is connected to the power supply unit. 2. The novel multifunctional sterilizer according to claim 1, wherein the power supply unit includes a switching power supply that directly supplies power to the plasma generator, the ozone generator, the control device and the fan And a battery as a backup power supply, the power socket is connected to the switching power supply, the battery supplies power to the switching power supply when the sterilizer is not connected to an external power supply, and an inverter is arranged between the battery and the switching power supply Change module. 3. The novel multifunctional disinfection machine according to claim 2, wherein the voltage of the battery is 48V, and a charging module for charging the battery is arranged in the casing. 4. The new multi-functional disinfection machine according to claim 2, characterized in that, the switching power supply can output nanosecond-level narrow pulse high-voltage pulses to drive the plasma generator to work, and can also output high-voltage AC pulses to drive the ozone The generator works. 5. The novel multi-functional disinfection machine according to claim 2, wherein a TVOC sensor array module and a PM2.5 sensor respectively connected to the display screen are arranged in the airflow channel. 6. The novel multi-functional sterilizer according to claim 2, characterized in that a temperature sensor and a humidity sensor respectively connected to the display screen are arranged in the housing. 7. The novel multifunctional sterilizer according to claim 5 or 6, characterized in that, the display screen is also used to display the electric quantity of the battery, or, the casing is provided with a device for displaying the electric quantity of the battery. on the second display. 8. The new multi-functional disinfection machine according to claim 1, characterized in that, a wireless transmission module connected to the control device and the display screen is arranged in the casing, through which the wireless transmission module can remotely Send the environment information of the sterilizer to the server and/or the terminal and receive the control information sent by the server and/or the terminal. 9. The novel multifunctional disinfection machine according to claim 8, characterized in that, the wireless transmission module is a 4G module or a 5G module.
