Abstract

The utility model discloses a large-scale outdoor in-line LED high-definition display screen, which comprises an LED display screen, a solar panel, a connecting block and a fixing block. The LED display screen is used in conjunction with the solar panel, and the connecting block is fixedly connected to the LED display screen. , the solar panel is fixedly connected to the fixed block, a cavity is opened inside the fixed block, and a positioning device is fixedly installed on the bottom of the inner wall of the cavity. In this utility model, through the joint use of the connecting block, the fixing block, the positioning device and the transmission device, the positioning device can make the solar panel and the LED display screen fixedly connected, and the transmission device can make the positioning device move out from the inside of the connection block to realize the solar panel. The separation solves the problem that the existing screen is too large and consumes a lot of power. There is no device that can save power, and the problem of wasting too much power. This large outdoor in-line LED high-definition display has the ability to have a Advantages of devices that save electrical energy.

Description

Large outdoor in-line LED high-definition display

technical field

The utility model belongs to the technical field of LED display screens, in particular to a large-scale outdoor direct plug-in LED high-definition display screen.

Background technique

The LED display screen is composed of small LED module panels. It is displayed by semiconductor light-emitting diodes. The existing LED display screens are often used in every corner of the outdoor city. During the use process, due to the large screen , which leads to a relatively high power consumption. The existing outdoor LED display screens are often displayed directly through the power supply. There is no device that can save power, which wastes too much power. The problem with the existing technology is: because the screen is too large , resulting in more power consumption, there is no device that can save power, which is a waste of power.

Utility model content

Aiming at the problems existing in the prior art, the utility model provides a large-scale outdoor in-line LED high-definition display screen, which has the advantage of being able to save electric energy, and solves the problem that the existing screen is too large and consumes a lot of electric energy. , there is no device that can save electric energy, which is a problem of wasting electric energy too much.

The utility model is realized in this way. The large-scale outdoor in-line LED high-definition display includes an LED display, a solar panel, a connecting block and a fixing block. The LED display is used in conjunction with the solar panel, and the connecting block and the LED display The solar panel is fixedly connected with the fixed block, the inside of the fixed block is provided with a cavity, the bottom of the inner wall of the cavity is fixedly installed with a positioning device, and the top of the inner wall of the cavity is fixedly installed with a transmission device , the right side of the solar panel is fixedly connected with a controller, the bottom of the controller is used with an inverter, and the bottom of the inverter is used with a storage battery.

As preferred in the present invention, the positioning device includes a positioning block, the outer surface of the positioning block is movably connected with the inside of the cavity, the left side of the positioning block is used in conjunction with the inside of the connecting block, and the positioning block is The right side is fixedly connected with a pressure spring, the right side of the pressure spring is fixedly connected with the right side of the inner wall of the cavity, and the front side of the positioning block is movably connected with a connecting rod.

As preferred in the present invention, the transmission device includes a pull rod, the outer surface of the pull rod is movably connected with the interior of the cavity, the bottom of the pull rod is fixedly connected with a return spring, and the bottom of the return spring is fixedly connected with a support plate , the left side and the right side of the support plate are respectively fixedly connected with the left side and the right side of the inner wall of the cavity, the front side of the support plate is rotatably connected with a rotating rod, and the bottom of the rotating rod is movable with the top of the connecting rod connected, the top of the rotating rod is fixedly connected with a movable rod, and the top of the movable rod is movably connected with the front side of the pull rod.

As preferred in the present invention, a positioning groove is provided inside the connecting block, and the inside of the positioning groove is used in cooperation with the left side of the positioning block.

As preferred in the present invention, two square blocks are slidably connected to the surface of the positioning block, and the front side and the rear side of the two square blocks are respectively fixedly connected to the front side and the rear side of the inner wall of the cavity.

As preferred in the present invention, a movable groove is provided on the left side of the top of the inner wall of the cavity, and the inside of the movable groove is used in conjunction with the left side of the pull rod.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model is used in conjunction with a connecting block, a fixing block, a positioning device and a transmission device. The positioning device can make the solar panel and the LED display screen fixedly connected, and the transmission device can make the positioning device move out from the inside of the connection block to realize solar energy The separation of the plates has the advantage of being able to have a device that saves electrical energy.

2. The utility model can move from the inside of the fixed block to the inside of the connecting block by setting the positioning device, so as to realize the fixing of the solar panel.

3. The utility model can move the positioning device out from the inside of the connecting block by setting the transmission device, so as to realize the separation of the solar panel and the LED display screen.

4. The utility model can fix the connecting block and the fixed block by setting the positioning groove, and the cooperative use of the positioning groove and the positioning block.

5. The utility model can play a position-limiting role by arranging square blocks, which can limit the movement of the positioning blocks.

6. The utility model can make the moving effect of the pull rod better by setting the movable groove, so as to avoid affecting the normal use of the pull rod.

Description of drawings

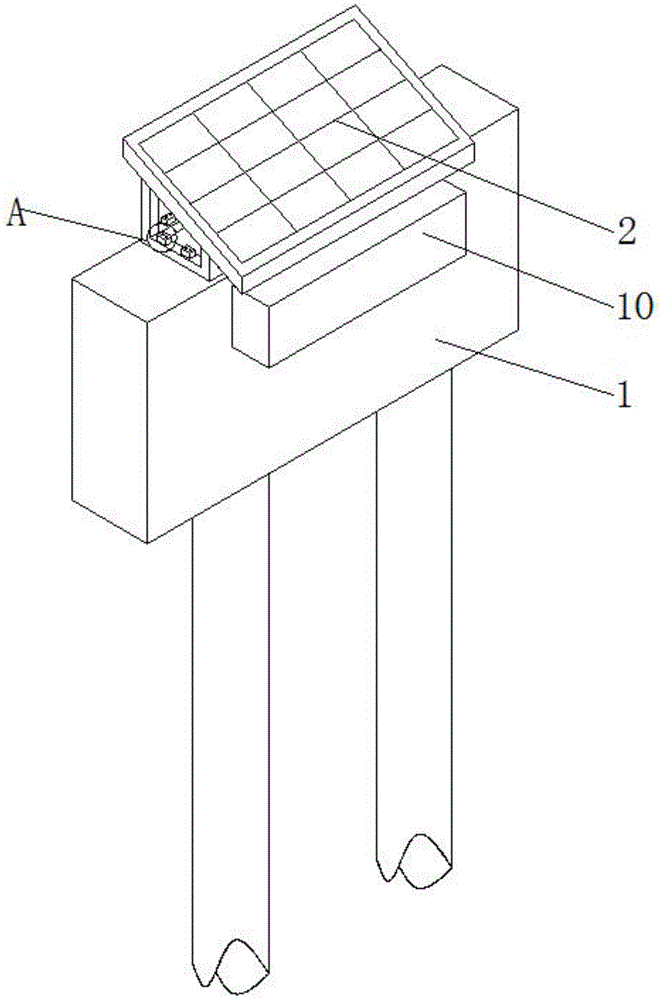

Fig. 1 is the structural representation that the utility model embodiment provides;

Fig. 2 is an enlarged view of A in Fig. 1 provided by the embodiment of the present invention;

Fig. 3 is the front sectional view of partial structure provided by the embodiment of the utility model;

Fig. 4 is an enlarged view of B in Fig. 3 provided by the embodiment of the present invention.

In the figure: 1. LED display screen; 2. Solar panel; 3. Connecting block; 4. Fixing block; 5. Cavity; 6. Positioning device; 601. Positioning block; 602. Pressure spring; 603. Connecting rod; 7 , transmission device; 701, pull rod; 702, return spring; 703, support plate; 704, rotating rod; 705, movable rod; 8, controller; 9, inverter; 10, storage battery; 11, positioning slot; 12 , square block; 13, movable groove.

Detailed ways

In order to further understand the invention content, characteristics and effects of the present utility model, the following examples are given, and detailed descriptions are given below in conjunction with the accompanying drawings.

Below in conjunction with accompanying drawing, the structure of the present utility model is described in detail.

As shown in Figures 1 to 4, the large-scale outdoor in-line LED high-definition display provided by the embodiment of the utility model includes an LED display 1, a solar panel 2, a connecting block 3 and a fixing block 4, the LED display 1 and the solar panel The board 2 is used together, the connecting block 3 is fixedly connected with the LED display screen 1, the solar panel 2 is fixedly connected with the fixed block 4, the inside of the fixed block 4 is provided with a cavity 5, and the bottom of the inner wall of the cavity 5 is fixedly installed with a positioning device 6, The top of the inner wall of the cavity 5 is fixedly installed with a transmission device 7, the right side of the solar panel 2 is fixedly connected with a controller 8, the bottom of the controller 8 is used with an inverter 9, and the bottom of the inverter 9 is used with a storage battery 10.

Referring to Fig. 4, the positioning device 6 includes a positioning block 601, the outer surface of the positioning block 601 is movably connected with the inside of the cavity 5, the left side of the positioning block 601 is used in conjunction with the inside of the connecting block 3, and the right side of the positioning block 601 is fixedly connected There is a pressure spring 602, the right side of the pressure spring 602 is fixedly connected with the right side of the inner wall of the cavity 5, and the front side of the positioning block 601 is movably connected with a connecting rod 603.

Adopt the above scheme: by setting the positioning device 6 , it can move from the inside of the fixing block 4 to the inside of the connecting block 3 to realize the fixing of the solar panel 2 .

Referring to Fig. 4, the transmission device 7 includes a pull rod 701, the outer surface of the pull rod 701 is flexibly connected to the inside of the cavity 5, the bottom of the pull rod 701 is fixedly connected with a return spring 702, and the bottom of the return spring 702 is fixedly connected with a support plate 703, the support plate The left side and the right side of 703 are respectively fixedly connected with the left side and the right side of cavity 5 inner walls, and the front side of support plate 703 is connected with rotating rod 704, and the bottom of rotating rod 704 is flexibly connected with the top of connecting rod 603. A movable rod 705 is fixedly connected to the top of the rod 704 , and the top of the movable rod 705 is movably connected to the front side of the pull rod 701 .

Adopt the above solution: by setting the transmission device 7, the positioning device 6 can be moved out from the inside of the connection block 3, and the separation of the solar panel 2 and the LED display screen 1 can be realized.

Referring to FIG. 4 , a positioning slot 11 is opened inside the connection block 3 , and the inside of the positioning slot 11 is used in cooperation with the left side of the positioning block 601 .

Adopt the above solution: by setting the positioning slot 11, the positioning slot 11 and the positioning block 601 can be used together to fix the connecting block 3 and the fixing block 4.

Referring to FIG. 4 , two square blocks 12 are slidably connected to the surface of the positioning block 601 , and the front and rear sides of the two square blocks 12 are respectively fixedly connected to the front and rear sides of the inner wall of the cavity 5 .

Adopting the above-mentioned solution: by setting the square block 12, it can play a position-limiting role, and the movement of the positioning block 601 can be restricted.

Referring to FIG. 4 , a movable groove 13 is opened on the left side of the top of the inner wall of the cavity 5 , and the inside of the movable groove 13 cooperates with the left side of the pull rod 701 .

Adopting the above scheme: by setting the movable groove 13, the moving effect of the pull rod 701 can be improved, and the normal use of the pull rod 701 can be avoided.

Working principle of the utility model:

When in use, press the pull rod 701 to move downward by manpower, the movement of the pull rod 701 will make the movable rod 705 move, the movement of the movable rod 705 will make the rotating rod 704 rotate through the support plate 703, and the rotation of the rotating rod 704 will drive the connection The rod 603 moves, so that the movement of the connecting rod 603 makes the positioning block 601 move to the right, and the positioning block 601 is moved out from the inside of the positioning groove 11, so that the solar panel 2 is separated, and the movement of the pull rod 701 will cause a deformation of the return spring 702 Force, after the pull rod 701 is released, the return spring 702 will give the pull rod 701 a same force, so that the pull rod 701 drives the movable rod 705 and makes the rotating rod 704 return to its original position, and the movement of the positioning block 601 will cause a deformation of the pressure spring 602 When the pull rod 701 is released, the pressure spring 602 will give the positioning block 601 a same force, so that the positioning block 601 drives the movable rod 705 to rebound to the inside of the positioning groove 11, and the solar panel 2 is fixed.

To sum up: the large-scale outdoor in-line LED high-definition display, by setting LED display 1, solar panel 2, connecting block 3, fixing block 4, cavity 5, positioning device 6, positioning block 601, pressure spring 602 , connecting rod 603, transmission device 7, pull rod 701, return spring 702, support plate 703, rotating rod 704, movable rod 705, controller 8, inverter 9, storage battery 10, positioning groove 11, square block 12 and movable The cooperating use of the slot 13 solves the problem that the existing screen is too large and consumes a lot of electric energy. There is no device that can save electric energy, and the problem of wasting electric energy is too much.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. any such actual relationship or order exists between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or apparatus.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. Large-scale outdoor formula LED high definition display screen that cut straightly, including LED display screen (1), solar panel (2), connecting block (3) and fixed block (4), LED display screen (1) uses with solar panel (2) cooperation, connecting block (3) and LED display screen (1) fixed connection, solar panel (2) and fixed block (4) fixed connection, its characterized in that: cavity (5) have been seted up to the inside of fixed block (4), the bottom fixed mounting of cavity (5) inner wall has positioner (6), the top fixed mounting of cavity (5) inner wall has transmission (7), the right side fixedly connected with controller (8) of solar panel (2), the bottom cooperation of controller (8) is used and is had inverter (9), the bottom cooperation of inverter (9) is used and is had storage battery (10).

2. The large outdoor direct-inserted LED high-definition display screen as claimed in claim 1, characterized in that: positioner (6) are including locating piece (601), the inside swing joint of the surface of locating piece (601) and cavity (5), the left side of locating piece (601) is used with the inside cooperation of connecting block (3), the right side fixedly connected with pressure spring (602) of locating piece (601), the right side of pressure spring (602) and the right side fixed connection of cavity (5) inner wall, the front side swing joint of locating piece (601) has connecting rod (603).

3. The large outdoor direct-inserted LED high-definition display screen as claimed in claim 2, characterized in that: transmission (7) include pull rod (701), the inside swing joint of the surface of pull rod (701) and cavity (5), the bottom fixedly connected with reset spring (702) of pull rod (701), the bottom fixedly connected with backup pad (703) of reset spring (702), the left side and the right side of backup pad (703) respectively with the left side and the right side fixed connection of cavity (5) inner wall, the front side of backup pad (703) rotates and is connected with bull stick (704), the bottom of bull stick (704) and the top swing joint of connecting rod (603), the top fixedly connected with movable rod (705) of bull stick (704), the top of movable rod (705) and the front side swing joint of pull rod (701).

4. The large outdoor direct-inserted LED high-definition display screen as claimed in claim 2, characterized in that: locating slot (11) have been seted up to the inside of connecting block (3), the inside of locating slot (11) is used with the left side cooperation of locating piece (601).

5. The large outdoor direct-inserted LED high-definition display screen as claimed in claim 2, characterized in that: the surface of the positioning block (601) is connected with two square blocks (12) in a sliding mode, and the front side and the rear side of each square block (12) are fixedly connected with the front side and the rear side of the inner wall of the cavity (5) respectively.

6. The large outdoor direct-inserted LED high-definition display screen as claimed in claim 3, wherein: a movable groove (13) is formed in the left side of the top of the inner wall of the cavity (5), and the inner portion of the movable groove (13) is matched with the left side of the pull rod (701) for use.
